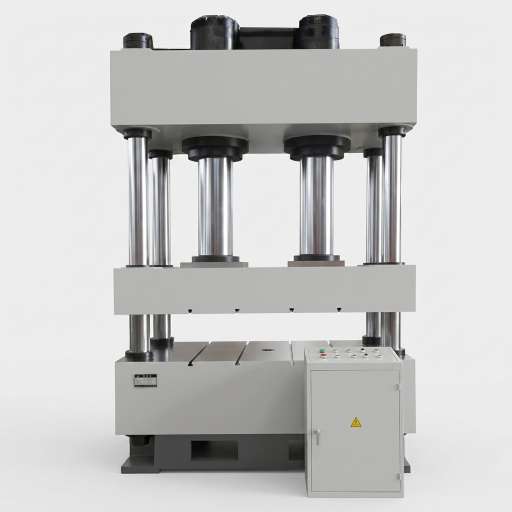

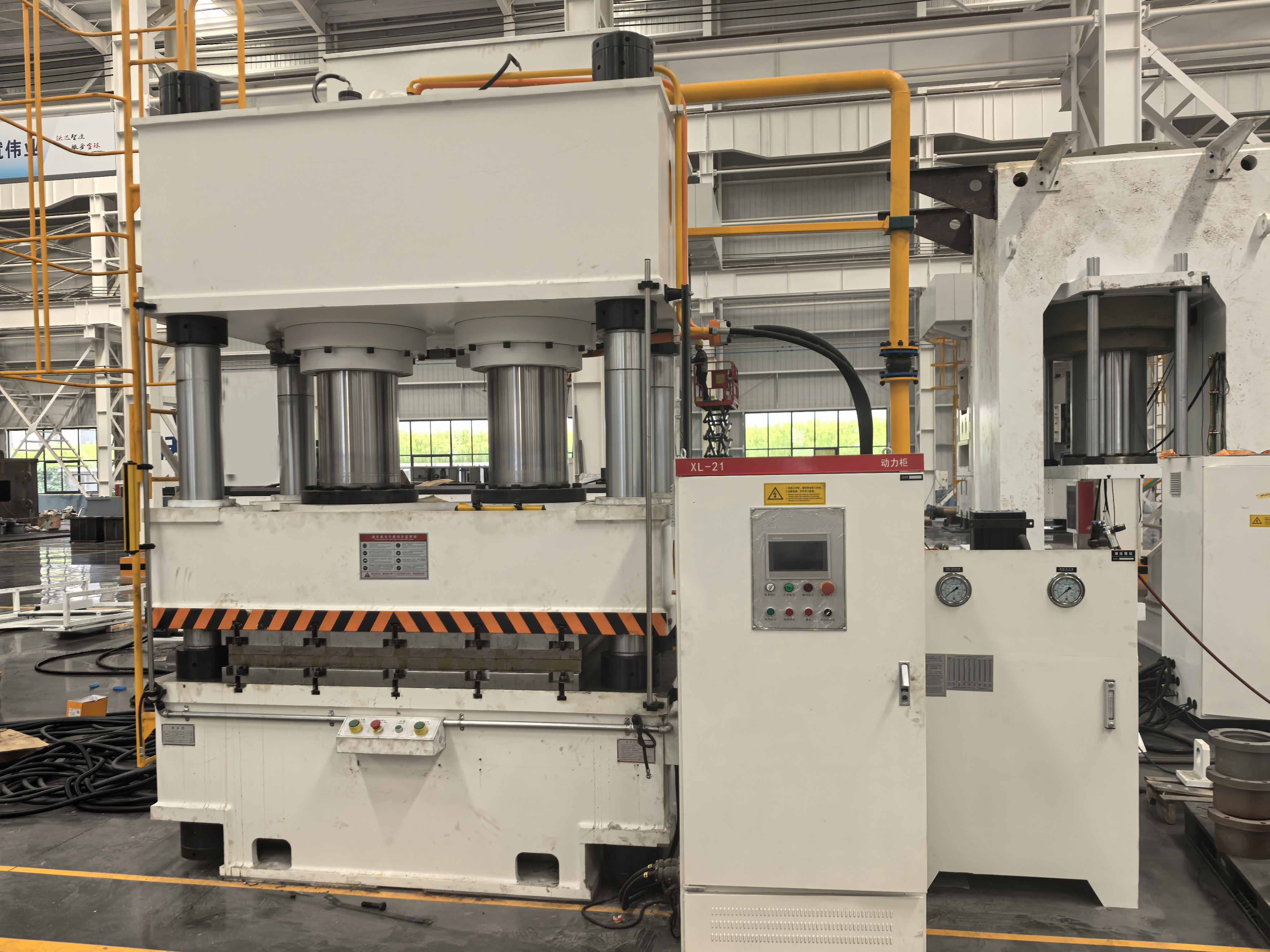

This series of products is suitable for the pressing process of various plastic materials, such as stamping, bending, flanging and so on. It can also be used for press forming of calibration, press fitting, grinding wheel forming, plastic products, rubber products and powder products.
The main engine of this series adopts three-beam four-column oil circuit; the hydraulic system adopts the plug-in valve oil circuit; the electrical system adopts relays or PLC control circuit, with adjustment and semi-automatic operation mode. The whole machine has simple structure, good quality, reasonable economy and reliable action. Long service life, small hydraulic impact force, reduced working pressure, pressing speed and stroke range of connecting series and products can be adjusted within the specified range according to the process requirements. The pressing process can be realized by adjusting and fixing the pressure and fixed range in the specified range. During constant pressure forming, the ejector is holding delay and an automatic return. There is a die ejector device installed in the middle of the workbench. In addition to the ejector product, it can also be used as a hydraulic pad for forming the stretched parts.

English
Blanking buffer
Mobile workbench
Light screen safety device
Oil cooling device
Industrial touch screen
Ejector device
Rapid clamping mechanism for mould
Floating guide rail and rolling bracket for changing mould

Parameter Name	Unit	YW32-160B	YW32-200A	YW32-315A	YW32-400A	YW32-500B	YW32-500C	YW32-630	YW32-800	YW32-1000	YW32-1250	YW32-1600	YW32-2000	YW32-2500	YW32-3000	YW32-3500	YW32-4000	YW32-5000
Nominal Force	kN	1600	2000	3150	4000	5000	5000	6300	8000	10000	12500	16000	20000	25000	30000	35000	40000	50000
Return Force	kN	320	500	600	840	1000	1000	1250	1680	2050	2500	3360	4100	3000	6500	3500	4000	5000
Ejection Force	kN	400	400	630	400	1000	1000	1600	1600	2000	2000	2000	3000	4000	3000	4000	4000	8000
Ejection Return Force	kN	190	190	325	630	450	450	450	850	1060	1060	1060	1060	1680	1680	1200	1060	1680
Max. Working Pressure	MPa	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Slide Stroke	mm	700	700	800	800	900	900	900	900	900	450	300	300	450	450	450	360	360
Ejection Stroke	mm	250	250	300	300	350	350	350	450	450	1600	1800	2000	1800	1800	2500	1500	1500
Opening Height	mm	1000	1100	1250	1300	1500	1500	1500	1600	1600
Slide Speed - Downward (Working)	mm/s	12	12	10	10	10	10	10	10	8	8	10	10	10	10	10	8	8
Slide Speed - Return	mm/s	1000	1000	1260	1260	1400	2400	1500	1800	2000	50	80	70	60	80	100	60	80
Working Table Size - Left/Right	mm	800	900	1160	1260	1400	1400	1500	1800	2000	1800	2000	2500	2500	4000	4000	12000	12000
Working Table Size - Front/Back	mm	2500	2600	3260	3260	4630	4680	4800	4800	5200	5200	6500	6500	6600	10000	10000	12100	12100
Machine Dimensions - Front/Back	mm	2000	2500	2580	2580	2800	3350	3000	4000	4300	4300	4500	4500	4800	4600	2500	3700	3700
Machine Dimensions - Ground Height	mm	3360	3800	4300	4500	5200	5375	5620	6000	6450	6450	6500	6800	8450	10000	11000	7650	7850
Worktable Height from Ground	mm	470	550	650	650	760	920	860	880	650	650	700	600	800	800	800	800	800
Total Motor Power	kW	11	15	15	22	37	37	37	44	60	60	~120	~145	~145	~180	~250	~350	~450
