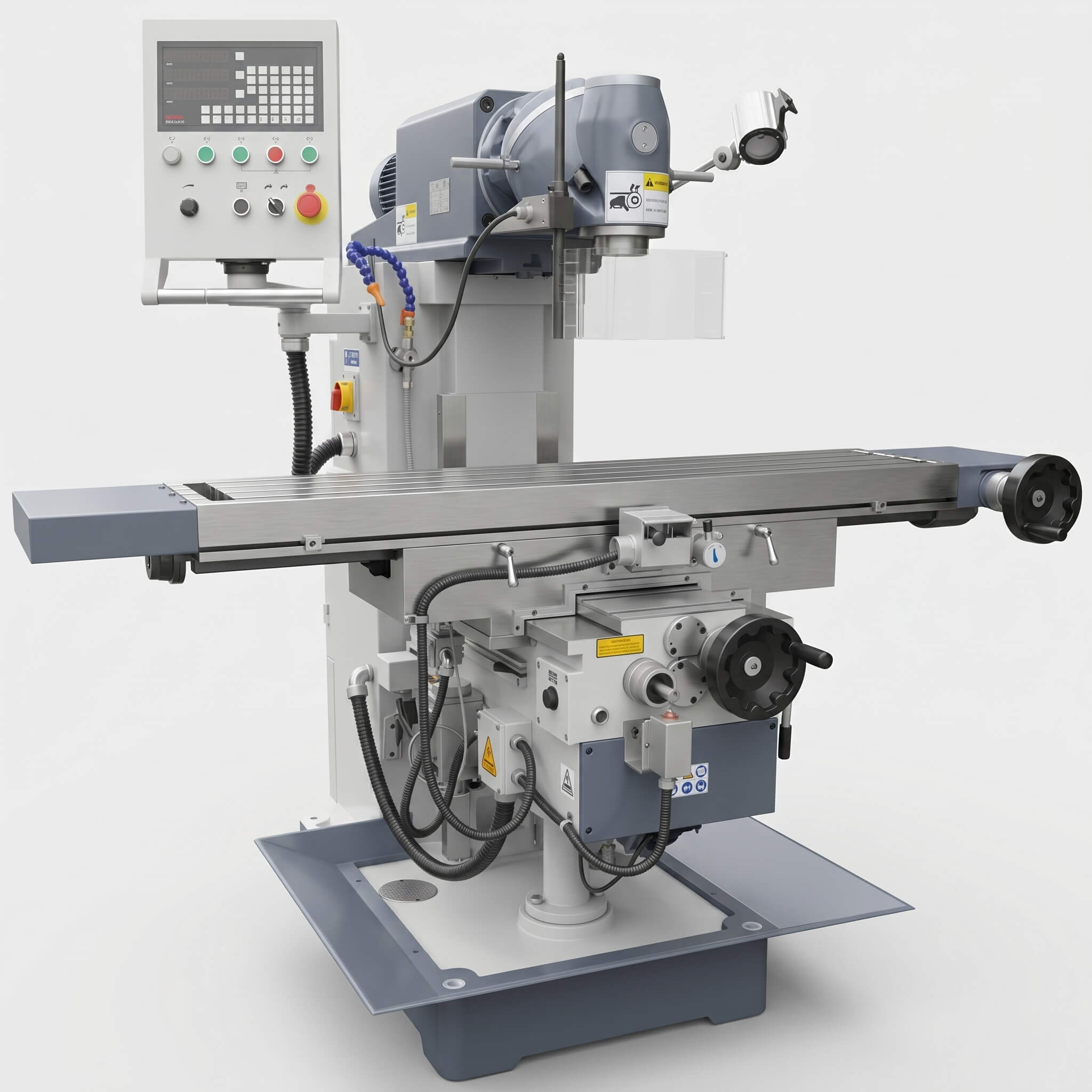

X6230 Series Universal Swivel Head Milling Machine

X6230 Series Universal Swivel Head Milling Machine – Heavy-Duty Vertical & Horizontal Milling Solution

Product Overview:
The X6230 series is a high-performance universal swivel head milling machine engineered for precision metalworking. Designed for versatility, this series seamlessly transitions between vertical and horizontal milling modes thanks to its 360° swivel head. Built with high-strength cast iron for maximum structural stability, it is an ideal choice for heavy-duty drilling, reaming, tapping, and complex surface milling in industrial environments.

Key Technical Highlights:

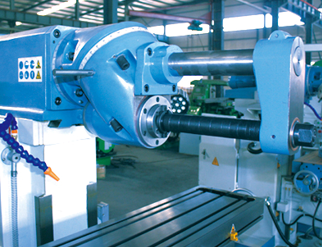

• Dual-Function Swivel Head: The universal vertical head swivels 360°, offering unmatched flexibility for beveling, curve surface milling, and slotting.
• Powerful Gear-Driven Spindle: Equipped with an ISO40 spindle taper and a 3kW motor, the 11-step gearbox drive ensures high torque at low speeds for deep cutting and large-diameter hole processing.
• Servo-Driven Precision Table: The worktable (up to 1370x300mm) features servo motor-driven feeds across X, Y, and Z axes, ensuring low noise, high accuracy, and effortless operation via a single-lever direction selector.
• Robust Construction: The fuselage and core components are crafted from high-strength cast iron with a stable microstructure, guaranteeing long-term geometric accuracy and vibration damping.
• Versatile Applications: Expertly handles step planes, slopes, grooves, cams, and complex curve surfaces with its stepless speed functions.

Why Choose X6230 Series for Your Workshop?
Whether you are performing routine maintenance or high-precision industrial manufacturing, the X6230 (A/B/C) models provide the stability of a mature export product. With a longitudinal travel (X-axis) of up to 1000mm and a 300kg table load capacity, this machine is built to handle your most demanding workpieces.
