X6 CNC Grinding Wheel Dresser

X6 CNC Grinding Wheel Dresser | Fully Automated Precision Diamond & CBN Wheel Profiling Machine

The X6 CNC Grinding Wheel Dresser is our top-tier, fully automated CNC dressing solution, purpose-built for high-precision, repeatable profiling of diamond, CBN, and other superabrasive grinding wheels. Designed to eliminate manual errors and streamline production workflows, this machine combines CNC control, advanced optical inspection, and a fully enclosed structure to deliver consistent, high-accuracy results for tool rooms, precision grinding facilities, and high-volume manufacturing environments.

Built around a robust 3-axis linkage CNC system with two-axis electronic handwheel control, the X6 automates every critical step of the dressing process: the silicon carbide (SiC) dressing wheel automatically rotates, reciprocates, feeds, and profiles the target wheel, reducing operator workload and ensuring uniform quality across batches. It handles a wide range of wheel specifications, from a minimum diameter of φ30mm up to φ300mm (customizable beyond standard limits), with a maximum width of 40mm, and supports three dressing modes: dry, water mist, and wet.

At the heart of its precision capabilities is a high-resolution optical measurement system, featuring a standard CCD camera (with optional high-resolution lenses) paired with a 19-inch all-in-one computer and advanced measurement software. The system supports one-click CAD drawing import, allowing operators to overlay real-time wheel images with CAD profiles for direct comparison. With grating scale resolution down to 0.001mm and angular resolution of 0.01°, the X6 delivers exceptional accuracy for dressing inner/outer profiles, angles, arcs, and complex custom geometries.

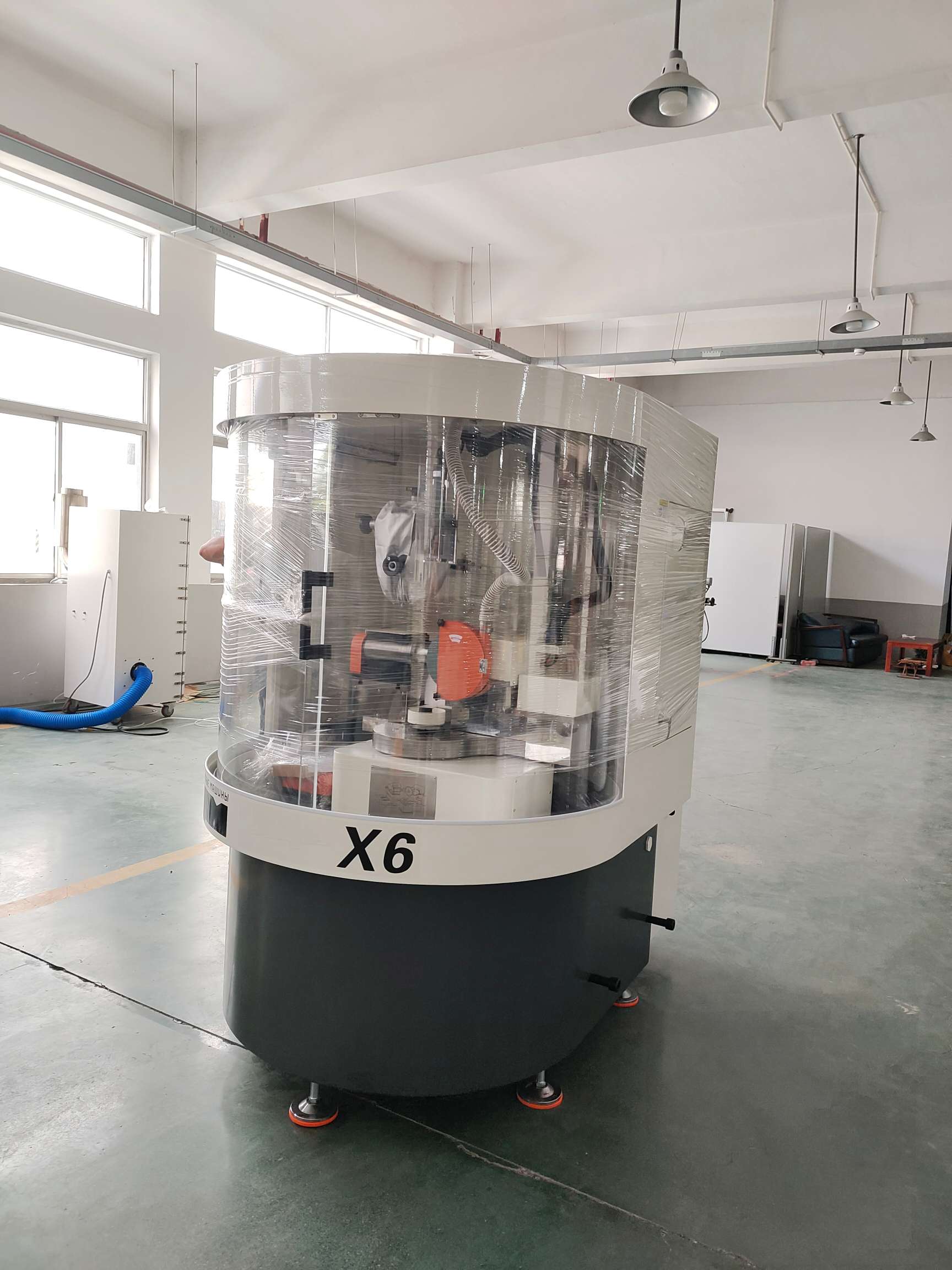

The machine’s 10mm acrylic safety enclosure ensures operator safety, minimizes dust spillage, and maintains a clean, environmentally compliant workspace, making it ideal for modern, regulated production environments. Optional upgrades include a dust collection system, grinding fluid filtration system, and specialized lenses for enhanced inspection capabilities.

Key Features & Benefits:

• ✅ Fully Automated CNC Control: 3-axis linkage CNC system automates dressing cycles, including rotation, reciprocation, and feeding, for consistent, hands-free operation.
• ✅ Multi-Mode Dressing: Supports dry, water mist, and wet dressing modes, adaptable to various wheel materials and production requirements.

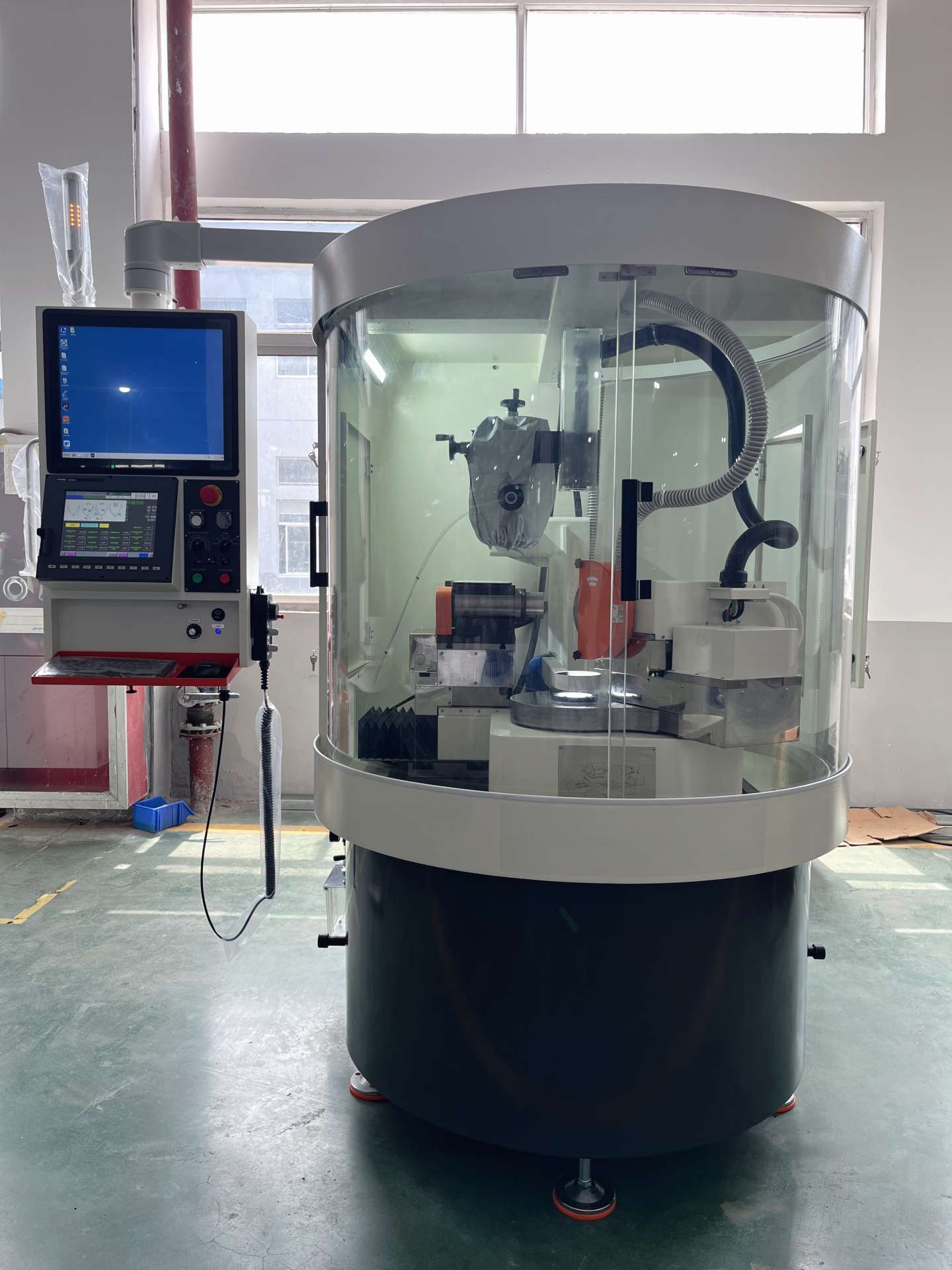

• ✅ Advanced Optical Inspection: Standard HD CCD camera (with optional high-resolution/zoom lenses) and CAD overlay functionality enable real-time, precise profile verification.
• ✅ Versatile Compatibility: Handles wheels from φ30mm to φ300mm (customizable), with a standard BT40 spindle (customizable interface) and a 3KVA total power rating.
• ✅ High Precision Components: 0.001mm linear and 0.01° angular scale resolution ensure tight tolerances for complex geometries.
• ✅ Safe & Eco-Friendly: 10mm acrylic enclosure contains debris and mist, improving safety and compliance with environmental standards.
• ✅ Expandable Stroke: Optional extended X-axis travel (up to 300mm) accommodates larger or custom wheel sizes beyond the standard 135mm range.
• The X6 CNC Grinding Wheel Dresser is the ultimate upgrade for businesses seeking to scale production, improve dressing accuracy, and reduce reliance on manual labor. Backed by a comprehensive standard equipment package—including the CNC system, calibration tools, and user software—it delivers out-of-the-box functionality and long-term reliability for demanding precision machining applications.
