X5 Manual Grinding Wheel Dresser (With Full Protection Cover)

X5 Manual Grinding Wheel Dresser (With Full Protection Cover)

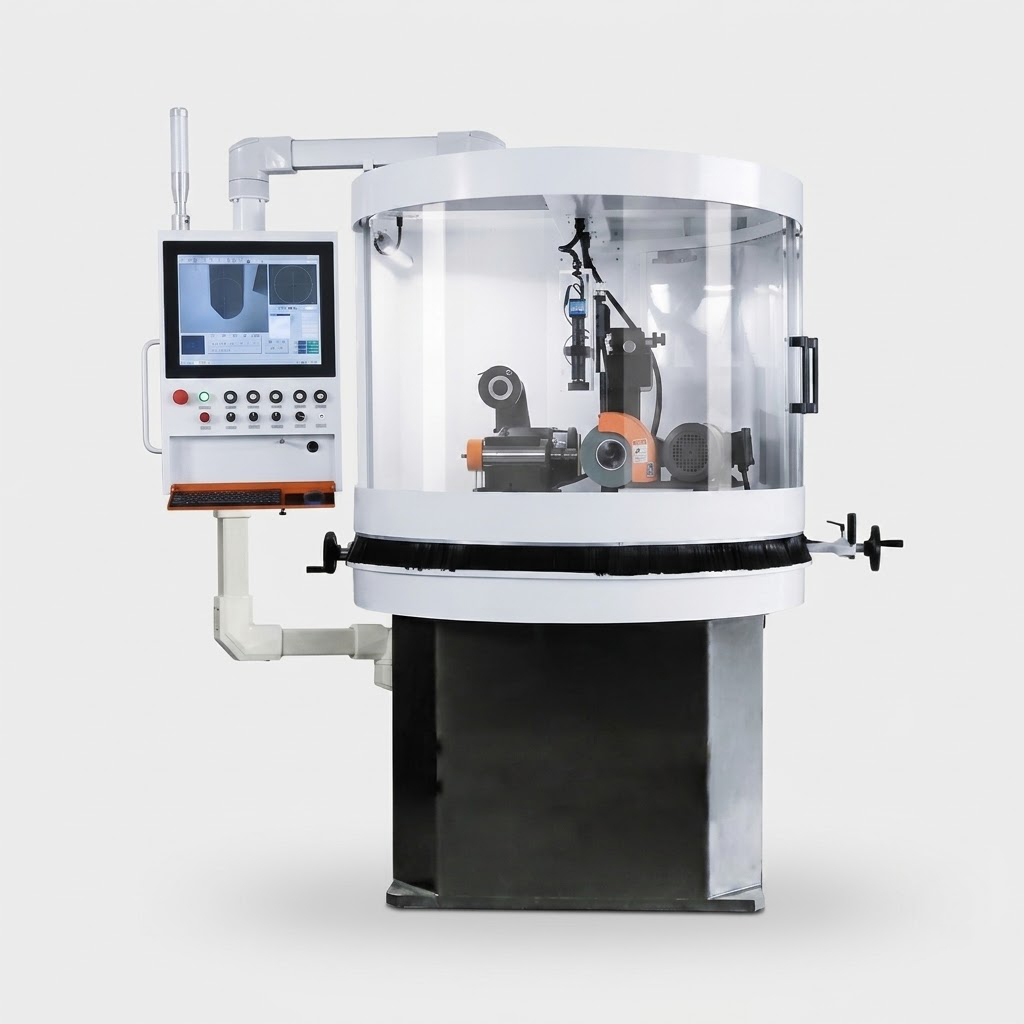

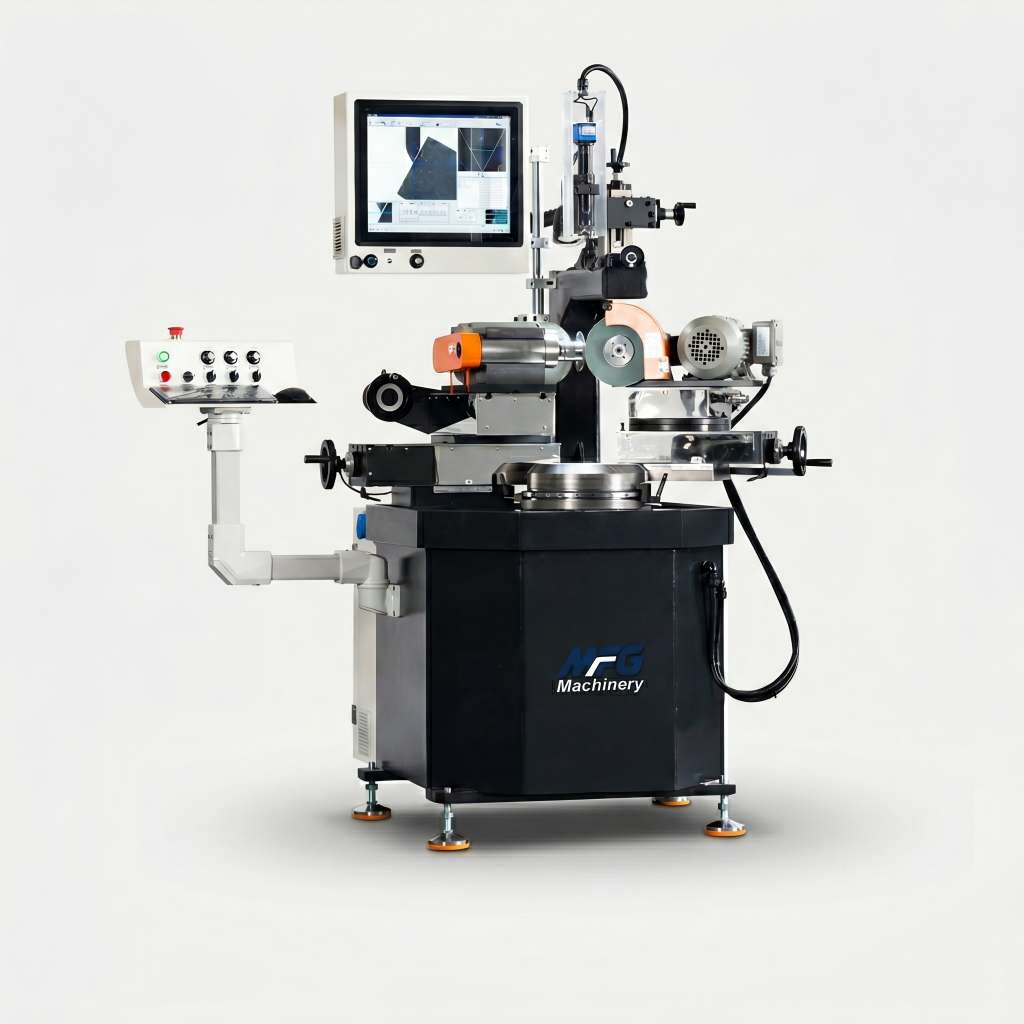

The X5 Manual Grinding Wheel Dresser is an upgraded, fully enclosed industrial dressing machine developed on the mature X3 platform, specially designed to comply with national environmental protection regulations and meet the clean, dust-free production requirements of modern precision machining workshops. Built for stable, high-precision operation and eco-friendly production, this machine is the ideal upgrade for tool rooms, precision grinding workshops, and abrasive wheel service facilities looking to improve workshop environment, reduce dust pollution, and maintain strict dressing tolerances.

Adopting the proven speed difference dressing principle, the X5 delivers efficient, repeatable profiling and sharpening for diamond grinding wheels, CBN grinding wheels, and conventional abrasive wheels. It can accurately dress flat surfaces, chamfer angles, circular arcs, and custom special profiles, with intuitive manual operation, ultra-high positioning accuracy, and stable long-term performance. Unlike open-frame models, this machine comes standard with a full protective cover, supports water mist cooling and natural cooling modes, completely eliminates dust spillage and oil mist pollution, fully complies with workshop environmental protection standards, and protects operator health while extending the service life of core transmission components.

Core Product Advantages & Key Features

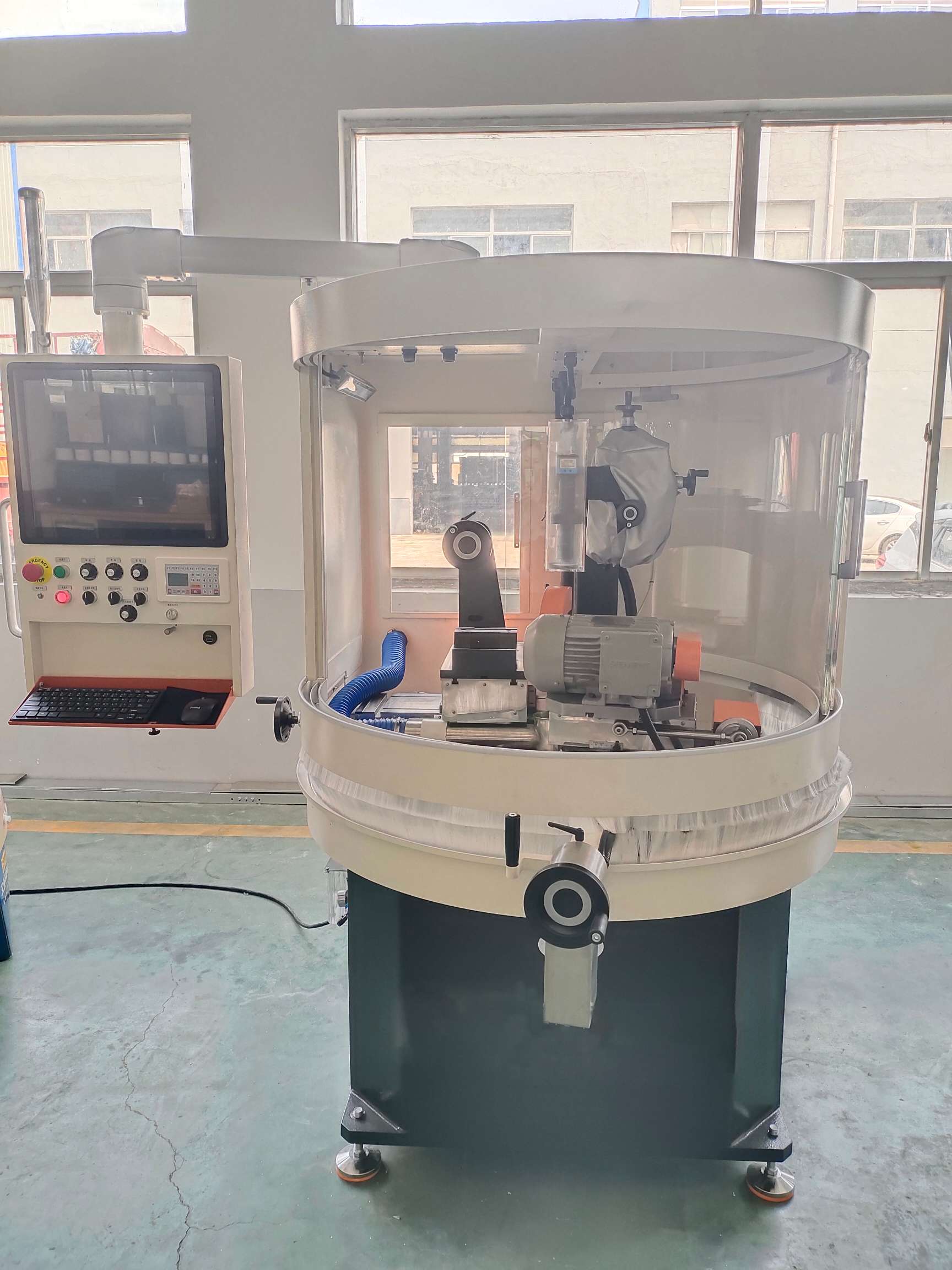

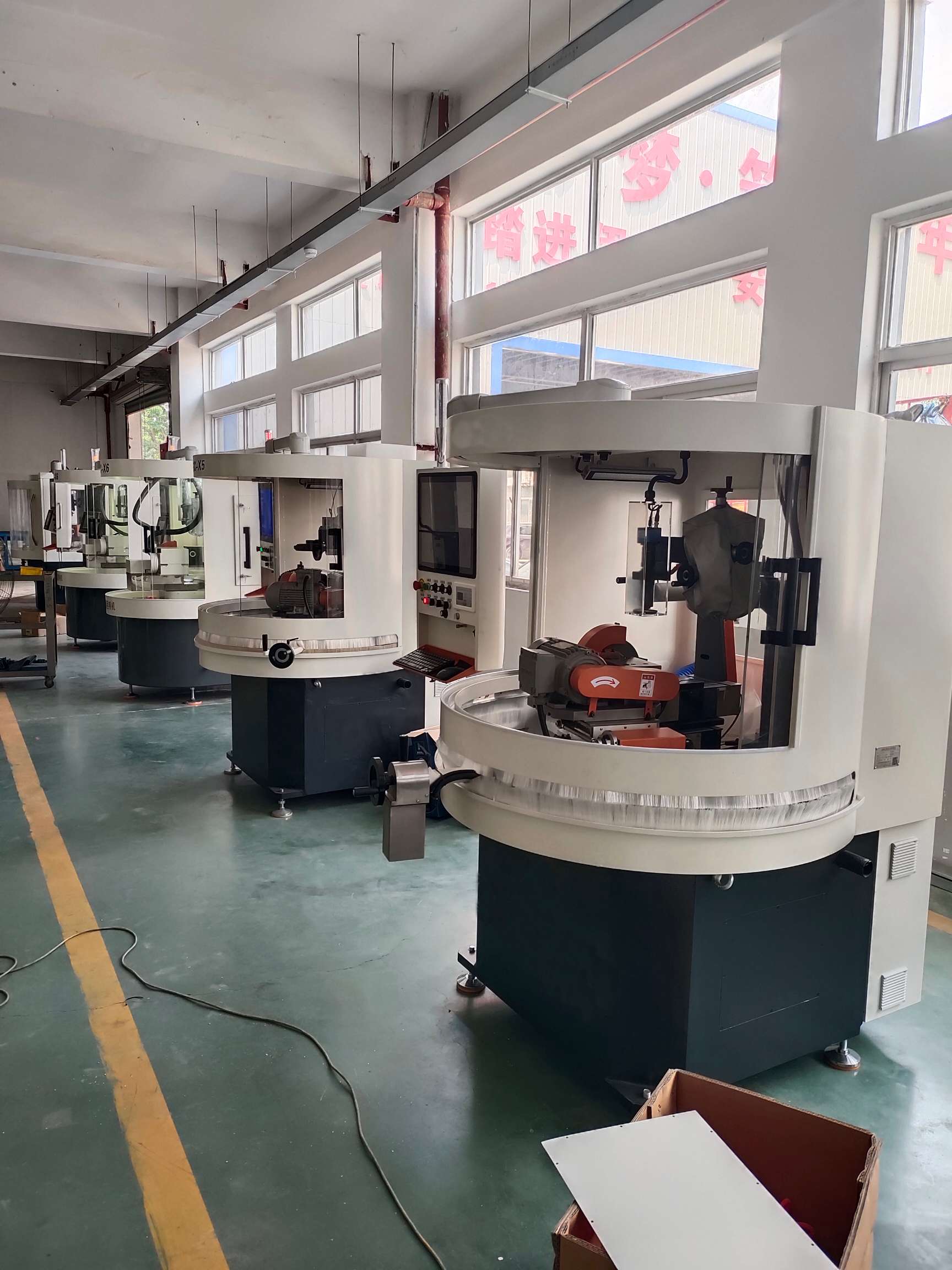

• Upgraded Fully Enclosed Structure: Upgraded from the classic X3 model with a full protective cover, perfectly matching environmental protection policies, realizing dust-free dressing, no environmental pollution, compatible with water mist cooling and natural cooling, cleaner and safer workshop operation.
• Wide Dressing Compatibility: Supports diamond wheels and CBN wheels with a maximum diameter of φ420mm (standard 250~300mm), minimum applicable wheel diameter φ20mm, maximum wheel thickness 20mm, aperture φ31.75mm, covering most industrial precision grinding wheel specifications.

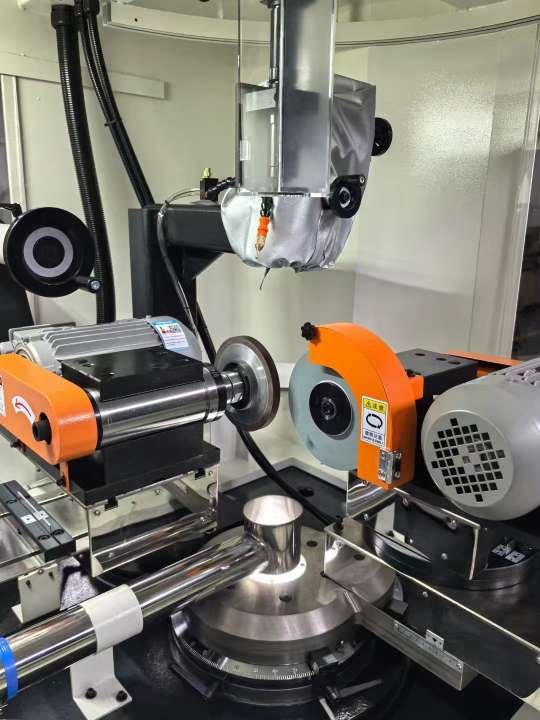

• High Precision Motion System: Equipped with 0.001mm resolution X/Y axis magnetic scales, 135mm working stroke + 150mm extended manual stroke on both X and Y axes, stepless adjustable spindle speed, stable and precise arc dressing from R0.1 to R30mm, strict control of profile size and positioning tolerance.

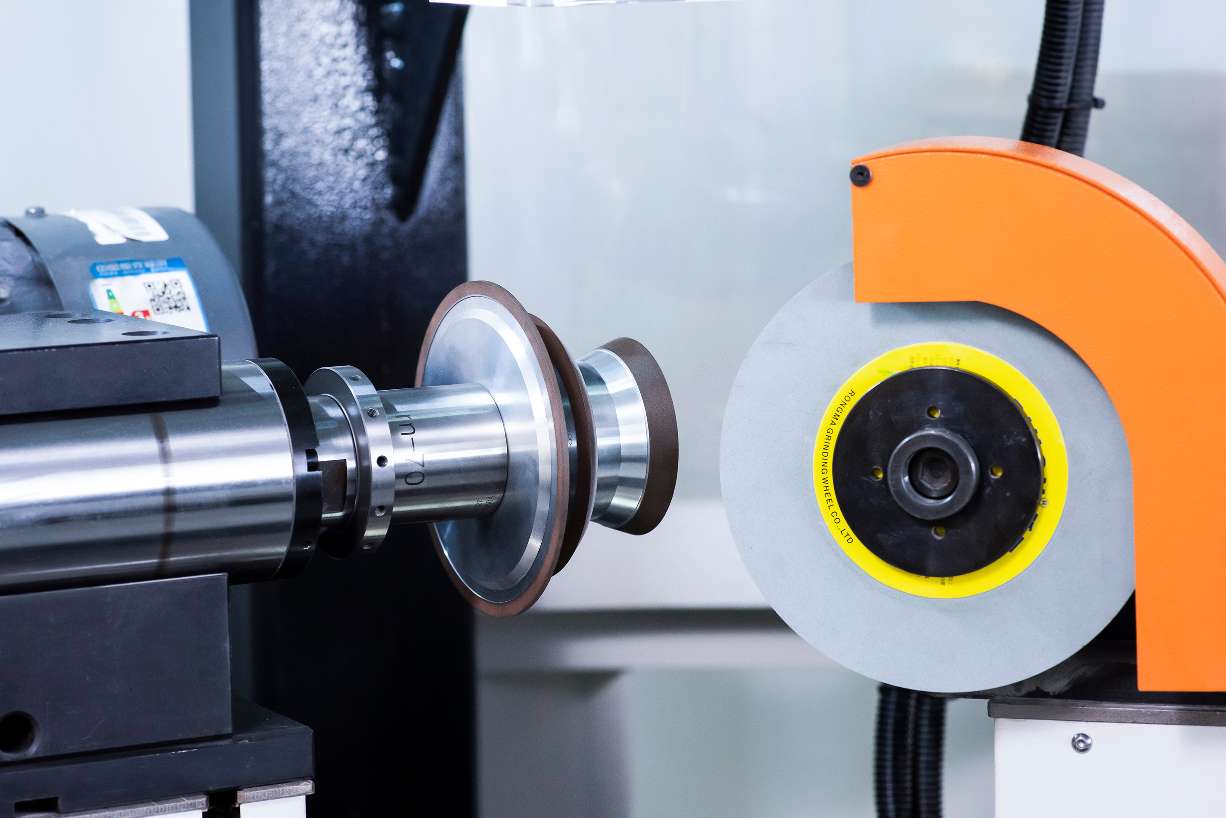

• Stable Adjustable Dressing System: Equipped with standard SiC dressing wheel (φ180×10×φ31.75mm), 250-2500rpm stepless speed regulation, 0-50 times/min adjustable swing frequency, 0-45mm adjustable left-right swing stroke, matched with professional speed ratio optimization scheme, to achieve the best dressing effect and wheel service life.
• User-Friendly & Durable Design: Simple manual operation mode, easy to learn and operate for operators at all levels, low failure rate, stable power configuration (total power 2.0KW), optimized power matching for each motor, suitable for long-term daily batch production use.
• Professional Dressing Parameter Guidance: Built-in optimized linear speed ratio scheme (dressing wheel : dressed diamond/CBN wheel = 20:5), equipped with targeted grinding wheel grit selection matching table, helping users quickly match the best parameters, reduce debugging time, and ensure consistent dressing quality.
• The X5 Fully Enclosed Manual Grinding Wheel Dresser solves the common dust pollution and environmental protection compliance problems of open dressing machines, while retaining the high precision, high stability and easy operation of the X3 platform. It is a cost-effective, policy-compliant core equipment for precision grinding wheel dressing, helping users improve product qualification rate, extend grinding wheel service life, reduce production cost, and meet modern workshop environmental management requirements.

1. Dressed Wheel (Diamond / CBN Wheel) Parameters

2. Dressing Wheel (Silicon Carbide Wheel) Parameters

3. Recommended Grinding Wheel Grit Matching Table
