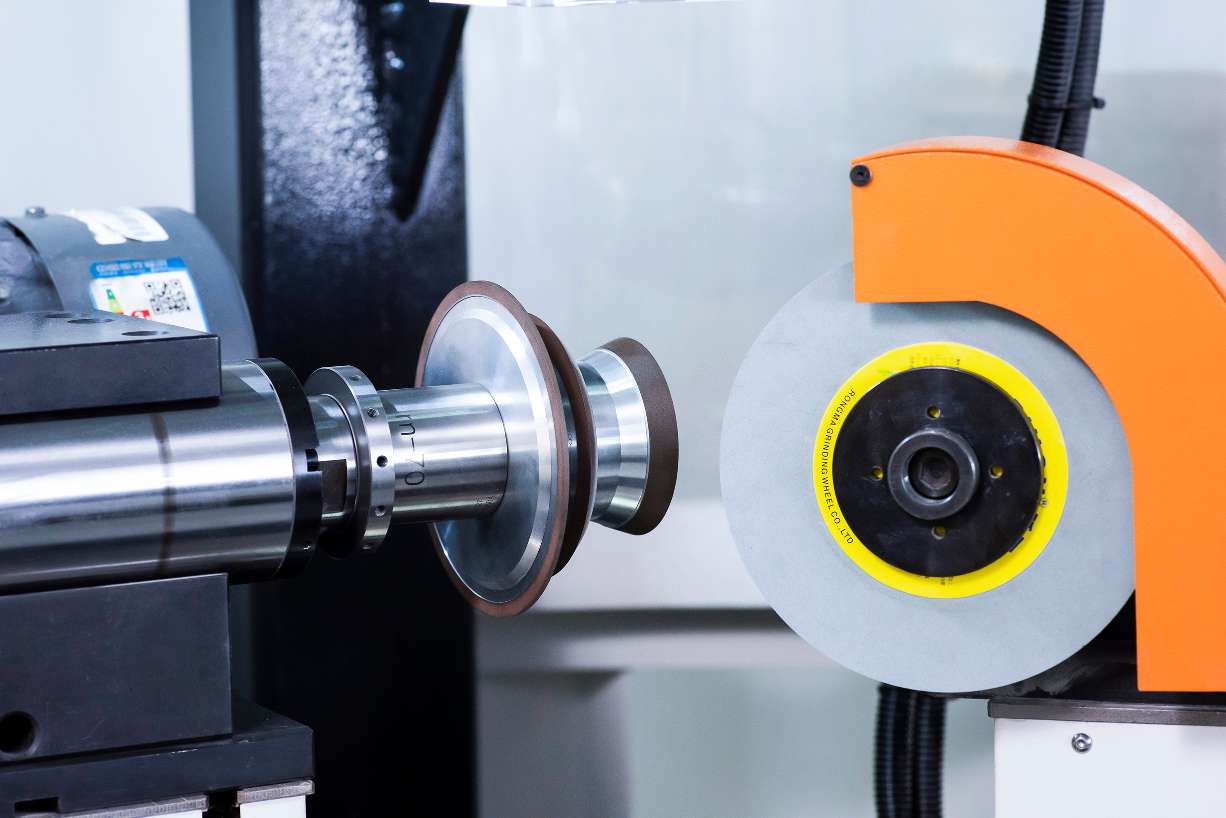

The X3 Manual Grinding Wheel Dresser from MFG Machinery is a high-precision, versatile solution designed to deliver accurate, repeatable dressing for diamond wheels, CBN wheels, and various abrasive grinding wheels. Built for reliability and ease of use, this machine enables shops to restore the geometry, sharpness, and cutting performance of grinding wheels, including planes, angles, arcs, and custom profiles.

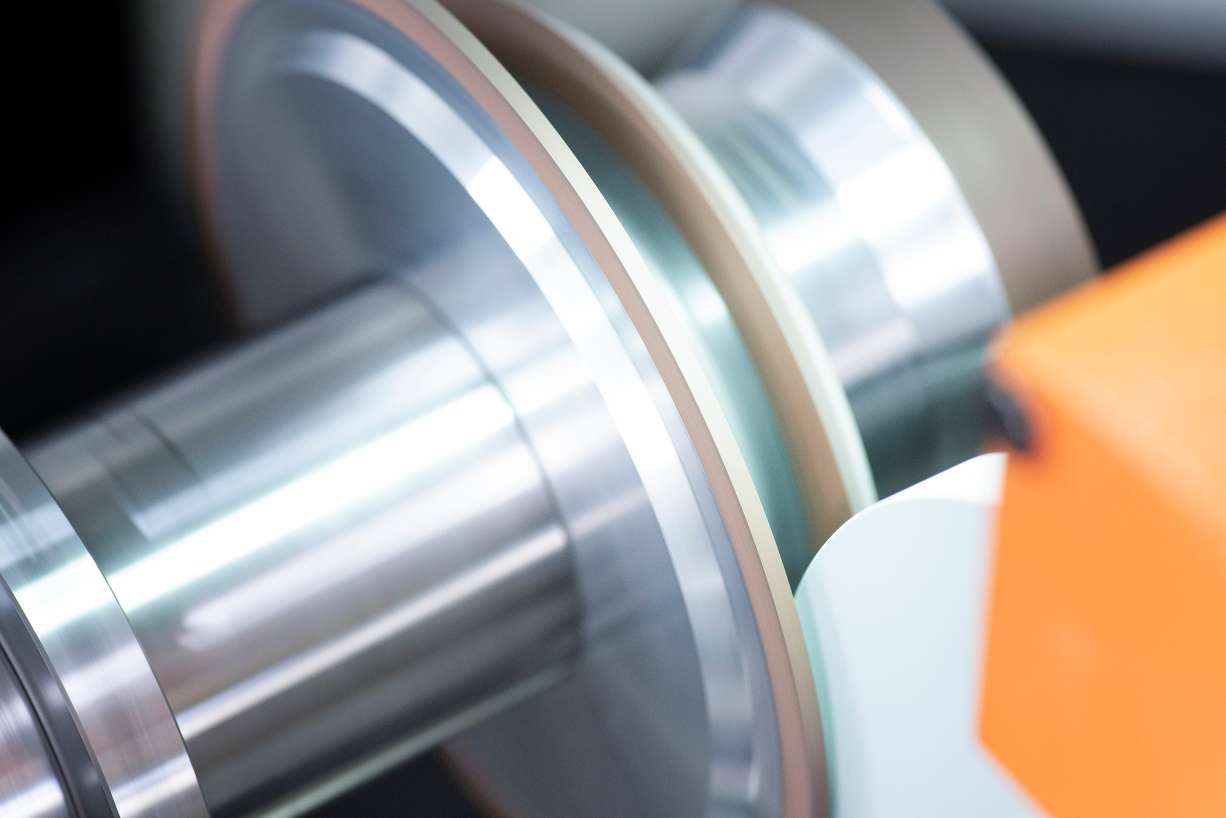

At the heart of the X3 is a proven speed-differential dressing principle that ensures clean, precise wheel conditioning. The machine features Taiwan-made precision linear slides and ball screws, paired with optional digital display magnetic scales (0.001mm resolution) for accurate positioning, dimension control, and arc radius adjustment during dressing operations. A high-precision A-axis, supported by Japanese tapered roller bearings, guarantees stable, accurate rotation for complex profiles.

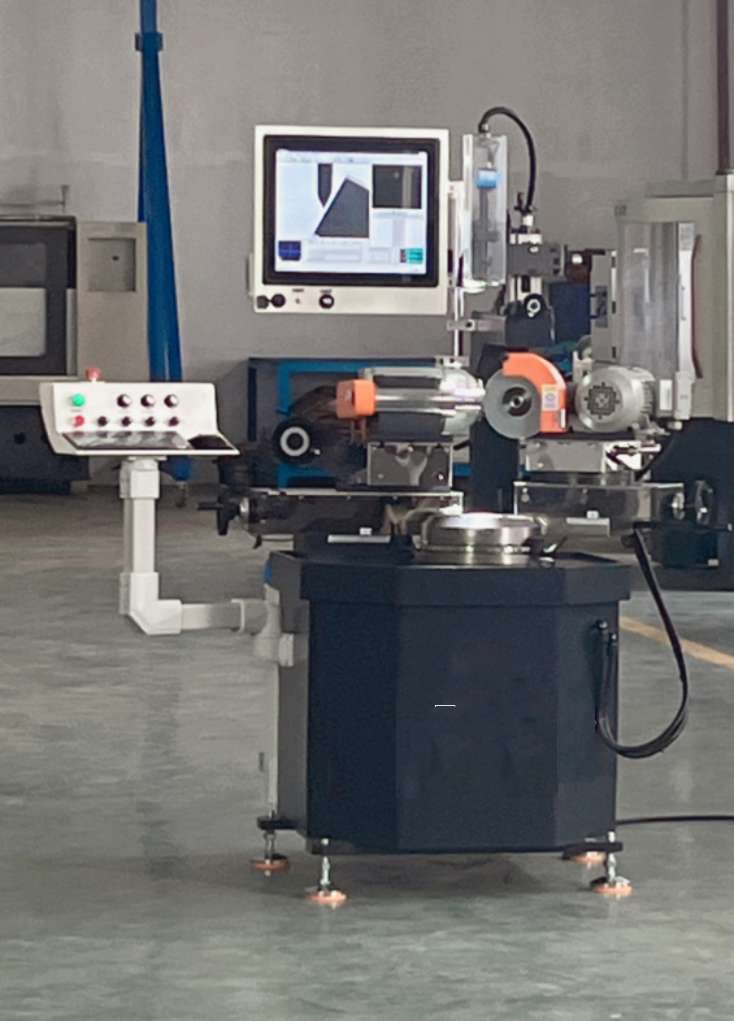

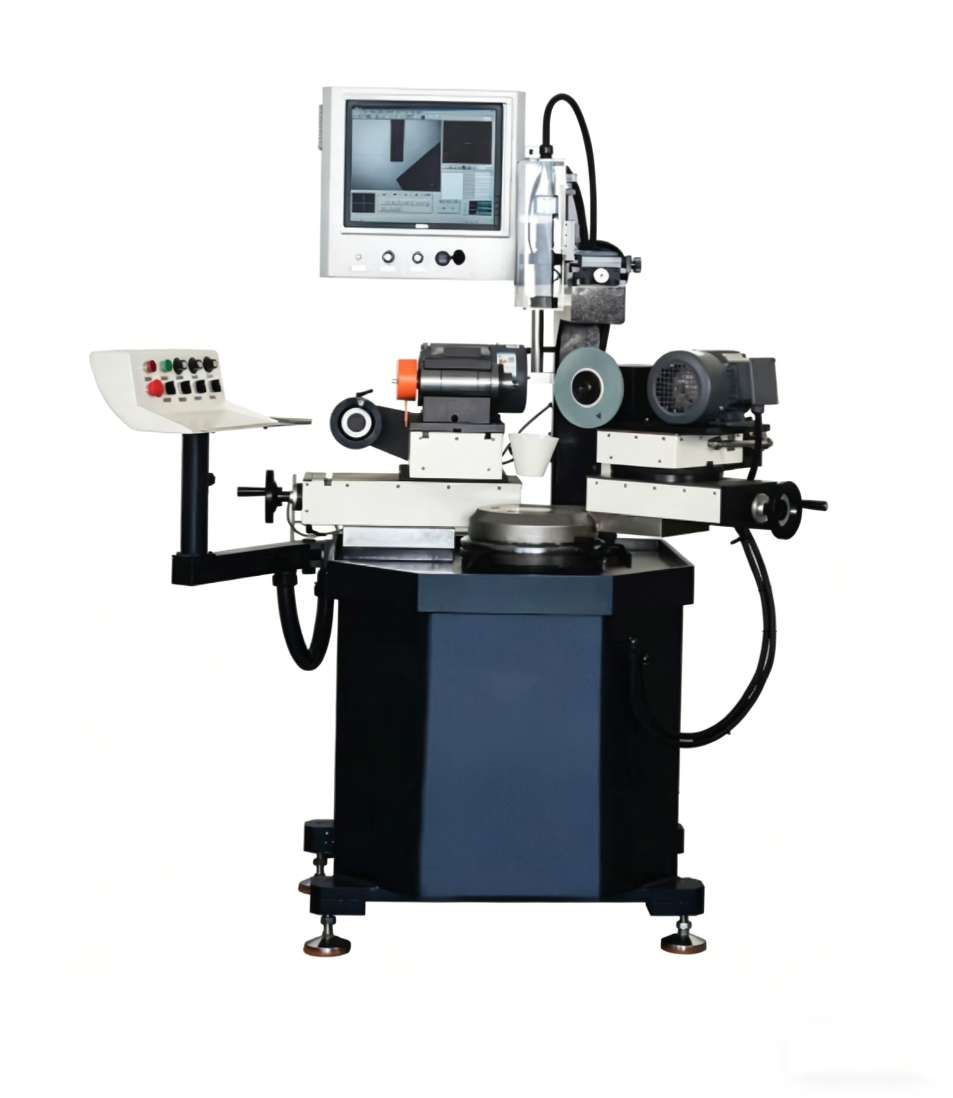

For enhanced quality control, the X3 is equipped with a CCD camera system offering 15–120x magnification and a 17" LCD display. This integrated optical system allows operators to measure and inspect wheel arcs, angles, and dimensions in real time—both during and after dressing—with a measurement accuracy of 0.005–0.01mm, eliminating guesswork and ensuring consistent results.

Key Capabilities & Benefits:

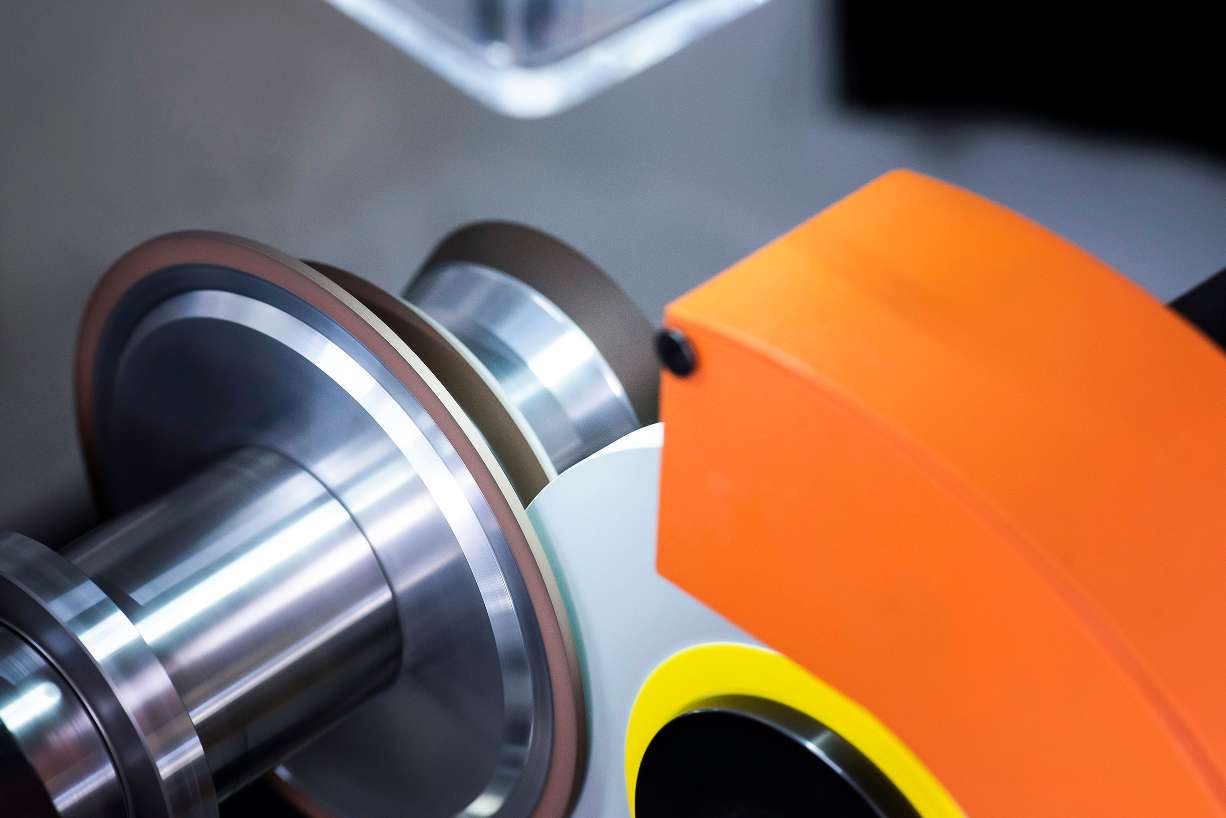

• ✅ Versatile Dressing: Handles diamond/CBN wheels (up to φ420mm diameter, 20mm thickness) and silicon carbide dressing wheels (φ180×10×φ31.75mm), with arc radius dressing from R0.1 to R30mm.
• ✅ Adjustable Performance: Stepless speed control for both the dressed wheel spindle (50–1000rpm) and dressing wheel (250–2500rpm), plus variable swing speed (0–50 times/min) and swing distance (0–45mm) for customized dressing operations.
• ✅ User-Friendly Operation: Manual cross slides with extended travel (135mm working + 150mm manual stroke on both X/Y axes) and intuitive controls, making it accessible for operators of all skill levels.
• ✅ High Precision Components: Premium linear guides, ball screws, and tapered roller bearings ensure long-term accuracy and stability, even in daily production environments.
• ✅ Built-In Quality Control: CCD and optical measurement system enables real-time inspection, reducing scrap and ensuring wheel geometry meets exact specifications.
• The X3 Manual Grinding Wheel Dresser is an essential tool for shops looking to maximize the lifespan and performance of their grinding wheels, reduce downtime, and maintain tight tolerances in precision machining operations. Backed by MFG Machinery’s commitment to quality, this machine delivers reliable results for tool rooms, manufacturing facilities, and service workshops alike.
