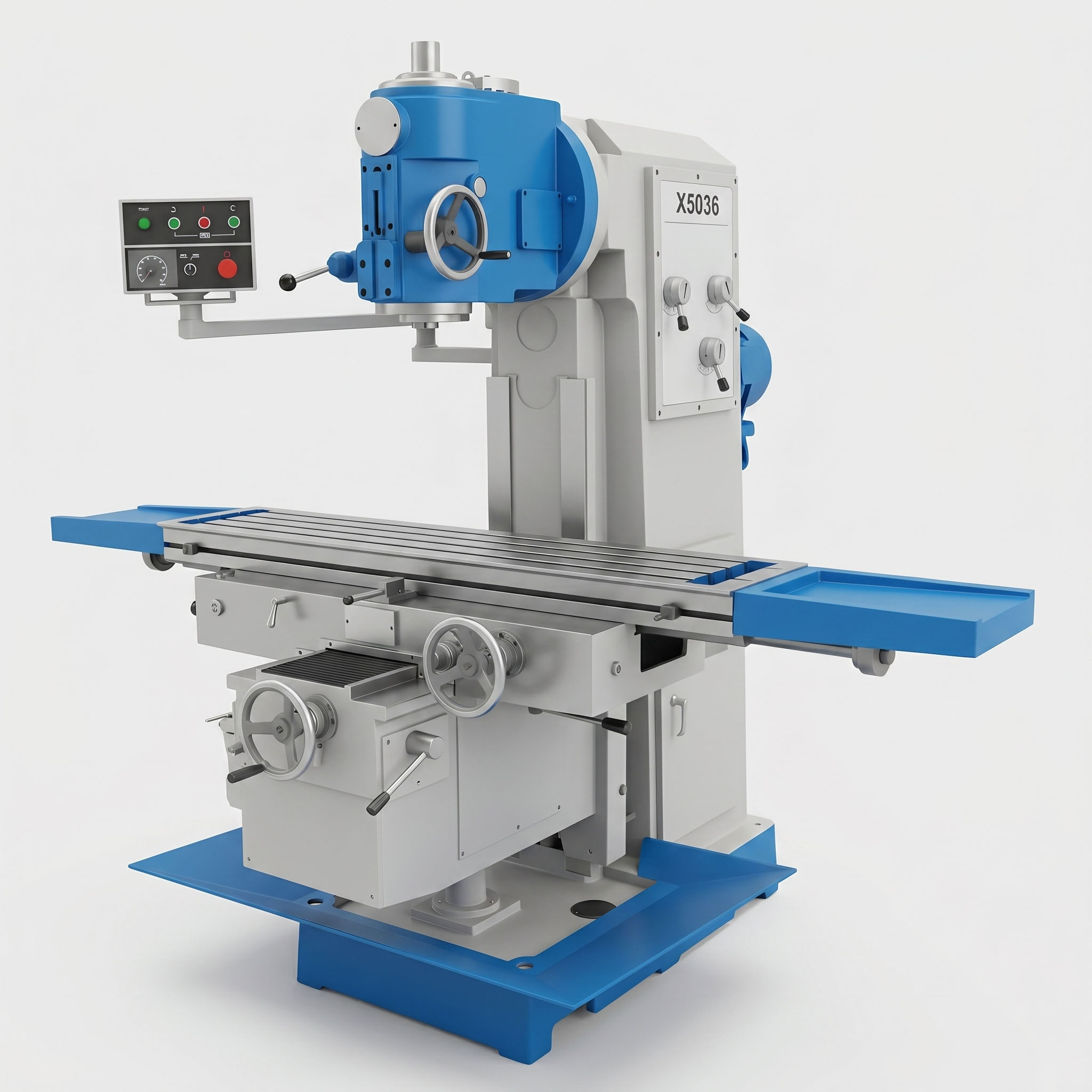

X5036 Vertical Milling Machine – Heavy-Duty Milling for Precision & Versatility

The X5036 vertical milling machine is a proven, high-performance industrial tool built for reliable metalworking, ideal for workshops and production facilities worldwide. Renowned for its robust construction, user-friendly design, and multi-functional capabilities, this vertical mill handles a wide range of machining tasks with exceptional accuracy and efficiency.

Key Capabilities for Versatile Machining

From basic to complex operations, the X5036 delivers consistent results across:

• Surface milling, step plane milling, slope milling, and groove cutting
• Drilling, hole expansion, reaming, bevel edge machining, and tapping
• Curved surface, cam, and profile cuttingWith stepless speed regulation and automatic speed change, the machine generates high torque at low speeds, making it perfectly suited for heavy cuts and large-diameter hole processing.

Built for Durability & Precision

The entire frame and core components are cast from high-strength cast iron, ensuring structural rigidity, vibration resistance, and long-term dimensional stability—even under continuous heavy-duty use.

• Powerful Gear-Driven Spindle: Direct gearbox drive delivers consistent power for heavy milling, reducing slippage and boosting material removal rates.
• Servo Motor Feed System: X/Y/Z-axis table feeds are powered by AC servo motors, offering smooth, low-noise operation, precise positioning, and minimal maintenance.
• Convenient Operation: A single lever controls feed direction, while the simplified control panel minimizes operator learning curves (digital readout/DRO is available as an optional upgrade).
• Complete Utility Systems: Integrated coolant system, automatic lubrication system, and chip tray keep the workspace clean, extend tool life, and simplify maintenance.
• Optional Swivel Table: A ±45° left/right swivel table is available for enhanced flexibility in angled machining applications.
• Whether you’re producing custom parts, repairing machinery, or running batch production, the X5036 vertical milling machine combines reliability, power, and versatility to meet your most demanding machining needs.
