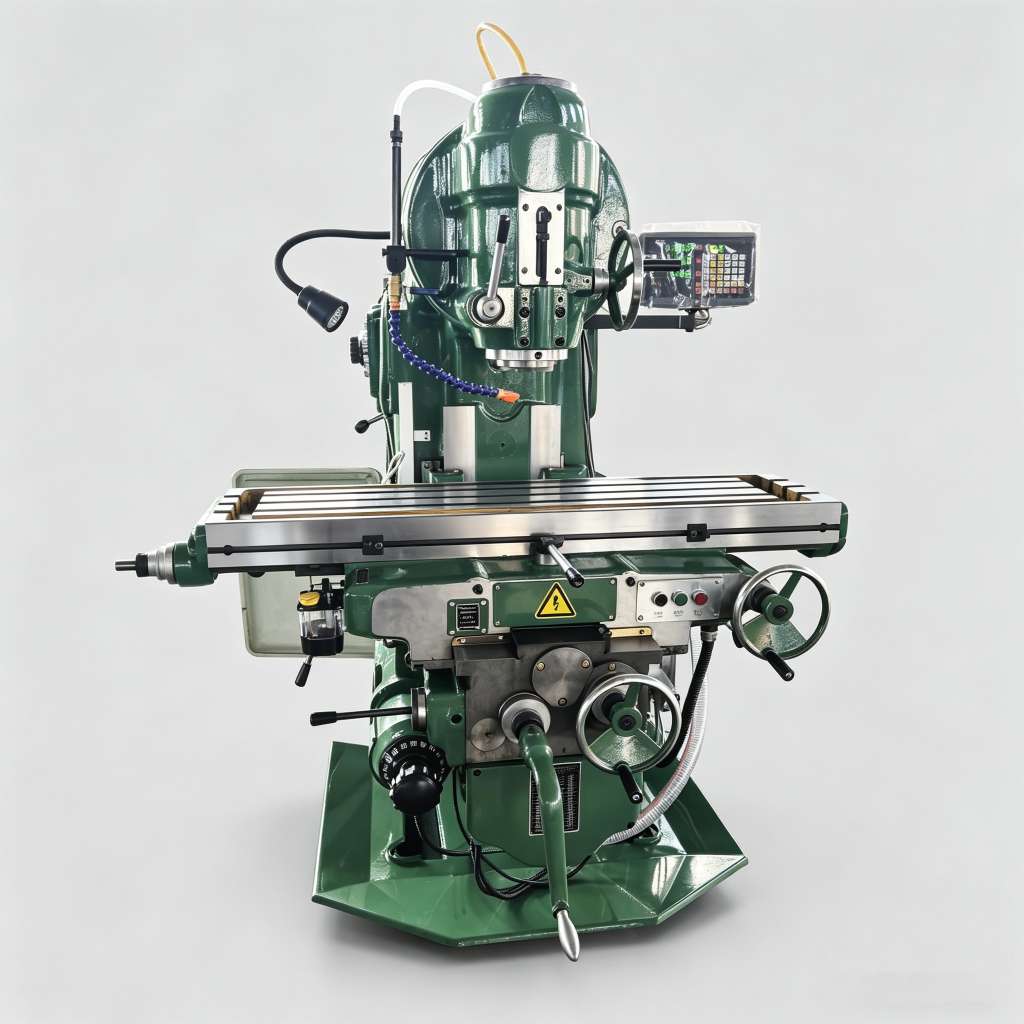

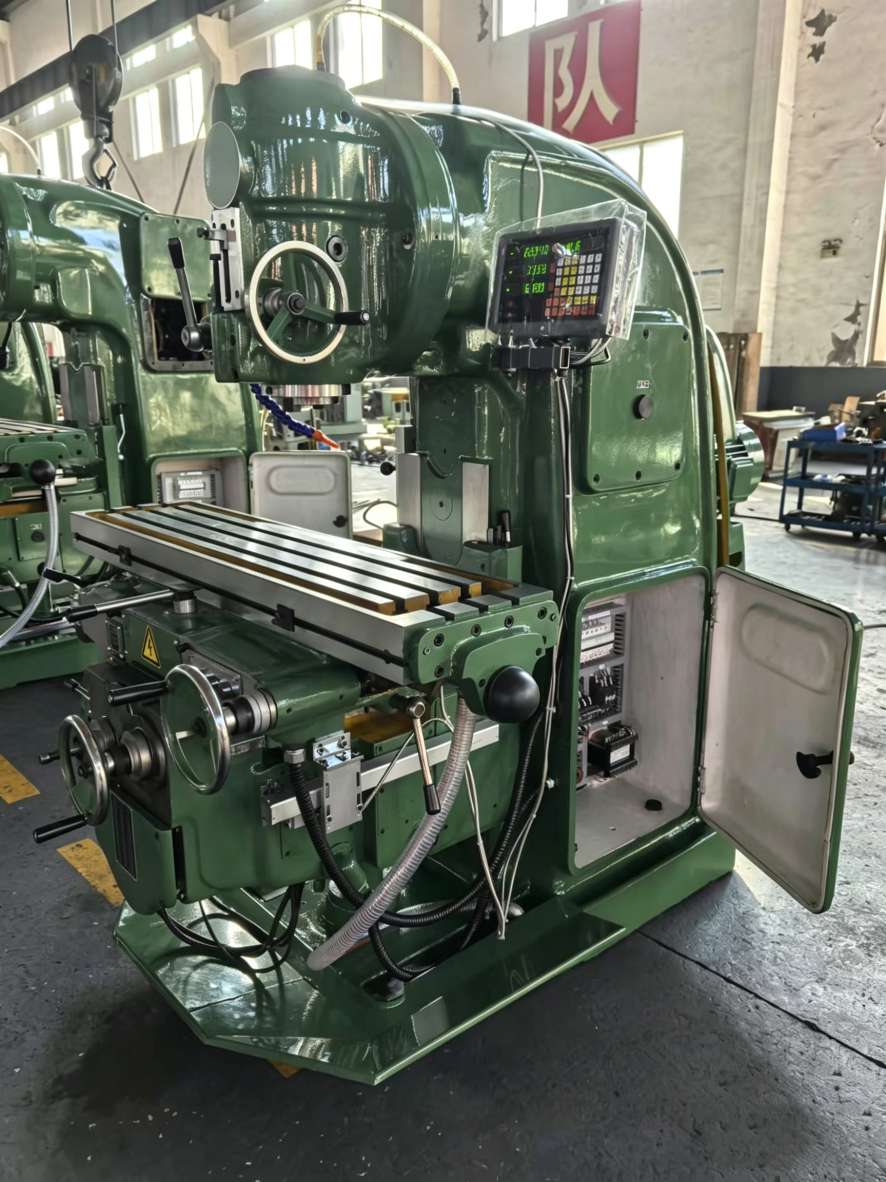

X5032 Universal vertical lifting table milling machine

Product Overview

The X5032 Vertical Lifting Table Milling Machine is a robust and high-precision solution designed for heavy-duty metal machining. Featuring a rigid knee-type structure and a powerful 7.5 KW spindle motor, this machine is engineered to handle demanding milling tasks with exceptional stability. With a generous 1320×320 mm table and 18-step spindle speeds ranging from 30 to 1500 rpm, the X5032 offers the versatility required for precision components in automotive, aerospace, and general manufacturing industries.

Key Technical Features

• Superior Load Capacity: Specifically built to support workpieces up to 500 kg, making it ideal for large-scale industrial parts.
• Precision Control: Equipped with a high-performance spindle providing a 70mm travel range and a distance to table surface of 60-430mm, ensuring flexibility for various tool lengths and workpiece heights.
• Dynamic Feed Rates: Features rapid feed speeds up to 2300 mm/min (X-axis) and 18-step cutting feeds, allowing for optimized cycle times without compromising surface finish quality.
• Rigid Construction: Weighing in at 2800 kg, the machine's vibration-dampening cast iron frame ensures long-term accuracy and durability in high-torque operations.
• Versatile Table Movement: The table offers a ±45° swivel angle, providing expanded capability for angular milling and complex geometries.
