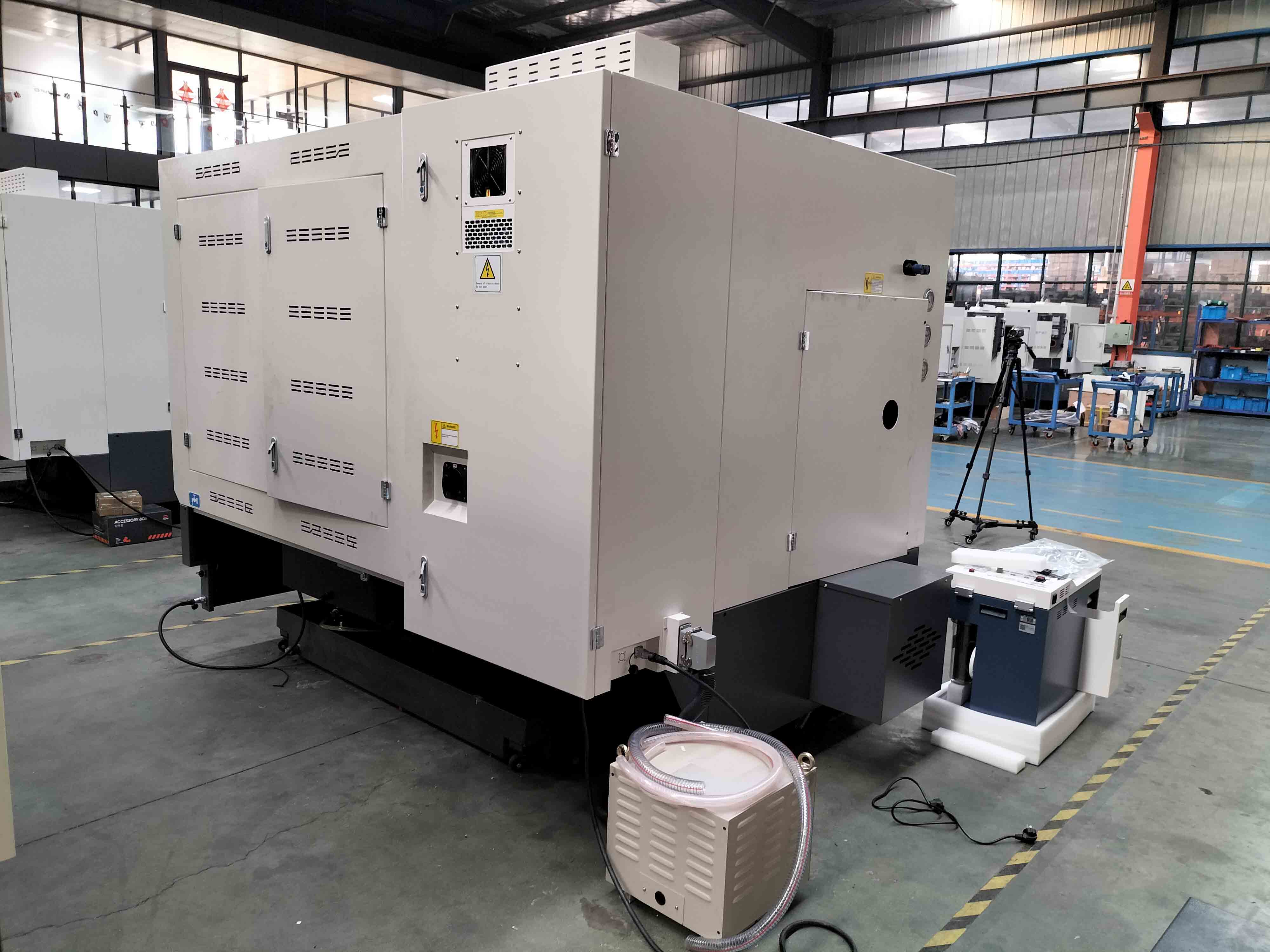

MFG Machinery TCK50AY Slant Bed CNC Turning Center

45° True Slant Bed, Y-Axis Turn-Mill Capability & Constant-Temp Precision Transmission

Product Overview
The MFG Machinery TCK50AY is a premium, export-proven slant bed CNC turning center engineered to redefine your manufacturing capabilities. Beyond standard turning, this advanced machine is equipped with Y-axis functionality, allowing it to execute complex off-center milling, drilling, and tapping operations in a single setup.

Built upon a highly rigid 45° true slant bed structure and featuring premium Taiwan linear roller guides, it ensures unmatched structural stability and effortless chip evacuation. With its transmission components processed and assembled exclusively in a constant-temperature workshop, the TCK50AY guarantees impeccable repeat positioning accuracy, making it the ultimate multi-axis solution for high-precision, high-volume part production.

Key Features & Advanced Engineering

• Y-Axis Turn-Mill Integration: The defining feature of the "Y" series. When equipped with a live tooling (power) turret, the Y-axis enables complex multi-tasking operations—including off-center radial milling and precise drilling—drastically reducing cycle times and eliminating the need for secondary setups on a separate milling machine.
• Rigid 45° Slant Bed Architecture: The entire machine bed and headstock are cast from high-strength materials. The 45° inclined structure lowers the center of gravity to absorb heavy cutting vibrations while providing optimal operator ergonomics and highly efficient, gravity-assisted chip removal.
• Constant-Temperature Precision Transmission: To completely eliminate thermal expansion errors during manufacturing, the precision ball screws and nuts are exclusively processed, ground, assembled, and strictly quality-controlled inside a dedicated constant-temperature workshop. This ensures flawless multi-axis synchronization and stability.
• Taiwan Linear Roller Guideways: Equipped with high-precision, preloaded Taiwan linear roller guides. They offer an exceptionally low friction coefficient, handling heavy loads while delivering lightning-fast rapid traverse rates and pinpoint accuracy.
• Dynamically Balanced Spindle: Features a high-precision spindle bearing group. Through meticulous precision assembly and rigorous dynamic balance testing, the spindle delivers massive torque, whisper-quiet operation, and the robust rigidity needed for both heavy turning and delicate finishing.

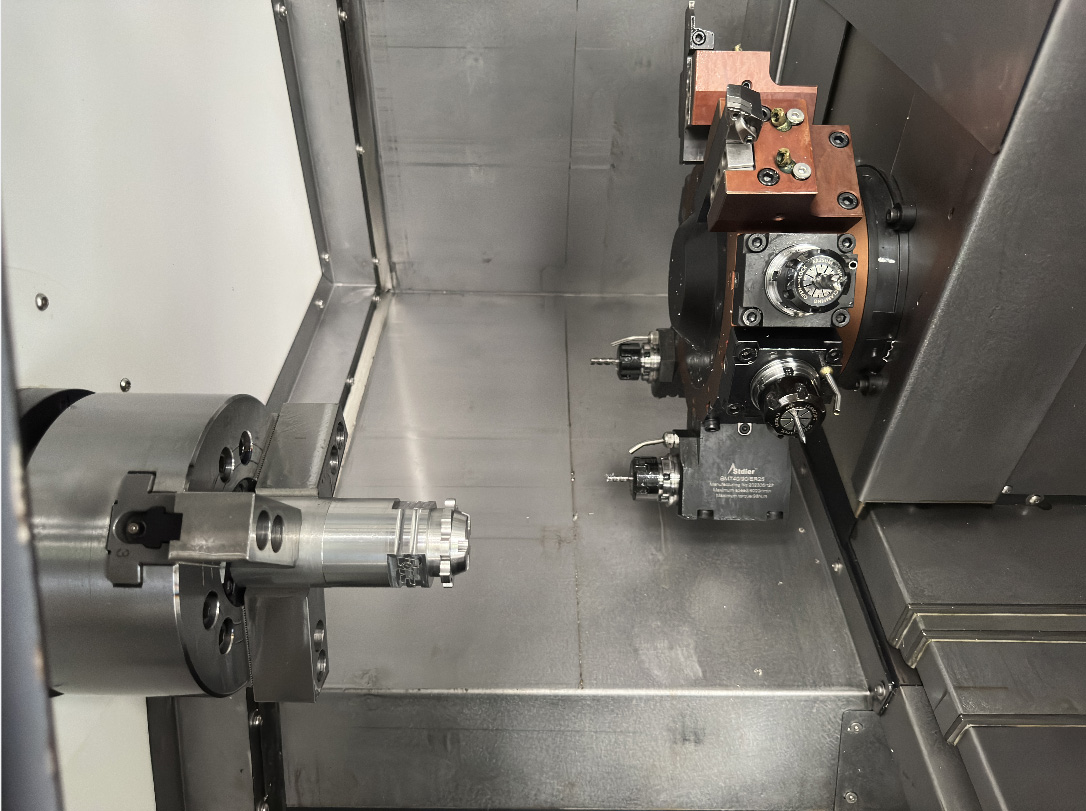

• Rapid Indexing Turret: Engineered for high-speed tool changes and exceptional positioning accuracy. Buyers can configure the machine with highly reliable hydraulic or servo turrets, or opt for a live tooling turret (power turret) to fully unlock the machine's milling potential.
• Wedge-Style Hydraulic Chuck: Comes standard with a heavy-duty, wedge-shaped through-hole hydraulic chuck. It provides rapid clamping and unclamping capabilities with immense holding force and high concentricity under hydraulic pressure.
• Industrial Volumetric Auto-Lubrication: Powered by the premium RBCLB-3ZK positive displacement lubrication pump. It provides uninterrupted, automatic oil supply directly to the bed guideways, carriage dovetail surfaces, and ball screw assemblies, drastically extending the machine's lifespan.
