MFG Machinery TCK25Y Dual-Spindle Turn-Mill Center

Y-Axis Live Tooling, Built-in Sub-Spindle & Constant-Temp Assembly for "Done-in-One" Machining

Product Overview
The MFG Machinery TCK25Y is an elite, multi-tasking CNC Turn-Mill Center engineered for the ultimate "Done-in-One" manufacturing experience. Breaking the boundaries of traditional turning, this highly advanced machine is equipped with a Y-axis live tooling turret and a high-precision motorized sub-spindle.

This allows complex components to be fully machined on both the front and back sides—including off-center milling, drilling, and tapping—in a single, uninterrupted setup. Built upon a rigid 30° or 45° slant bed and featuring climate-controlled assembled transmissions, the TCK25Y delivers unrivaled multi-axis synchronization, exceptional surface finishes, and drastically reduced cycle times for high-value precision parts.

Key Features & Advanced Engineering

• Dual-Spindle Architecture for Single-Setup Machining: Maximize your throughput. The machine features a powerful main spindle combined with a high-precision, motorized electric sub-spindle. This enables automatic part hand-off from the main to the sub-spindle, allowing for simultaneous or sequential machining of both ends of the workpiece without manual intervention.

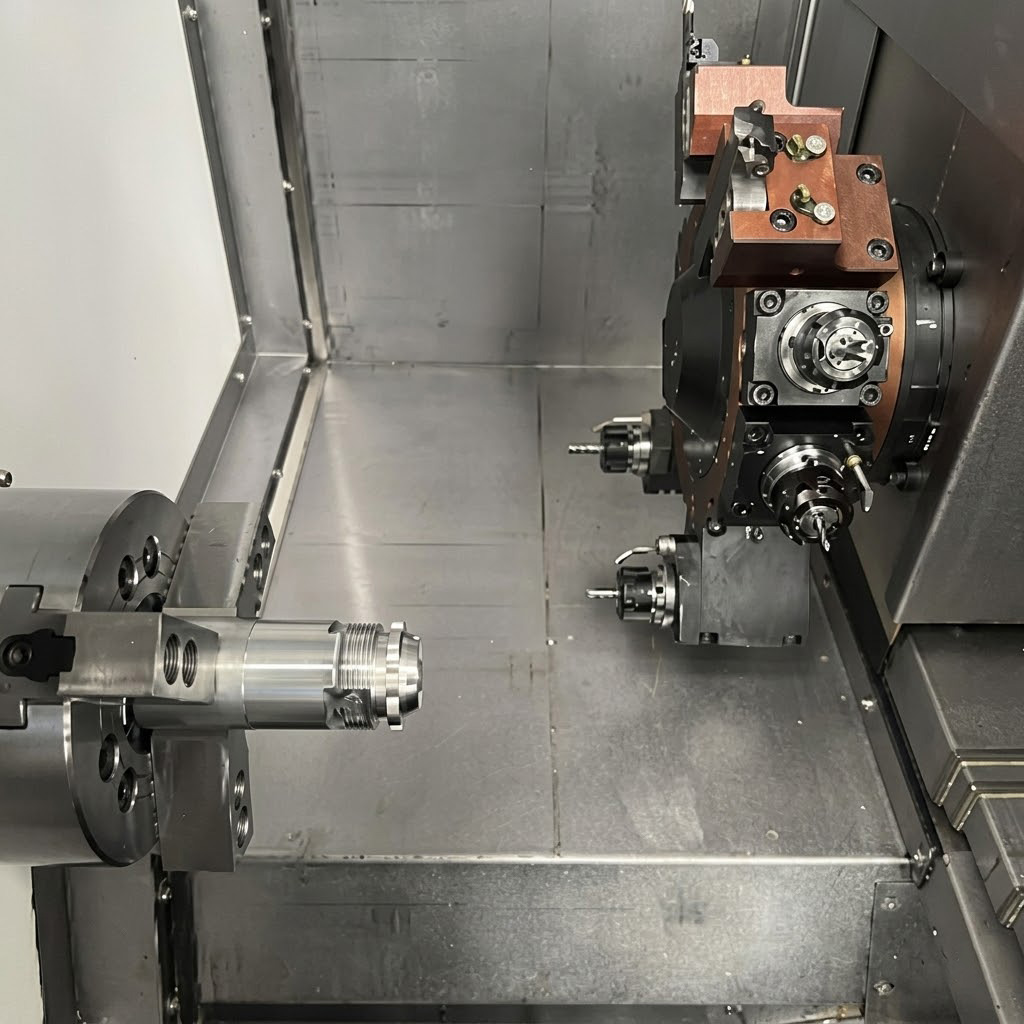

• Y-Axis Powered Turret: Equipped with a highly dynamic Y-axis live tooling turret. This empowers the machine to execute complex off-center radial and axial milling, drilling, and tapping, transforming the lathe into a comprehensive multi-tasking machining center.
• Rigid Slant Bed & Roller Guides: The machine utilizes a robust 30° or 45° overall inclined bed cast from high-strength iron. Paired with preloaded Taiwan linear roller guideways, it offers an exceptionally low friction coefficient, high-speed rapid traverses, and effortless gravity-assisted chip evacuation.
• Constant-Temperature Precision Assembly: To entirely eliminate thermal expansion errors, all precision ball screws and nuts are exclusively processed, ground, assembled, and rigorously quality-controlled inside a dedicated constant-temperature workshop, ensuring flawless long-term repeat positioning accuracy.
• Dynamically Balanced Spindles: Both the main spindle and the electric sub-spindle utilize premium high-precision bearing sets. Through meticulous precision assembly and strict dynamic balance testing, they deliver massive torque, whisper-quiet operation, and absolute rotational accuracy.
• High-Speed Wedge Chucks: Fitted with high-precision wedge-shaped through-hole hydraulic chucks on the spindles. They provide ultra-fast clamping and unclamping capabilities under hydraulic pressure, securing workpieces with immense holding force and precise concentricity.
• Volumetric Auto-Lubrication System: Powered by an industrial-grade volumetric positive displacement pump. It provides a continuous, automatic, and metered oil supply directly to the bed guideways and ball screw assemblies, drastically extending the lifespan of critical moving parts.
