MFG Machinery TCK50A Slant Bed Turn-Mill CNC Center

500mm Swing, X/Y/Z/C Multi-Axis Control & Constant-Temp Precision Assembly

Product Overview
The MFG Machinery TCK50A is an elite, space-saving slant bed CNC turning center engineered for the highly efficient, single-setup machining of complex components. Moving far beyond traditional 2-axis turning, this machine boasts X, Y, Z, and C axes servo control.

Driven by a high-torque servo motor, the C-axis spindle works in tandem with a Y-axis live tooling turret to effortlessly execute advanced radial and axial surface milling, drilling, and tapping. Built upon a highly rigid 30° or 45° slant bed and featuring constant-temperature assembled transmissions, the TCK50A counteracts gravitational deflection, guarantees flawless chip evacuation, and delivers uncompromising repeat positioning accuracy for high-volume precision manufacturing.

Key Features & Advanced Engineering

• Multi-Axis Turn-Mill Integration (C & Y Axis): Eliminate secondary setups. With full C-axis spindle indexing and Y-axis servo control, this machine transitions seamlessly from heavy turning of shafts and discs to intricate off-center milling and drilling, drastically reducing overall cycle times.
• Rigid Slant Bed Architecture: The overall 30° or 45° inclined cast-iron bed is specifically designed to counteract gravitational deflection. This structural advantage absorbs heavy cutting vibrations, delivers superior stability, and provides a highly compact footprint that maximizes your shop floor space.
• Constant-Temperature Precision Transmission: To completely eliminate thermal expansion errors, all precision ball screws and nuts are processed, ground, assembled, and rigorously quality-controlled inside a dedicated constant-temperature workshop, ensuring unwavering long-term multi-axis synchronization.
• Preloaded Taiwan Linear Roller Guides: Equipped with high-precision Taiwan linear roller guideways. They offer an exceptionally low friction coefficient, enabling lightning-fast rapid traverse rates (24 m/min on X and Z) while maintaining extreme positioning precision under heavy loads.
• Dynamically Balanced Spindle Unit: The main spindle utilizes a premium high-precision bearing set. Through meticulous precision assembly and strict dynamic balance testing, it delivers massive torque and strong rigidity with remarkably low noise.
• Gravity-Assisted Chip Evacuation: The steep incline of the machine bed ensures that abrasive metal chips and coolant naturally fall directly into the chip conveyor. This prevents heat buildup in the cutting zone and enables automated, hands-free chip removal.

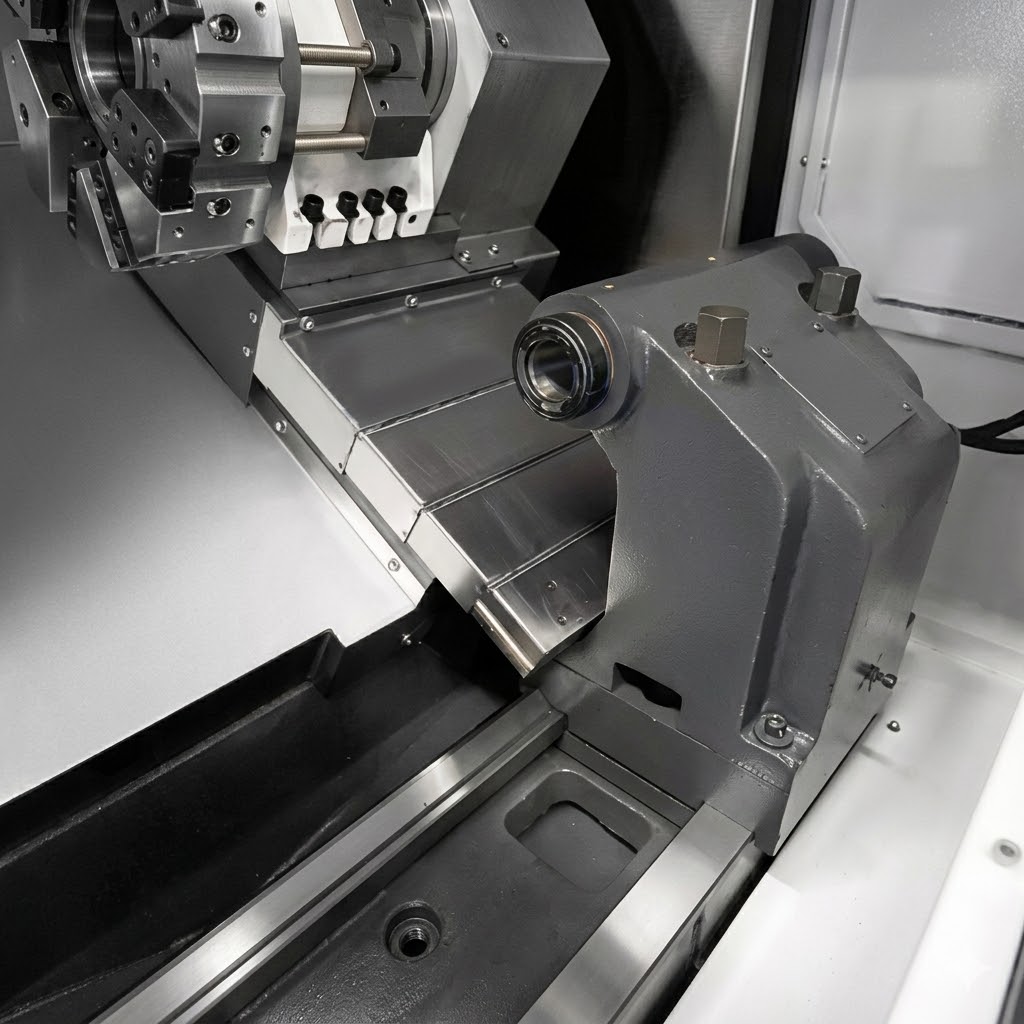

• Wedge-Style Hydraulic Chuck & Tailstock: Comes standard with a heavy-duty wedge-shaped through-hole hydraulic chuck for rapid, high-precision clamping. It is paired with a robust MT5 hydraulic tailstock to securely support long shaft components during heavy material removal.
• Volumetric Auto-Lubrication System: Powered by an industrial-grade volumetric positive displacement pump. It provides a continuous, automatic, and metered oil supply directly to the bed guideways and ball screw assemblies, minimizing wear and extending machine life.
