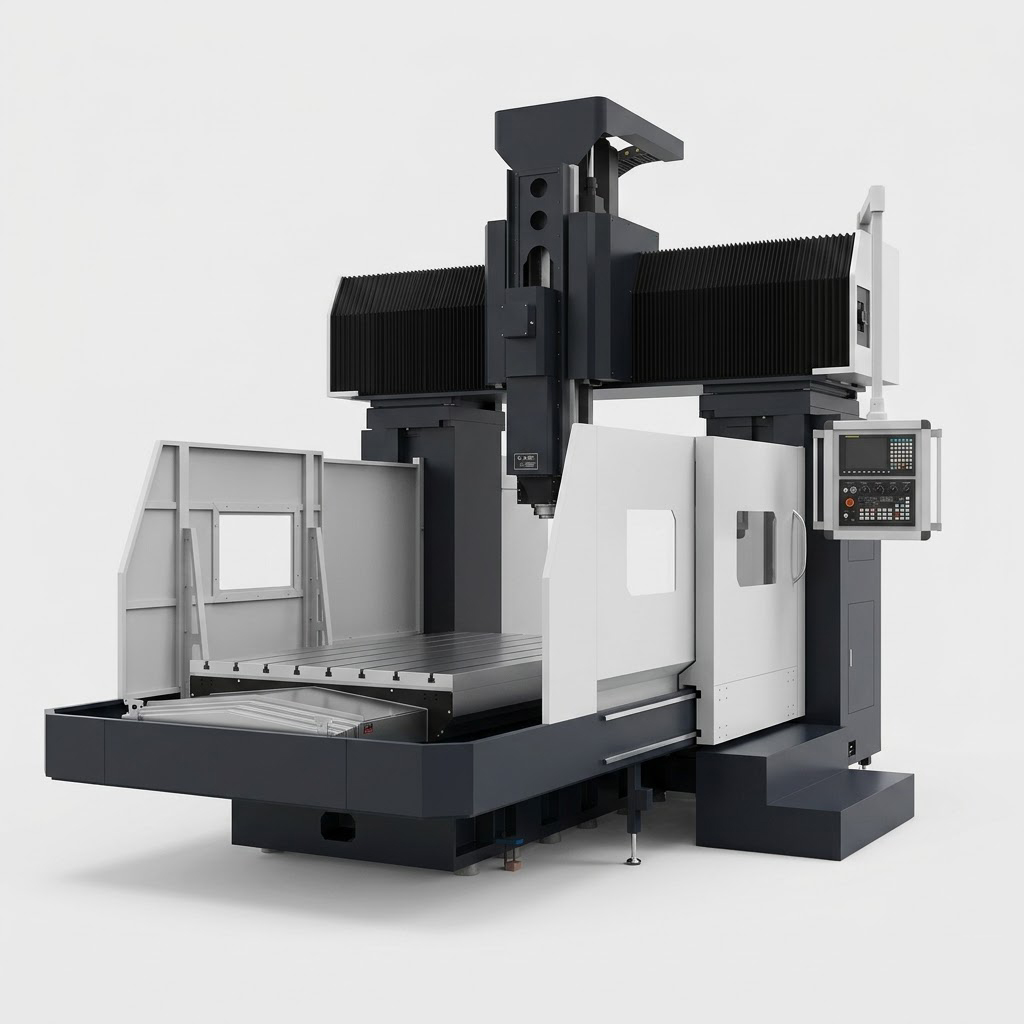

GMC6042 Heavy-Duty CNC Gantry Machining Center

High-Precision Heavy-Duty Double Column Milling Solution

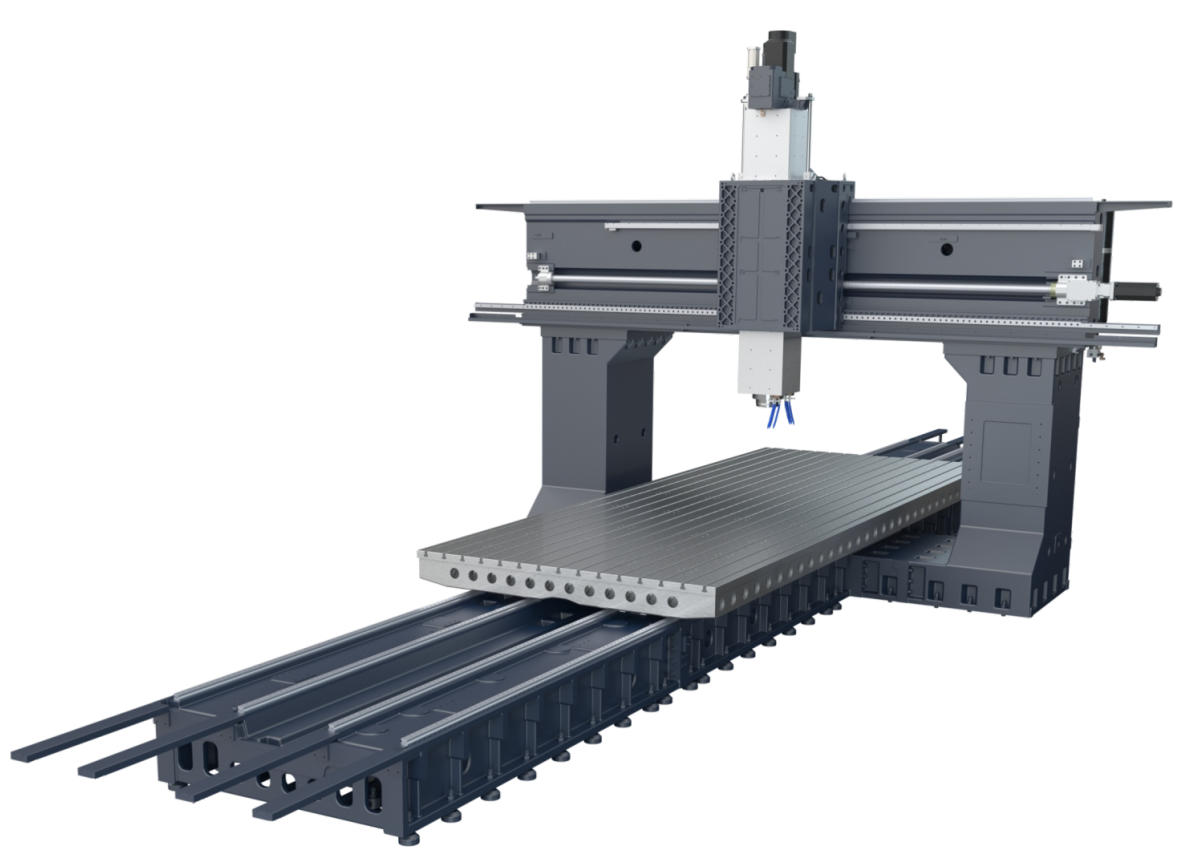

The GMC6042 CNC Gantry Machining Center is a powerhouse of industrial engineering, designed to handle the most demanding large-scale machining tasks. Featuring a massive 3500 × 6000 mm table and a total machine weight of 75 tons, this bridge-type mill provides the ultimate thermal stability and structural rigidity required for the aerospace, automotive mold, and energy sectors.

Core Technical Advantages

1. Superior Structural Rigidity (Cast Iron Foundation)

Built with high-strength cast iron and a resin sand casting process, the GMC6042 undergoes 3D computer-aided optimization. The layout of the reinforcement ribs ensures maximum resistance to torsion and vibration during heavy-duty cutting. The 450 × 450 mm square ram (Z-axis) utilizes a box-way design, hand-scraped for perfect fit and superior dampening.

2. High-Performance Spindle Options

Tailor the machine to your specific production needs with our versatile spindle drive configurations:

• Precision Belt Drive: Standard 4000 RPM for balanced performance.
• ZF Reducer + Belt: 6000 RPM with an impressive 560 Nm of torque, ideal for heavy material removal.
• Weimars Gear Head: 6000 RPM with a 4.4:1 ratio for maximum cutting force.
• Standard Spindle Oil Chiller: Prevents thermal expansion, ensuring long-term accuracy and spindle longevity.

3. Advanced Motion & Drive System

• X-Axis Excellence: Powered by a servo motor through a 5:1 planetary gearbox and 4 heavy-duty imported roller linear guideways, allowing for a 50-ton table load without compromising sensitivity.
• Y-Axis Stability: Features a vertical-cross layout with 3 heavy-duty roller guideways to ensure optimal bending stiffness during lateral movement.
• Z-Axis Precision: Equipped with a Liquid Nitrogen Balancing System and an automatic brake for smooth, stable, and safe vertical positioning.

4. Intelligent Automation & Protection

• Tool Management: A 40-tool chain-type ATC (Automatic Tool Changer) driven by a high-speed cam mechanism provides rapid and stable tool swaps.
• Reliable Control: Powered by the industry-standard FANUC 0i MF PLUS (1B) system, offering global support and intuitive operation.
• Maintenance & Cleanliness: Includes a dual-screw chip conveyor system and full stainless steel telescopic covers to protect vital components from coolant and debris.

Technical Highlights at a Glance

• Positioning Accuracy: $\pm 0.02$ mm (Full Stroke)
• Repeatability: $\pm 0.01$ mm
• Max Table Load: 50,000 kg
• X/Y/Z Rapid Traverse: 10,000 mm/min
• Spindle Taper: BT50 (Heavy Duty)

Why Choose the GMC6042?

The GMC6042 isn't just a machine; it's a long-term investment in precision. Whether you are milling complex aerospace components or large-scale automotive dies, the combination of heavy-duty box ways, planetary gear drives, and FANUC intelligence ensures your shop stays ahead of the competition with reduced cycle times and unmatched surface finishes.
