GMC2016 CNC Gantry Machining Center

GMC2016 CNC Gantry Machining Center - Heavy-Duty Double Column Milling for Large-Scale Precision Engineering

Product Overview:
The GMC2016 CNC Gantry Machining Center is a powerhouse designed for high-rigidity and high-precision machining of large components. With a substantial 2000mm x 1400mm worktable and a 6-ton load capacity, it excels in the aerospace, automotive, and heavy machinery industries. The machine's foundation is built from high-strength cast iron using resin sand casting, reinforced with an optimized rib structure to ensure ultimate stability and vibration absorption during aggressive metal removal.

Key Performance Features:

• Enhanced Structural Integrity: Featuring a vertical-cross beam layout, the GMC2016 provides superior bending and torsional resistance, maintaining alignment even under heavy cutting loads.

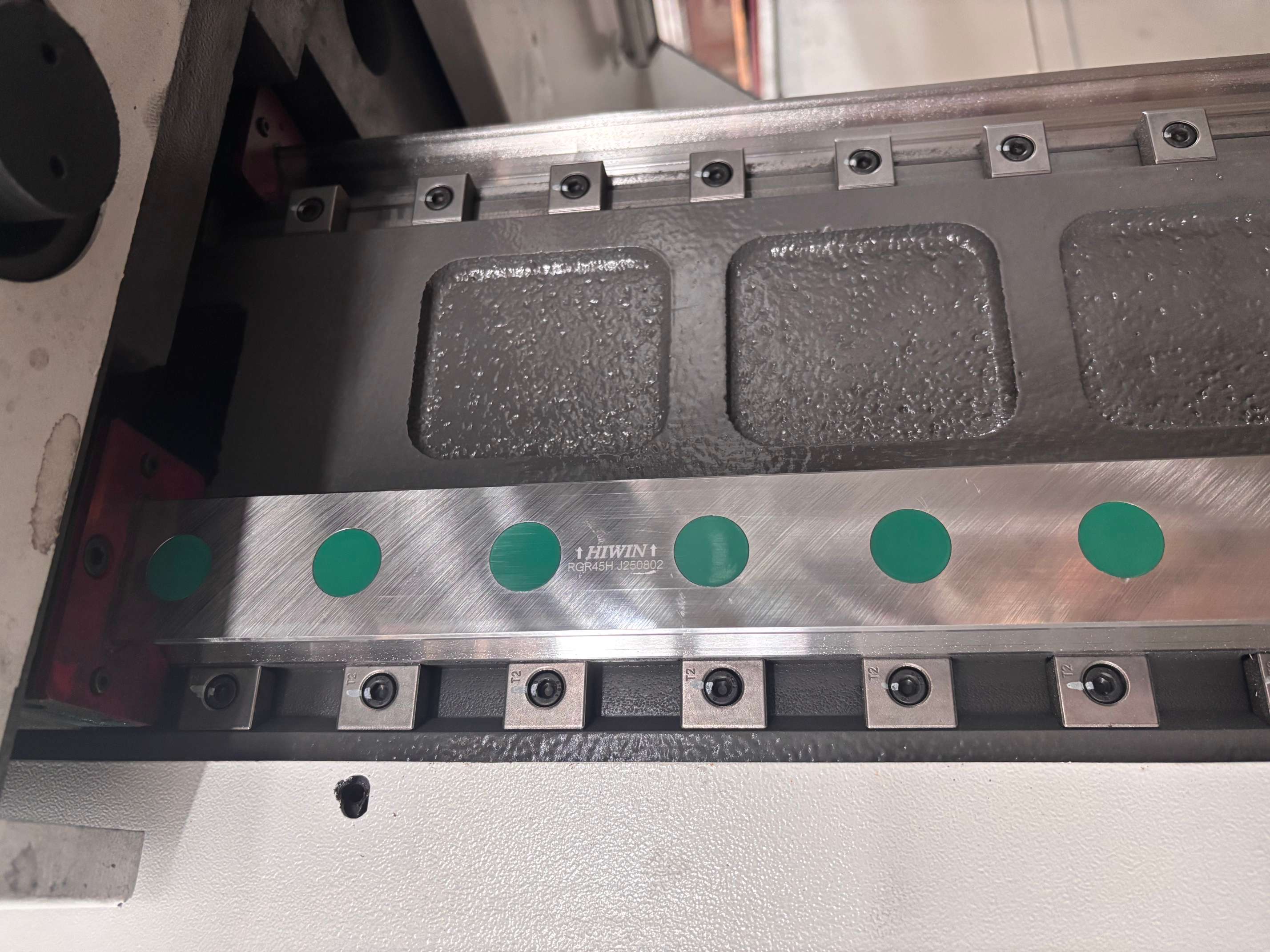

• Precision Motion & Stability: The X, Y, and Z axes are equipped with imported heavy-duty roller linear guides, offering high sensitivity and long-term accuracy maintenance with a positioning precision of ±0.005/300mm.
• Powerful BT50 Spindle System: The high-torque spindle (up to 22kW) is paired with a dedicated oil cooling system, preventing thermal expansion and ensuring consistent surface finish quality at speeds up to 6000 r/min.
• Advanced Nitrogen Balancing: A liquid nitrogen balance mechanism stabilizes the Z-axis movement, protecting the drive motor and ensuring smooth vertical feeding for intricate profiling.
• Industrial-Grade Efficiency: Includes dual spiral chip conveyors, an automatic thin-oil lubrication system, and a fully enclosed splash guard for maximum operator safety and minimal downtime.
