GMC1412 CNC Gantry Machining Center

GMC1412 CNC Gantry Machining Center - High-Precision Double Column Milling Machine

Product Overview:

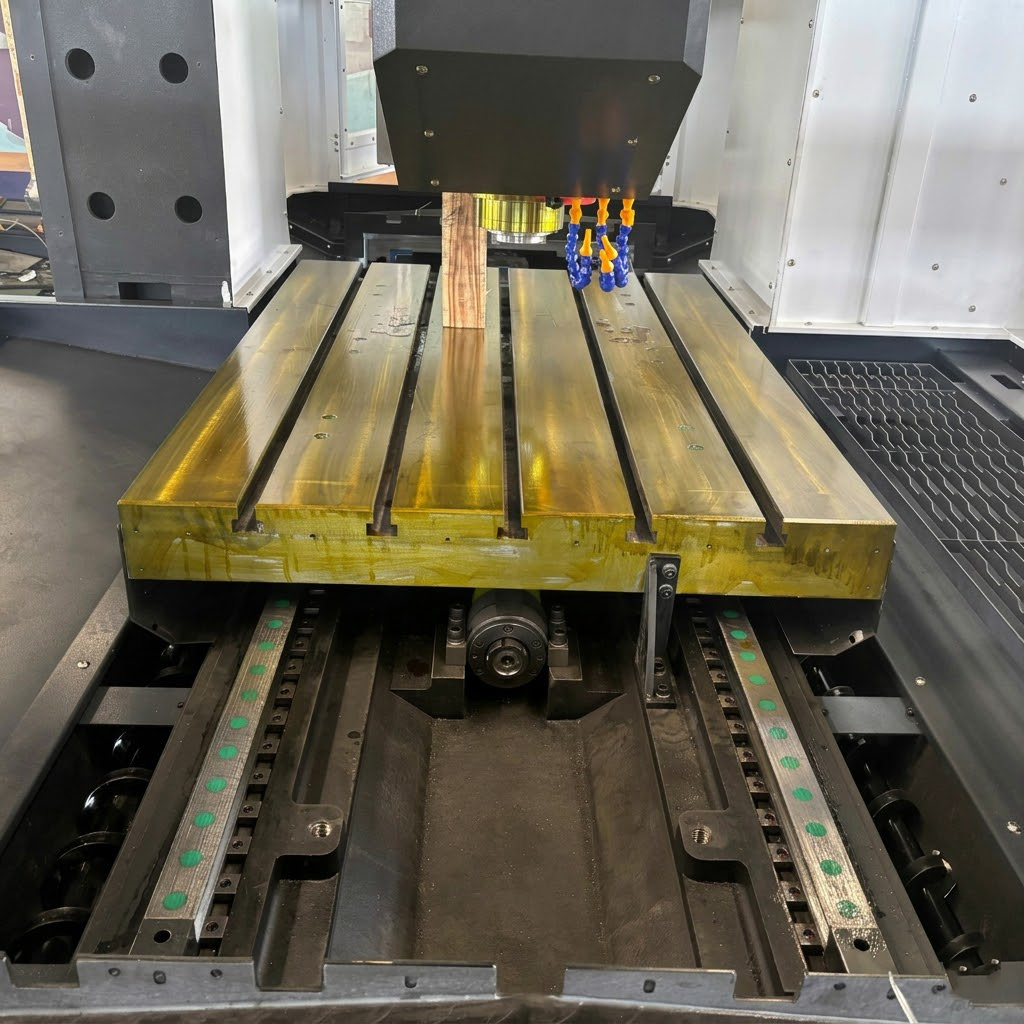

The GMC1412 CNC Gantry Machining Center is engineered for high-performance heavy-duty milling, offering exceptional rigidity and precision for large-scale industrial components. Featuring a 1400mm x 1000mm worktable and a 1200mm gantry width, this double-column machine provides a massive 3-ton load capacity, making it the ideal solution for heavy mold bases and aerospace parts.

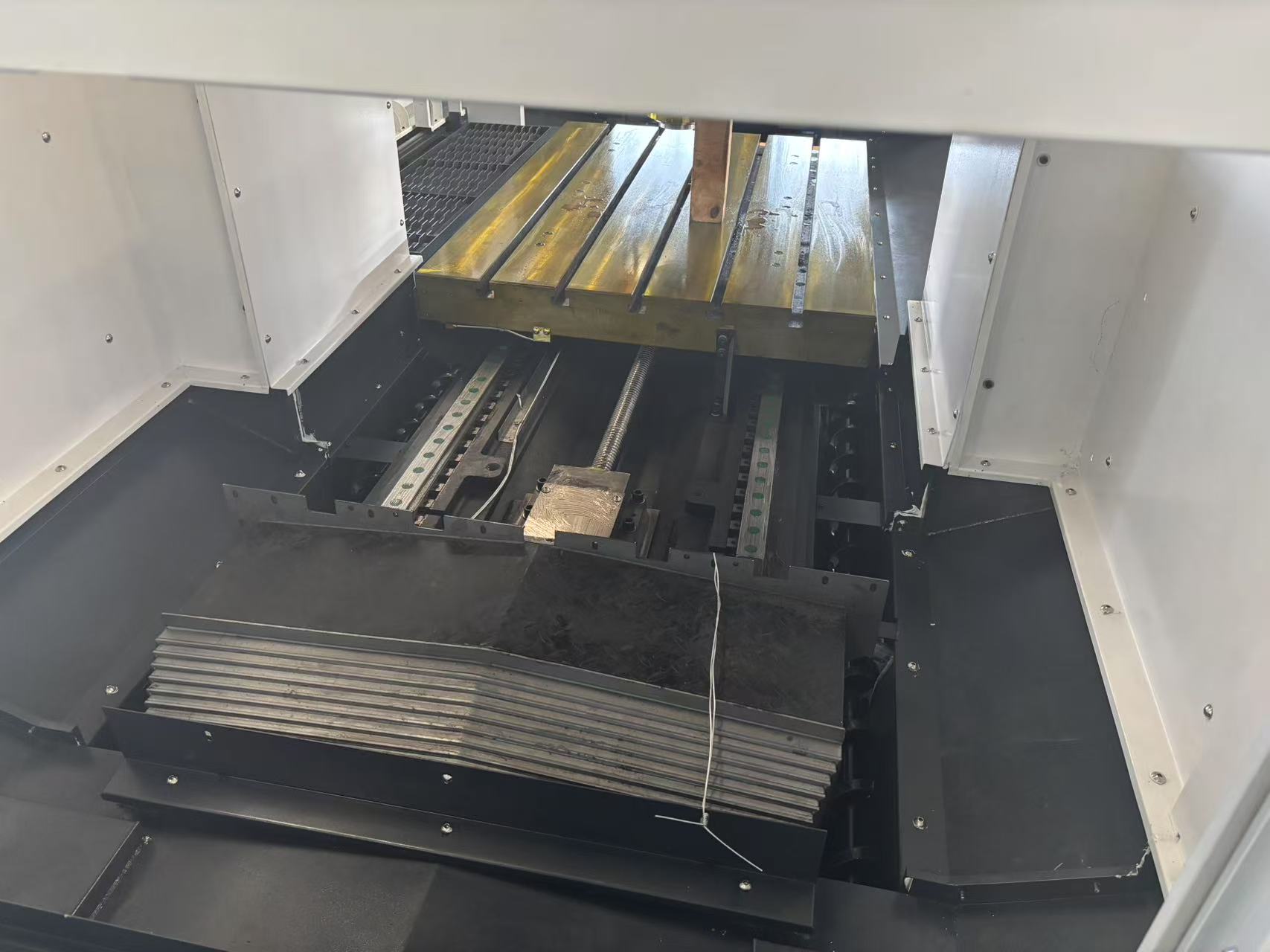

Constructed using premium resin-sand cast iron and optimized through 3D CAD analysis, the GMC1412 ensures maximum vibration damping. The cross-beam’s vertical-cross guide rail layout significantly enhances cutting rigidity, allowing for stable, high-load operations without compromising accuracy.

Technical Advantages:

• Superior Rigidity: Double-column structure with imported heavy-duty roller linear guideways for high load-bearing and vibration resistance.
• High-Torque Performance: Powered by a 15/18.5KW BT50 spindle reaching 8000 r/min, perfect for both roughing and finishing.
• Advanced Stability: Z-axis features a liquid nitrogen balance system and a 4-rail slide structure for smooth vertical motion and high-speed response.

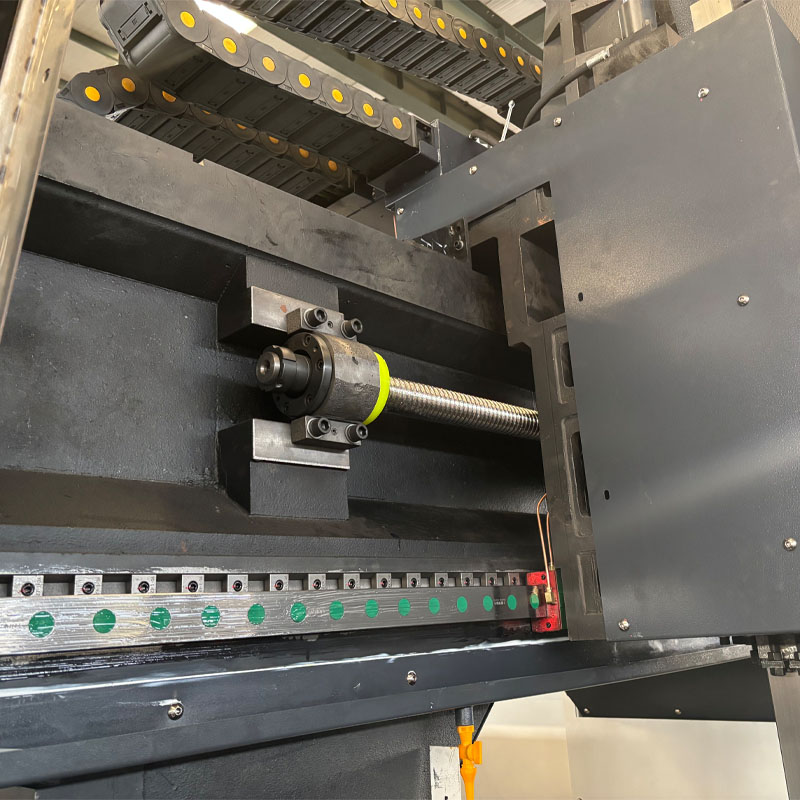

• Precision Drive: X-axis utilizes a planetary reducer and pre-stretched ball screws to maintain long-term accuracy and mechanical stiffness.
• Efficient Chip Management: Integrated dual-spiral and chain-type conveyors ensure clean operations in high-volume production.
