GMC1814 CNC Gantry Machining Center

GMC1814 CNC Gantry Machining Center - High-Precision Double Column Milling for Heavy-Duty Die & Mold

Product Overview:

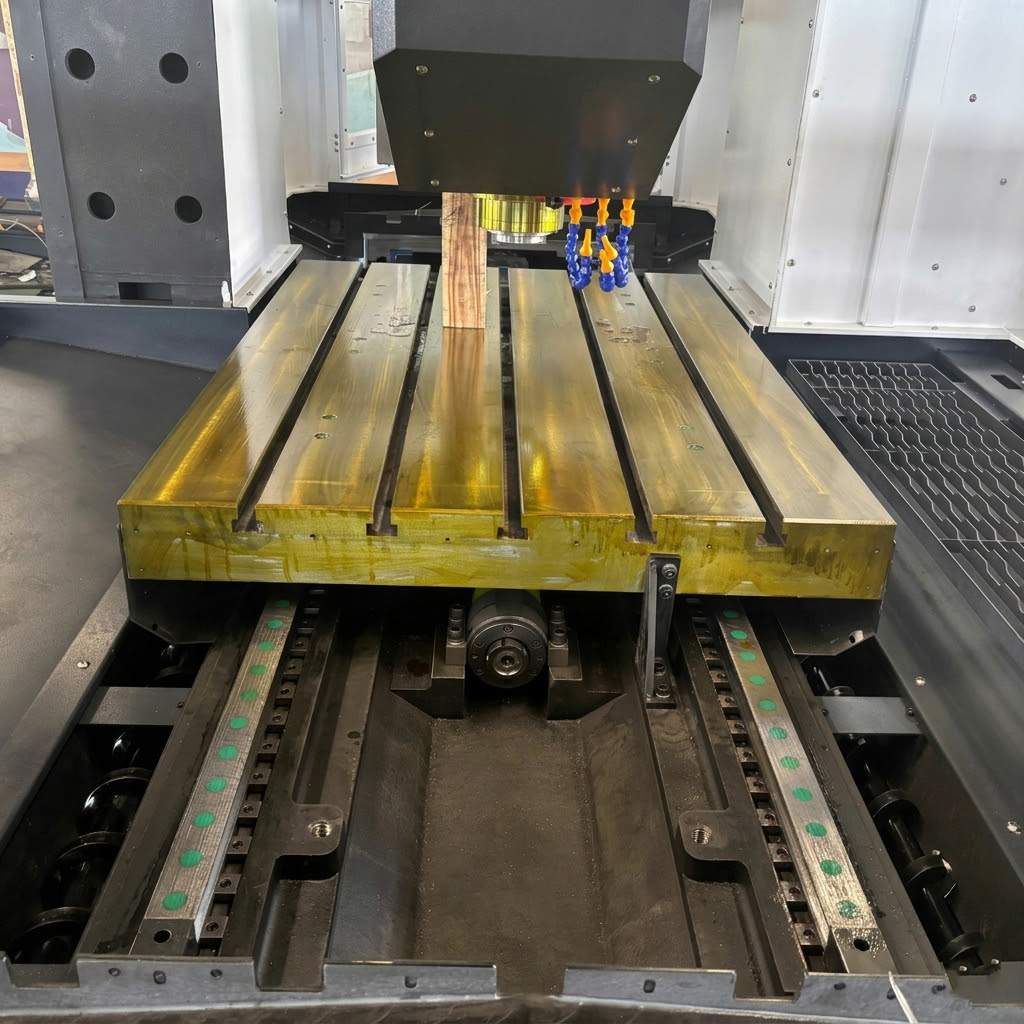

The GMC1814 CNC Gantry Machining Center is engineered for industrial-grade precision and high-efficiency heavy-duty cutting. Featuring a robust 1800mm x 1200mm worktable and a massive 6-ton load capacity, this machine is the ideal solution for large-scale mold manufacturing, aerospace components, and automotive tooling. Built with high-strength cast iron and a resin sand casting process, the GMC1814 ensures maximum structural rigidity and vibration damping during high-speed operations.

Key Performance Features:

• Superior Stability & Rigidity: Optimized using 3D CAD/CAE, the double-column structure and vertical-cross beam rail layout provide exceptional bending and torsional resistance for heavy-duty milling.
• High-Precision Motion Control: Equipped with imported heavy-duty roller linear guides and high-precision ball screws (pre-stretched), achieving a positioning accuracy of up to ±0.005/300mm.
• Dynamic Spindle Power: Features a high-performance BT50 spindle with speeds up to 6000 r/min and a maximum power of 18.5kW, supported by a specialized oil cooling system to prevent thermal deformation.
• Reliable Nitrogen Balance System: The Z-axis utilizes a liquid nitrogen balancing mechanism to ensure smooth, stable movement of the spindle box, even during rapid vertical transitions.
• Smart Maintenance & Protection: Includes an automatic lubrication system, dual-spiral chip conveyors, and a fully enclosed protective shield to ensure a safe, clean, and durable production environment.
