GMC5025 5-Axis CNC Gantry Machining Center

GMC5025 5-Axis CNC Gantry Machining Center - High-Speed 12,000 RPM Built-in Spindle

Overview:

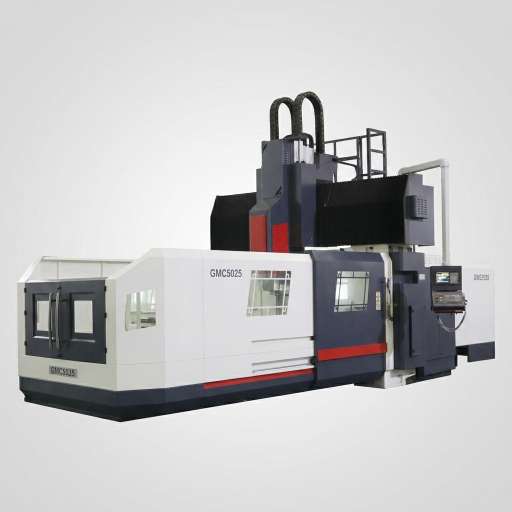

The GMC5025 5-axis gantry machining center by ANTISHI is a pinnacle of precision engineering designed for complex heavy-duty tasks in the aerospace, shipbuilding, and mold manufacturing industries. Featuring a robust 2000mm x 5000mm worktable and a maximum load capacity of 18,000kg, this machine is built to handle large-scale components with extreme stability.

Key Performance Highlights:

• Advanced 5-Axis Linkage: Equipped with a high-torque AC milling head (A-axis ±110°, C-axis ±200°), the GMC5025 allows for seamless negative angle machining and complex surface contouring. The precision is secured by a high-resolution ring-shaped optical ruler for ±5″ positioning accuracy.
• High-Power Built-in Spindle: The 54kW built-in electric spindle delivers up to 12,000 RPM and 240 N·m of torque. This "all-in-one" solution enables a smooth transition from heavy roughing to high-gloss finishing in a single clamping.
• Superior Rigidity: Constructed from high-strength cast iron with a micro-structure stability design, ensuring long-term thermal stability and vibration damping during high-speed cutting.
• Intuitive Control: Powered by the SIEMENS 828D control system, providing industry-leading reliability and ease of operation for complex 5-axis tool paths.

Applications:
Ideal for large-scale aluminum alloy structural parts, automotive molds, plastic injection molds, and energy industry components requiring complex hole-expansion, reaming, and multi-angle surface milling.
