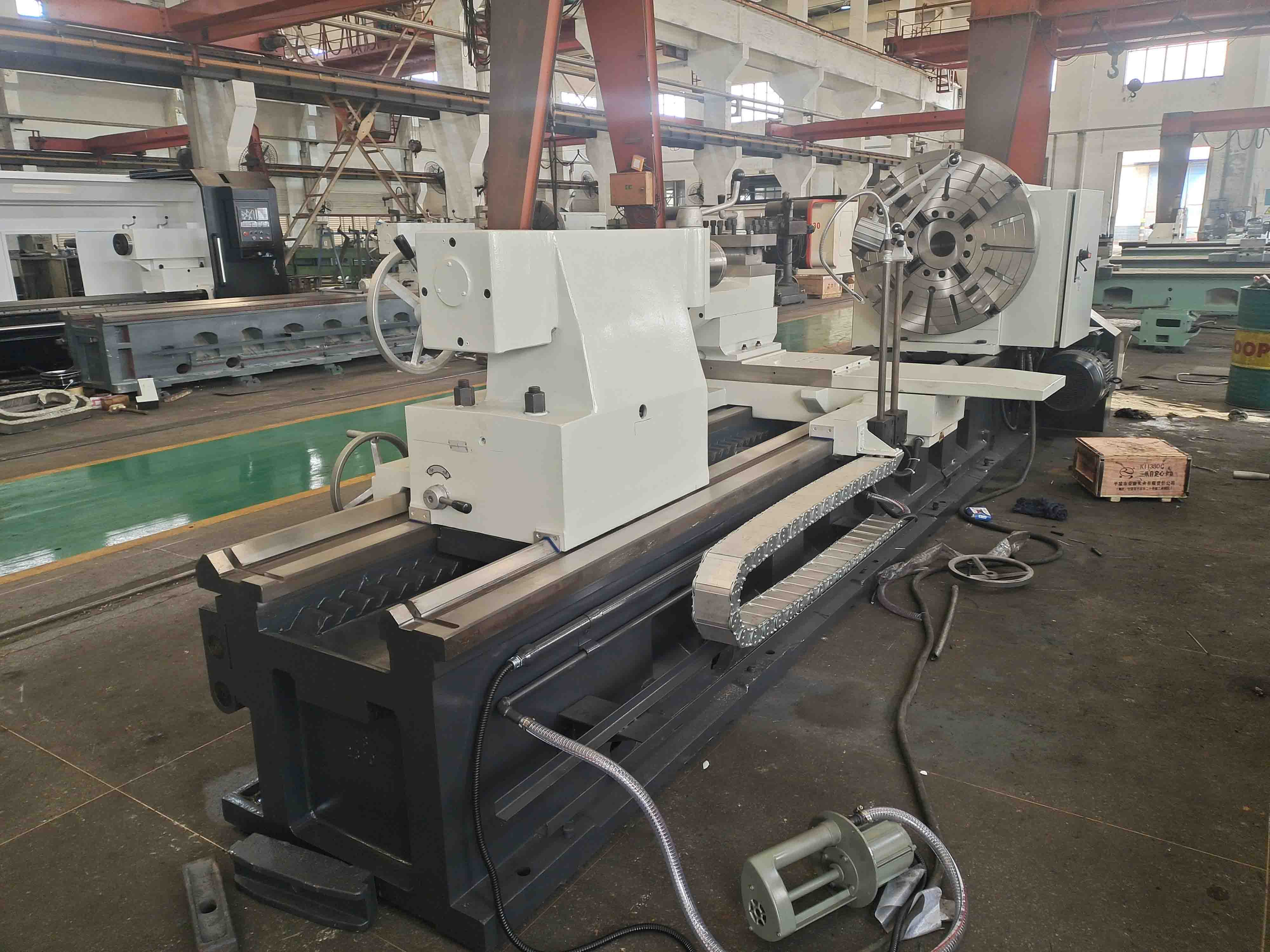

MFG Machinery CWA61125 Heavy-Duty Horizontal Lathe

1250mm Swing, 780mm Extra-Wide Bed & 3-Point Spindle Support for Massive Part Turning

Product Overview
Backed by over 23 years of continuous engineering refinement and trusted by the aerospace, military, railway, and valve manufacturing sectors, the MFG Machinery CWA61125 is a colossal heavy-duty conventional lathe engineered for extreme material removal.

Capable of executing powerful turning of large inner bores, outer cylinders, end faces, and complex threading (Metric, Inch, Module, and Diametral Pitch), it handles massive ferrous and non-ferrous workpieces with ease. Built upon a massive 780mm extra-wide bed with ultrasonic-hardened guideways and powered by a highly rigid 3-point supported spindle, the CWA61125 delivers uncompromising heavy-load capacity, vibration damping, and long-term precision for the world's most demanding industrial applications.

Key Features & Advanced Engineering

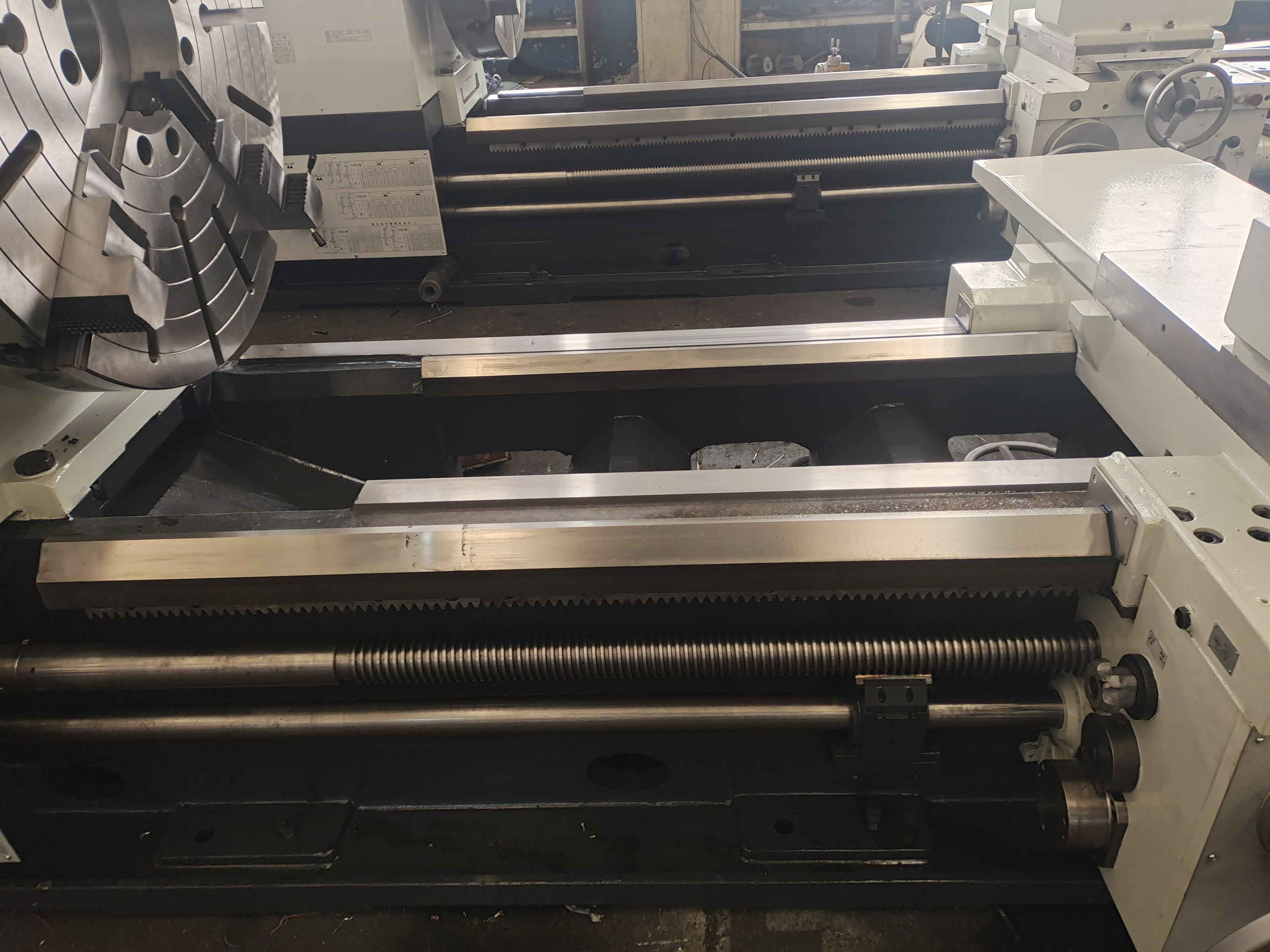

• 780mm Extra-Wide FEA-Optimized Bed: The massive machine bed is cast from premium resin-sand iron and reinforced with Type II internal ribbing. Engineered using Advanced Finite Element Analysis (FEA), the exceptionally wide 780mm span provides supreme rigidity and resistance to cross-sectional distortion. The guideways are processed with ultrasonic quenching and precision grinding for superior wear resistance, while a 35° rear-slanted structure ensures effortless, gravity-assisted chip evacuation.
• 3-Point Supported Heavy-Duty Spindle: The robust headstock utilizes a high-rigidity 3-point spindle support system (front, rear, and supplementary middle support). Paired with top-tier precision spindle bearings and high-frequency quenched, precision-ground gears, it delivers massive low-speed torque, low noise, and high transmission accuracy. The spindle brake is hydraulically controlled for highly responsive, reliable stopping power.

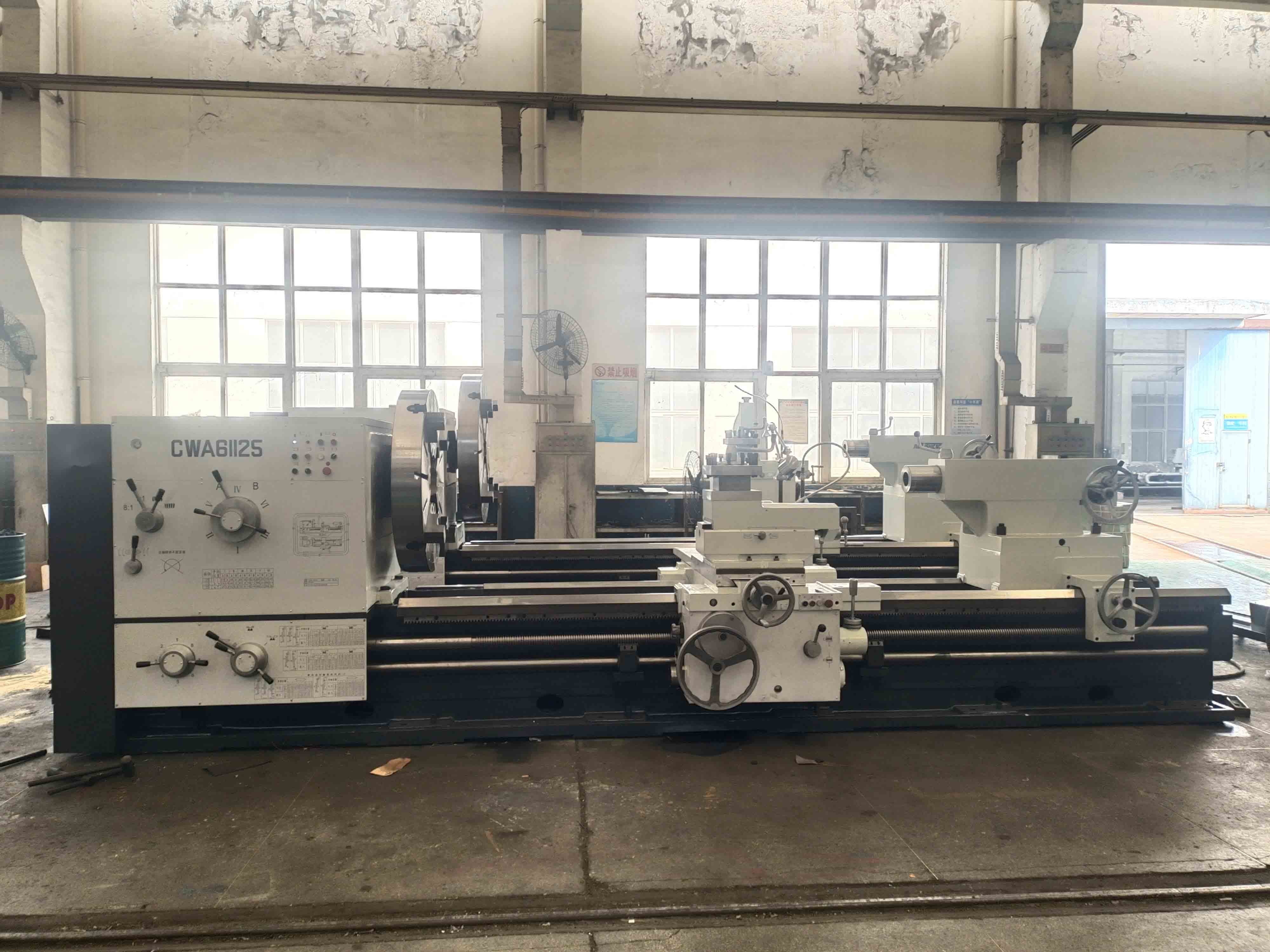

• Anti-Stick-Slip Carriage & Apron: To completely eliminate the "stick-slip" (crawling) effect during heavy feeding, the carriage guideways are lined with high-performance PTFE plastic soft tape (Turcite-B). The highly ergonomic apron features a built-in star-wheel overrunning clutch and an interlocking safety mechanism. A centralized 4-way cross-handle lever enables effortless control of longitudinal/cross feeds and rapid traverse motions.
• Heavy-Load Manual Tailstock: Engineered to support massive shafts, the robust tailstock features a sturdy upper and lower body construction. It is securely mounted on the two inner guideways of the bed and can be smoothly moved longitudinally via an easy-to-use rack-and-pinion mechanism.
• Universal Dual-Axis Feed Gearbox: The versatile sliding-gear feed box enables seamless conversion between various feed rates and thread pitches (Metric and Inch). A specialized change gear mechanism connects the spindle and feed box, allowing operators to cut unique, non-standard pitches simply by selecting the appropriate gear combination.
• Integrated Hydraulic & Electrical Systems: Features a dedicated hydraulic system to manage spindle forward/reverse rotation, braking, and automated lubrication of the headstock and feed box. The electrical system ensures safe, integrated electromechanical control, with an optional distribution cabinet air conditioner and a heavy-duty drag chain cable arrangement available.
