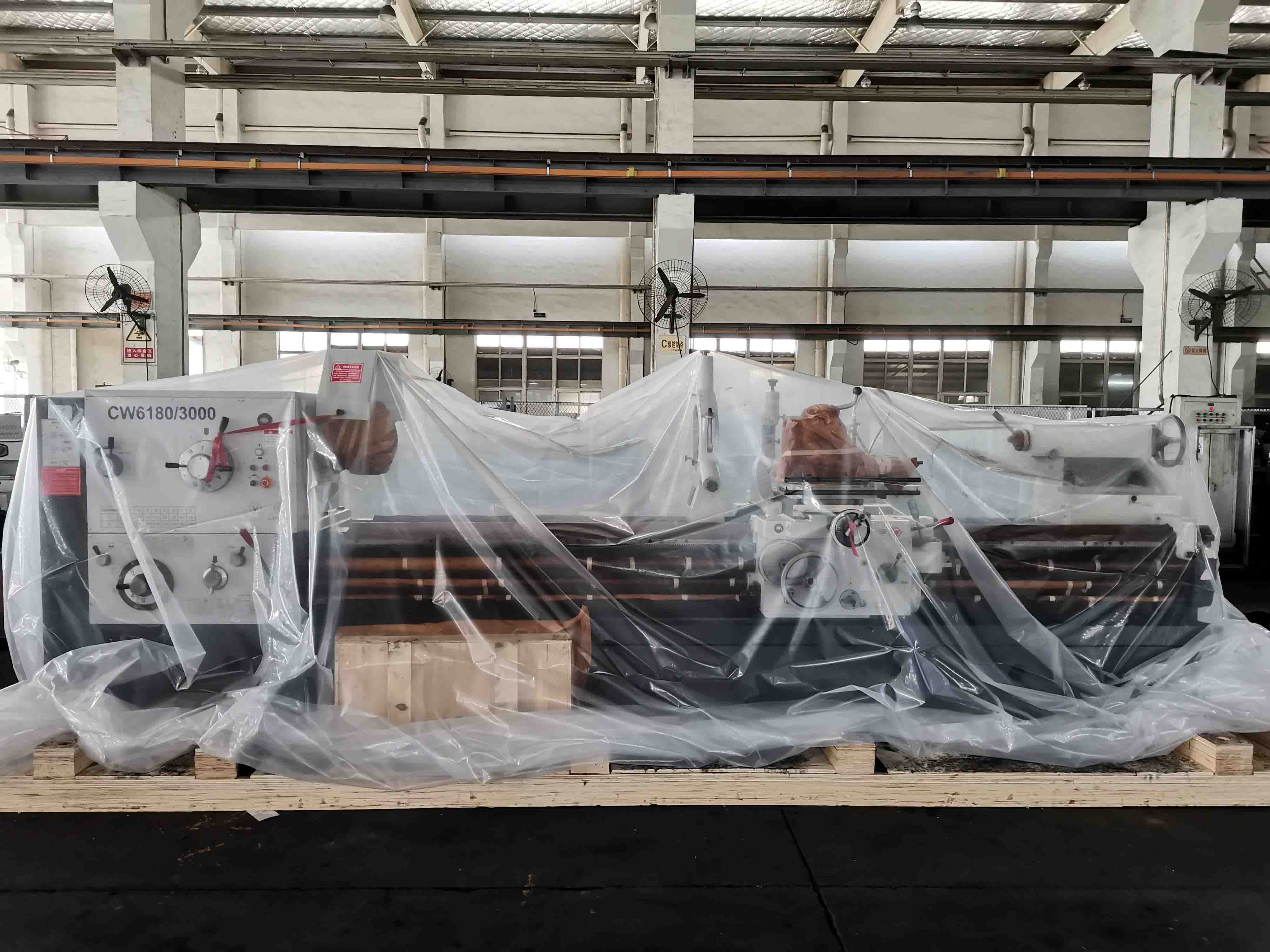

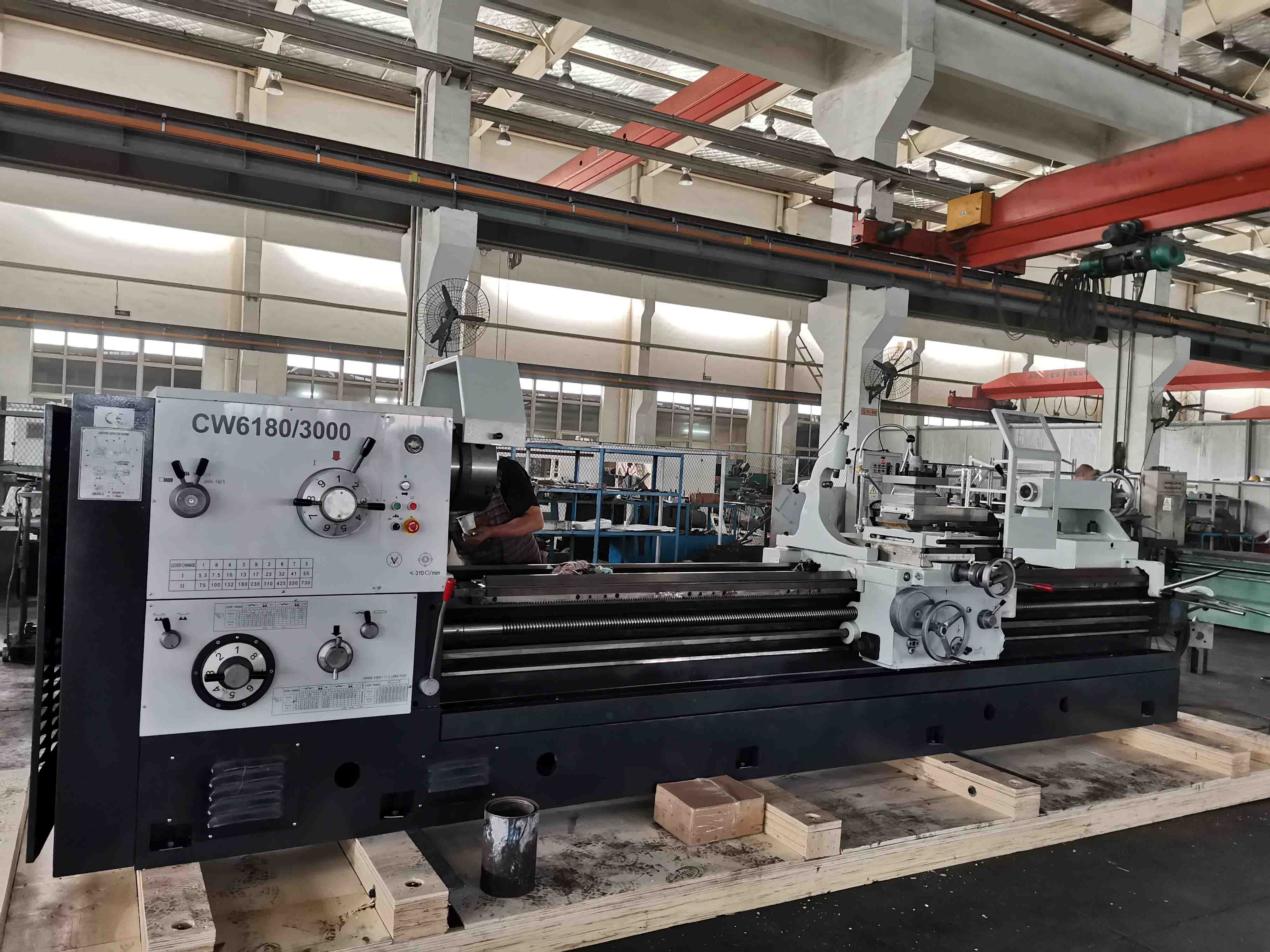

MFG Machinery CW6180 Heavy-Duty Horizontal Lathe

800mm Swing, 600mm Extra-Wide Bed & 3-Point Spindle Support for Industrial Shaft Turning

Product Overview
Backed by over 23 years of continuous engineering refinement and trusted by the aerospace, military, railway, and valve manufacturing sectors, the MFG Machinery CW6180 is a premium heavy-duty conventional lathe built for extreme material removal.

Designed with a traditional horizontal layout and cast entirely from high-grade resin sand iron, this machine delivers unmatched structural stability and vibration damping. Featuring a massive 600mm wide induction-hardened bed, a 3-point supported precision spindle, and anti-stick-slip guideways, the CW6180 effortlessly executes heavy roughing and precision finishing on large cylindrical, disc-shaped, and shaft components using high-speed steel (HSS) and carbide cutting tools.

Key Features & Advanced Engineering

• FEA-Optimized 600mm Wide Bed: The machine bed is cast from premium resin-sand iron and scientifically reinforced with Pi-shaped internal ribbing via Advanced Finite Element Analysis (FEA). The massive 600mm wide guideways are induction-hardened and precision-ground for unparalleled rigidity and wear resistance. An optimized 35° internal slanted structure ensures smooth, gravity-assisted chip evacuation.

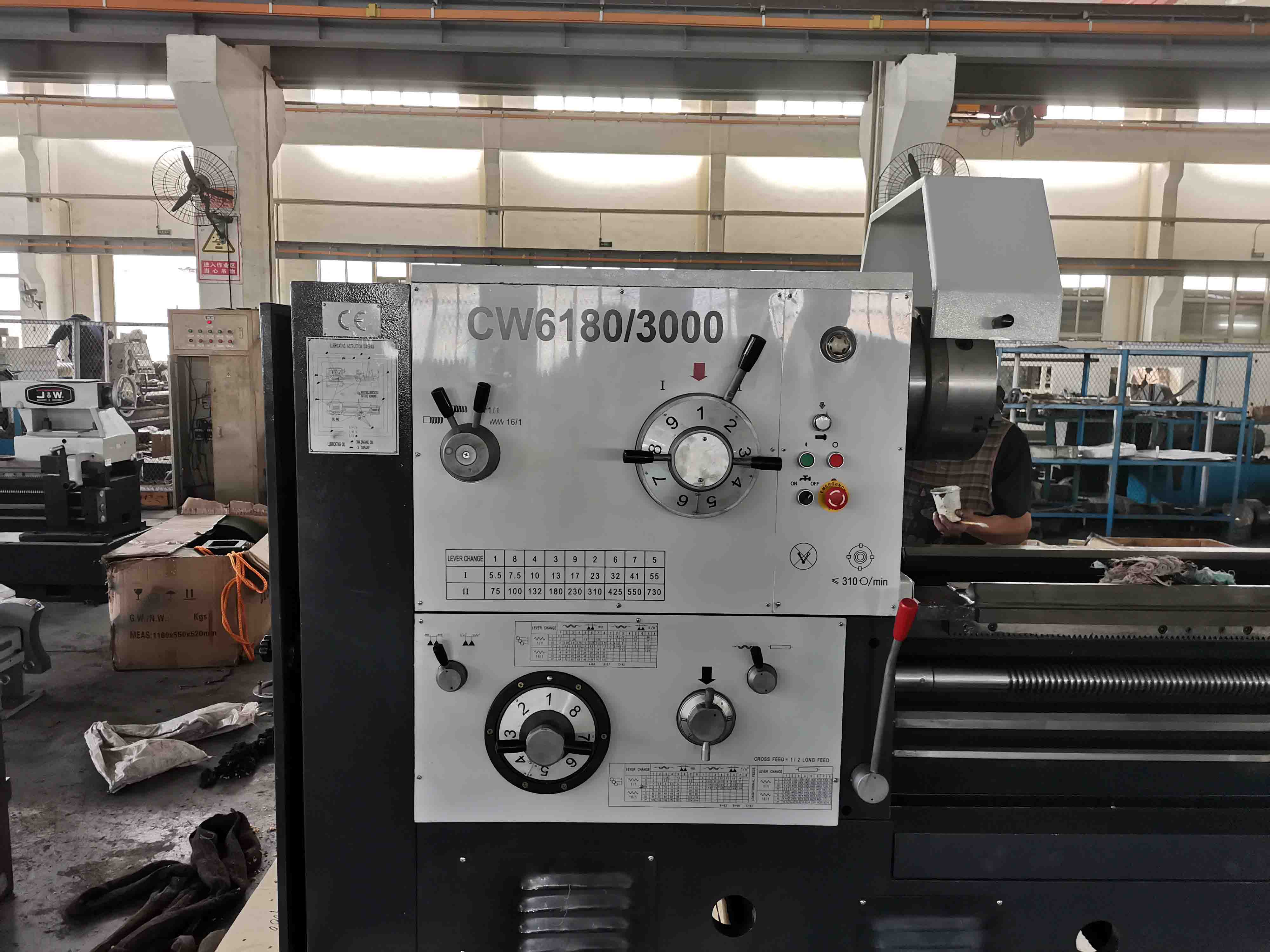

• 3-Point Supported Heavy-Duty Spindle: The headstock is engineered with a high-rigidity 3-point spindle support system (front and rear primary supports, plus a supplementary middle support) utilizing top-tier precision bearings. Driven by high-frequency quenched and ground gears, it delivers exceptional low-speed torque, low noise, and high transmission accuracy. The spindle features a highly responsive and reliable hydraulic braking system.
• Anti-Stick-Slip Carriage & Apron: To completely eliminate the "stick-slip" (crawling) effect during heavy feeding, the carriage guideways are lined with high-performance PTFE plastic soft tape (Turcite-B). The highly ergonomic apron is controlled by a centralized 4-way joystick for effortless longitudinal/cross feeds and rapid traverse. It features a built-in star-wheel overrunning clutch and a mechanical interlock to prevent conflicting operations.
• Heavy-Load MT6 Tailstock: Engineered to support massive long shafts. The robust tailstock features a sturdy upper and lower body construction. The quill utilizes a Metric No. 80 taper hole and accommodates a standard Morse Taper No. 6 (MT6) center, delivering unshakeable axial support during heavy cuts.
• Versatile Feed Box & Shear Gear Protection: The dual-axis sliding-gear feed box enables rapid conversion between various feed rates and thread pitches (Metric and Inch). The change gear mechanism (connecting the spindle and feed box) uniquely features a bakelite shear gear designed to break automatically upon overload, acting as a fail-safe to protect your transmission system.
• Heavy-Duty Steady Rest: Comes standard with a heavy-duty steady rest capable of clamping massive workpieces ranging from Φ100 mm to Φ300 mm. This provides critical center support for slender shafts, completely eliminating deflection caused by cutting forces and gravity.
• Integrated Industrial Systems: Features centralized forced hydraulic lubrication for the headstock and feed box, while the apron utilizes an independent cam-type plunger pump to automate guideway lubrication. The machine's electrical components are CE European safety certified for maximum operational reliability.
