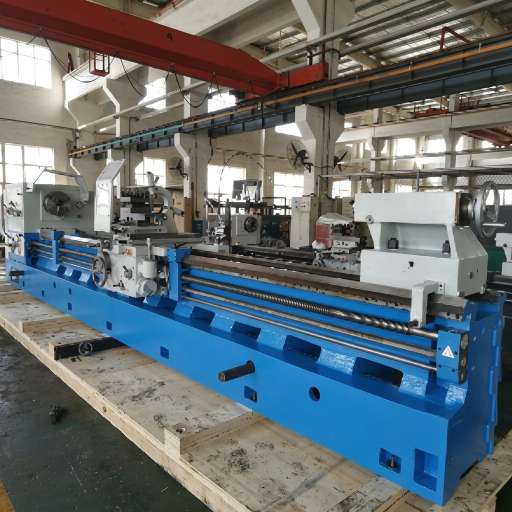

MFG Machinery CW61100E Heavy-Duty Horizontal Lathe

755mm Extra-Wide Bed, 3-Point Supported Spindle & MT6 Tailstock for Industrial Heavy Turning

Product Overview
Backed by over 30 years of continuous engineering refinement and proven performance in the aerospace, military, railway, and valve manufacturing industries, the MFG Machinery CW61100E is a premium heavy-duty horizontal lathe built for extreme material removal.

Designed to handle massive ferrous and non-ferrous workpieces, it effortlessly executes powerful turning of outer cylinders, inner bores, end faces, and complex threading (Metric, Inch, Module, and Diametral Pitch).

Featuring an FEA-optimized resin-sand cast bed, a dynamically balanced 3-point supported spindle, and CE-certified electrical components, the CW61100E delivers uncompromising rigidity, exceptional precision retention, and heavy-load capacity for your most demanding industrial applications.

Key Features & Advanced Engineering

• Massive 755mm FEA-Optimized Bed: The machine bed is crafted from premium resin-sand castings and scientifically reinforced with Pi-shaped internal ribbing via Advanced Finite Element Analysis (FEA). With an extra-wide 755mm span and induction-hardened, precision-ground guideways, it offers unparalleled vibration damping and resistance to section distortion. A 45° slanted rear structure ensures effortless, gravity-assisted chip evacuation.

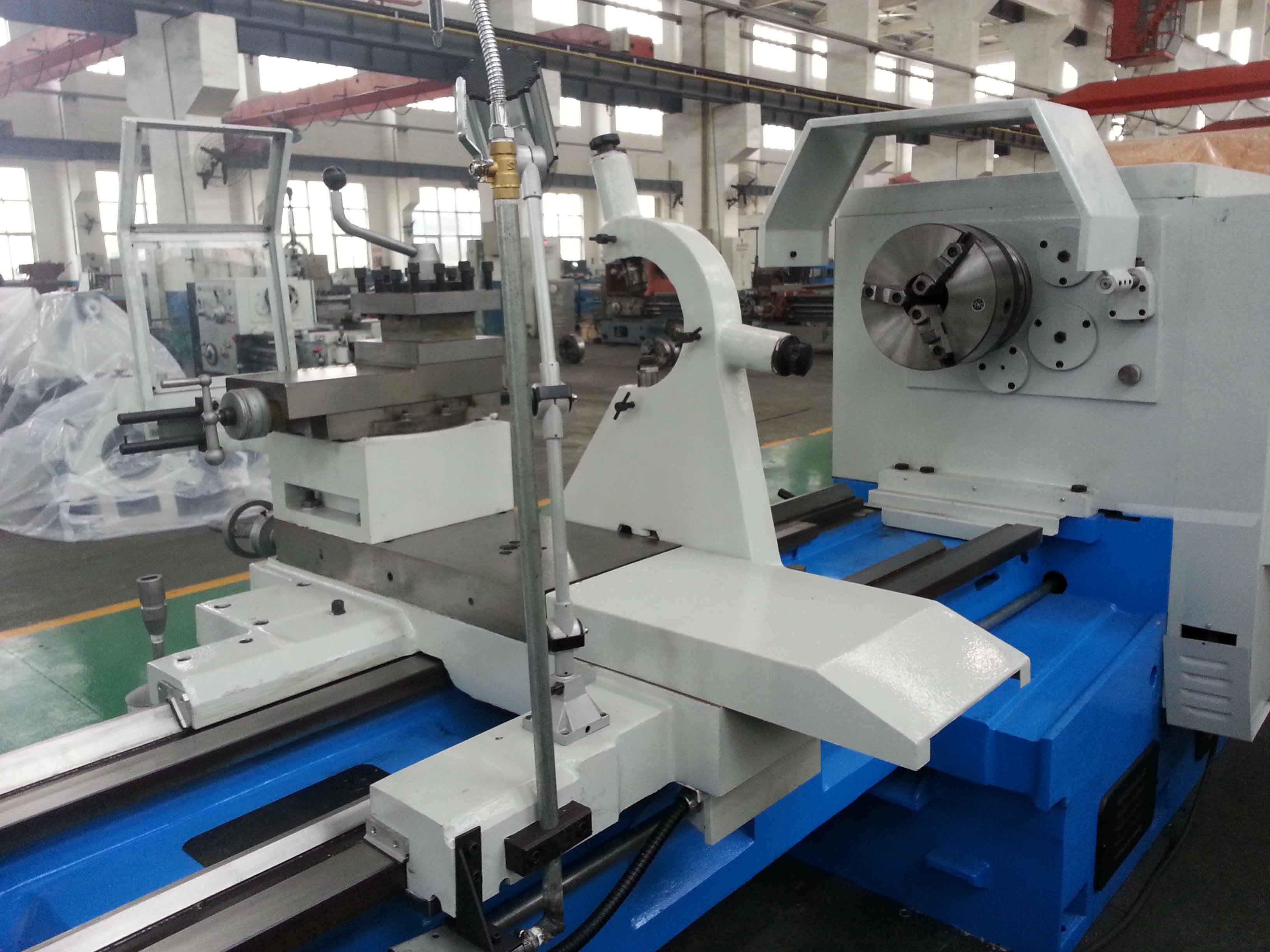

• 3-Point Supported Heavy-Duty Spindle: The headstock is engineered with a high-rigidity 3-point spindle support system (front, rear, and supplementary middle support). Paired with top-tier spindle bearings and high-frequency quenched, precision-ground transmission gears, it delivers massive low-speed torque, minimal noise, and utilizes a highly responsive hydraulic braking system.

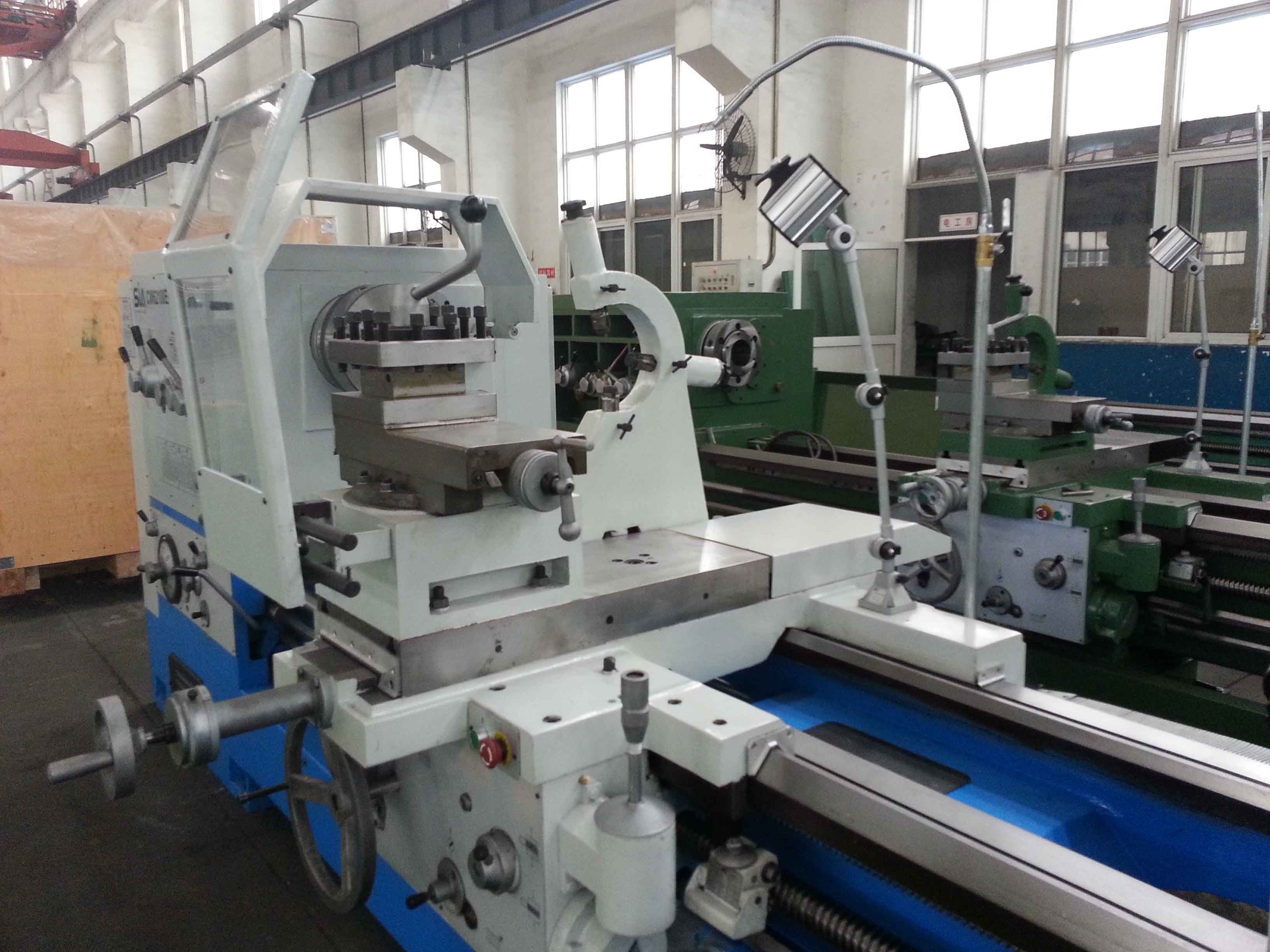

• Anti-Stick-Slip Carriage & Apron: To eliminate stick-slip (crawling) during heavy feeds, the carriage guideways are lined with high-performance PTFE (Turcite-B) anti-friction belts. The apron features an intuitive 4-way joystick for rapid traverse and longitudinal/cross feeds, protected by an interlocking mechanism and a star-wheel overrunning safety clutch.

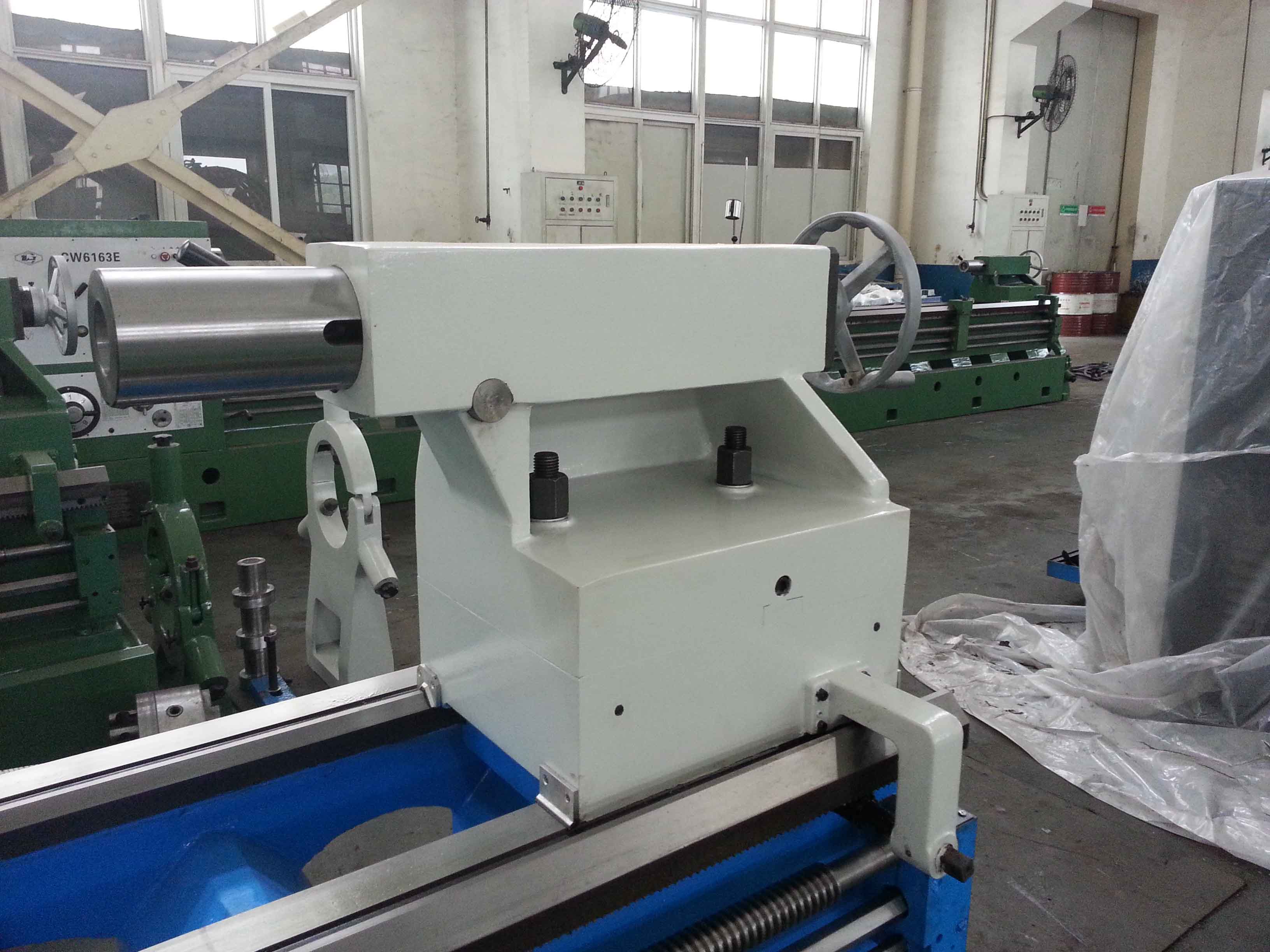

• Heavy-Load MT6 Tailstock: Built with a reinforced upper and lower body construction to prevent deflection under massive axial loads. The robust tailstock quill features a Metric No. 80 taper hole and accommodates a standard Morse Taper No. 6 (MT6) center, providing unshakeable support for long, heavy shafts.
• Versatile Feed Box & Threading System: The dual-axis feed box enables seamless switching between various feed rates and pitches (Metric and Inch) without swapping gears for standard operations. The change gear (hanging wheel) mechanism includes a built-in bakelite shear gear designed to automatically break upon overload, safeguarding the transmission system.
• Integrated Industrial Systems: * Lubrication: A built-in cam-type plunger pump automates guide rail lubrication, while a dedicated hydraulic system ensures the headstock and feed box are continuously oiled.Coolant: Features a high-capacity, eco-friendly cooling system with a bed-bottom return trough to maximize tool life during heavy carbide turning.
