MFG Machinery CTX200S Dual-Spindle Turn-Mill Center

Motorized Sub-Spindle, Y-Axis Live Tooling & 45° Slant Bed for "Done-in-One" Machining

Product Overview
The MFG Machinery CTX200S is a state-of-the-art, multi-tasking CNC Turn-Mill Center engineered for high-efficiency, single-setup manufacturing. Breaking the limitations of traditional turning, this compact yet formidable machine is equipped with a high-precision motorized sub-spindle and a dynamic Y-axis powered turret.

This advanced architecture allows complex components to be fully machined on both the primary and secondary sides—including off-center milling, drilling, and tapping—without any manual intervention or secondary setups. Built upon a rigid 30° or 45° slant bed and featuring climate-controlled assembled transmissions, the CTX200S delivers unrivaled multi-axis synchronization, exceptional surface finishes, and drastically reduced cycle times for high-value precision parts.

Key Features & Advanced Engineering

• Dual-Spindle Architecture for Single-Setup Machining: Maximize your shop's throughput. The machine features a powerful main spindle working in perfect synchronization with a high-precision, motorized electric sub-spindle. This enables automated part hand-off, allowing for simultaneous or sequential machining of both ends of the workpiece to achieve true "Done-in-One" production.

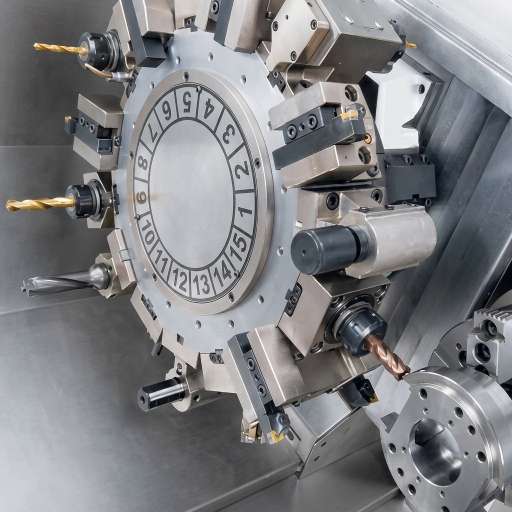

• Y-Axis Powered Turret (Live Tooling): Equipped with a highly dynamic Y-axis live tooling turret. This empowers the machine to execute complex off-center radial and axial milling, drilling, and tapping, transforming the lathe into a comprehensive multi-tasking machining center.
• Rigid Slant Bed & Roller Guides: The machine utilizes a robust 30° or 45° overall inclined bed cast from high-strength iron. Paired with preloaded Taiwan linear roller guideways, it offers an exceptionally low friction coefficient, high-speed rapid traverses, and effortless gravity-assisted chip evacuation.
• Constant-Temperature Precision Assembly: To proactively eliminate thermal expansion errors, all precision ball screws and nuts are exclusively processed, ground, assembled, and rigorously quality-controlled inside a dedicated constant-temperature workshop, ensuring flawless long-term repeat positioning accuracy.
• Dynamically Balanced Spindles: Both the main spindle and the electric sub-spindle utilize premium high-precision bearing sets. Through meticulous precision assembly and strict dynamic balance testing, they deliver massive cutting torque, whisper-quiet operation, and absolute rotational accuracy.

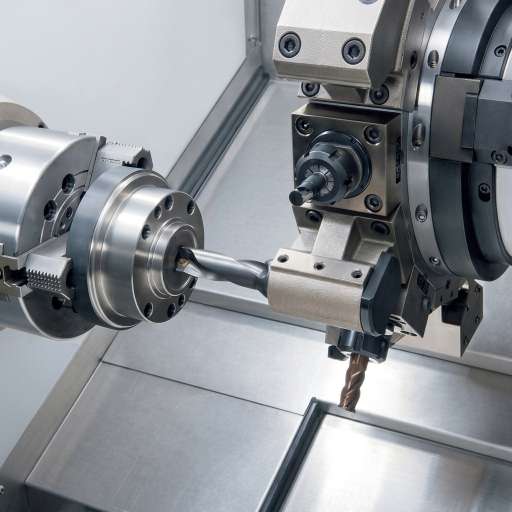

• High-Speed Wedge Chucks: Fitted with a high-precision wedge-shaped through-hole hydraulic chuck. It provides ultra-fast clamping and unclamping capabilities under hydraulic pressure, securing workpieces with immense holding force and precise concentricity.
• Volumetric Auto-Lubrication System: Powered by an industrial-grade volumetric positive displacement pump. It provides a continuous, automatic, and metered oil supply directly to the bed guideways and ball screw assemblies, minimizing wear and extending the lifespan of critical moving parts.
