M1-330C CNC Horizontal Metal Band Sawing Machine

High Precision & High efficiency M1-330C Automatic CNC Horizontal Metal Band Saw

Equipment Overview

The M1-330C CNC Horizontal Metal Band Saw is engineered for high-precision, high-efficiency automatic metal cutting in industrial environments.

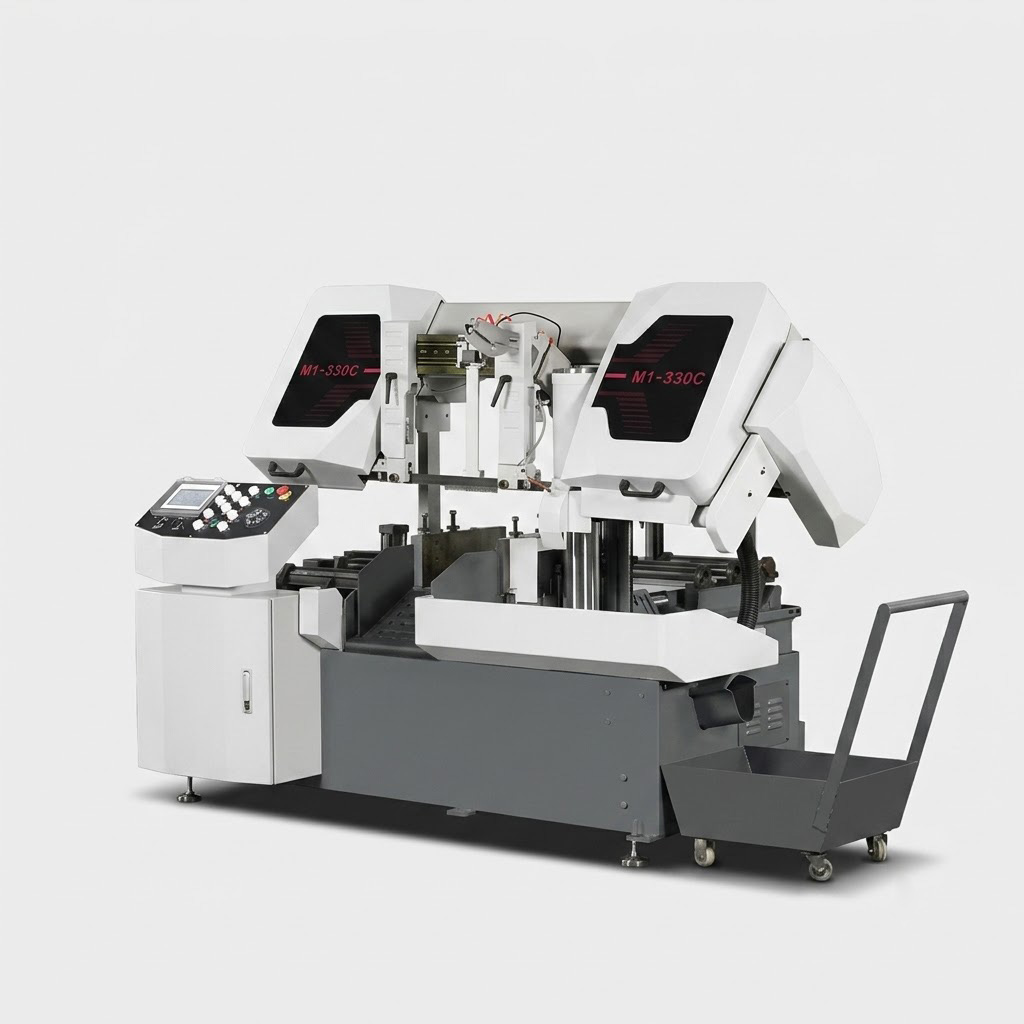

Designed as a superior, energy-saving upgrade to traditional circular and bow saws, it delivers faster cutting speeds, exceptionally narrow kerfs, and low-noise operation within a highly stable footprint. Featuring a robust double-column structure (one round, one square), the M1-330C is fully optimized for continuous, automatic cutting of long profiles, single bars, and large material bundles.

Key Features & Technical Advantages

• Robust Double-Column Structure & Powerful Drive Built on a highly rigid double-column frame designed specifically for bimetal band saw blades. Driven by a robust 4 kW main motor and a specialized worm gear drive, the machine ensures stable, vibration-free operation even under maximum cutting loads.
• High-Capacity Single & Bundle Cutting Versatility meets heavy-duty performance. The M1-330C handles single bar cutting up to Max. ø330 mm or W330×H330 mm (Min. ø20 mm / W20×H8 mm). For high-volume production, it supports efficient bundle cutting from W160×H20 mm up to W300×H160 mm.

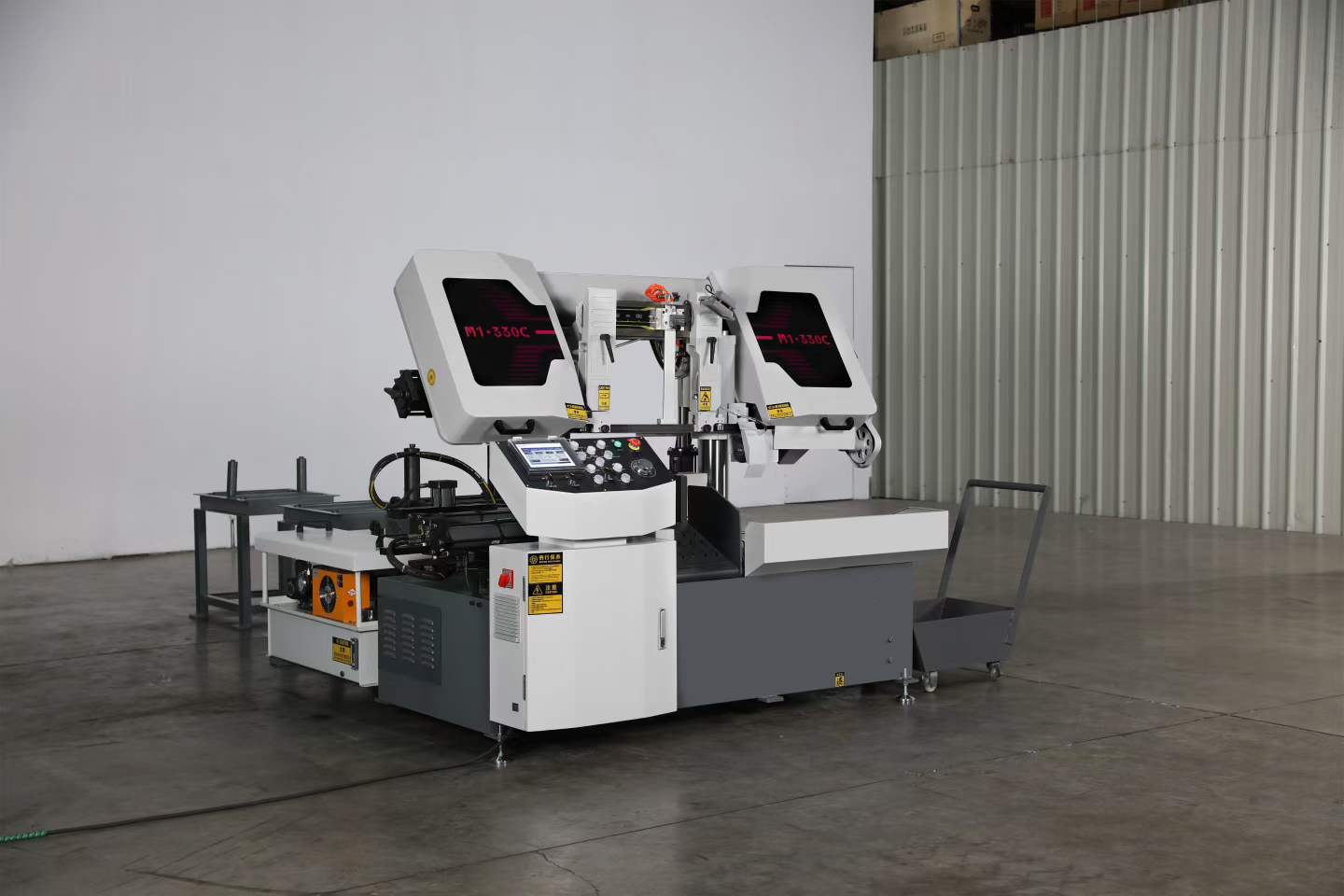

• Smart CNC Control & Photoelectric Protection Equipped with an advanced PLC programmable control system featuring a user-friendly touchscreen and push-button dual-control interface. Operators can seamlessly switch between automatic and manual modes. For enhanced safety, an integrated photoelectric automatic detection system provides immediate blade breakage protection, halting operations instantly if a fault occurs.
• Precision Hydraulic Feeding & Positioning The hydraulic feeding mechanism works in tandem with a high-precision linear scale, allowing a maximum single feed length of 500 mm. With hydraulic stepless speed regulation, the system achieves an outstanding repeat feeding accuracy of ±0.15 mm and a cutting squareness accuracy of 0.2/100 mm.
• Advanced Clamping, Tensioning & Cooling The machine utilizes hydraulic horizontal clamping and hydraulic blade tensioning to prevent blade slippage and ensure precise cuts across 5 adjustable linear speeds (23/36/42/57/72 m/min). It features a large 70L closed hydraulic oil tank and an 80L coolant tank to maintain optimal operating temperatures during prolonged shifts.

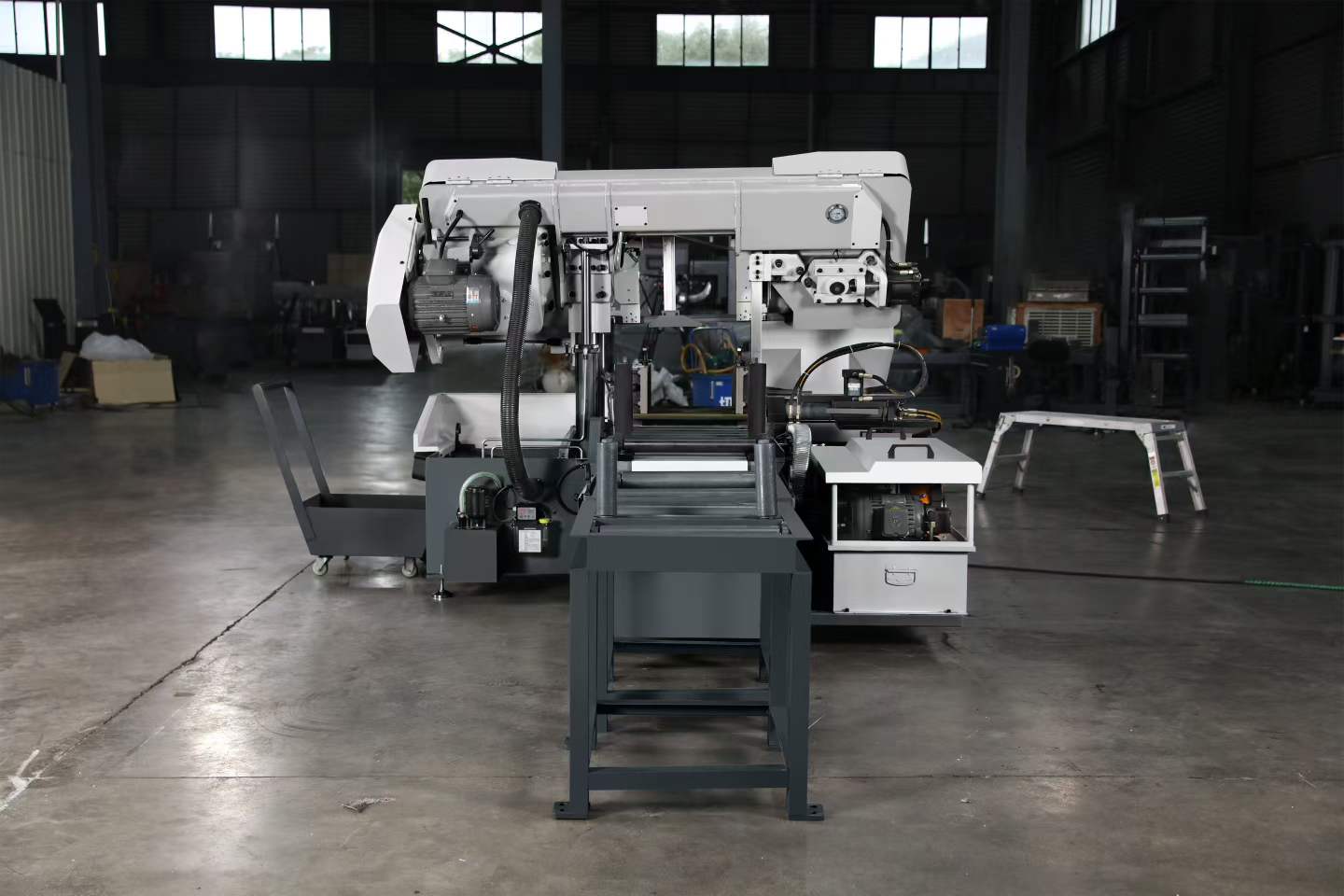

• Automated Maintenance & Clean Workspace To maximize uptime, the M1-330C includes an automatic chip removal system combined with an active wire brush for automatic blade cleaning. This configuration efficiently clears metal shavings, protects the blade from premature wear, and minimizes manual maintenance downtime.
