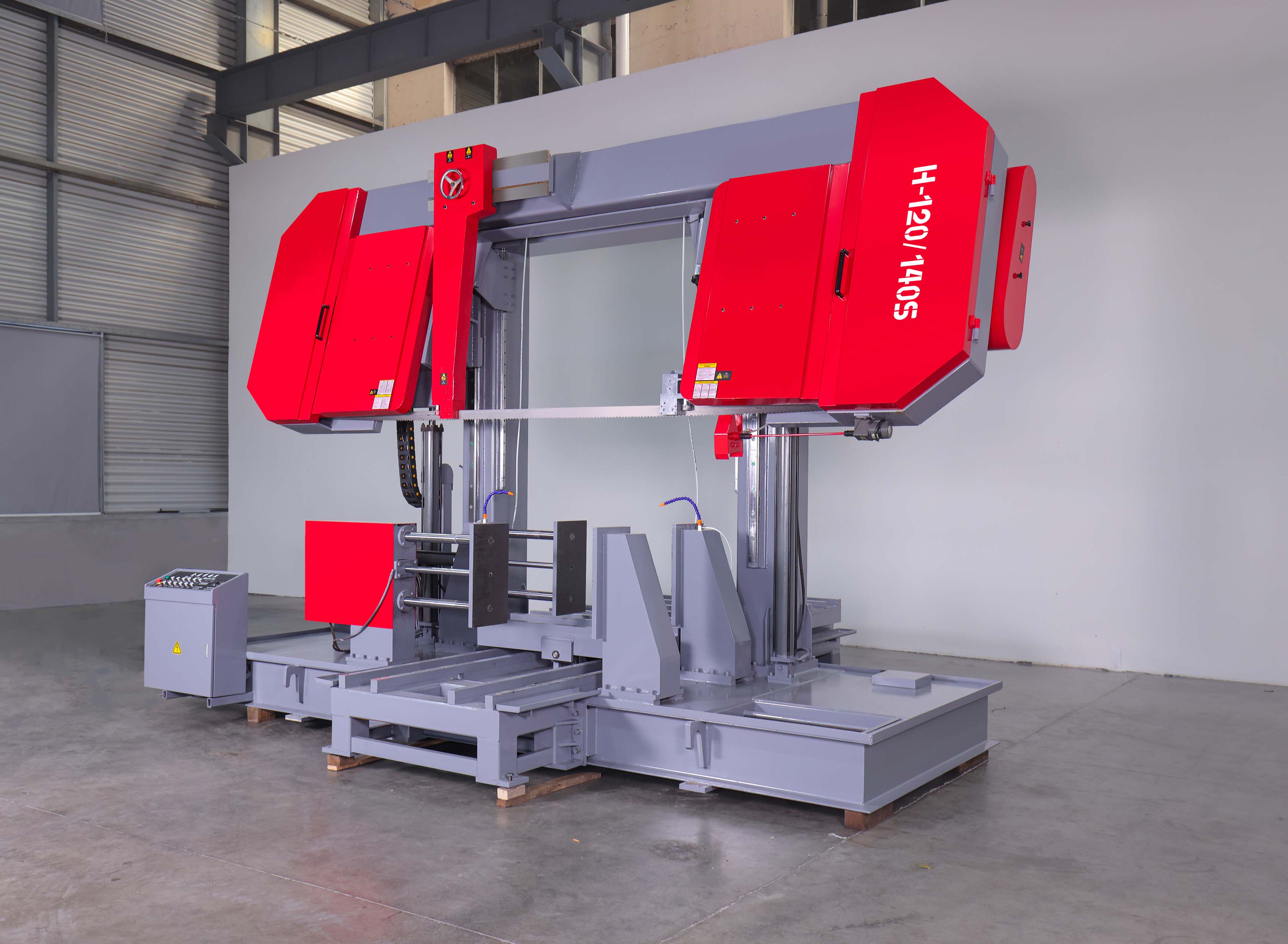

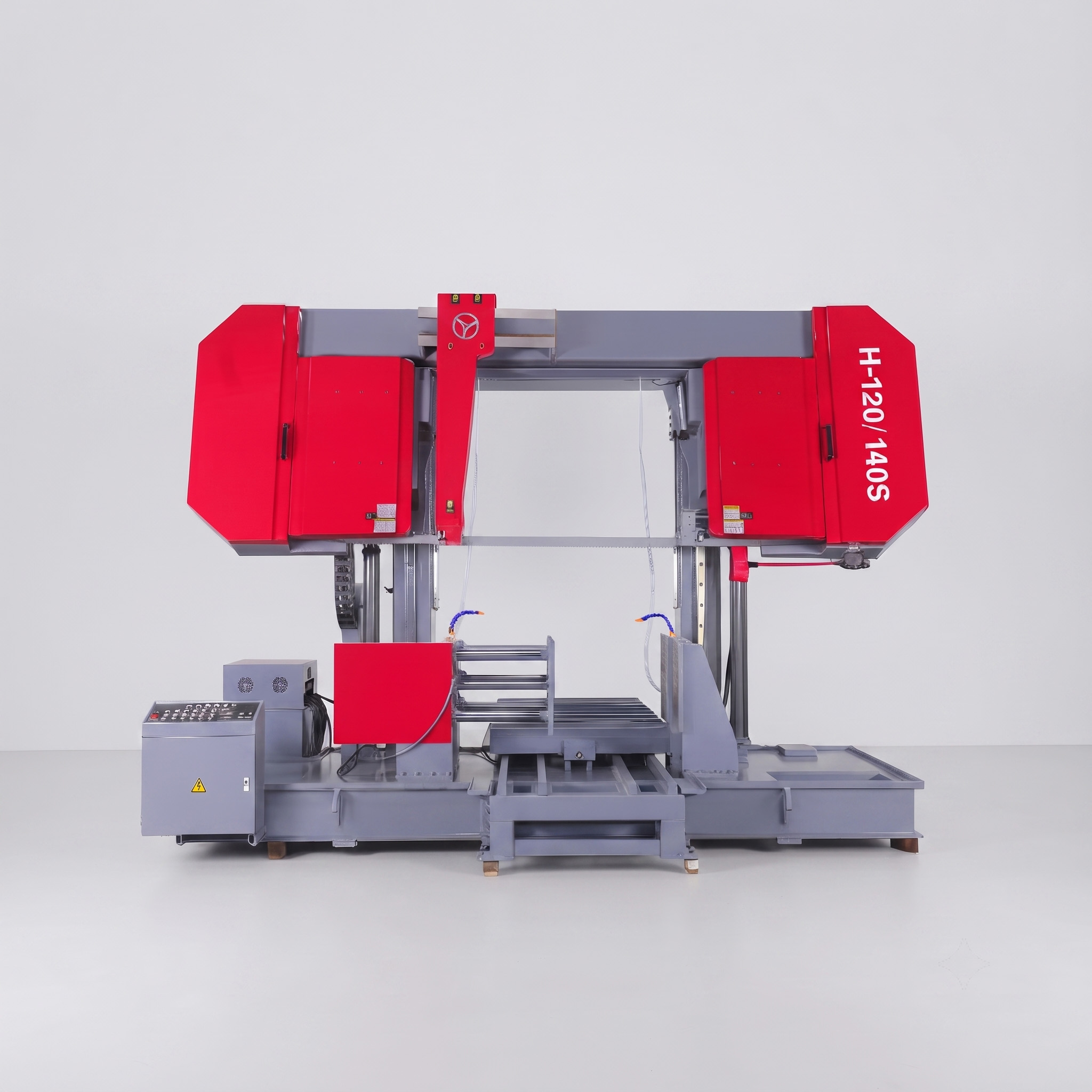

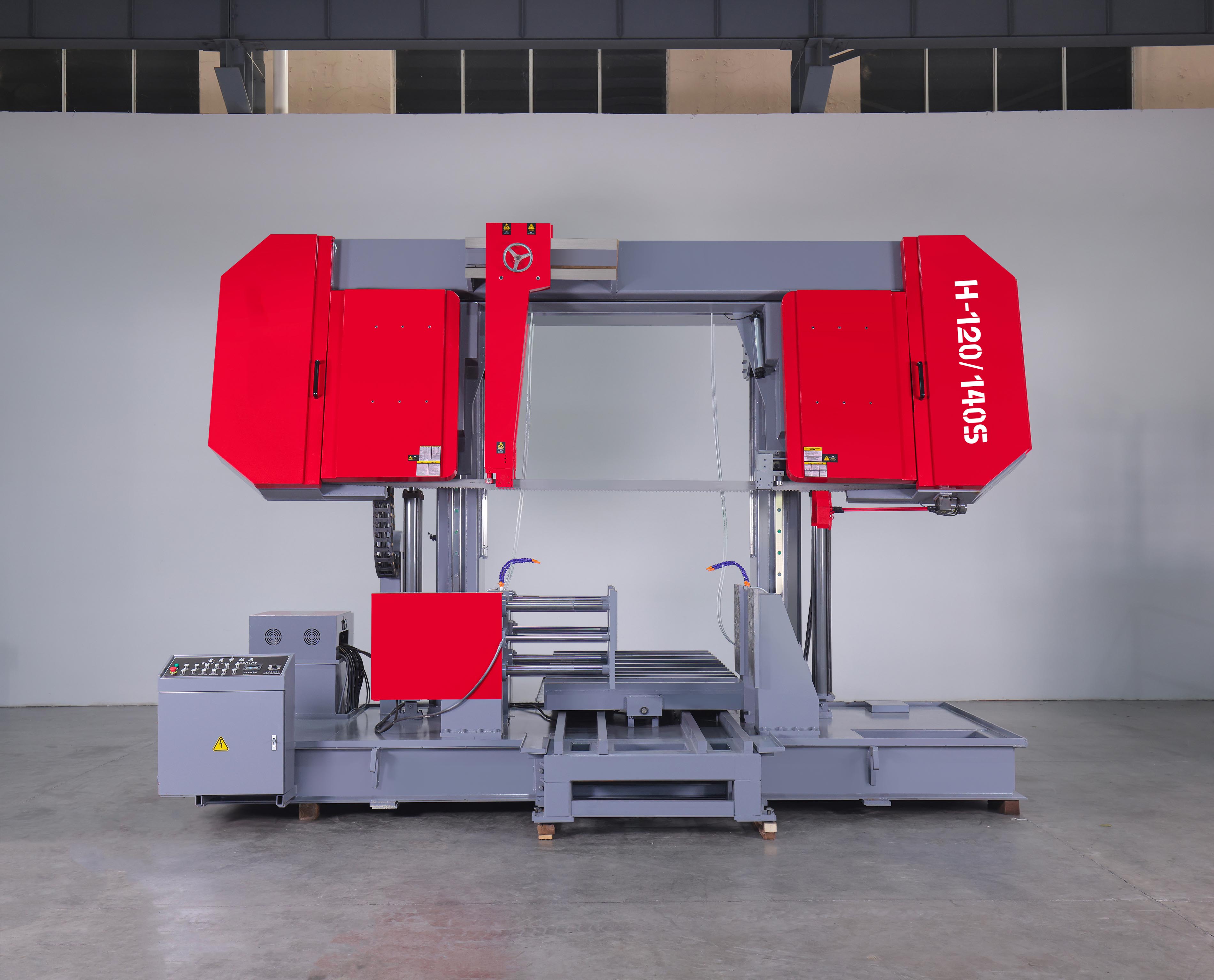

H-120/140S Double Column Horizontal Band Saw Machine

1 Product Overview

The H-120/140S heavy-duty gantry band saw machine is engineered with a rigid gantry frame structure, delivering outstanding structural stability, long-term operational reliability and advanced processing performance. All core components are designed with sufficient load margins to guarantee consistent high-precision metal sawing results.

This industrial band saw equipment is specially developed for cutting medium & large-sized ferrous metal and non-ferrous metal solid bars, steel plates, alloy blanks and metal profiles. It stands out with prominent strengths including ultra-high cutting efficiency, low power consumption, narrow kerf (less material waste), stable sawing precision, simple operation and outstanding mass production capacity.

2 Core Product Features

1. Full hydraulic control for saw feed travel and double vise workpiece clamping, stable cutting pressure and easy parameter adjustment
2. High-precision linear guide rail transmission system, effectively improving straightness and dimensional accuracy of cutting surfaces
3. Heavy-duty gantry integral frame design, ultra-high mechanical rigidity, anti-vibration and long service lifespan
4. Dual hydraulic cylinder synchronous feed control, uniform feeding speed and no jumping during heavy-load sawing
5. Electric-driven feeding roller table and material receiving roller table, realize automatic material conveying
6. Hydraulic automatic saw blade tension system + frequency conversion cutting speed regulation; chip removal cleaning device available as optional accessory
7. Main drive unit equipped with bevel helical gear reducer, smooth shock-free power transmission, high transmission efficiency and durable wear resistance
8. Independent integrated hydraulic station layout, separated hydraulic circuit, simpler daily inspection and maintenance

3 Main Machine Composition Components

1. Machine Base
2. Main Drive Transmission System

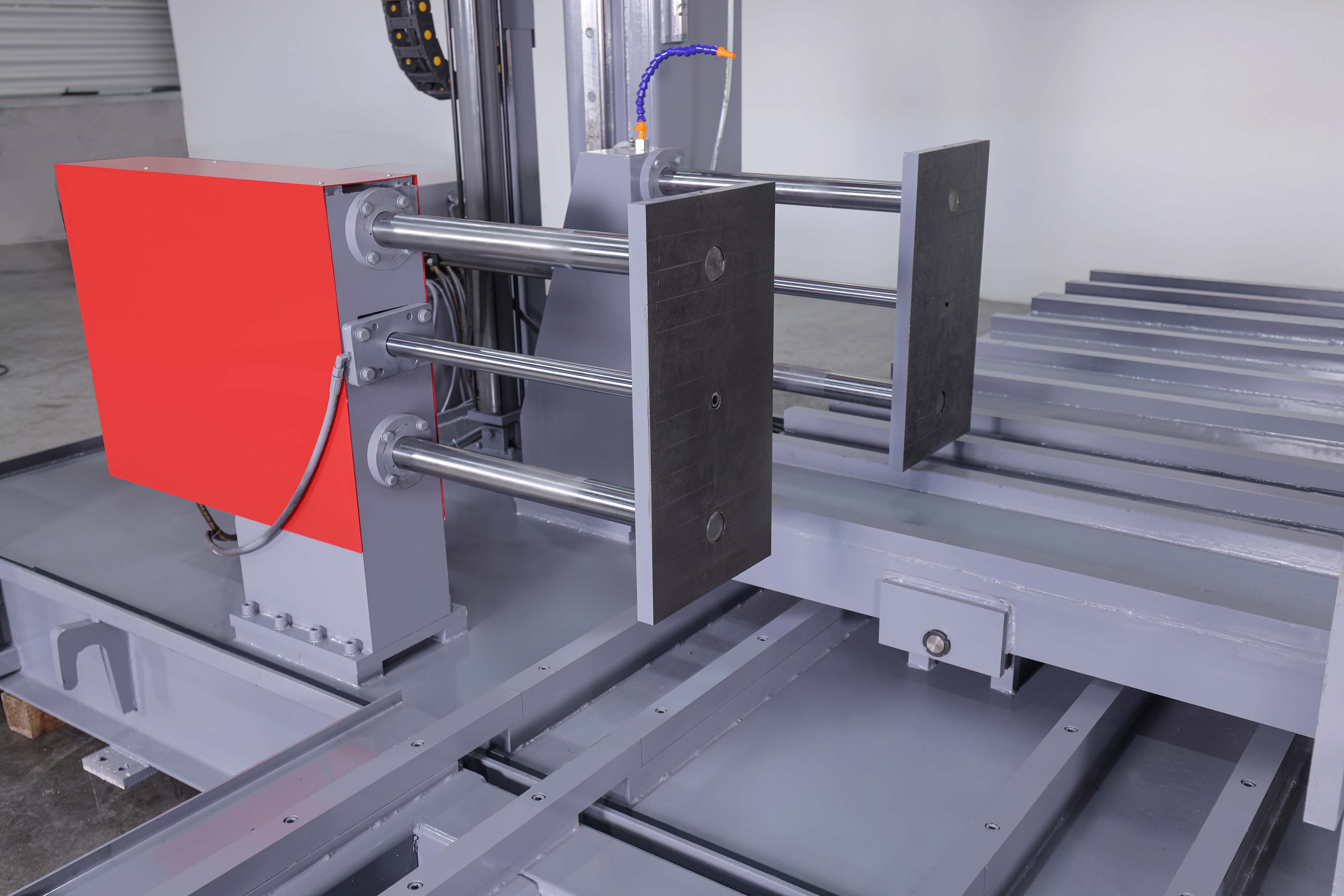

3. Hydraulic Double Vise Clamping Device
4. Gantry Saw Frame Assembly
5. Linear Guide Saw Blade Guiding Device

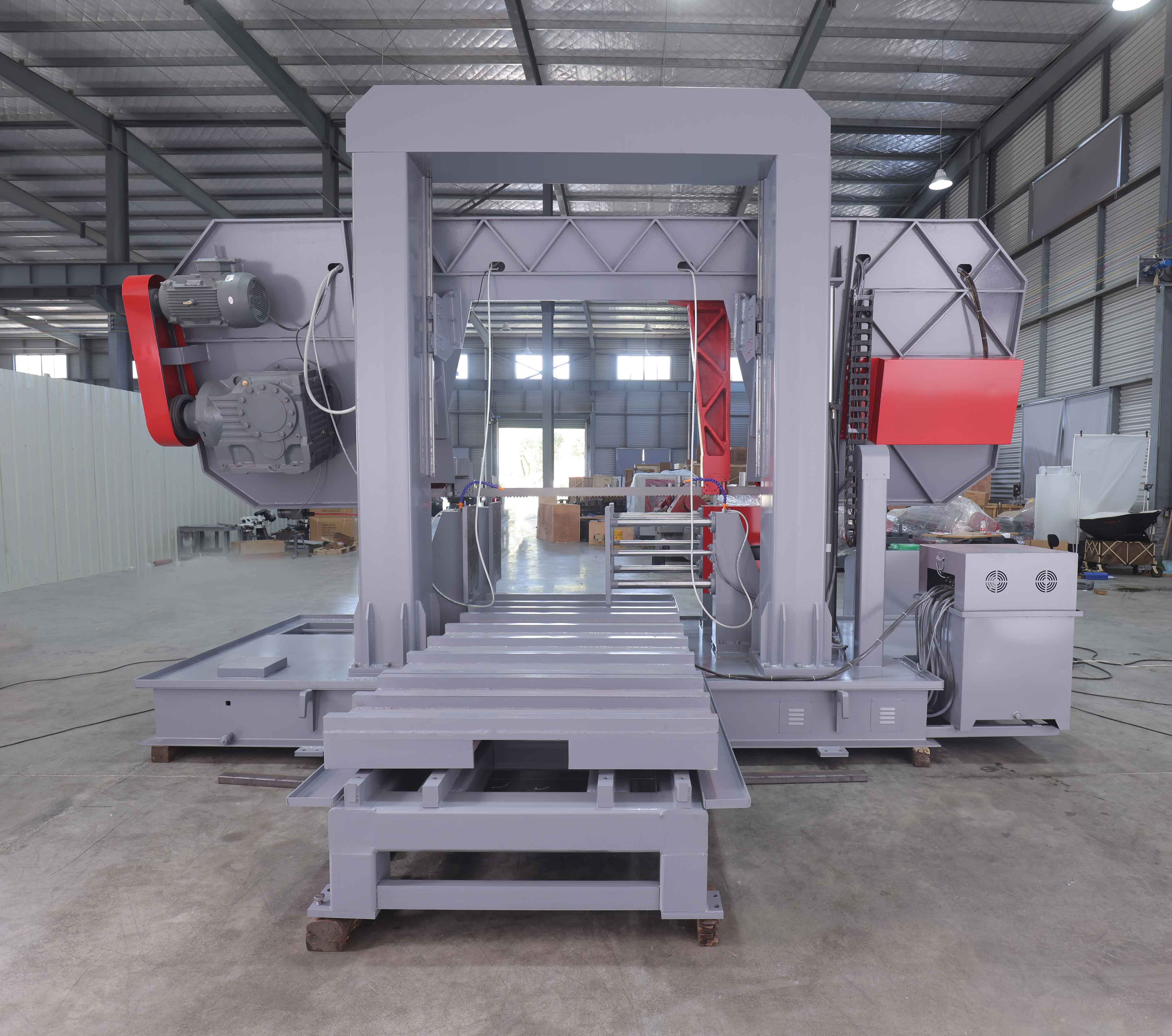

6. Hydraulic Saw Blade Tension Unit + Saw Blade Breakage Safety Protection Device
7. Circulating Cooling Liquid System
8. Independent Hydraulic Power Station System
9. Complete Electrical Control System
