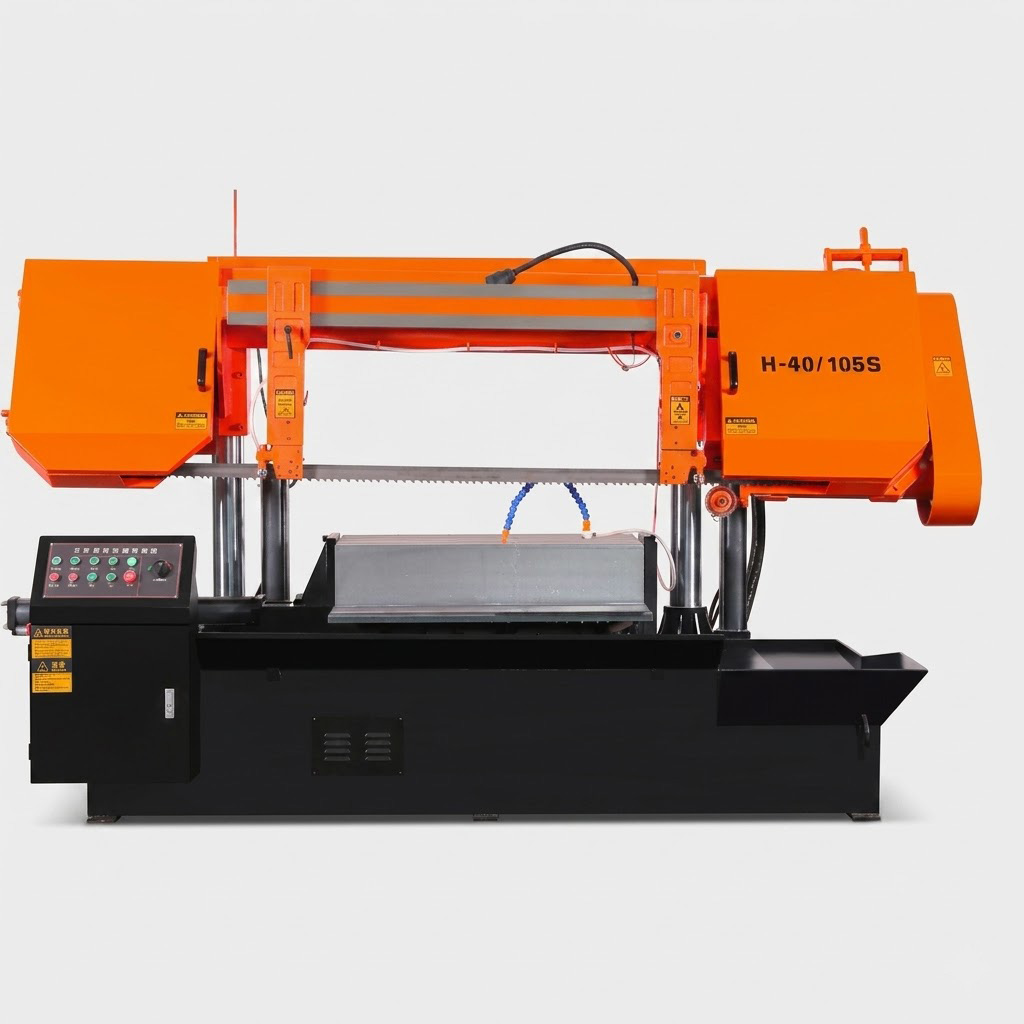

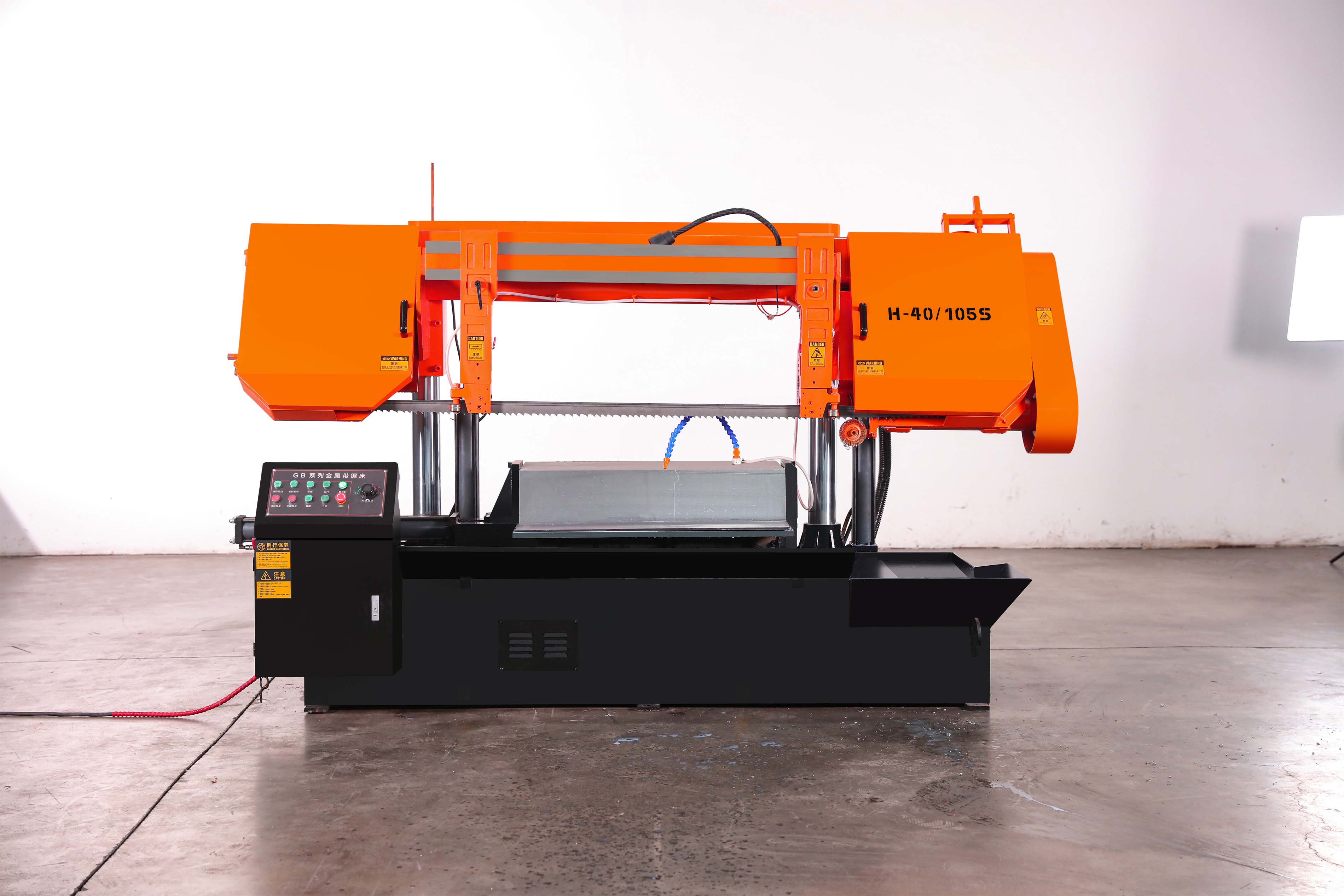

MFG H-40/105S Semi-Automatic Horizontal Band Saw

400x1050mm Wide Capacity, Heavy-Duty Double-Column Frame & Stepless Hydraulic Feed

Product Overview
The MFG H-40/105S is a heavy-duty, semi-automatic horizontal band saw engineered specifically for wide-capacity industrial metal fabrication.

Designed to process wide metal profiles, heavy solid tubes, steel billets, and mold blanks, this machine is an essential, high-efficiency cutting solution for the metallurgy, mining, petroleum, automotive, and shipbuilding industries.

Built upon a robust main and sub-column horizontal structure, it utilizes a narrow-kerf bi-metal band saw blade to maximize material savings and reduce power consumption.

With advanced hydraulic controls and an automated cycle return system, the H-40/105S ensures exceptional cutting precision and structural reliability for extra-wide workpiece processing.

Key Features & Engineering Details

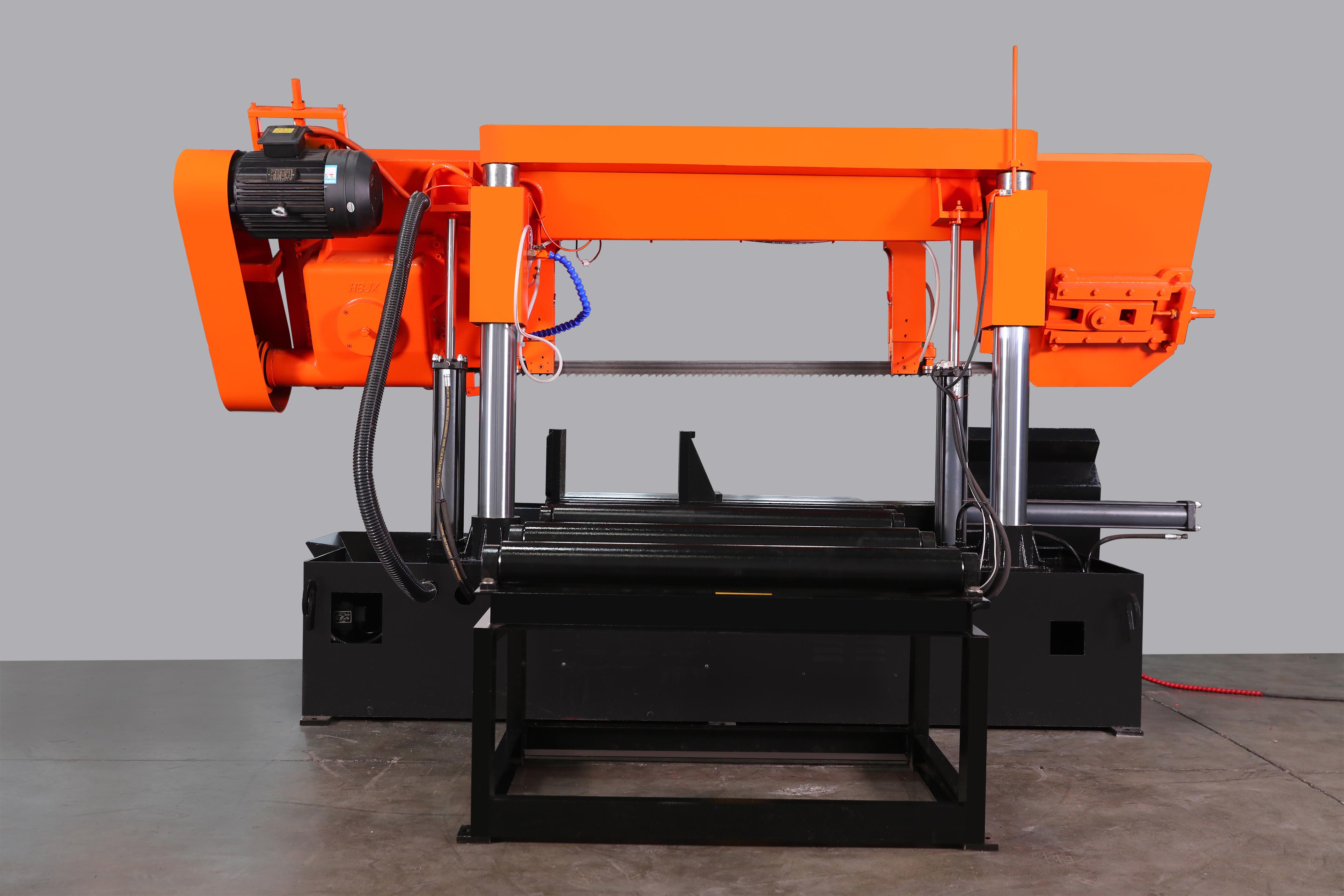

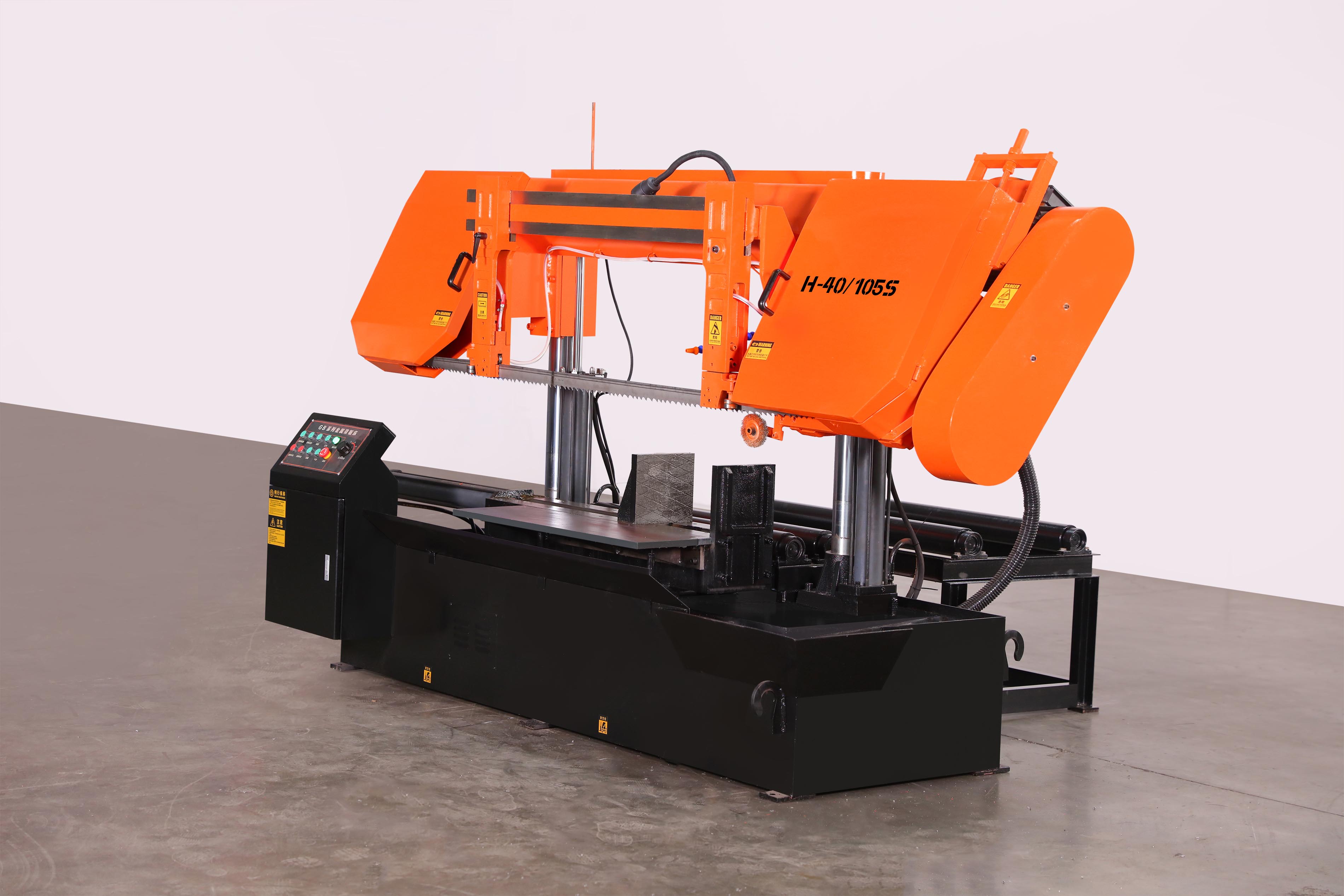

• Extra-Wide Double-Column Architecture: The saw frame is supported by a heavy-duty main column and a secondary sub-column. This highly stable horizontal structure provides exceptional rigidity and sufficient load-bearing margins, eliminating vibration during the sawing of wide, 1050mm heavy plates and billets.
• Stepless Hydraulic Feed Regulation: Through a highly responsive hydraulic speed control valve, operators can achieve infinitely adjustable (stepless) speed regulation of the saw frame's downward feeding rate. This allows for precise adaptation to different material densities and cross-sections.
• Centralized Hydraulic Clamping: Workpieces are securely immobilized via a heavy-duty hydraulic vise system, ensuring zero material movement during high-torque cutting operations across wide cutting spans.

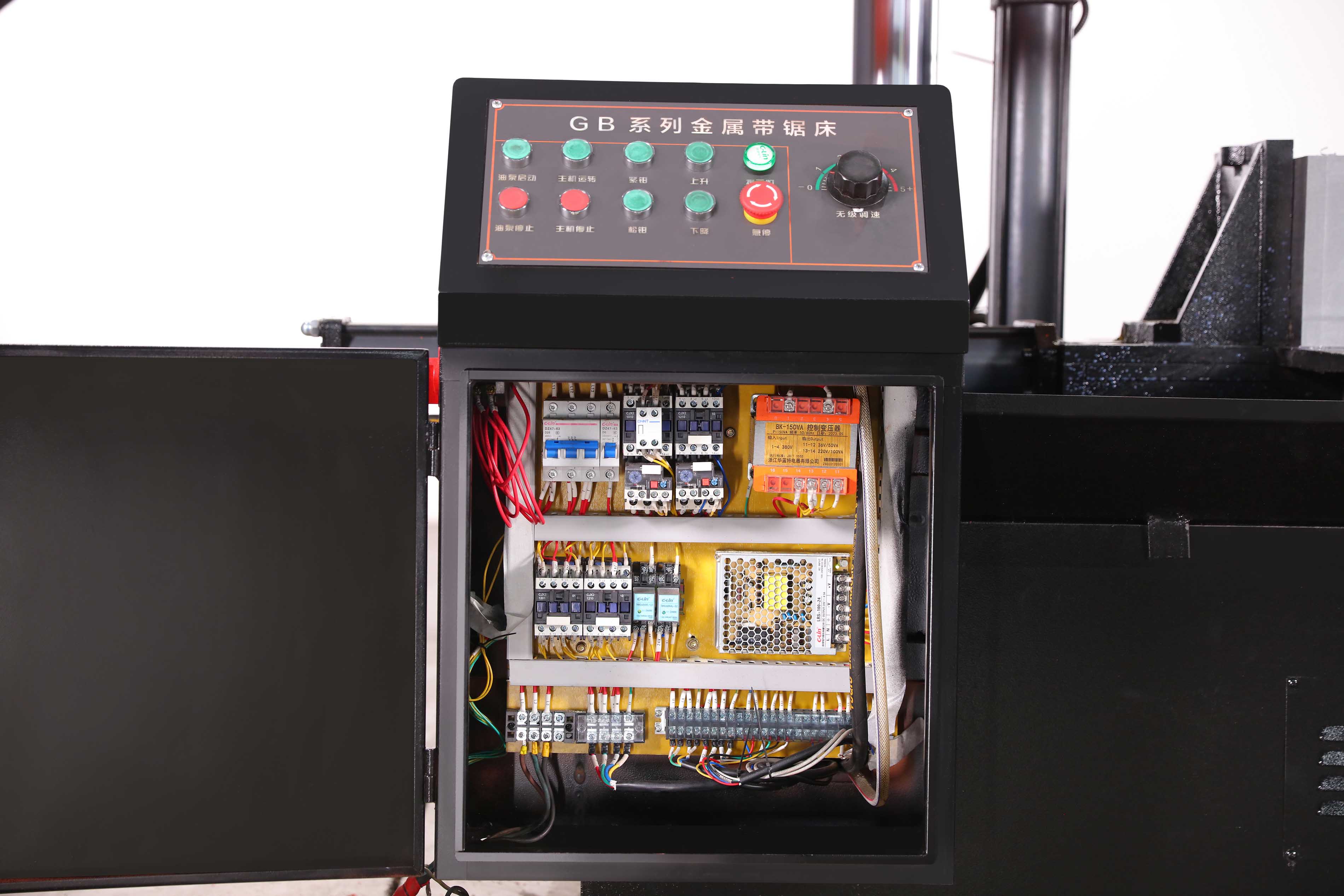

• Automated Cycle Management: Controlled by an integrated electrical system, the machine offers a highly efficient semi-automatic workflow. At the end of the cutting cycle, the machine automatically shuts off blade rotation, and the saw frame rapidly returns to its pre-set, adjustable home position, minimizing operator intervention.
• Precision Carbide Blade Guiding: The bi-metal band saw blade is strictly maintained in a vertical position by a highly precise guide seat structure. It utilizes a combination of rolling bearings and hard alloy (tungsten carbide) guide blocks to dramatically reduce lateral friction and significantly prolong the life of the saw blade.
• Customizable Industrial Upgrades: To meet highly specialized production requirements, the H-40/105S can be factory-customized with an automatic hydraulic blade tensioning system, a Variable Frequency Drive (VFD) for stepless cutting speed control, and an electric material feeder.
