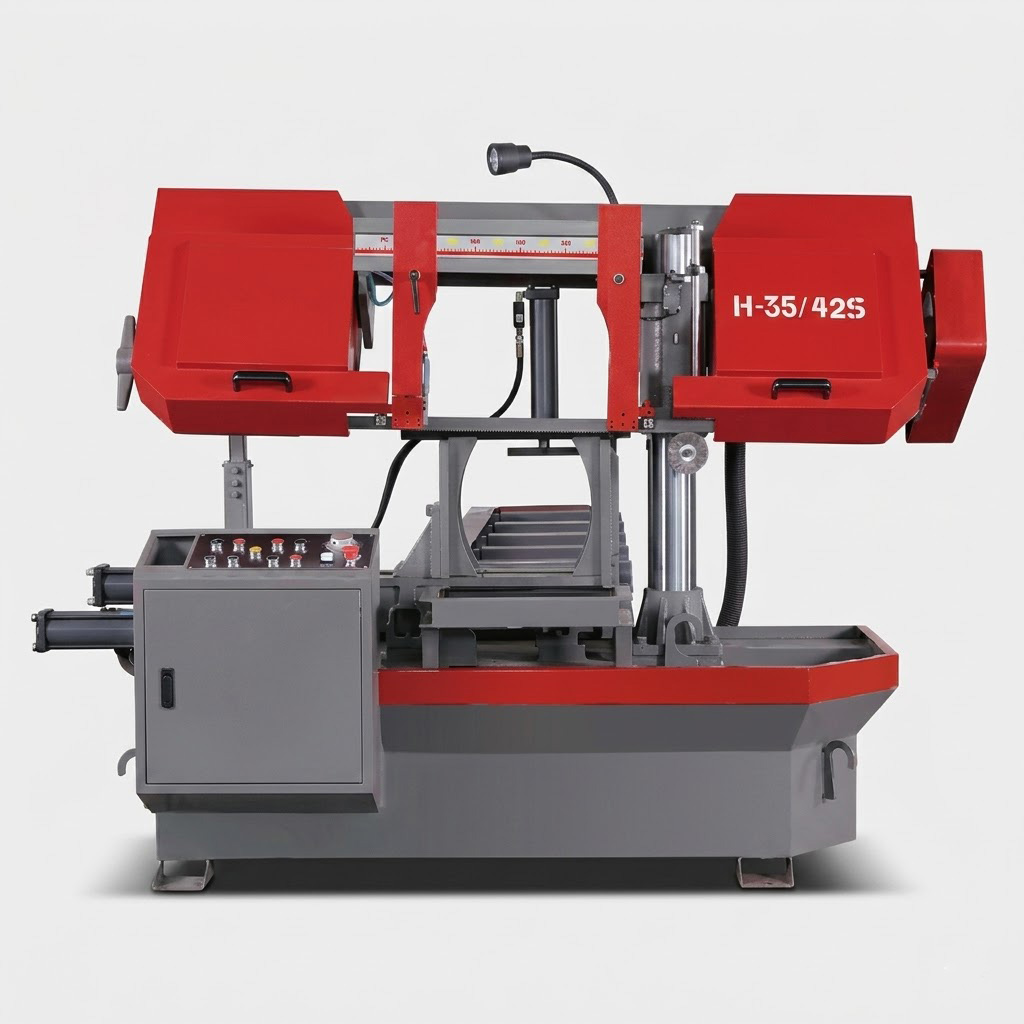

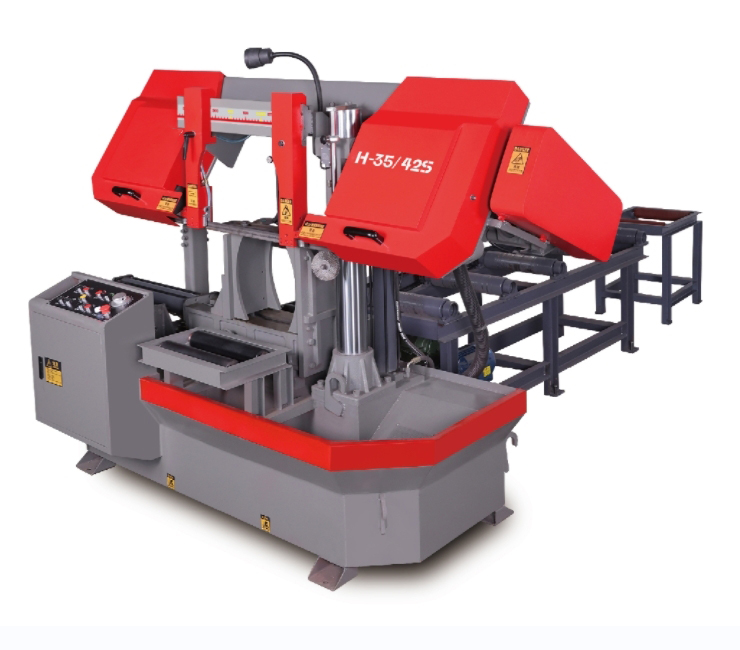

MFG H-35/42S Semi-Automatic Horizontal Band Saw

350x500mm Capacity, Chrome-Plated Double Columns & 5-Speed Precision Drive

Product Overview
The MFG H-35/42S is a highly reliable, new-generation semi-automatic horizontal band saw engineered for high-efficiency metal cutting in medium to large industrial enterprises.

Designed with a robust cutting capacity of up to 350mm in height and 500mm in width, it expertly processes steel billets, heavy profiles, and a wide variety of soft and hard ferrous and non-ferrous metals.

Manufactured under stringent quality control standards utilizing German management technology, the machine features a vibration-aged structural frame, a hard-chrome-plated double-column guiding system, and a precision-ground worm gear. It delivers consistent cutting precision, significantly reduced blade breakage, and excellent long-term durability.

Key Features & Engineering Details

• VSR-Treated Heavy Structure: Major structural components, including the machine bed and saw frame, undergo rigorous surface sandblasting and Vibration Stress Relief (VSR) aging. This essential process effectively eliminates internal welding and casting stresses, ensuring long-term geometric stability and increasing surface paint adhesion for superior rust resistance.
• Precision Double-Column Design: The saw frame's vertical movement is guided by an asymmetrical double-column structure (one large main column and one smaller sub-column). The column surfaces are coated with hard chrome to provide exceptional wear resistance, prevent rust, and guarantee highly precise lifting movement.
• Precision Ground Worm Gear: The main transmission utilizes a high-efficiency motor paired with a rigorously processed worm gear. The manufacturing process involves strict stages: material removal, rough machining, quenching, finishing, surface quenching, and final tooth grinding, ensuring smooth, high-torque power transfer.
• 5-Level Speed Regulation: Operators can easily select between five distinct blade speeds via a reliable belt speed regulation system. This allows the machine to achieve optimal cutting conditions for different material hardness levels, thereby prolonging the life of the saw blade.
• Tungsten Carbide Blade Guiding: The heavy-duty 34 x 1.1 mm band saw blade is strictly guided by a combination of bearings and adjustable tungsten steel (carbide) inserts. The wider 34mm blade significantly enhances the cutting ability for high-hardness alloys and dramatically reduces the risk of blade breakage.

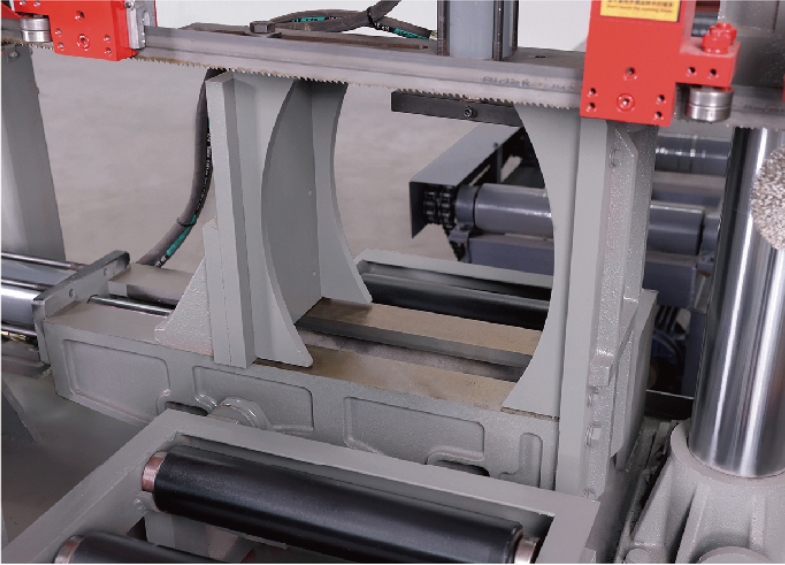

• Hydraulic & Manual Clamping: Workpiece clamping utilizes a highly reliable combination of hydraulic pressure and manual adjustment, ensuring secure material holding while remaining labor-saving and easy to operate.
• Stepless Hydraulic Feed: A centralized hydraulic system allows for stepless speed regulation of the saw frame's downward feed rate, allowing operators to perfectly match the cutting feed to the material's cross-section.

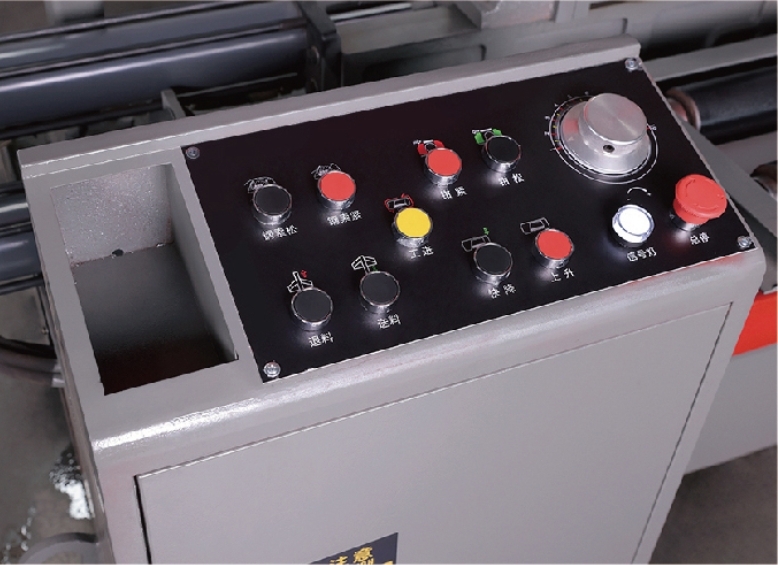

• Premium Components & Chip Removal: The electrical cabinet utilizes original devices from the Chint Group, while the hydraulic system features high-quality domestic seals for a long, trouble-free service life. A flexible steel wire brush continuously clears iron chips from the blade teeth, extending blade longevity.

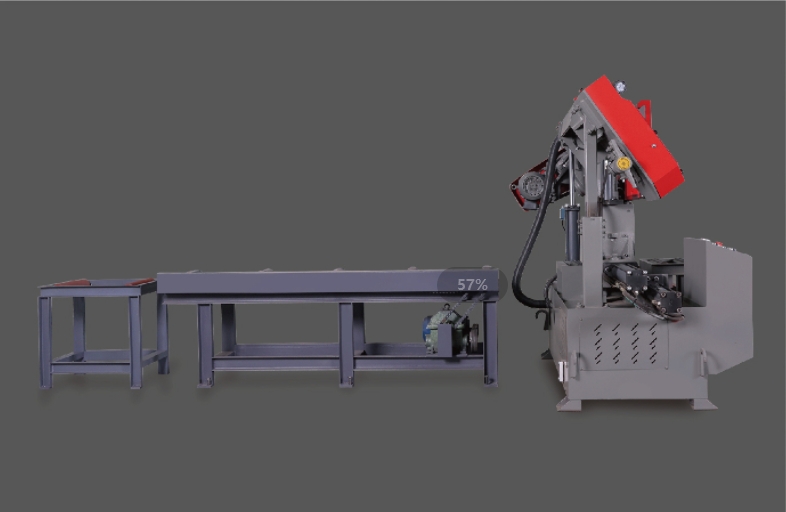

• Customizable Material Feeding: The machine can be optionally equipped with electric or passive material feed frames, with lengths and quantities fully customizable based on specific shop floor requirements.
