DW63CNC Pipe Bending Machine
DW63CNC is a high-precision servo CNC pipe bending machine, specially designed for carbon steel pipe processing. Adopting full servo control for corner, feeding and bending actions, this equipment features stable operation, high machining accuracy and rich functional configurations. It supports multiple data input modes, large program storage capacity and practical production management functions, ideal for mass pipe bending production.

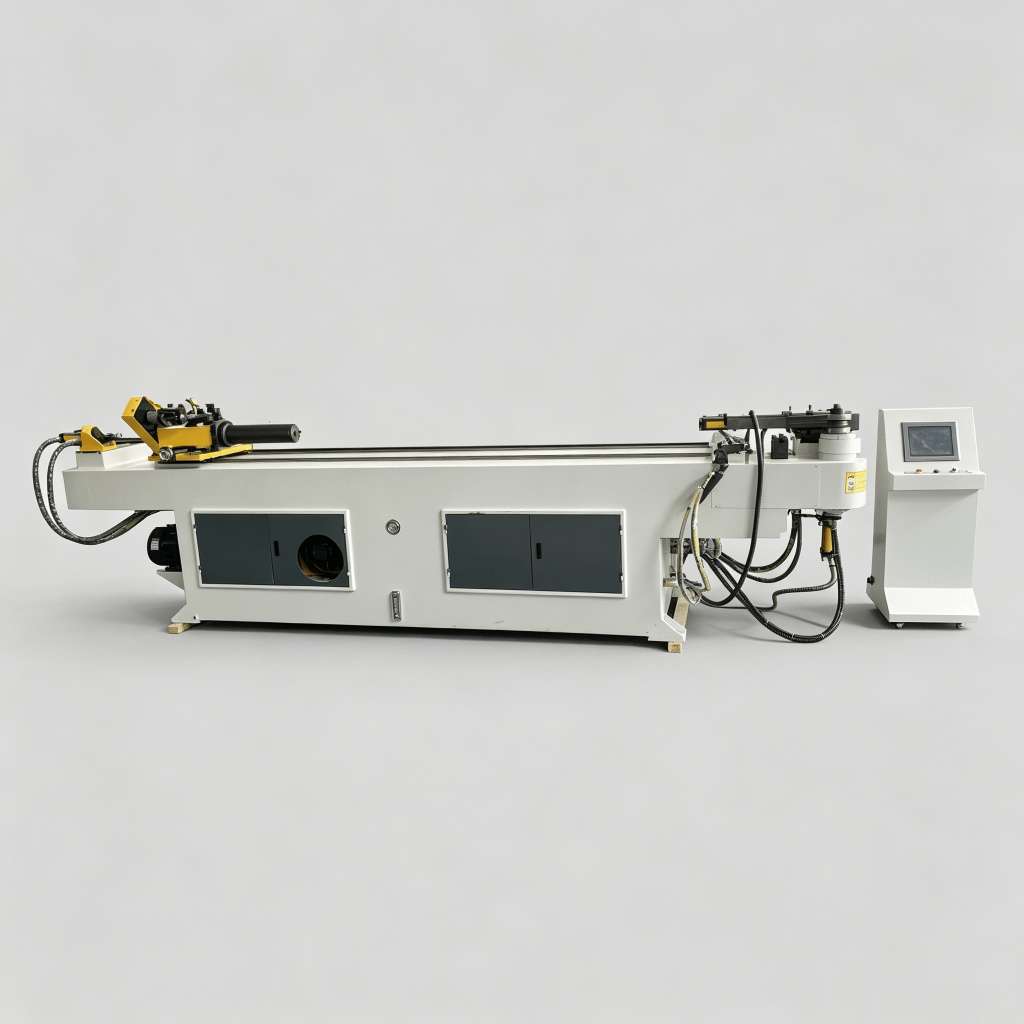

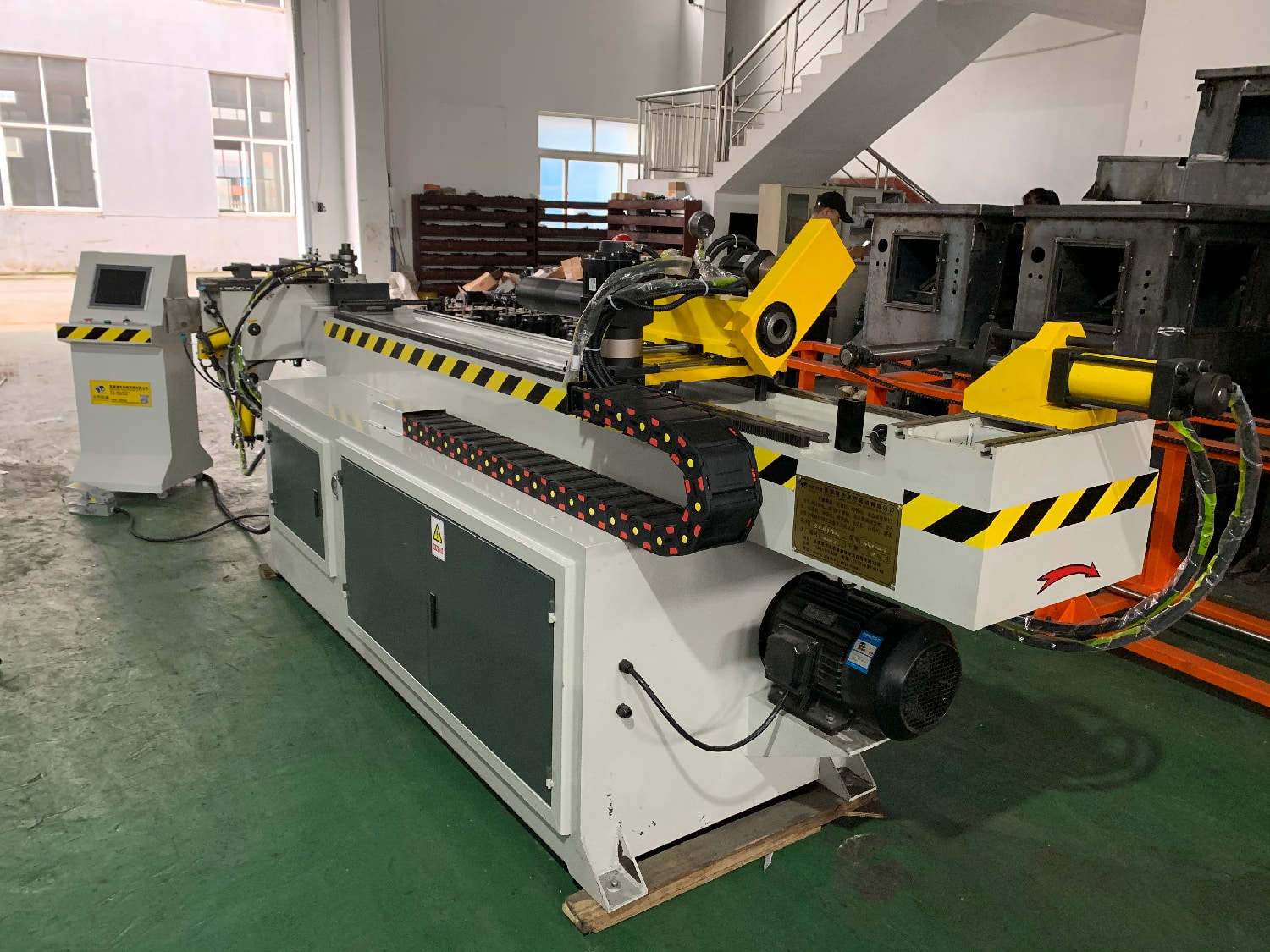

DW63CNC-3A-1S CNC Pipe Bending Machine
Product Overview
DW63CNC is a high-precision servo CNC pipe bending machine, specially designed for carbon steel pipe processing. Adopting full servo control for corner, feeding and bending actions, this equipment features stable operation, high machining accuracy and rich functional configurations. It supports multiple data input modes, large program storage capacity and practical production management functions, ideal for mass pipe bending production.
Core Features

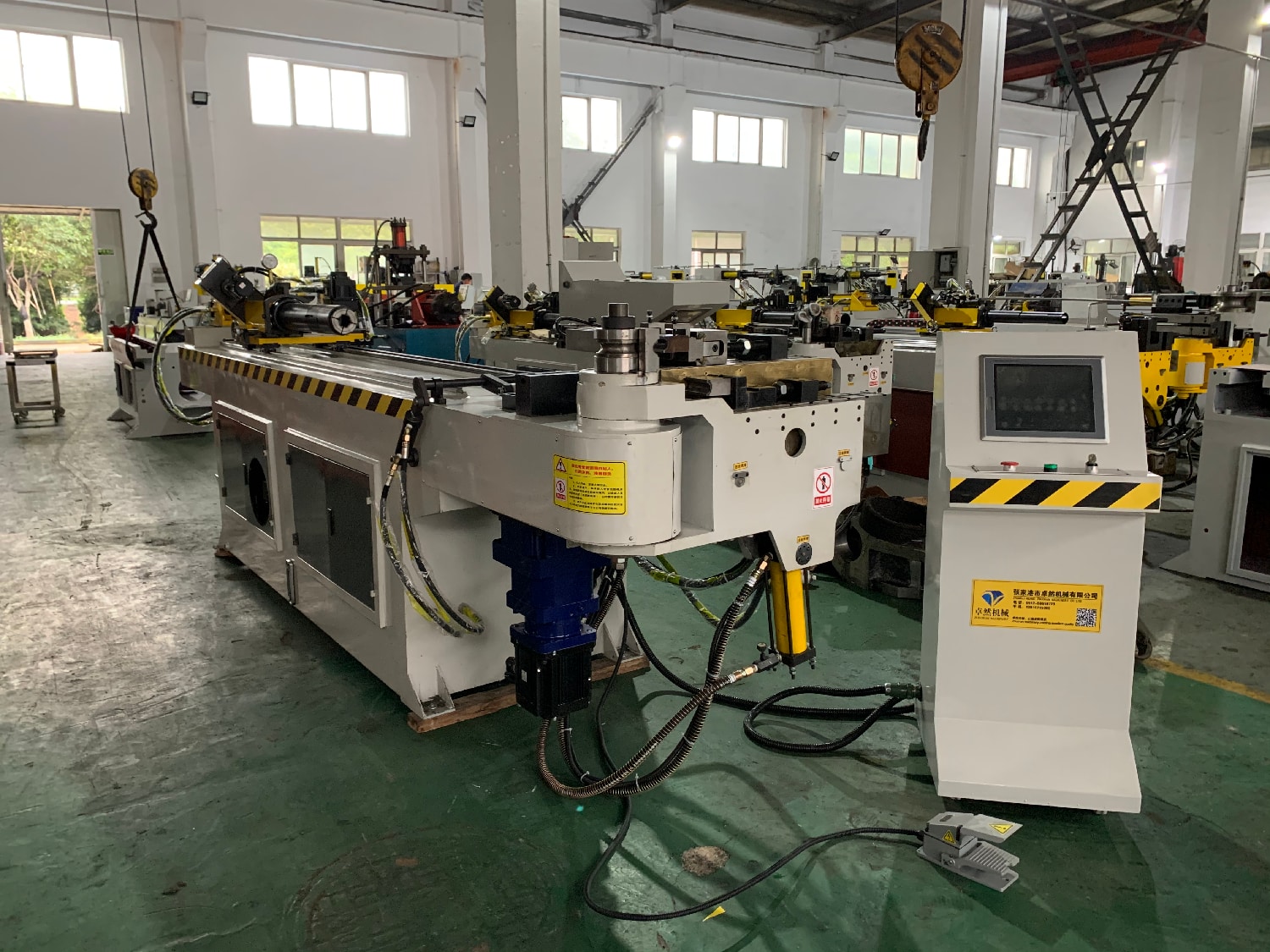

- Equipped with touch screen and CNC control system, supporting storage of up to 500 sets of processing programs.
- Built-in springback compensation setting function, with complete protection for programs and processing data.

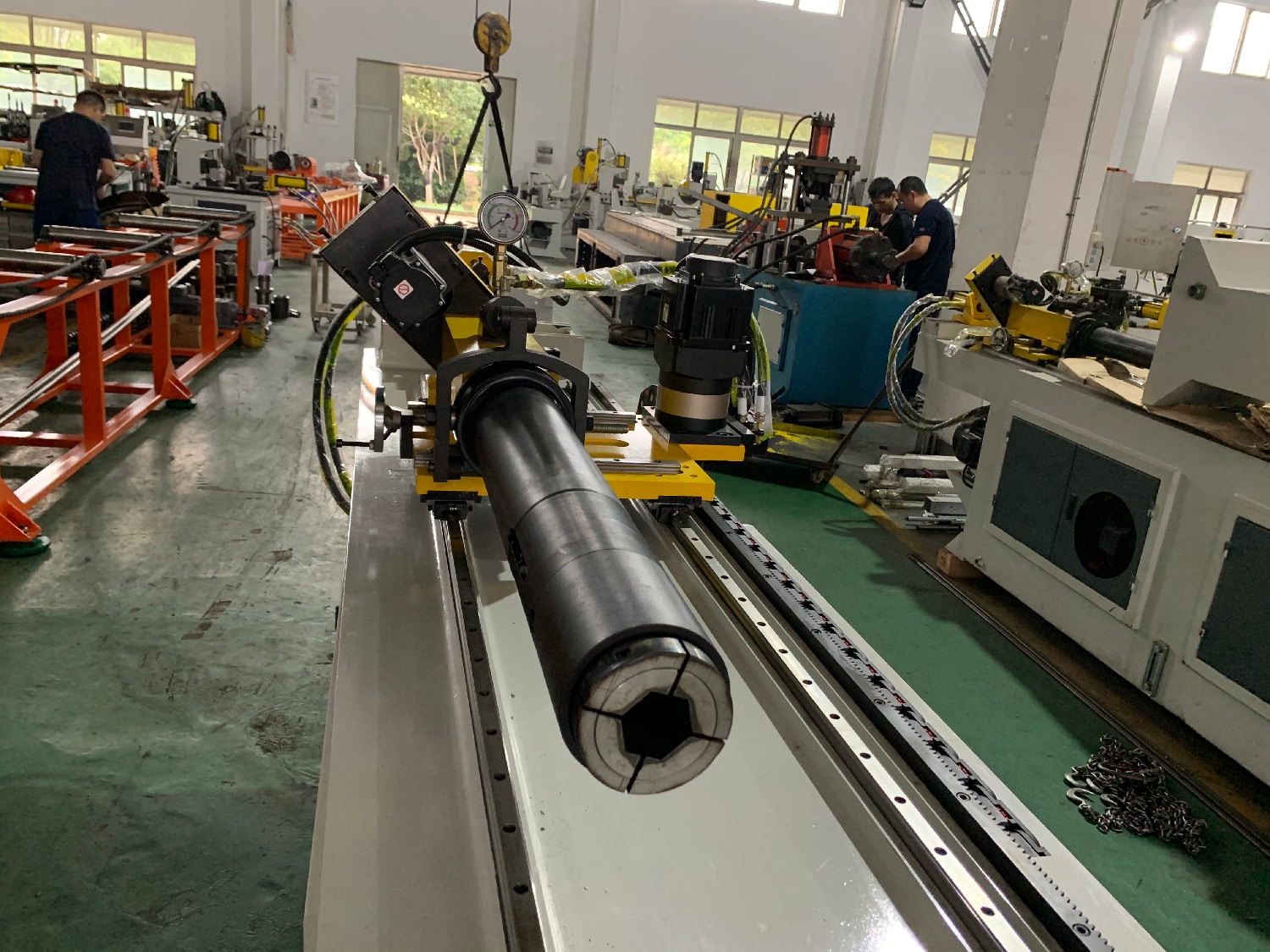

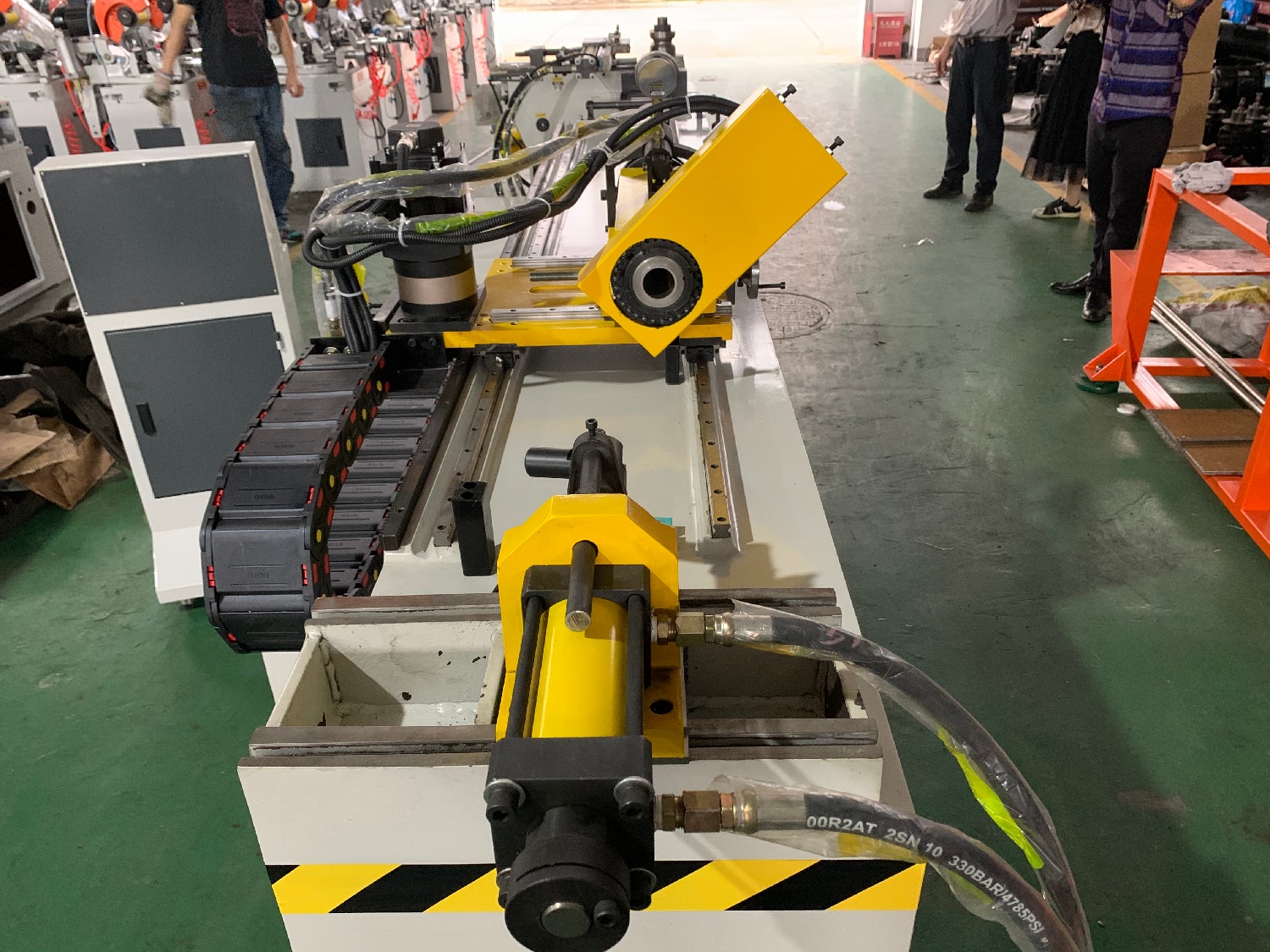

- Full servo drive for corner positioning, pipe feeding and pipe bending to ensure consistent working performance.
- The operating system supports password lock, key management, production quantity and running time record, facilitating standardized production management.
- Comes with slow bending and slow core pulling functions to protect workpieces and improve bending quality.
- Real-time error code display on the touch screen for quick fault troubleshooting.
| Item | Parameter | Remark |
|---|---|---|
| Maximum pipe diameter × Wall thickness | Φ63mm×3mm | 1. Minimum bending radius is calculated based on pipe diameter 2. Maximum bending radius can be customized 3. Maximum core length can be customized |
| Applicable pipe material | Carbon steel pipe | - |
| Maximum bending radius | R300mm | - |
| Minimum bending radius | R≧1.5D | - |
| Maximum bending angle | 190° | - |
| Maximum feeding length | 2200mm | - |
| Feeding method | Direct delivery | - |
| Clamping mode | Clip | - |
| Max bending speed | 150°/s | - |
| Max tubing speed | 200°/s | - |
| Max feeding speed | 1000mm/s | - |
| Bending accuracy | ±0.1° | - |
| Tubing accuracy | ±0.1° | - |
| Feeding accuracy | ±0.1mm | - |
| Information input mode | 1. Coordinate (X, Y, Z)2. Working value (Y, B, C) | - |
| Bending mode | Servo bending | - |
| Corner servo motor power | 400w | - |
| Feed servo motor power | 1000w | - |
| Bending servo motor power | 5000w | - |
| Storable pipe elbow programs | 50 | - |
| Storable part programs | 500 | - |
| Oil motor power | 4kw | - |
| Maximum system pressure | 12 Mpa | - |
| Machine overall dimension | 4000 x 900 x 1250mm | - |
| Machine weight | 1300kg | - |
