DW18CNC Fully Automatic Pipe Bender

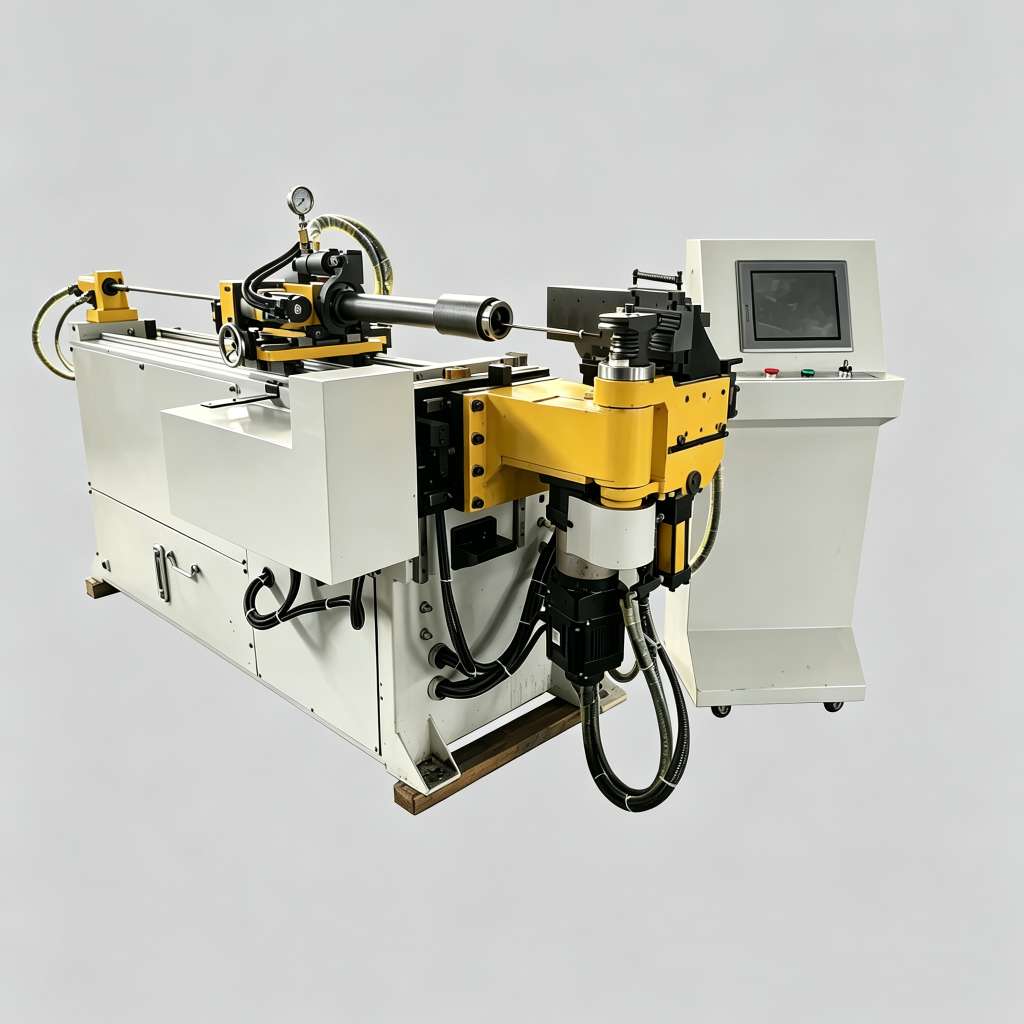

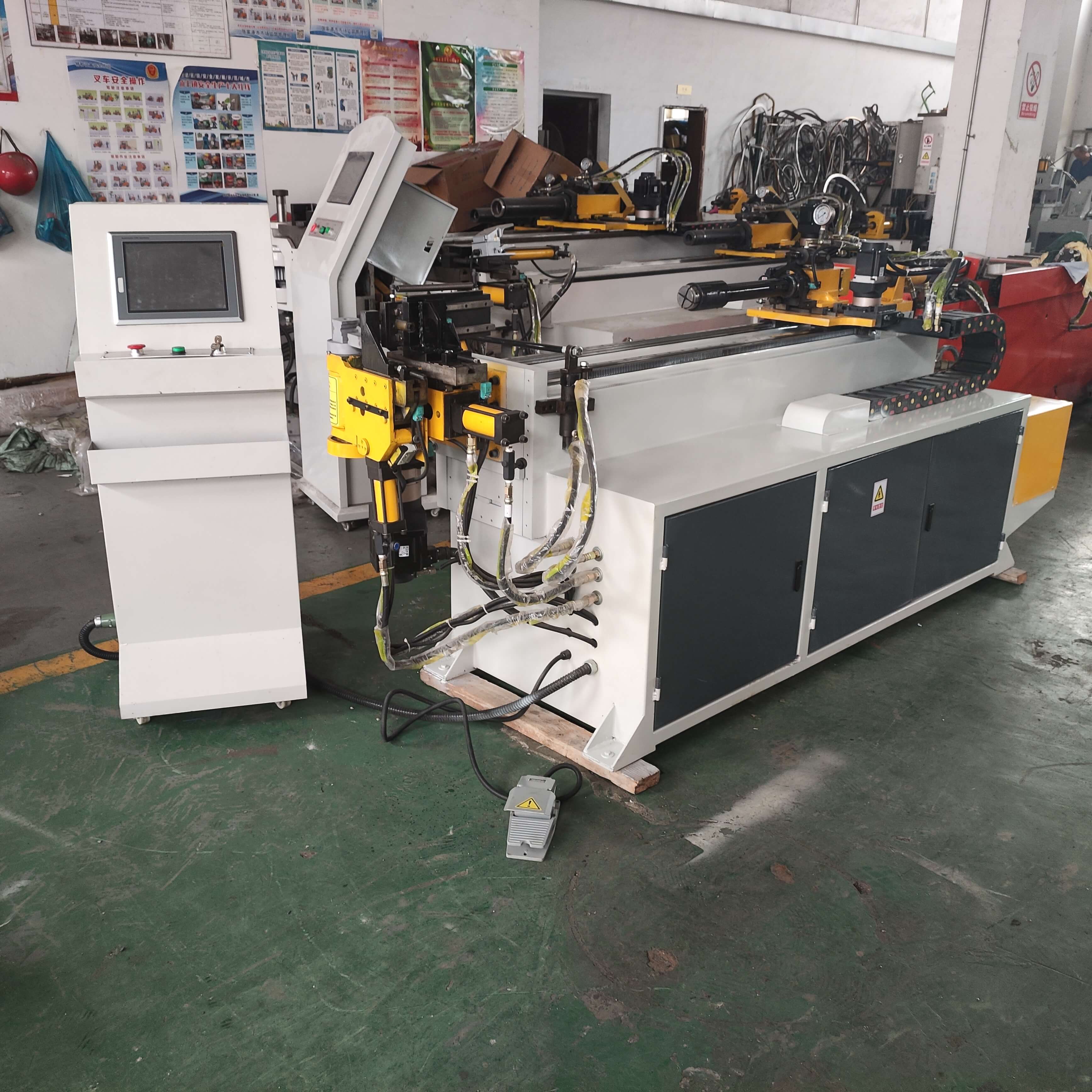

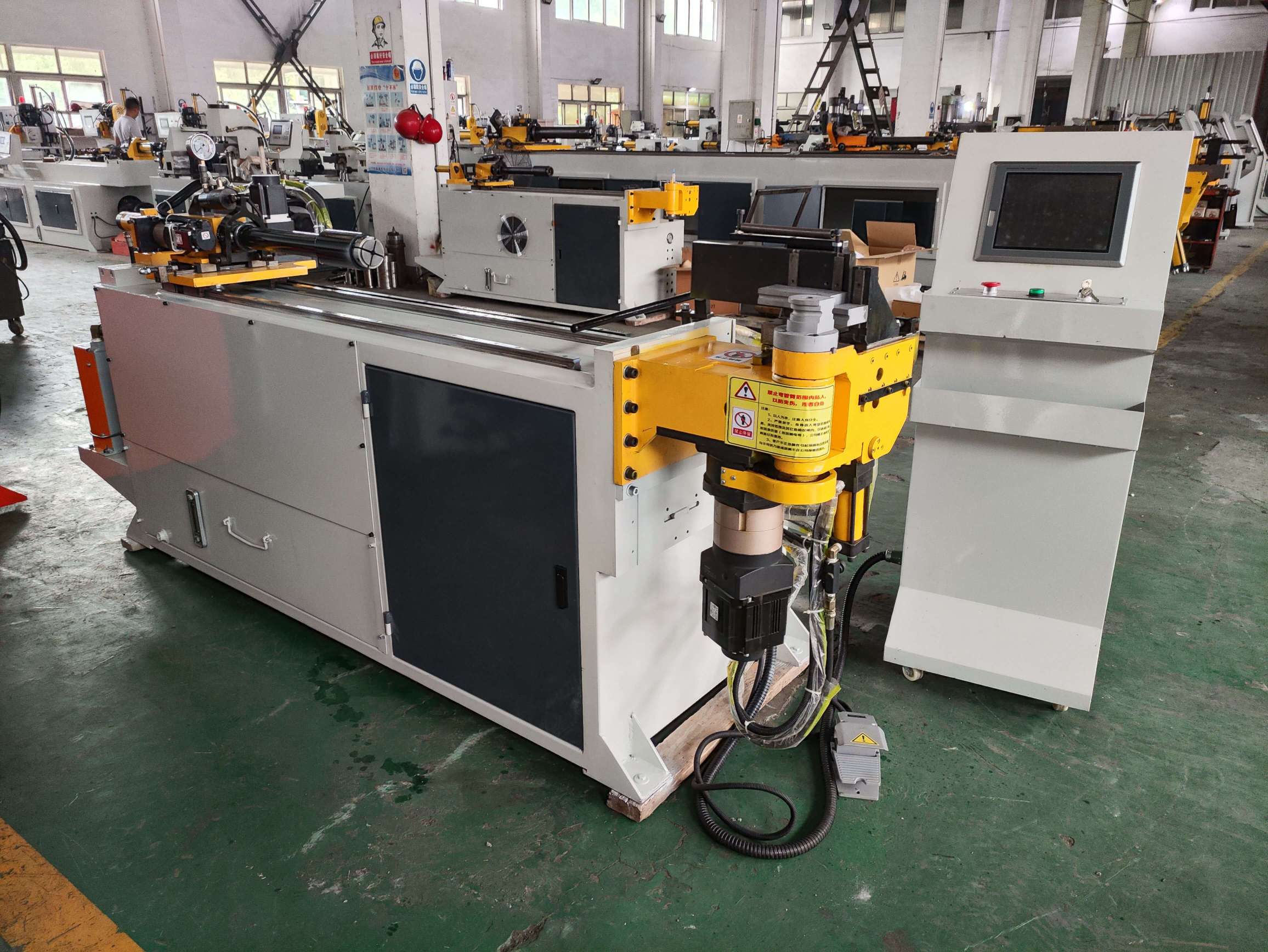

DW18CNC-3A-1S 3-Axis 1-Station CNC Tube Bending Machine

DW18CNC-3A-1S is a high-precision servo CNC pipe bending machine designed for carbon steel pipe bending applications, adopting full servo control on bending, feeding and corner shifting with stable running performance and high machining accuracy. This automatic tube bender supports customized bending radius, core length and feeding stroke, widely used for processing small-diameter carbon steel tubular fittings in hardware, automobile, hydraulic pipeline industries.

Core Advantages & Product Features

1. Adopts touchscreen + CNC numerical control system, pre-storage for up to 500 groups of product processing programs and 50 kinds of pipe elbow specifications, improving batch production efficiency greatly.
2. Built-in springback compensation parameter setting program plus data encryption function to guarantee the safety of processing formulas and production data.

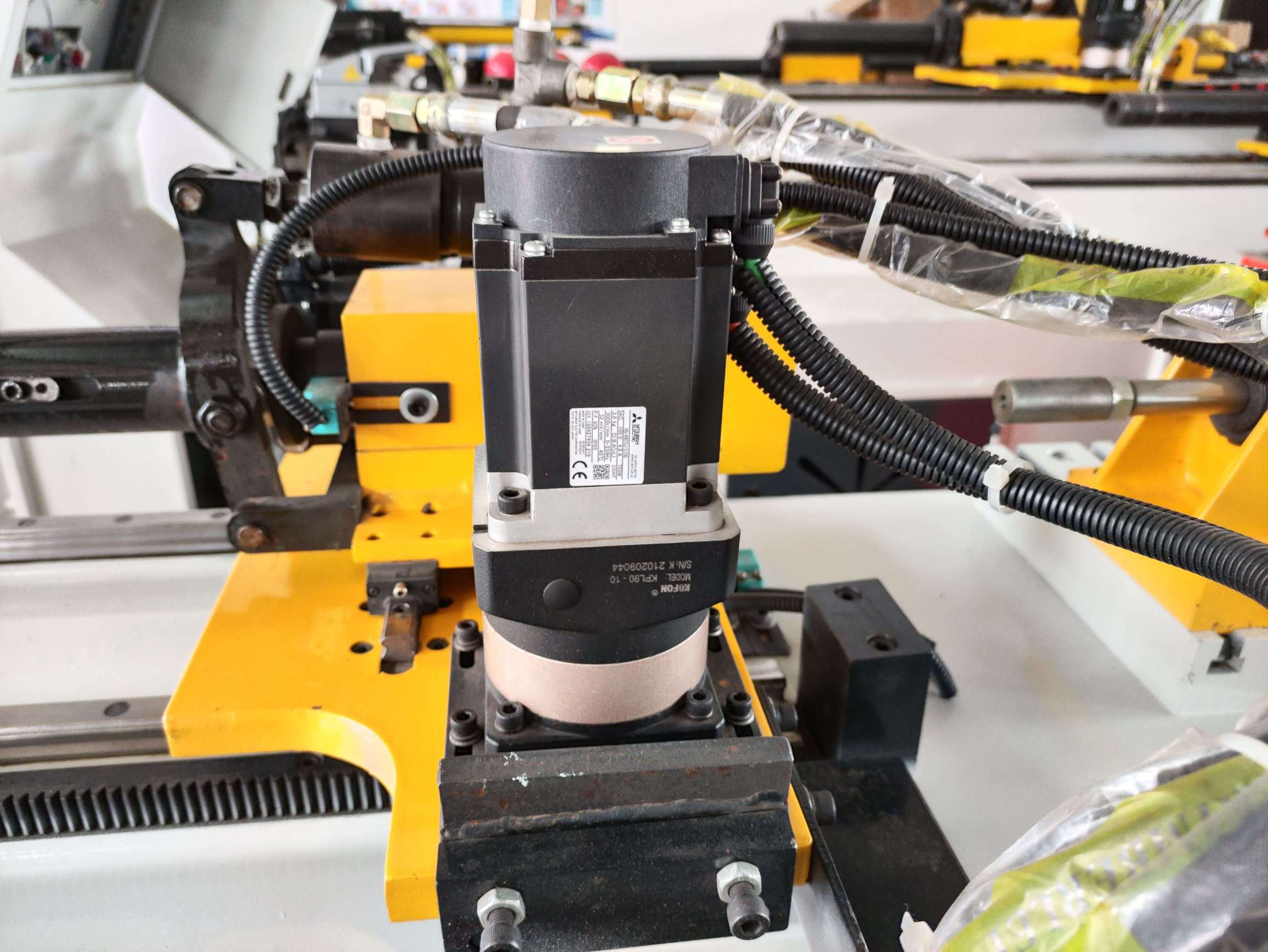

3. Full servo drive for corner positioning, pipe feeding and bending movement to realize precise and stable forming of tubular workpieces.
4. Production management-enabled control system with access password, operation key lock, production output & runtime log recording functions for standardized factory management.
5. Equipped with low-speed bending and slow core pulling functions to avoid pipe deformation, cracks and wrinkling during bending forming.
6. Real-time fault code display on touchscreen; clear error prompts allow operators to troubleshoot machine faults rapidly and reduce downtime loss.

Application Range

Specially customized for carbon steel pipe bending with max pipe specification Φ18mm×2mm; adjustable bending radius meets diversified custom forming requirements from different clients.
