DW38CNC Pipe Bending Machine

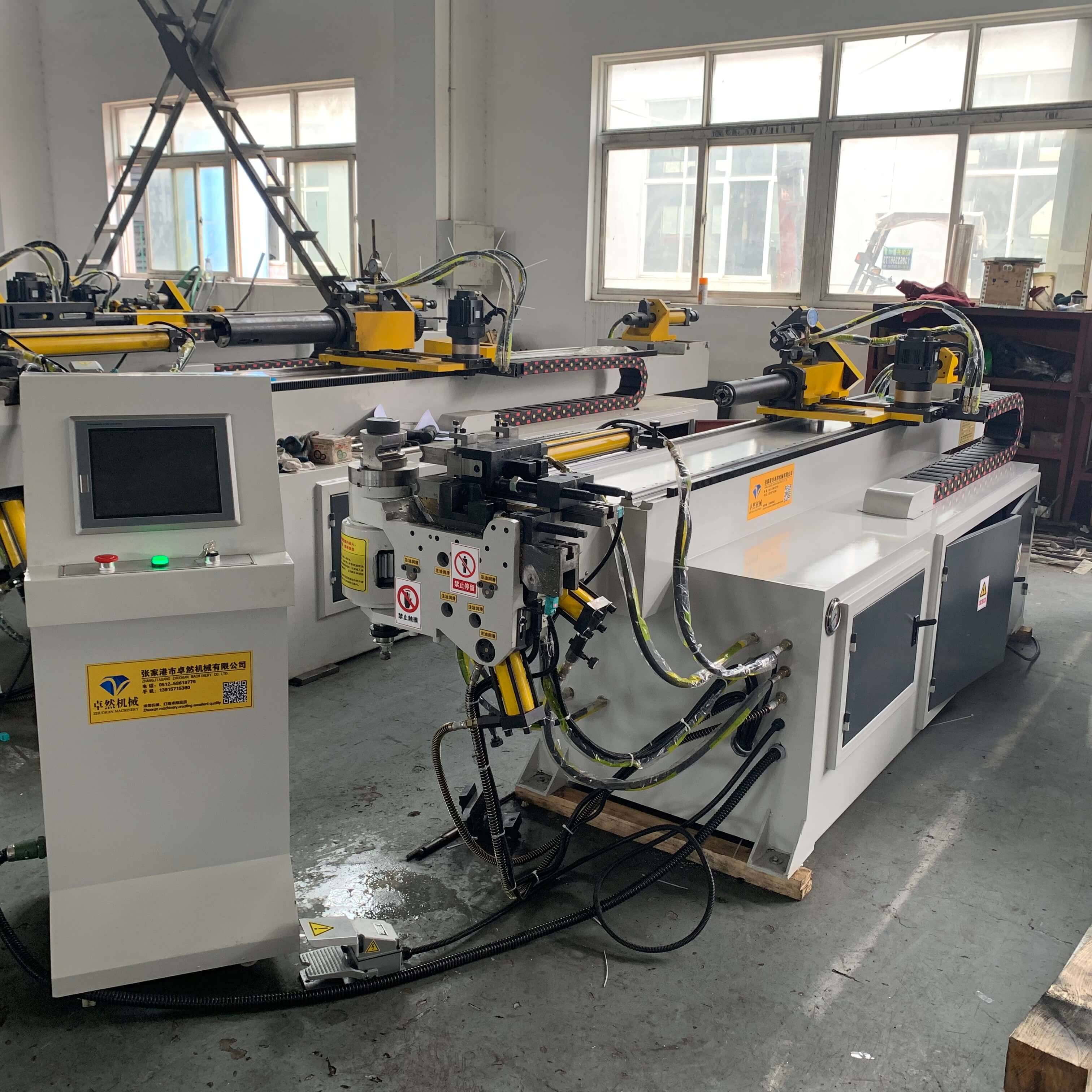

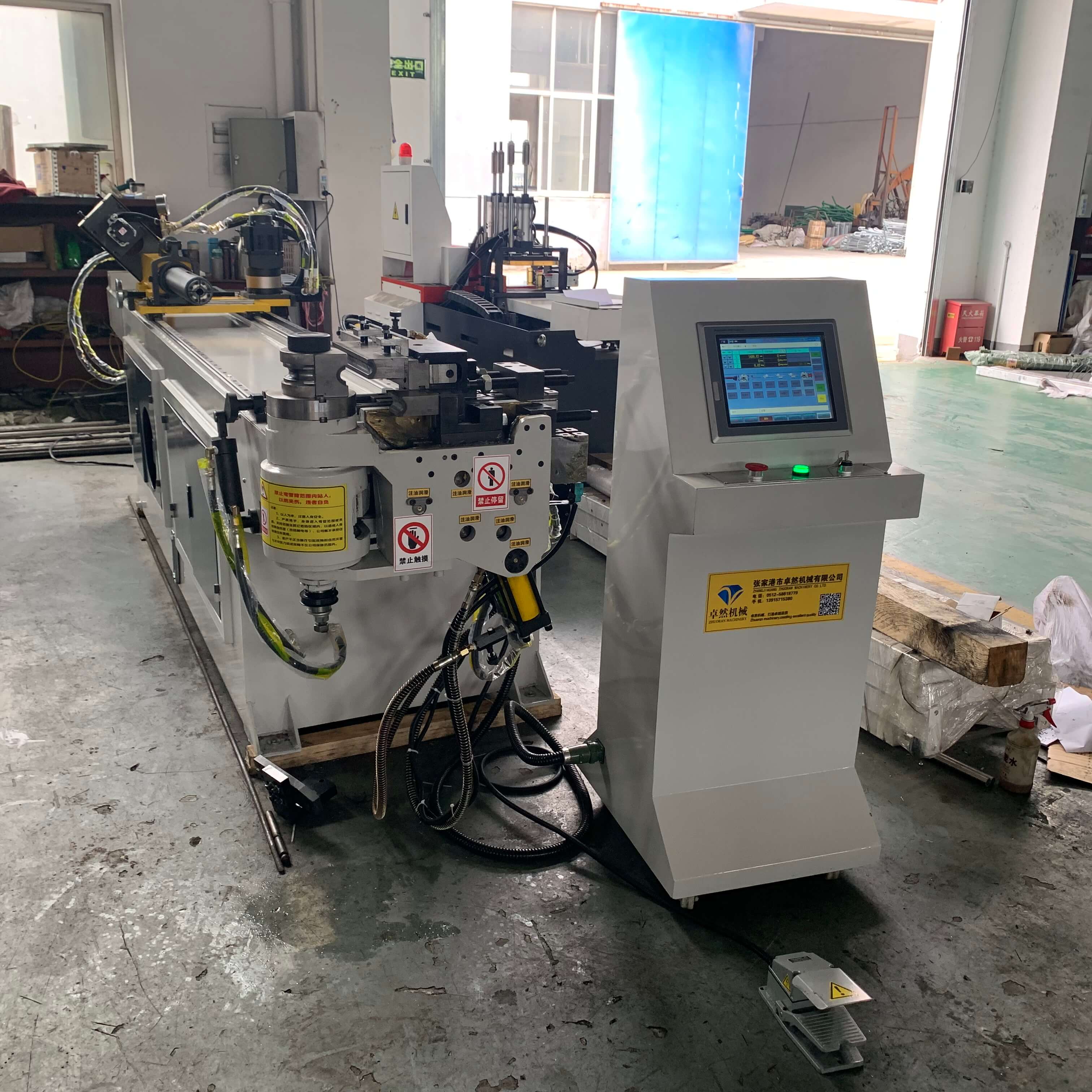

DW38CNC-3A-1S 3-Axis 1-Station CNC Tube Bending Machine

The DW38CNC-3A-1S is a heavy-duty full-servo CNC pipe bending machine designed for medium-diameter carbon steel pipe bending. It supports a maximum bending specification of Φ38mm×2mm carbon steel pipes with a maximum bending angle of 190°, delivering powerful and stable forming performance for industrial pipe processing. This upgraded tube bender adopts a 5000w high-power bending servo motor, perfectly meeting the high-rigidity bending requirements of thick-walled and large-diameter steel pipes.

Equipped with full servo control for corner positioning, pipe feeding and bending operations, the machine maintains ultra-high processing accuracy of ±0.1° angular precision and ±0.1mm feeding precision. It features an extended maximum feeding length of 2200mm, supporting longer pipe one-time forming. Both the maximum bending radius and maximum core length can be customized according to customer production demands. The intuitive touch screen CNC control system supports dual coordinate input modes and stores up to 500 sets of processing programs and 50 types of pipe elbow specifications, greatly improving batch production efficiency and equipment versatility.

Integrated with professional springback compensation procedures and data security encryption functions, the equipment ensures consistent bending accuracy and protects core processing data. It is equipped with practical functions including slow bending, slow core pulling and real-time screen error prompts, effectively preventing pipe cracks, wrinkles and deformation. The system comes with password lock, key authorization and production quantity & running time recording functions, supporting standardized factory management. Widely applied in automotive pipelines, engineering hydraulic pipes, mechanical hardware fittings and other industrial fields.

Core Product Features

1. Advanced touch screen display and CNC computer operating system, with 500 sets of program memory capacity to support repetitive mass production.

2. Built-in rebound compensation value setting program, equipped with independent procedure and processing data security protection functions to ensure stable processing quality.

3. Full servo control for corner adjustment, pipe feeding and bending processes, realizing fully automatic, high-precision and stable pipe forming.

4. Humanized production management system with password protection, key control, production quantity and operating time recording functions for standardized workshop management.

5. Professional slow bending and slow core pulling functions, effectively avoiding pipe deformation, cracks and wrinkling during thick and medium diameter pipe bending.

6. Intelligent real-time error message display on the screen, allowing operators to quickly troubleshoot faults and reduce production downtime.
