DW50CNC Pipe Bending Machine

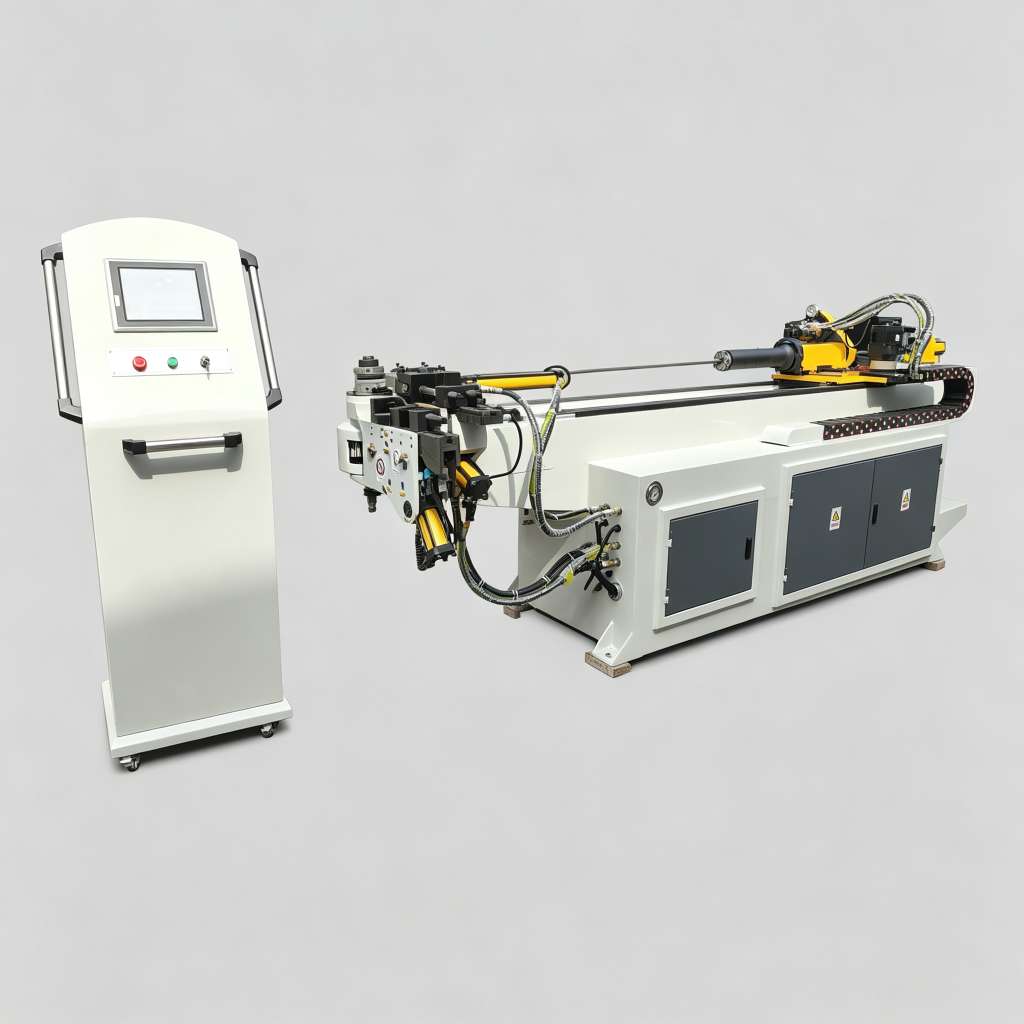

DW50CNC-2A-1S 2-Axis 1-Station CNC Tube Bending Machine

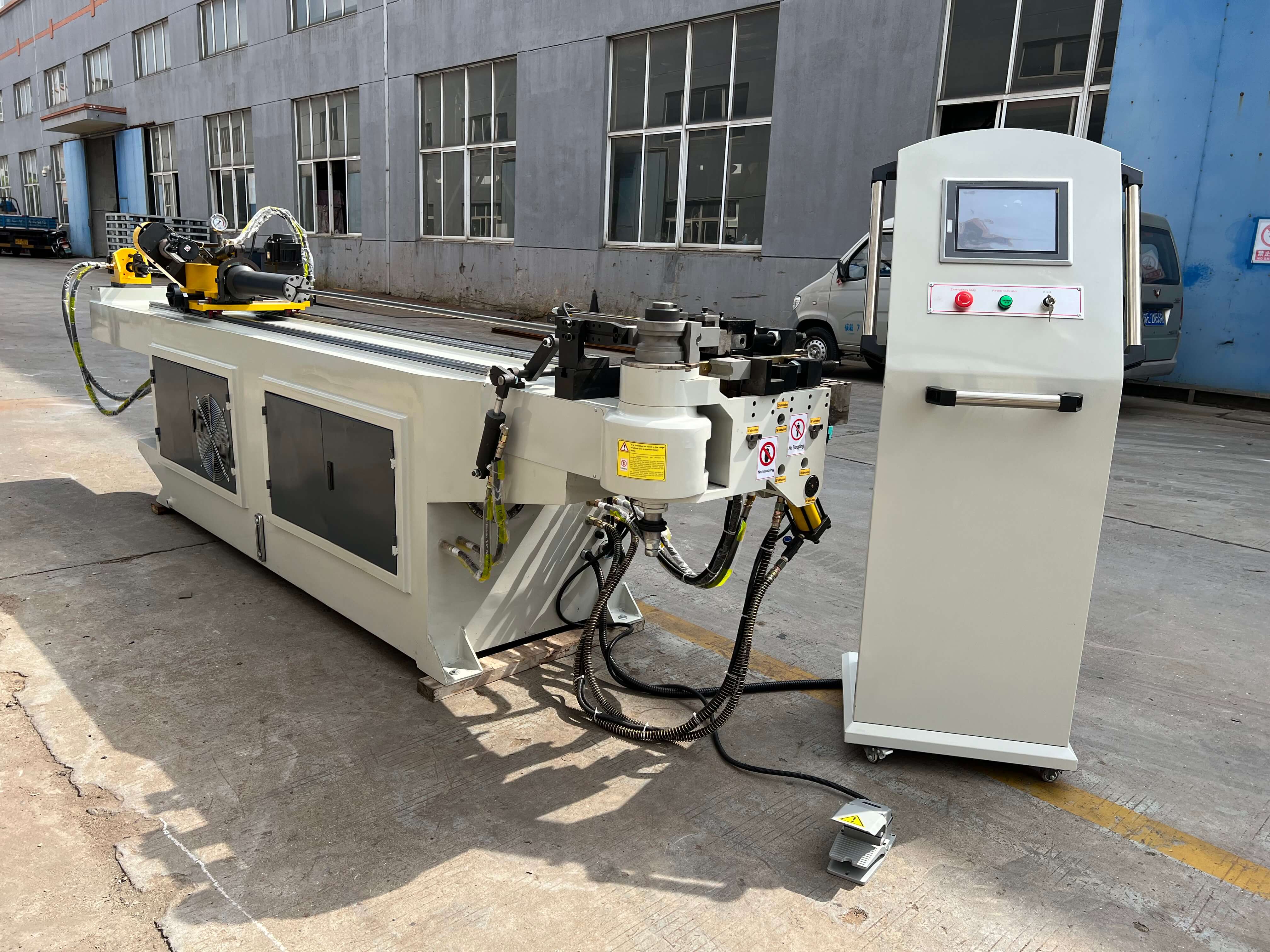

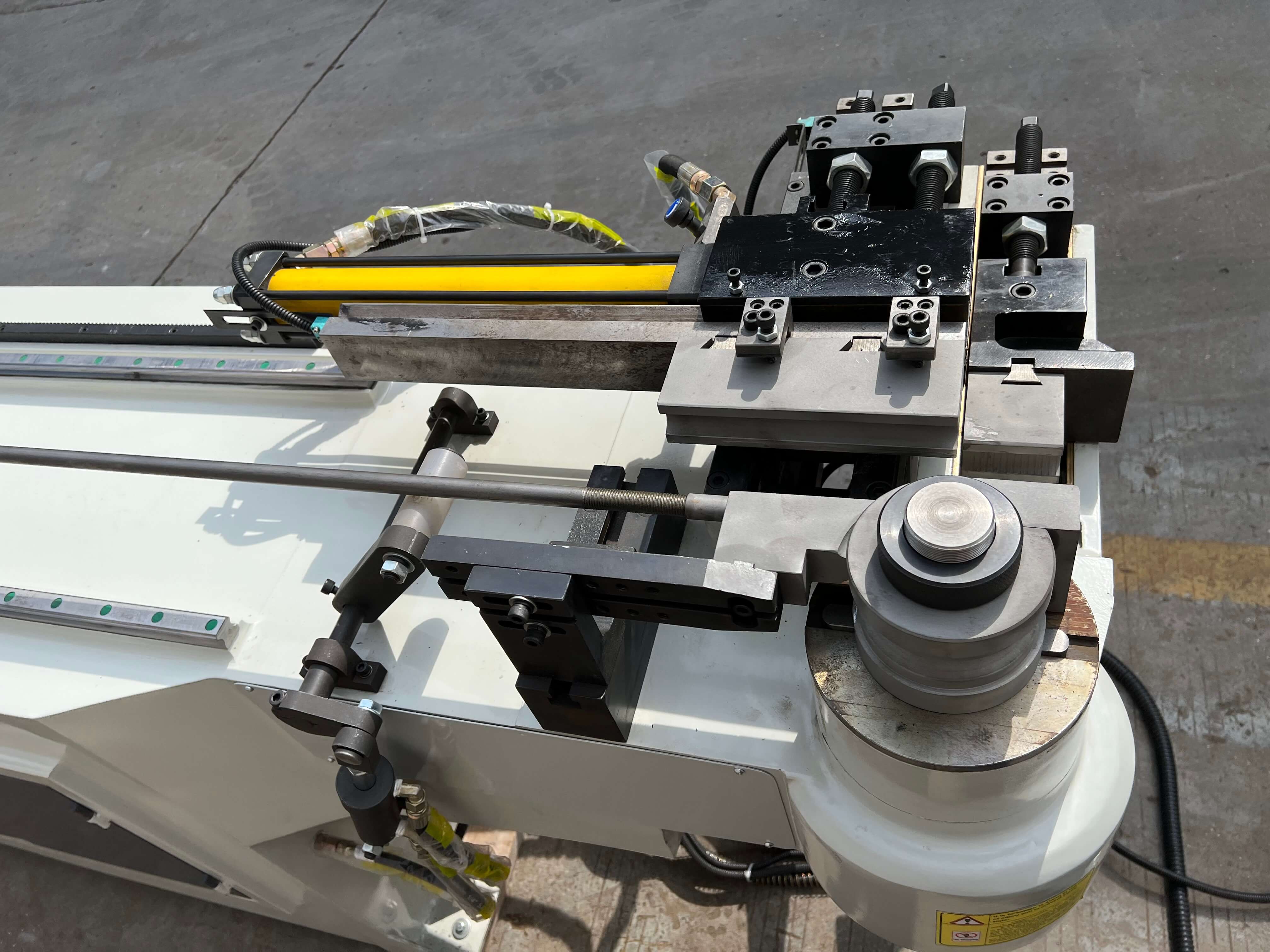

The DW50CNC-2A-1S is a heavy-duty hydraulic CNC pipe bending machine specialized for large-diameter and thick-wall carbon steel pipe processing. It supports a maximum bending specification of Φ50mm×3mm carbon steel pipes with a maximum bending radius of R250mm and a 190° maximum bending angle, delivering strong hydraulic forming force for heavy industrial pipe bending tasks. Adopting professional hydraulic bending technology, this industrial tube bender perfectly meets the high-strength forming requirements of thick-walled steel pipes that ordinary servo bending machines cannot handle.

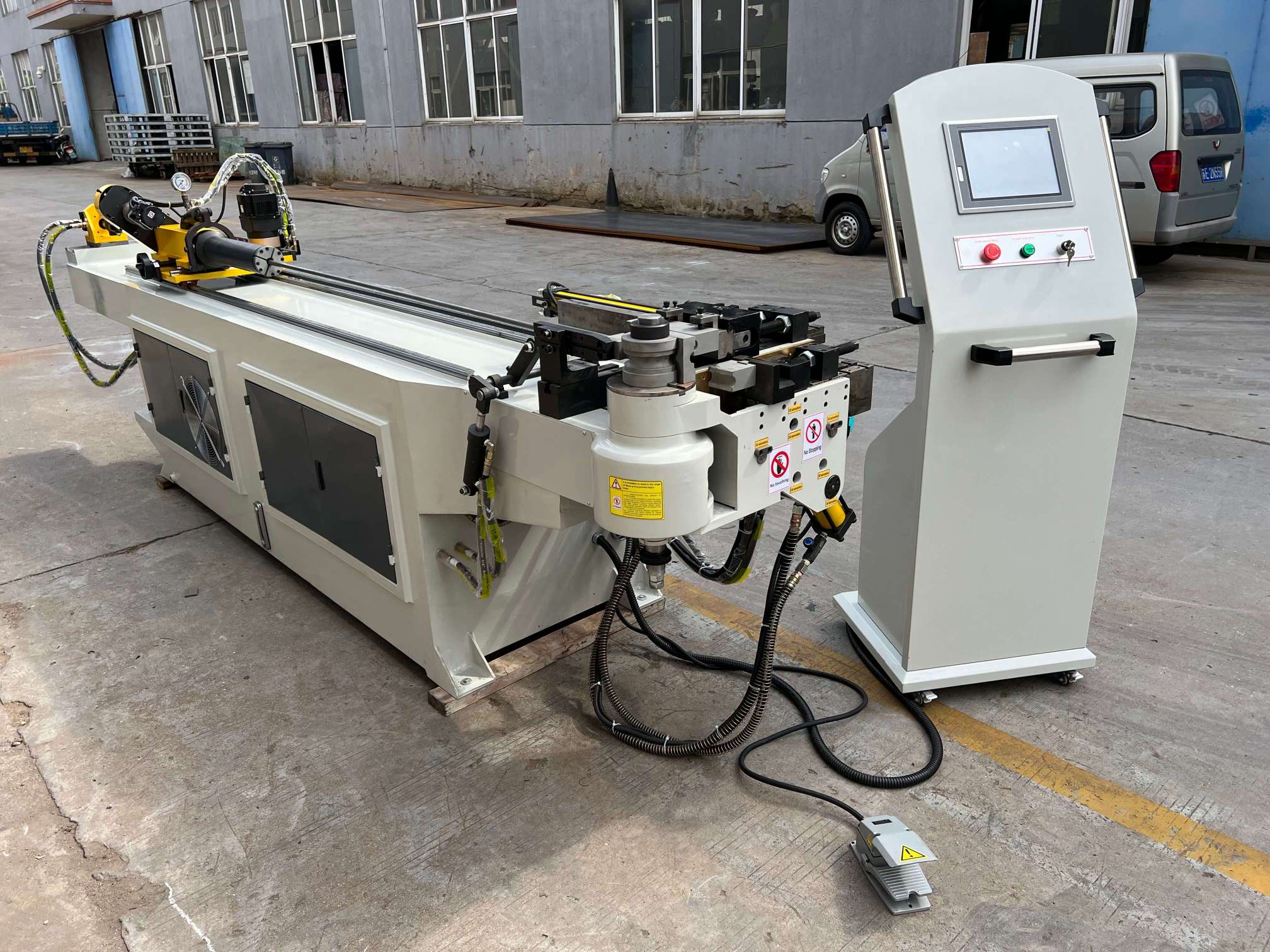

This pipe bending equipment features full servo control for corner positioning and pipe feeding, matching stable hydraulic bending power to achieve high-precision processing results. It maintains ultra-high accuracy with ±0.1° bending and tubing precision and ±0.1mm feeding precision, ensuring consistent product forming quality. The maximum feeding length reaches 2200mm for one-time long pipe forming. Both the maximum bending radius and maximum core length are customizable to meet diverse customer production needs. Equipped with a user-friendly touch screen CNC system, it supports XYZ coordinate and YBC working value dual input modes, and can store 500 sets of processing programs and 50 types of pipe elbow specifications for efficient batch production.

Built-in springback compensation procedures and professional data security functions effectively stabilize bending accuracy and protect core production data. It is equipped with practical functions including slow bending, slow core pulling and real-time screen error prompts, which greatly reduce pipe deformation, cracks and wrinkling during thick pipe bending. The system supports password lock, key authorization and production data recording, realizing standardized factory production management. It is widely used in large mechanical pipelines, engineering equipment, hydraulic systems and heavy hardware pipe fitting processing industries.

Core Product Features

1. Premium touch screen display and CNC computer control system, with 500 sets of program storage capacity to support stable repetitive mass production.

2. Independent rebound compensation value setting program, equipped with procedure and processing data security protection functions to guarantee stable bending quality.

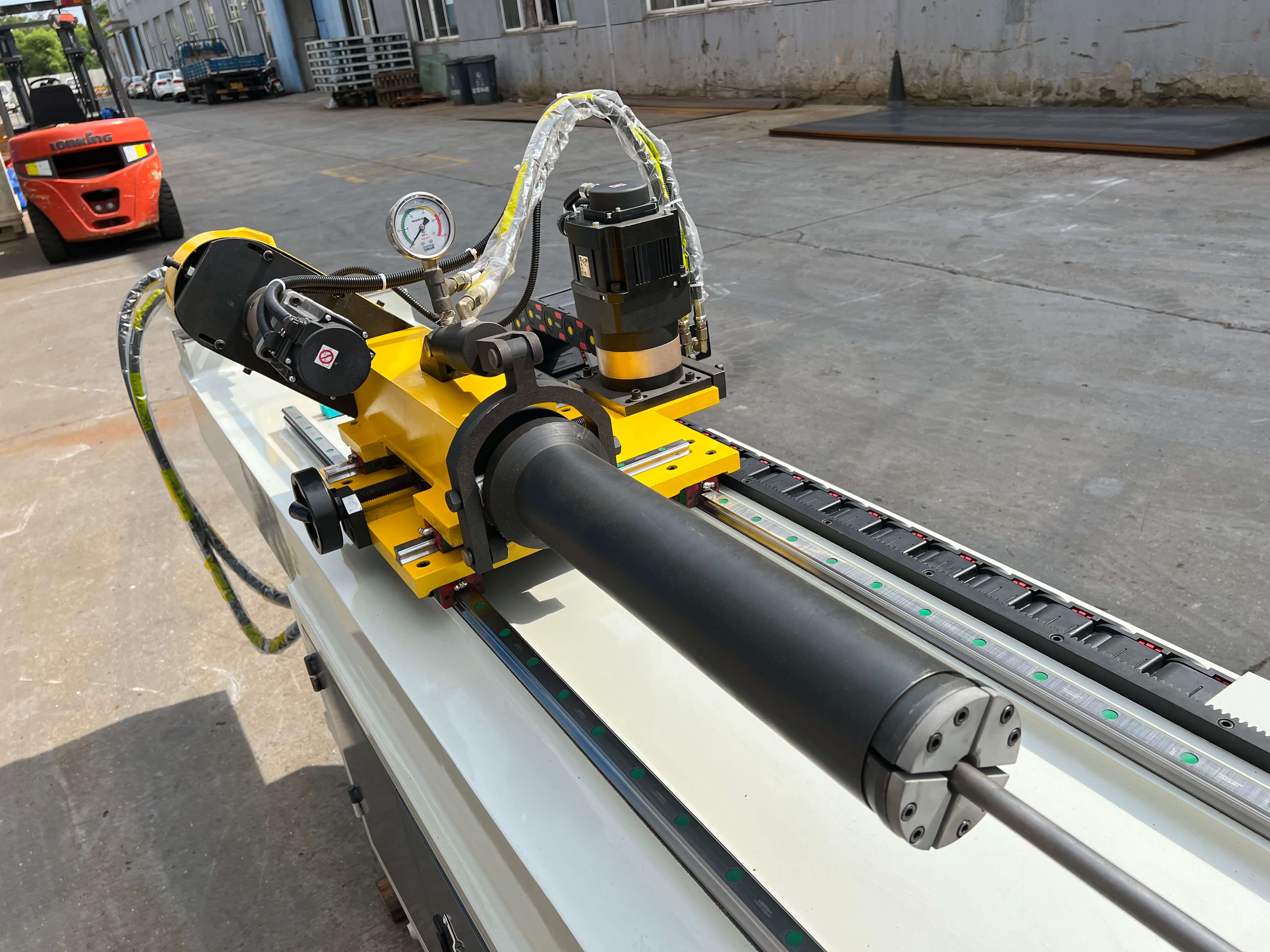

3. Servo control for corner adjustment and pipe feeding, matched with high-performance hydraulic bending system for stable and reliable pipe forming.

4. Complete production management system with password protection, key control, production quantity and running time recording functions for standardized workshop operation.

5. Slow bending and slow core pulling functions, effectively avoiding deformation, cracks and wrinkling during large-diameter thick-wall carbon steel pipe bending.

6. Intelligent real-time error message display on the screen, enabling operators to quickly eliminate faults and reduce production downtime losses.
