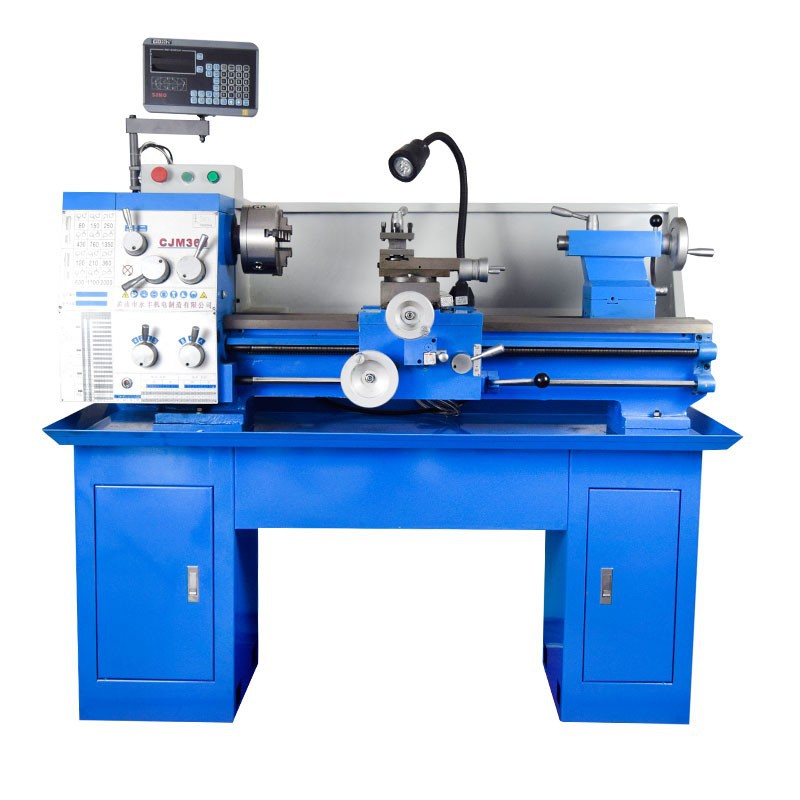

CJM360 Large-Capacity Light Duty Bench Lathe

CJM360 Large-Capacity Light Duty Bench Lathe | 600mm / 750mm Turning Length

Product Overview:

MFG Machinery designs and builds reliable workshop machinery for industrial maintenance, vocational training, small-batch production and precision prototyping. The CJM360 represents the larger-capacity model in the CJM light duty bench lathe series, offering extended swing, robust gear-driven performance and versatile threading capability in a compact bench-top layout.

Constructed with a full gear-driven spindle headstock and widened high-frequency hardened bed ways, this lathe provides exceptional cutting rigidity, long-term dimensional accuracy and reliable heavy-duty performance. It is equipped with a 12-speed feed gearbox, automatic longitudinal and cross feeds with safety interlock, and full threading capability, making it a versatile workhorse for workshops requiring both large turning capacity and precision results.

Key Features:

• Full Gear-Driven Spindle Headstock: 12-step speed range delivers consistent torque across the entire speed band, ensuring stable heavy cutting performance and extended service life for continuous industrial operation.
• Comprehensive Thread Cutting Range: 12-range feed gearbox covers 22 metric threads (0.2–7.0mm), 45 imperial threads (2½–48 TPI), 21 module threads (0.2–3.5 MP) and 31 diametral pitch threads (8–120 DP) to accommodate diverse threading requirements.
• Automatic Feeds with Safety Interlock: Powered longitudinal and cross feeds boost machining efficiency; the built-in mechanical interlock structure prevents misoperation and enhances operator safety.
• Widened High-Rigidity Guideways: Double-flat & double-vee widened bed ways with high-frequency quenching provide superior rigidity and excellent long-term accuracy retention even under heavy cutting loads.

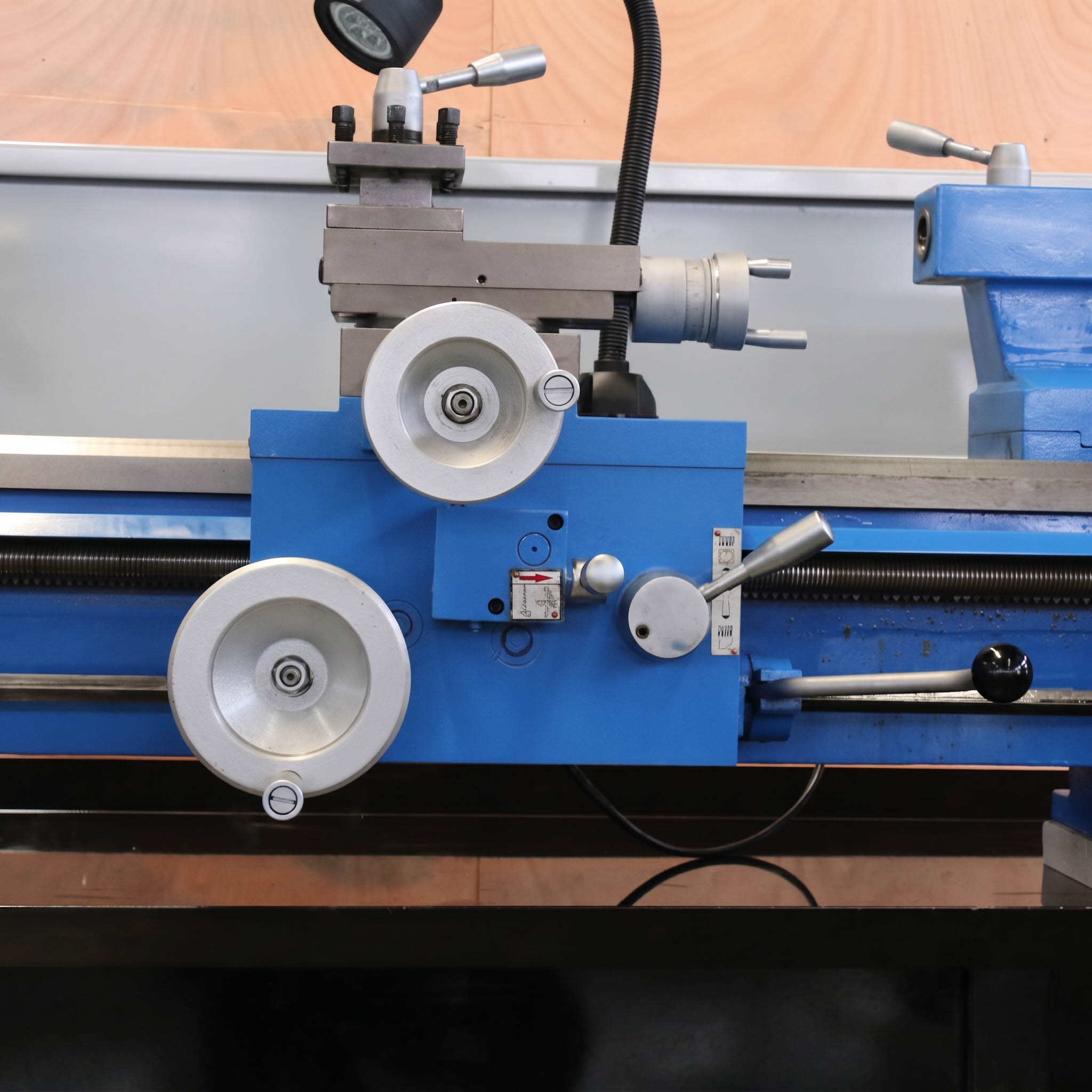

• Industrial-Grade Operating Design: Inclined wedge type tool post carriage, cam-locking tailstock and industrial machine control levers ensure precise positioning, smooth operation and durable performance under heavy use.

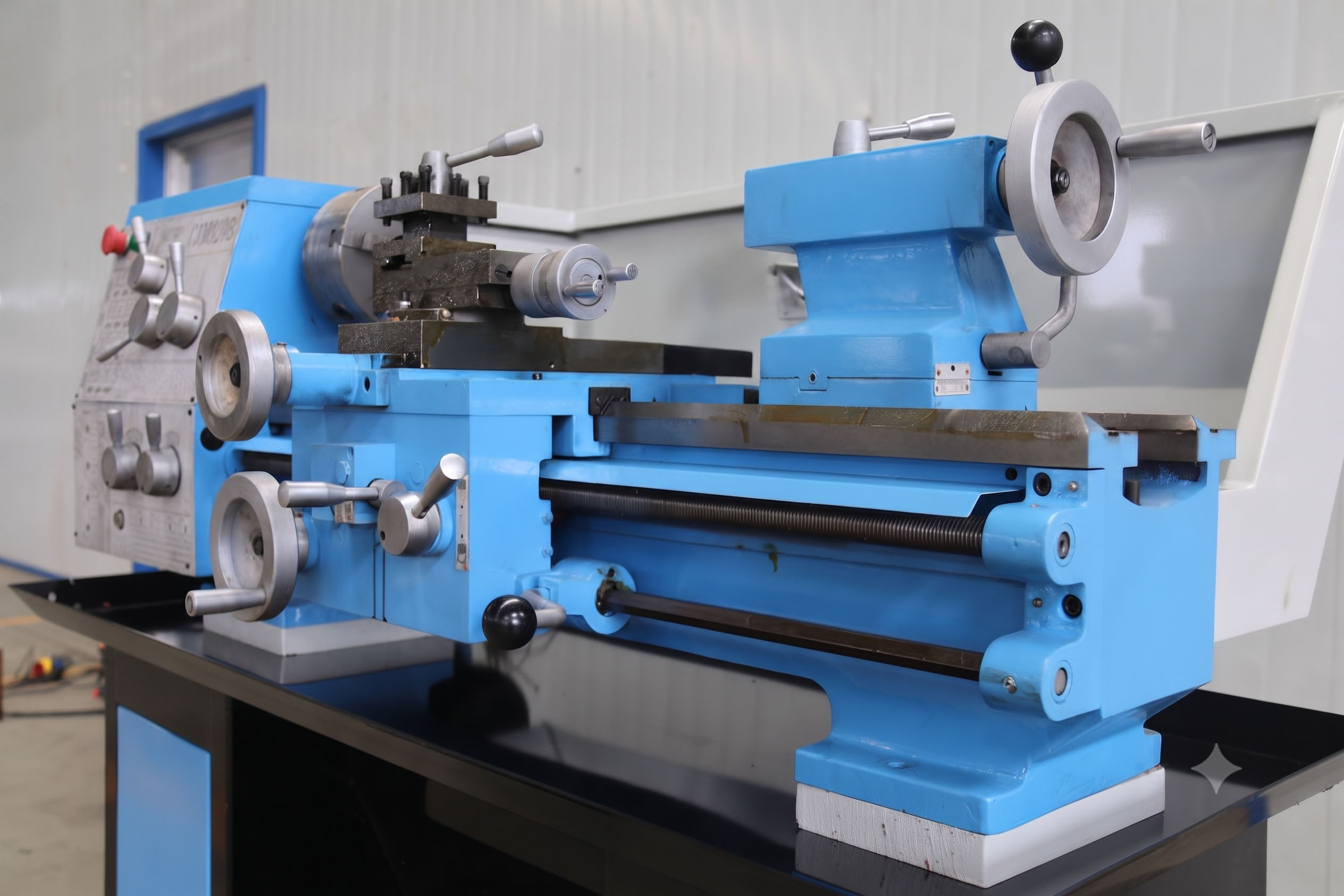

• Expanded Machining Capacity: 360mm swing over bed, 230mm swing over cross slide and 1.1kW motor enable efficient processing of larger-diameter and longer workpieces.
