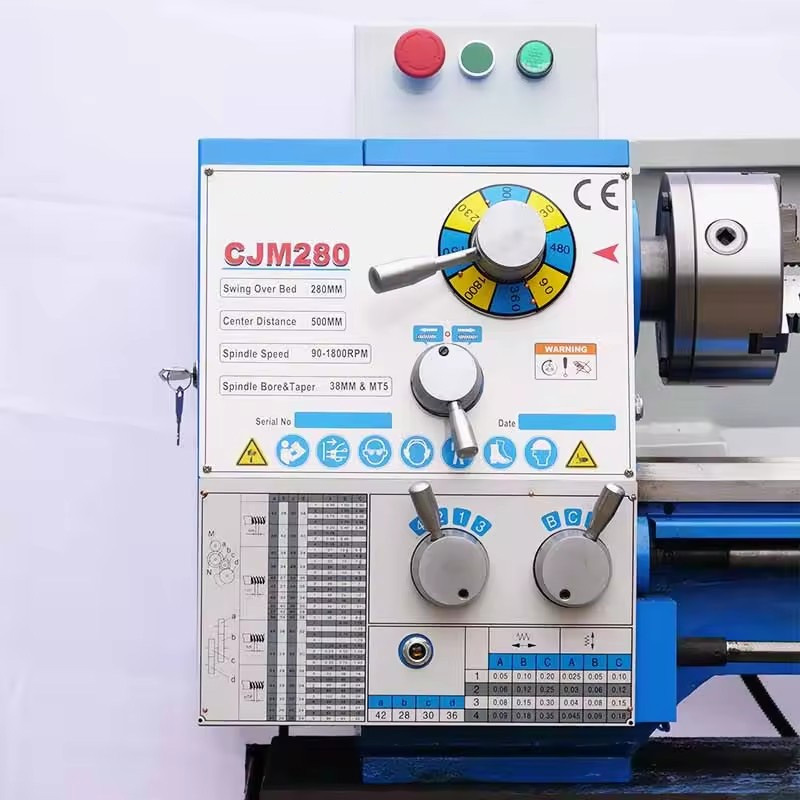

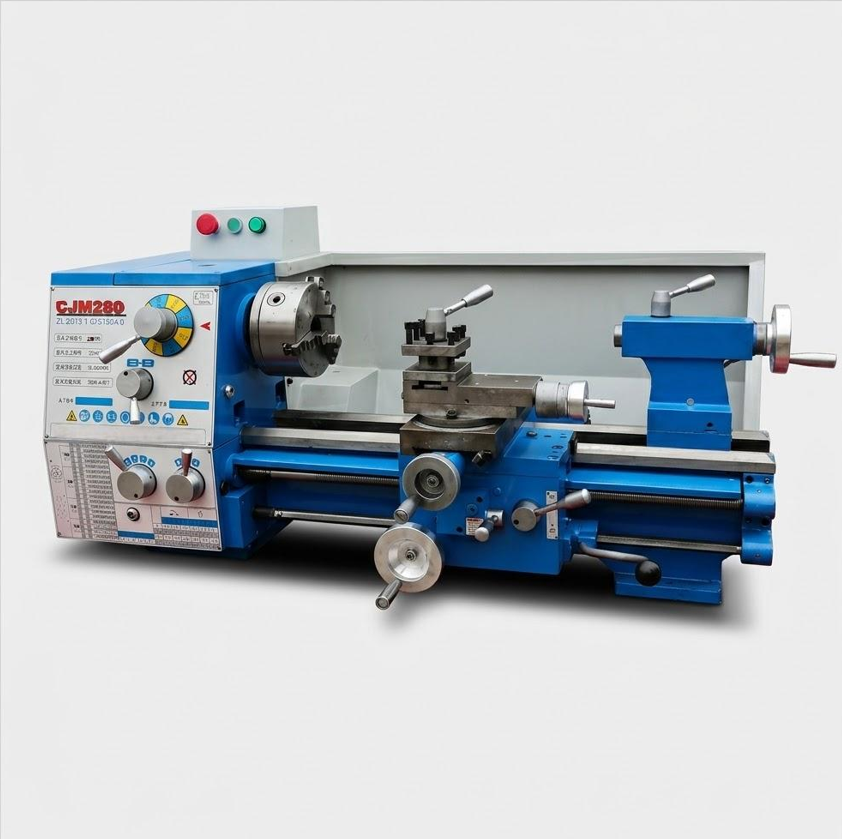

High-Precision CJM280 Light Metal Lathe (CJM280/500 & CJM280/750)

Product Overview

MFG CJM280 series light metal lathe is an advanced, industrial-grade solution designed for precision machining and high-efficiency turning operations. Providing a 280mm maximum swing over bed and a generous 38mm spindle bore diameter, this versatile bench lathe is available in two center-distance models: 500mm (CJM280/500) and 750mm (CJM280/750).

Driven by an all-gear patented headstock transmission and a 750W motor, it combines widened high-frequency quenched guideways with ergonomic industrial controls to ensure superior cutting rigidity, absolute precision, and long-term durability.

Core Features & Technical Advantages

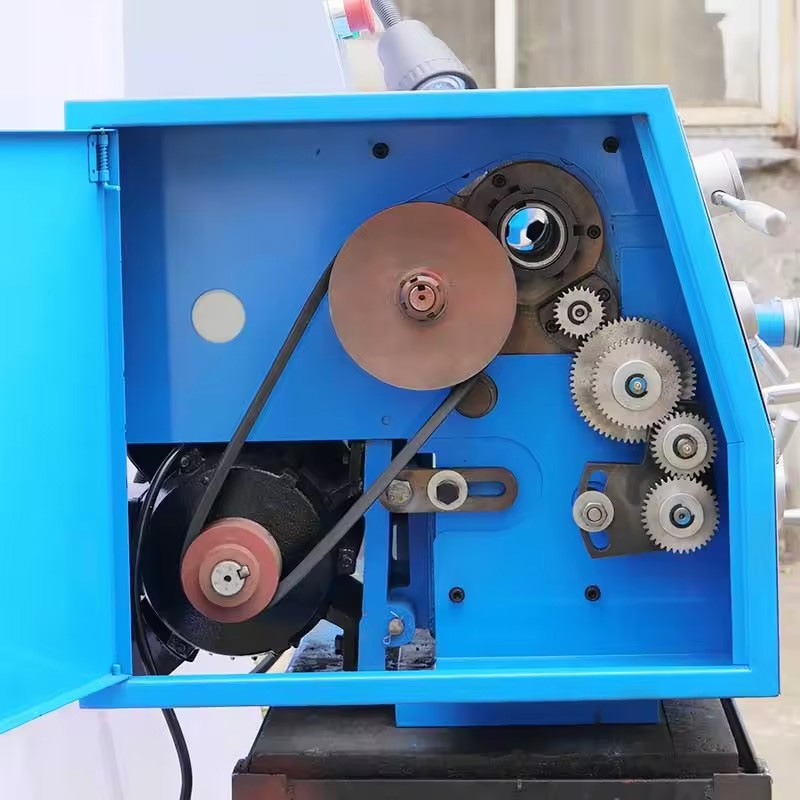

• Patented All-Gear Drive & 8-Speed Headstock: The headstock utilizes a premium full mechanical gear transmission with oil-bath circulation. Featuring patented technology, it supports 8-speed steps from 90 to 1800 rpm to deliver continuous, high-torque power output for heavy-duty or delicate cutting tasks.
• Widened & High-Frequency Quenched Guideways: Built on a robust cast-iron bed featuring a double-V and double-flat widened guideway system. The ways are high-frequency quenched and precision-ground, drastically improving structural rigidity, anti-vibration capabilities, and alignment life.
• 12-Speed Quick-Change Feed Gearbox: Equipped with an integrated 12-speed variable feed gearbox that fully covers common thread pitches without the need for constant manual gear reconfigurations. It cuts 18 Metric threads (0.2~3.5mm), 34 Imperial threads (4-1/2~48 T.P.I), 16 Modulus threads (0.2~1.75M.P), and 24 Diametral Pitch threads (16~120 D.P).
• Bi-Directional Power Feed with Safety Interlock: Fully supports both longitudinal and cross automatic power feeds. An integrated safety interlocking mechanism protects the machine against accidental simultaneous engagement, ensuring reliable and secure operation.

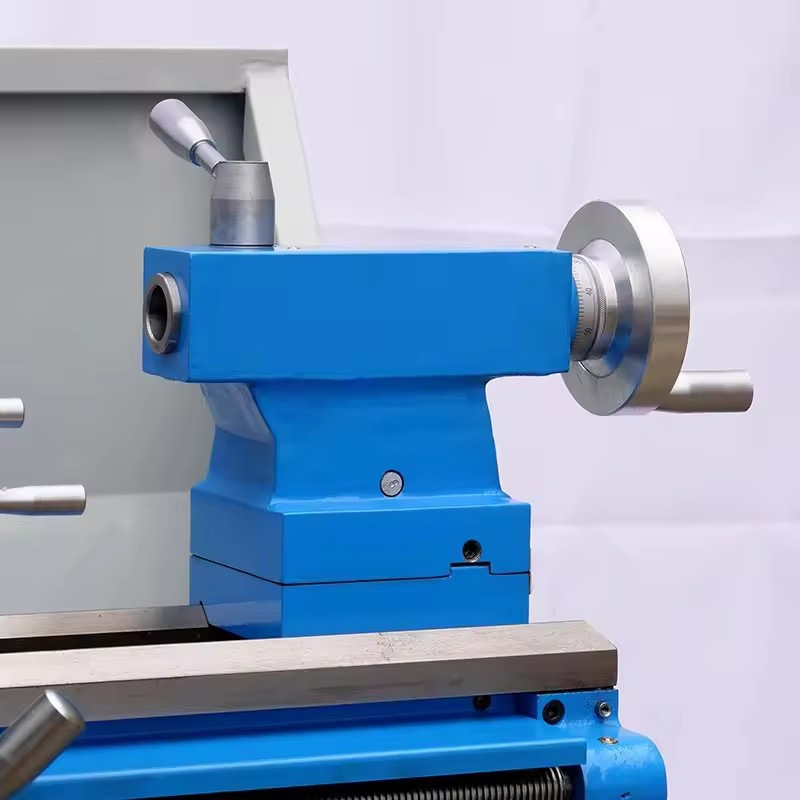

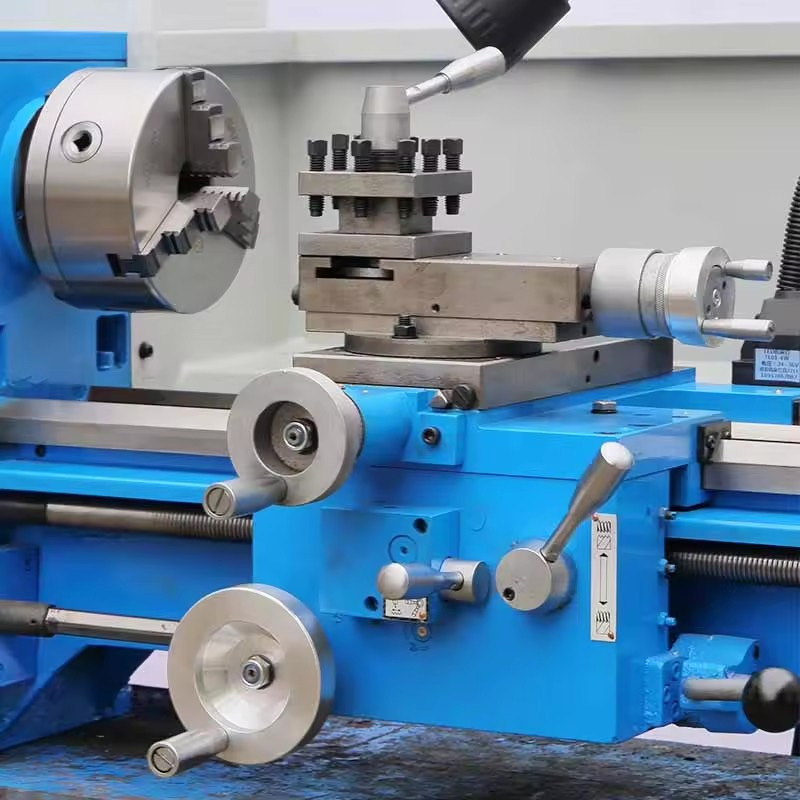

• Industrial Controls & Ergonomic Upgrades: Features a precise gib-strip style tool post carriage , a rapid-positioning cam-lock tailstock, and an industrial machine control lever for a premium, heavy-duty tactile operating experience.

Accessory System

Standard Accessories (Included with the machine):

• 3-Jaw Chuck (Φ160)
• V-Belt (A-762)
• Dead Centers (MT.3#, MT.4# / MT.5#)
• Chuck Wrench (1 pc)
• Hex Wrenches (4#, 5#, 6#)
• Double Open-End Wrenches (12-14; 17-19)
• M & N Change Gears (2 types, pre-installed on machine)
• A, B, C & D Change Gears (4 types, pre-installed on machine)
• Change Gear (40T, 1 pc)

Optional Accessories (Available for customization & upgrade):

• Workholding & Chucks: 4-Jaw Chuck (Φ160 / Φ200), Face Plate (Φ250), Transition Plate (Φ160 / Φ200), Live Center
• Support & Guards: Steady Rest, Follow Rest, Machine Base/Stand, Oil Tray
• Machining Assistance: Thread Chasing Dial, Special Change Gears (9 pcs total), Cooling System, Working Lamp, Linear Scale / Digital Readout (DRO)
• Power Upgrade: Optional Upgraded Motors (1.1 KW / 1.5 KW)
