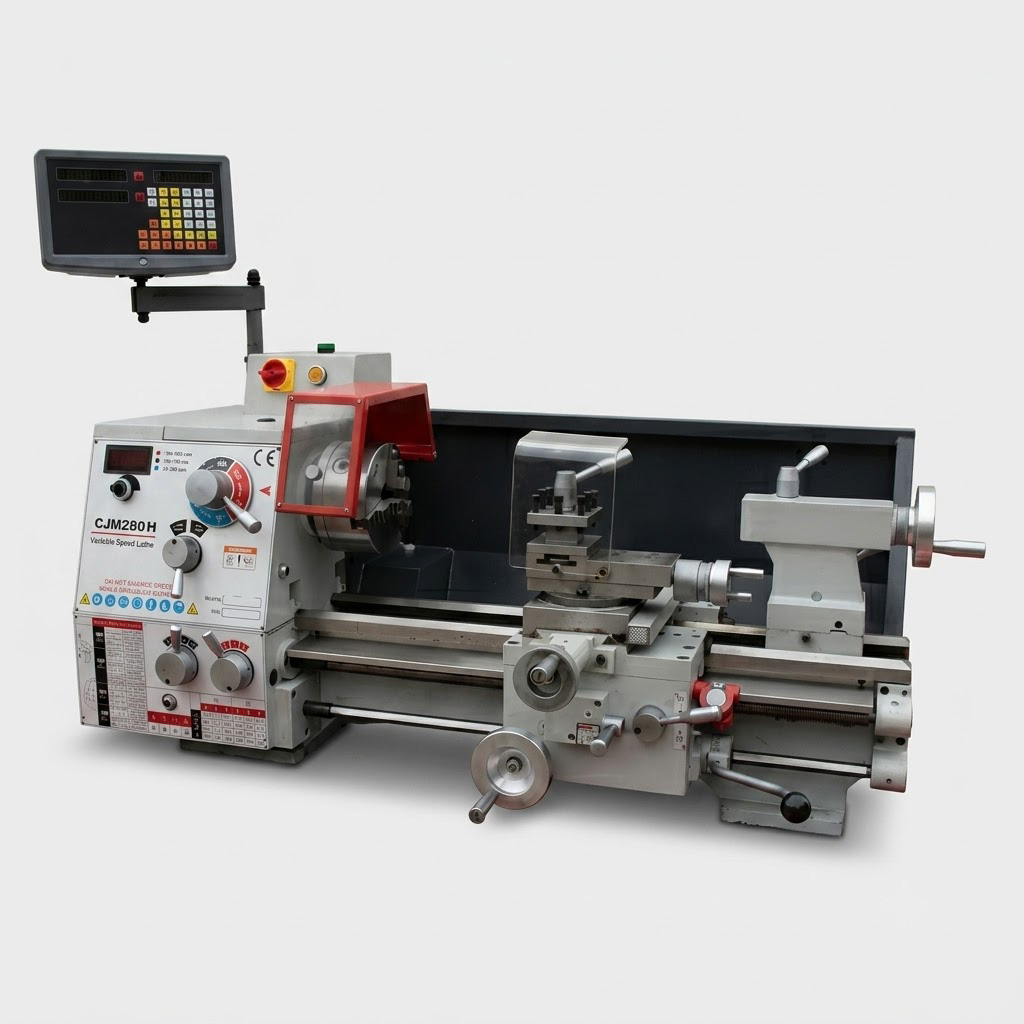

CJM280H Variable Speed Light Duty Precision Bench Lathe

CJM280H Variable Speed Light Duty Precision Bench Lathe | 500mm / 750mm Turning Length

Product Overview:

The CJM280H is an upgraded high-precision bench lathe based on the CJM280 platform, featuring a ground gear-driven spindle system and single-lever cyclic shifting with in-range speed adjustment. Engineered for precision turning, small batch production, equipment maintenance and vocational training, it delivers an extra-wide speed range of 30–2000 rpm with outstanding low-speed torque for heavy cutting operations.

Equipped with an intuitive digital speed display window, operators can set precise cutting speeds directly within each gear range for optimal surface finish and tool life. It retains the series’ signature widened high-frequency hardened bed ways, automatic longitudinal/cross feeds and full threading capability, making it ideal for applications demanding both flexible speed control and consistent dimensional accuracy.

This model is available in two configurations with 500mm and 750mm maximum distance between centers, suitable for machining steel, aluminum, brass, cast iron and other common metal materials.

Key Features:

• Ground Gear Spindle with In-Range Speed Control: Precision ground gear drive with single-lever cyclic shifting provides 3 main speed ranges plus stepless in-range adjustment, delivering a wide 30–2000 rpm band and excellent low-speed cutting performance.
• Digital Speed Display Window: Real-time speed readout enables quick, accurate speed matching for different materials and tools, improving machining efficiency and surface quality.
• Comprehensive Thread Cutting Capacity: 12-range feed gearbox covers 18 metric threads (0.2–3.5mm), 34 imperial threads (4½–48 TPI), 16 module threads (0.2–1.75 MP) and 24 diametral pitch threads (16–120 DP) for diverse threading requirements.
• Automatic Feeds with Safety Interlock: Powered longitudinal and cross feeds boost productivity; built-in mechanical interlock prevents accidental engagement and enhances operator safety.
• High-Rigidity Precision Guideways: Double-flat & double-vee bed ways provide superior rigidity and long-term accuracy retention; cam-locking tailstock allows fast, secure positioning.
• Industrial-Grade Construction: Heavy cast iron body with industrial control levers ensures stable performance and durability for continuous workshop operation.
