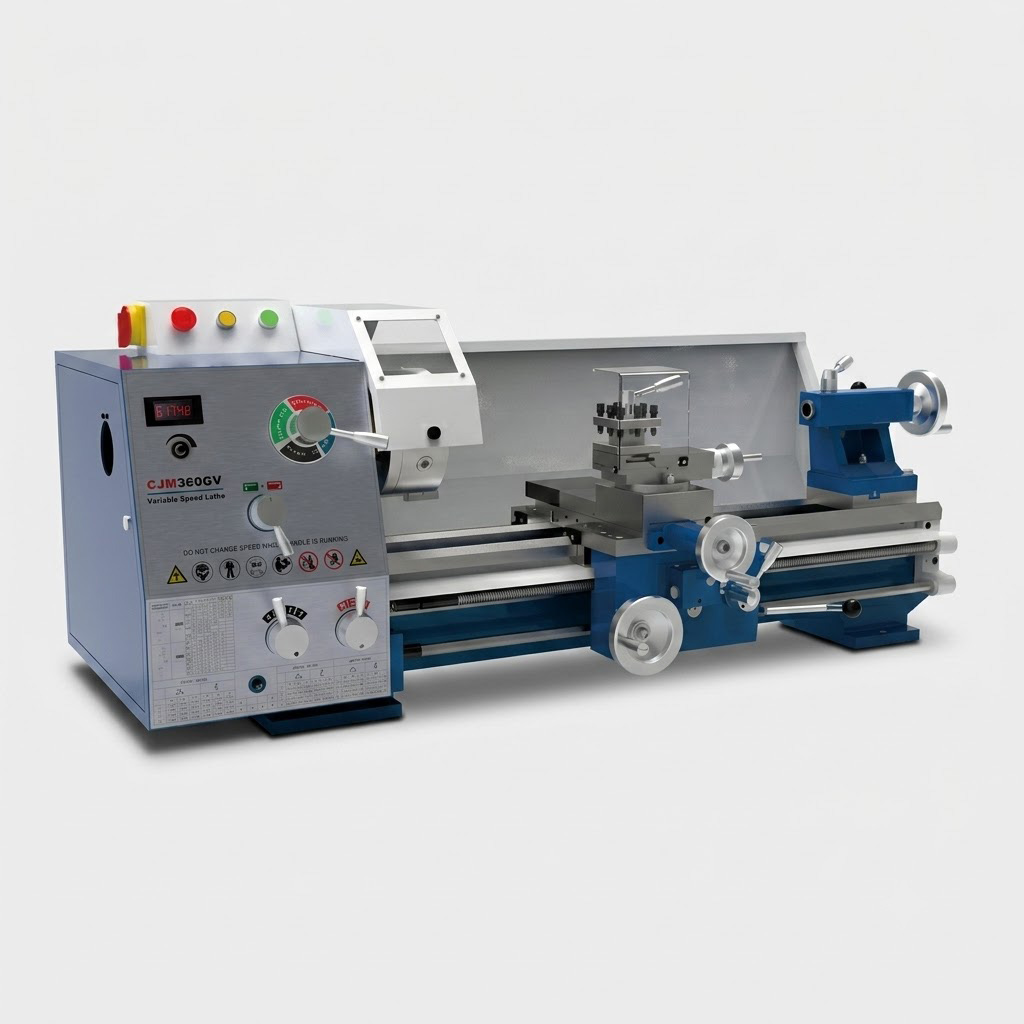

CJM360GV Large Bore Variable Speed Light Duty Bench Lathe

MFG Machinery CJM360GV Large Bore Variable Speed Light Duty Bench Lathe | 600mm / 750mm Turning Length

Product Overview:

MFG Machinery delivers upgraded heavy-cutting capability with the CJM360GV, a large-bore variable speed bench lathe built for bar stock machining, shaft & tube fabrication, industrial maintenance and small-batch precision production. As the enhanced variant of the CJM360 platform, it features an extra-large 52mm spindle bore, MT6 spindle taper and 1.5kW motor to handle larger diameter raw material and heavy low-speed cutting operations.

Its ground gear-driven spindle system combines 4 mechanical speed ranges with in-range stepless adjustment, delivering a wide 60–1600 rpm speed band and exceptional low-end torque. A digital speed display window allows operators to set precise cutting parameters for optimal surface finish and tool life. Paired with widened high-frequency hardened bed ways, automatic feeds and full threading capability, this machine offers outstanding rigidity, versatility and long-term accuracy in a space-saving bench-top footprint.

Key Features:

• Ground Gear Spindle with 4-Range Variable Speed: Precision ground gear drive with single-lever cyclic shifting provides 4 mechanical speed ranges plus in-range stepless adjustment, delivering strong consistent torque across 60–1600 rpm and excellent heavy cutting performance at low speeds.
• Extra-Large 52mm Spindle Bore: Industry-leading 52mm through-hole with MT6 spindle taper accommodates large-diameter bar stock and tubular workpieces, significantly expanding machining flexibility for shaft and pipe applications.
• Extended Thread Cutting Range: 12-speed feed gearbox covers 26 metric threads (0.25–7.0mm), 37 imperial threads (4–56 TPI), 27 module threads (0.2–7 MP) and 40 diametral pitch threads (4–216 DP) to support a wide variety of threading requirements.
• Automatic Feeds with Safety Interlock: Powered longitudinal and cross feeds improve machining efficiency; built-in mechanical interlock prevents accidental engagement and enhances operator safety.
• High-Rigidity Hardened Guideways: Double-flat & double-vee widened bed ways with high-frequency quenching provide superior structural rigidity and excellent long-term accuracy retention under heavy cutting loads.
• Industrial-Grade Operating Design: Inclined wedge type tool post carriage, cam-locking tailstock and industrial machine control levers ensure precise positioning, smooth operation and durable performance for continuous workshop use.
