Z3080x25 Heavy-Duty Radial Drilling Machine

Z3080x25 Heavy-Duty Radial Drilling Machine – High Precision & Hydraulic Efficiency

Product Overview:

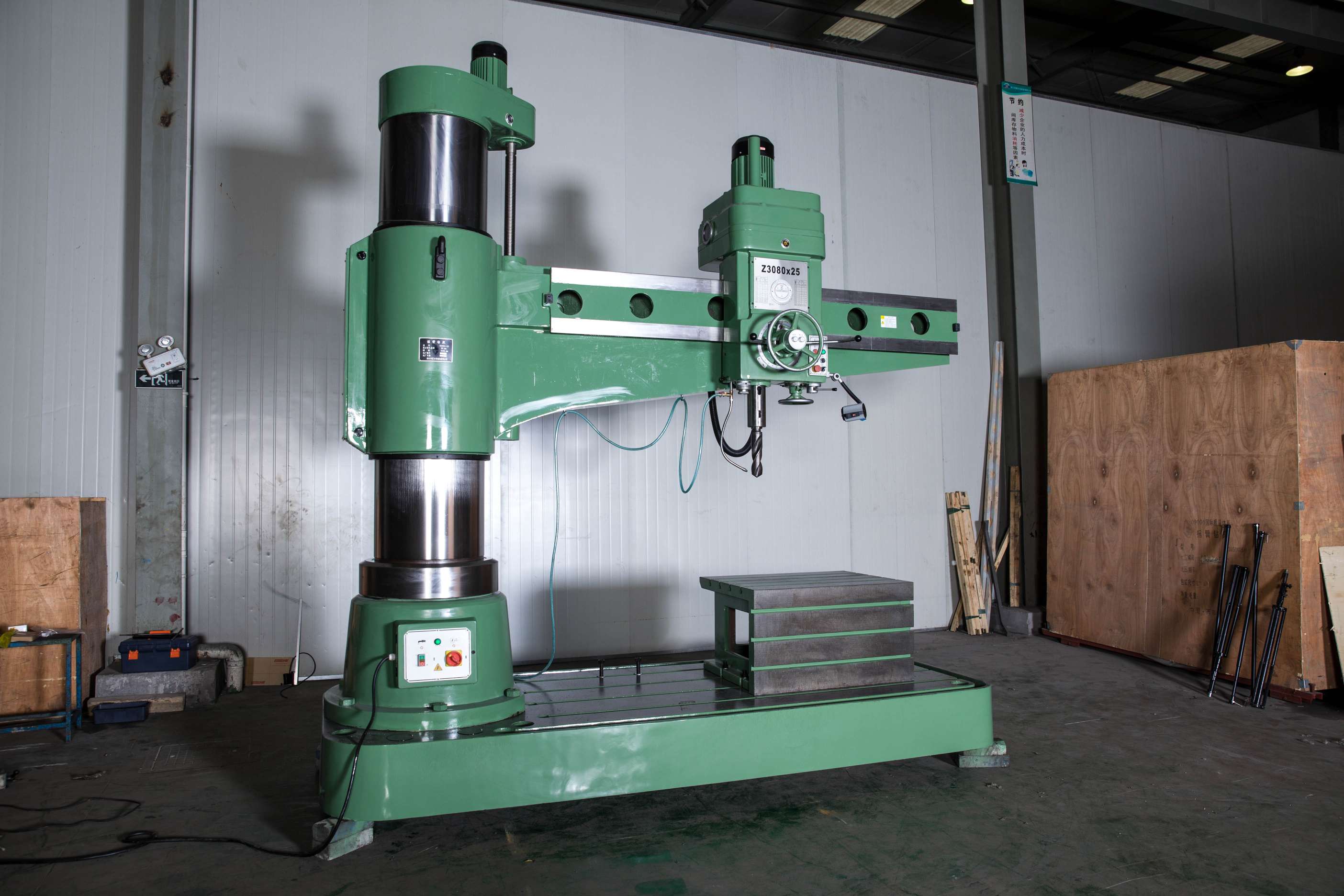

The Z3080x25 Radial Drilling Machine is a powerhouse engineered for heavy-duty industrial applications. With a maximum drilling capacity of 80mm and a massive 2500mm arm reach, this machine is designed to handle oversized workpieces with uncompromising precision. Featuring advanced hydraulic pre-selection and a robust mechanical structure, it optimizes production efficiency while ensuring long-term durability in high-intensity environments.

Why Choose Z3080x25 for Your Workshop?

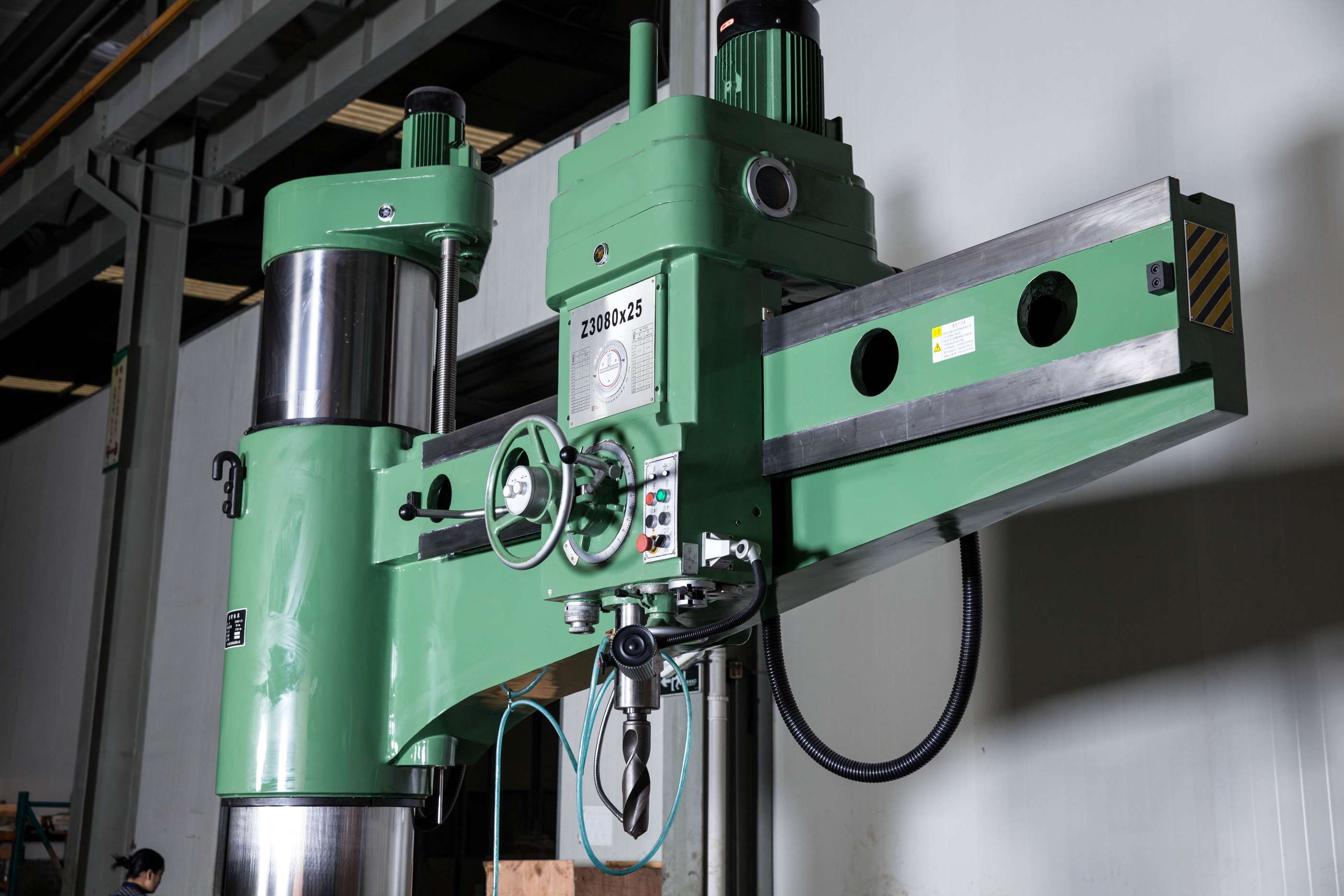

• Superior Efficiency: Equipped with a hydraulic pre-selection speed change mechanism, the Z3080x25 significantly reduces non-productive time, allowing operators to switch speeds and feeds seamlessly during complex operations.

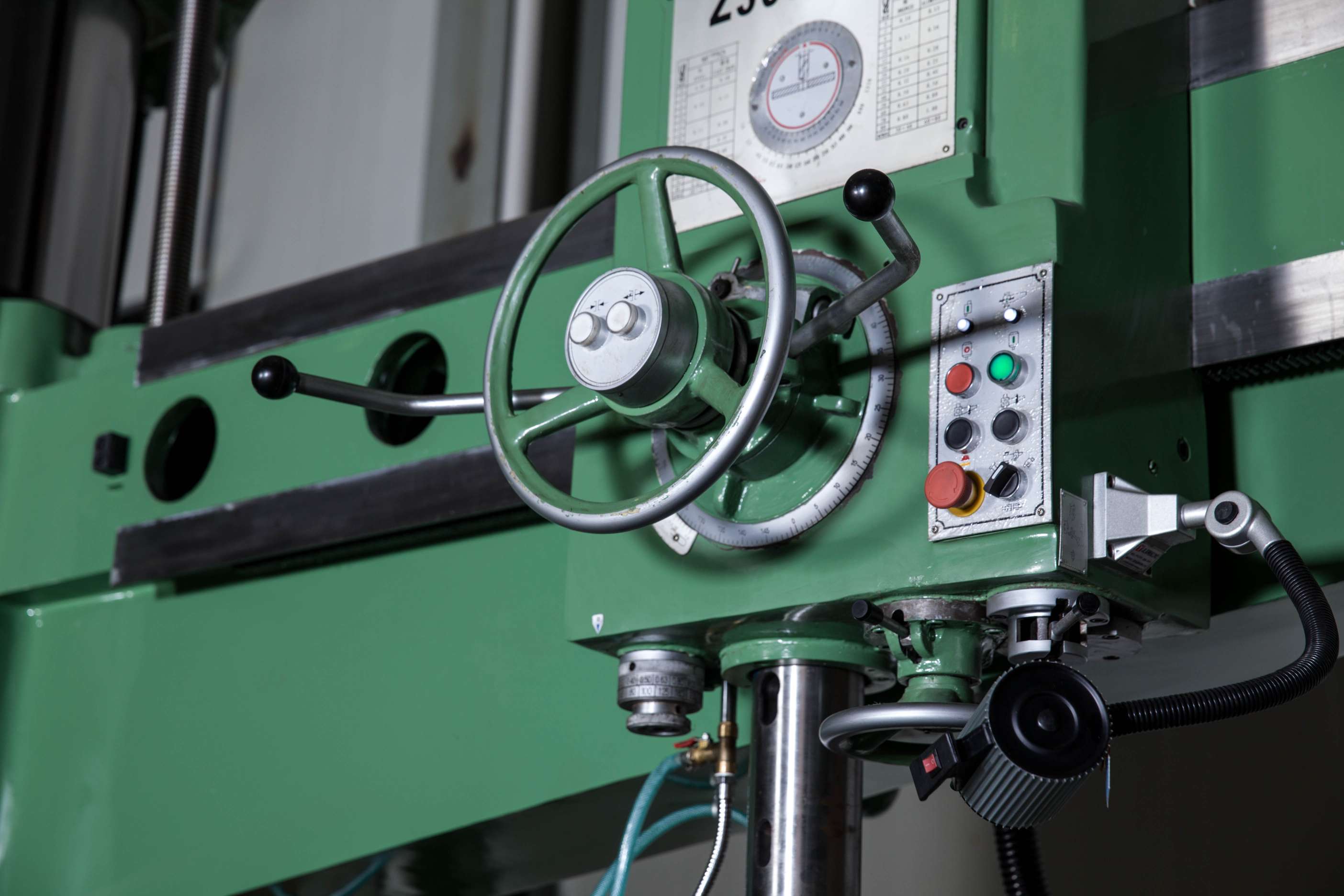

• Intuitive Control: A single integrated handle controls spindle forward/reverse, braking, shifting, and neutral positions, providing a streamlined user experience that minimizes operational errors.
• Rigid Hydraulic Clamping: The spindle box, radial arm, and inner/outer columns utilize a reliable hydraulically driven diamond block clamping system, ensuring rock-solid stability during heavy-duty cutting.

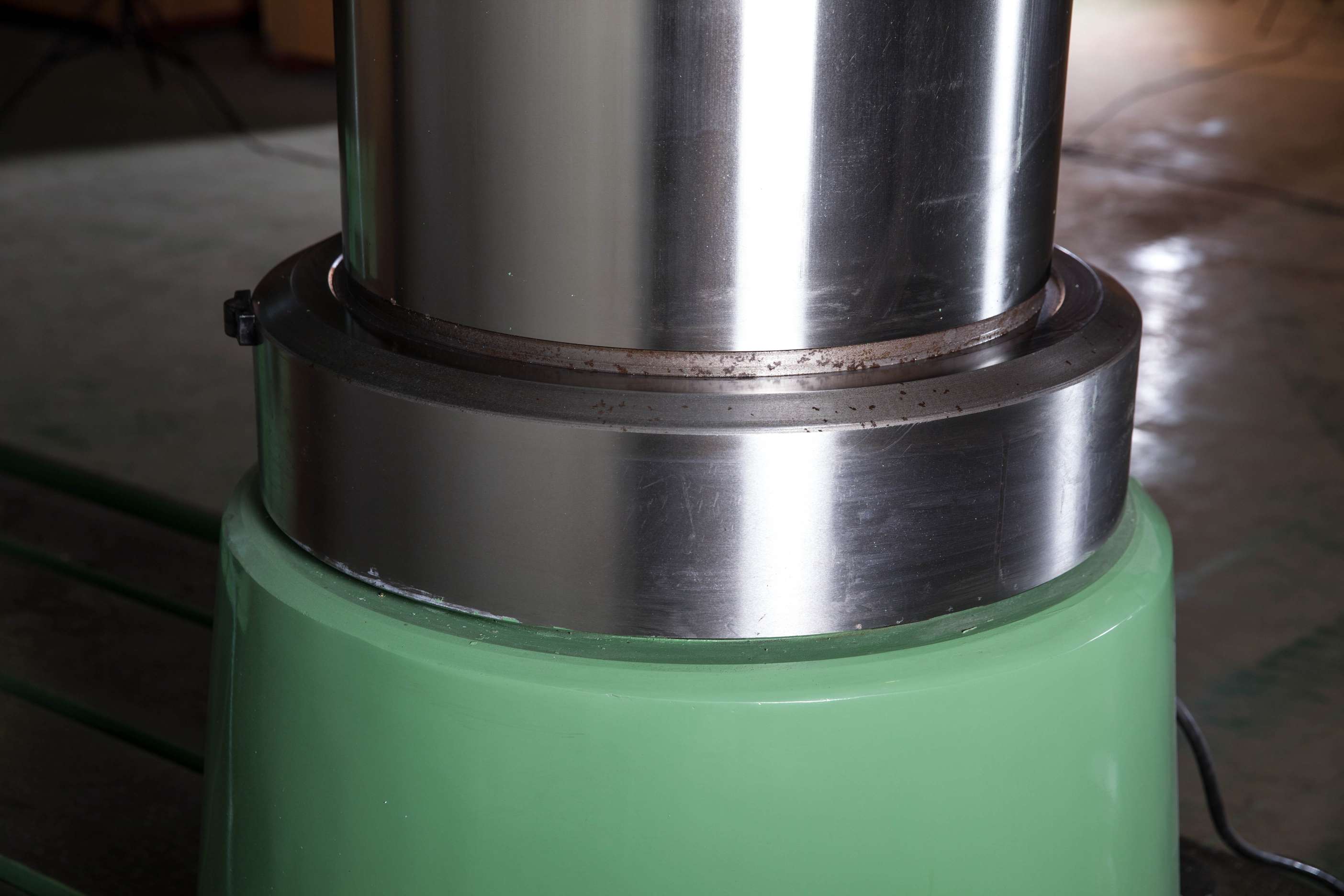

• Ultra-Durable Construction: Critical components—including the arm guides, spindle sleeve, and column raceways—undergo ultra-high frequency quenching. This enhances wear resistance and maintains machine accuracy for years.

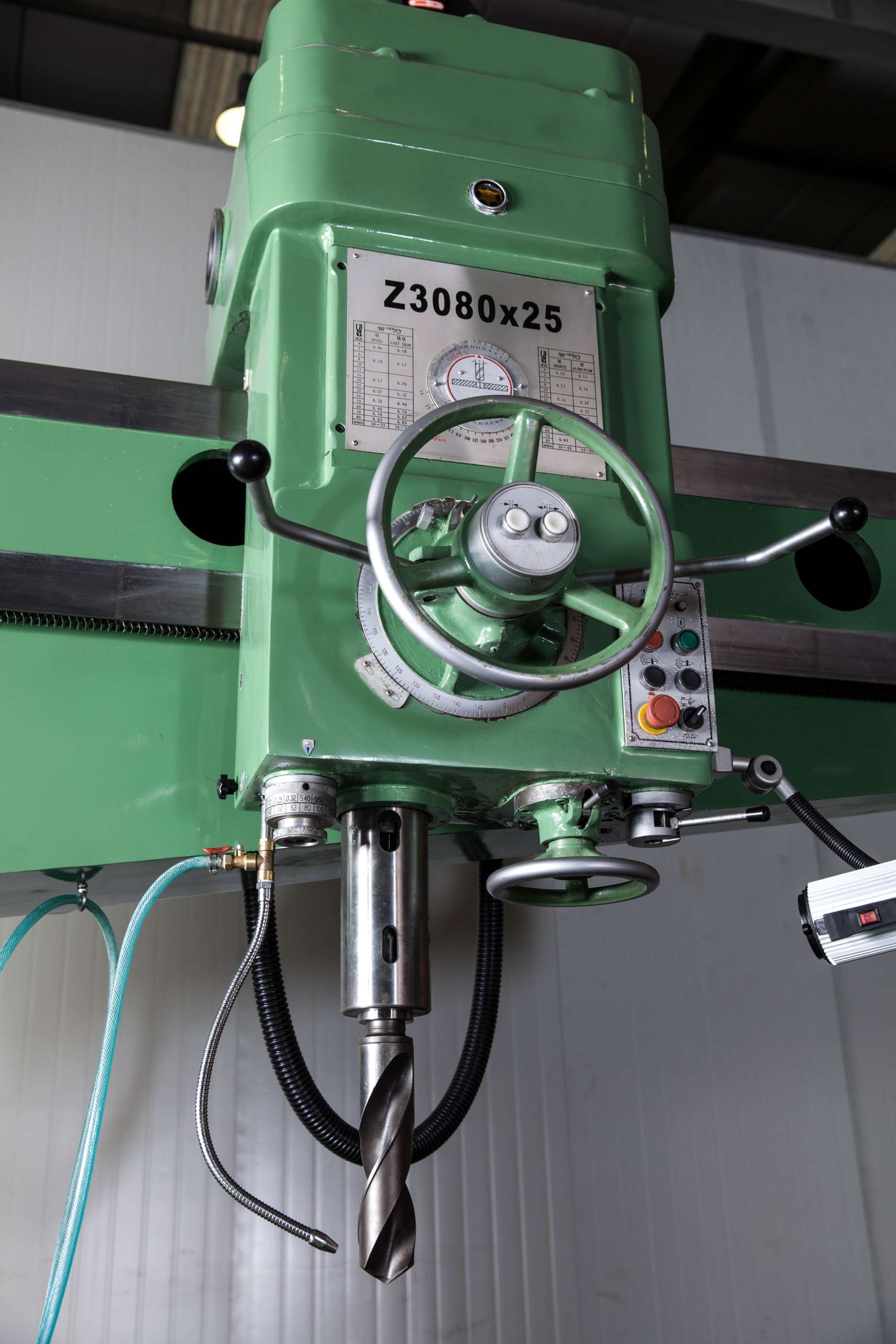

• Heavy-Duty Performance: Powered by a 7.5kW main motor and weighing in at 11,000kg (G.W), this heavy-type machine offers the vibration damping and structural integrity required for high-torque drilling and boring.
