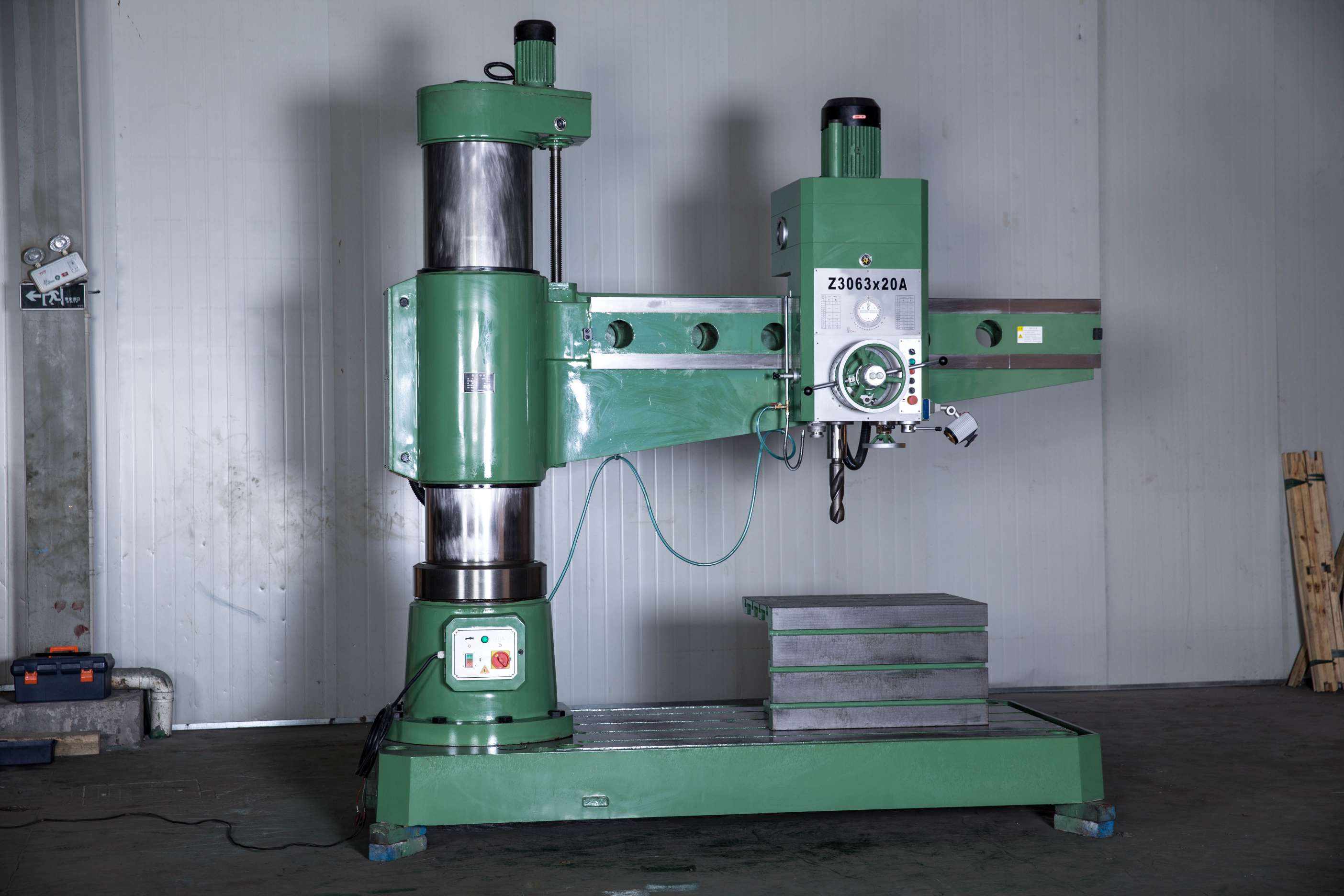

Z3063×20/1 Hydraulic Radial Drilling Machine

Z3063×20/1 Hydraulic Radial Drilling Machine - Heavy-Duty 63mm Industrial Drill Press

Marketing Copy:
Maximize your heavy-duty machining capabilities with the Z3063×20/1 Hydraulic Radial Drilling Machine. Engineered for large-scale industrial applications, this robust machine supports a maximum drilling diameter of 63mm and features an extended 2000mm reach, making it the ultimate solution for drilling, reaming, tapping, and boring on oversized workpieces. With a fully integrated hydraulic system for shifting and clamping, the Z3063 delivers unmatched precision and operational efficiency for high-intensity manufacturing.

Key Features

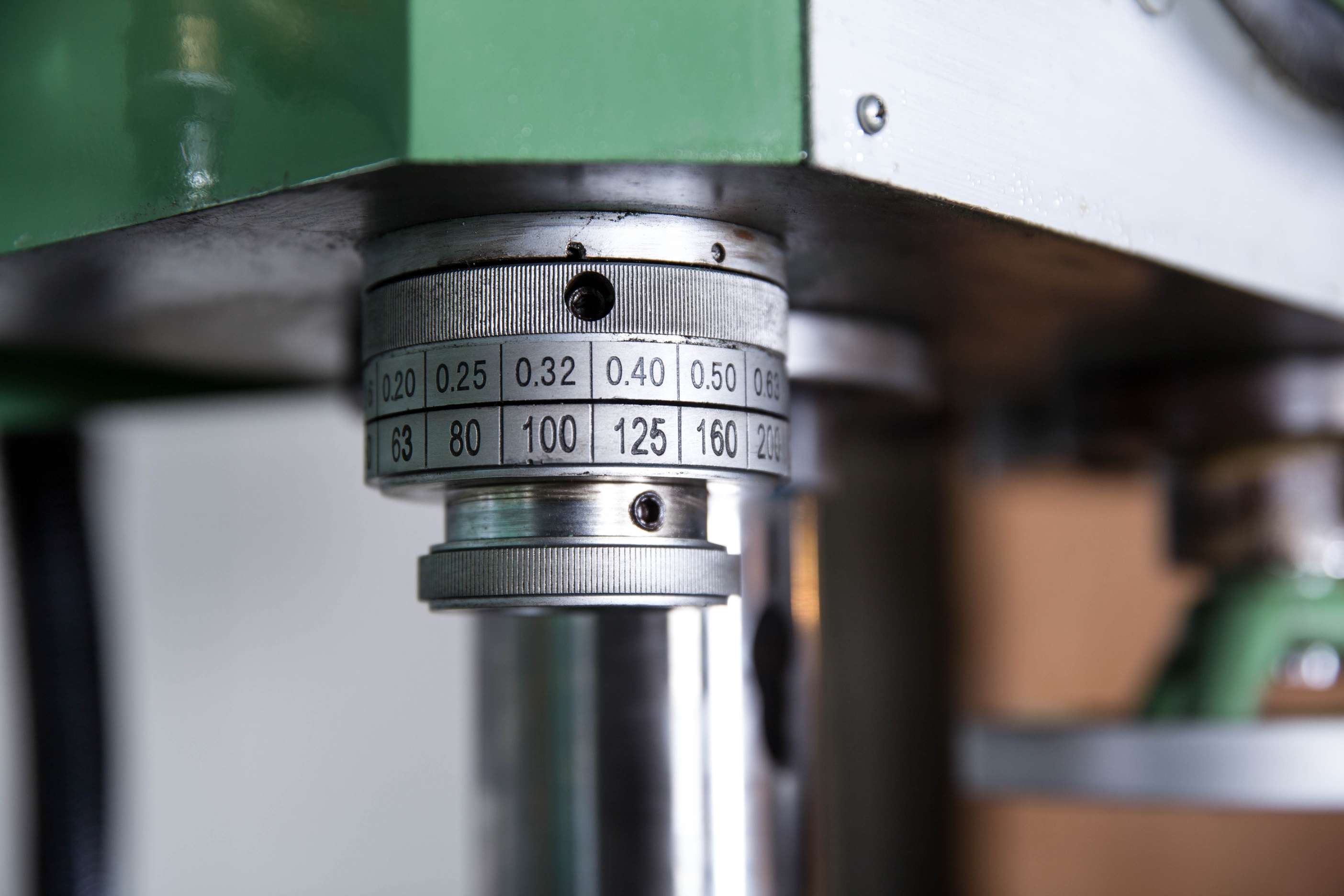

• Superior Drilling Capacity: Specifically designed for large-scale parts with a massive 63mm drilling diameter and a heavy-duty MT5 spindle taper.

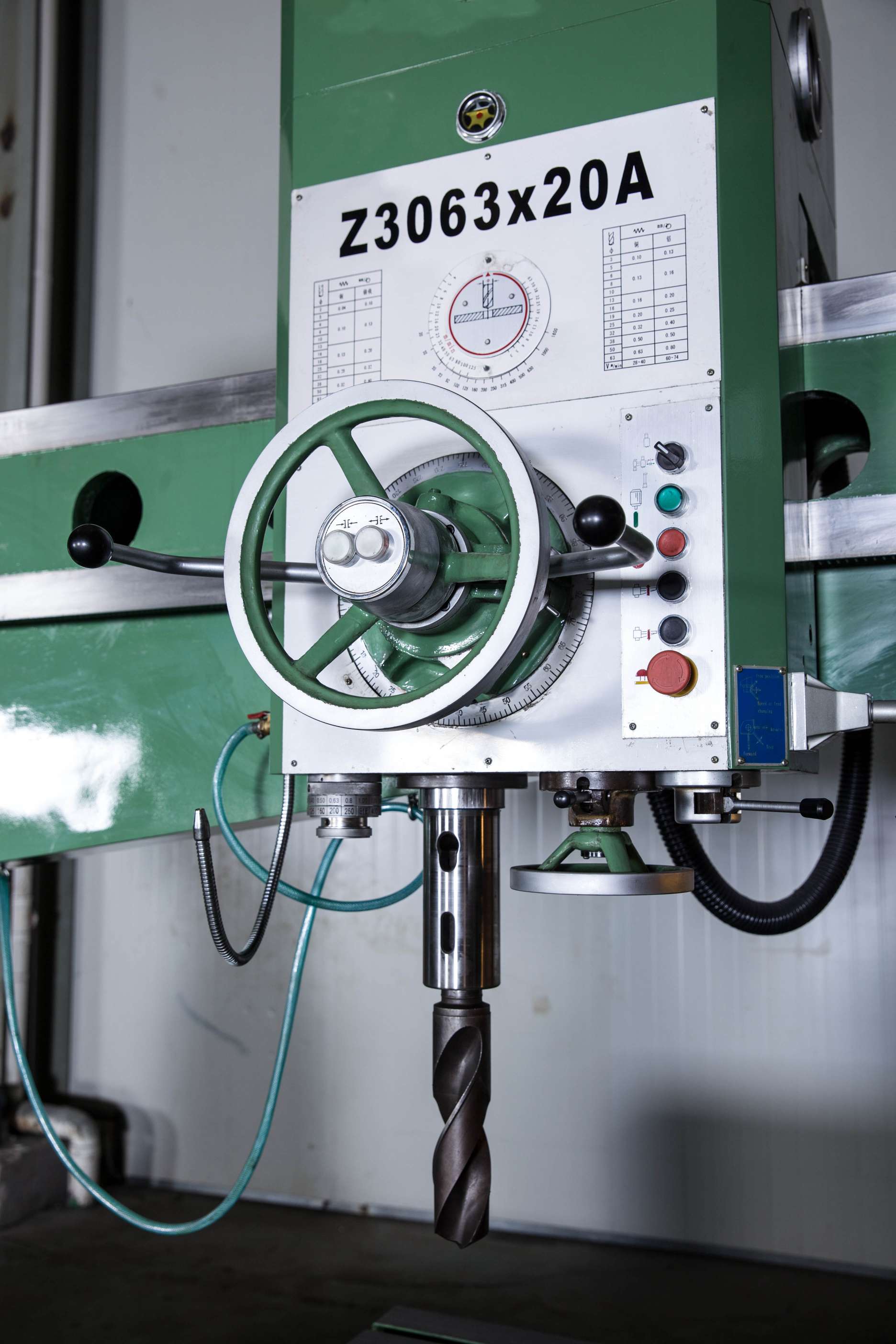

• Advanced Hydraulic Integration: Features hydraulic pre-selection speed change and a diamond block clamping mechanism for the spindle box and column, ensuring rapid setup and rigid stability.
• Extended Service Life: The rocker arm guide rails, spindle sleeve, and column raceways are all high-frequency quenched to maintain long-term accuracy and resist wear.
• High-Torque Performance: Driven by a powerful 5.5kW main motor with 16-step spindle speeds (20-1600 r/min) to handle a wide variety of tough materials.
• Automated Lubrication: Equipped with an automatic oil pump system at the turbine and spindle, ensuring smooth continuous operation and reduced maintenance costs.

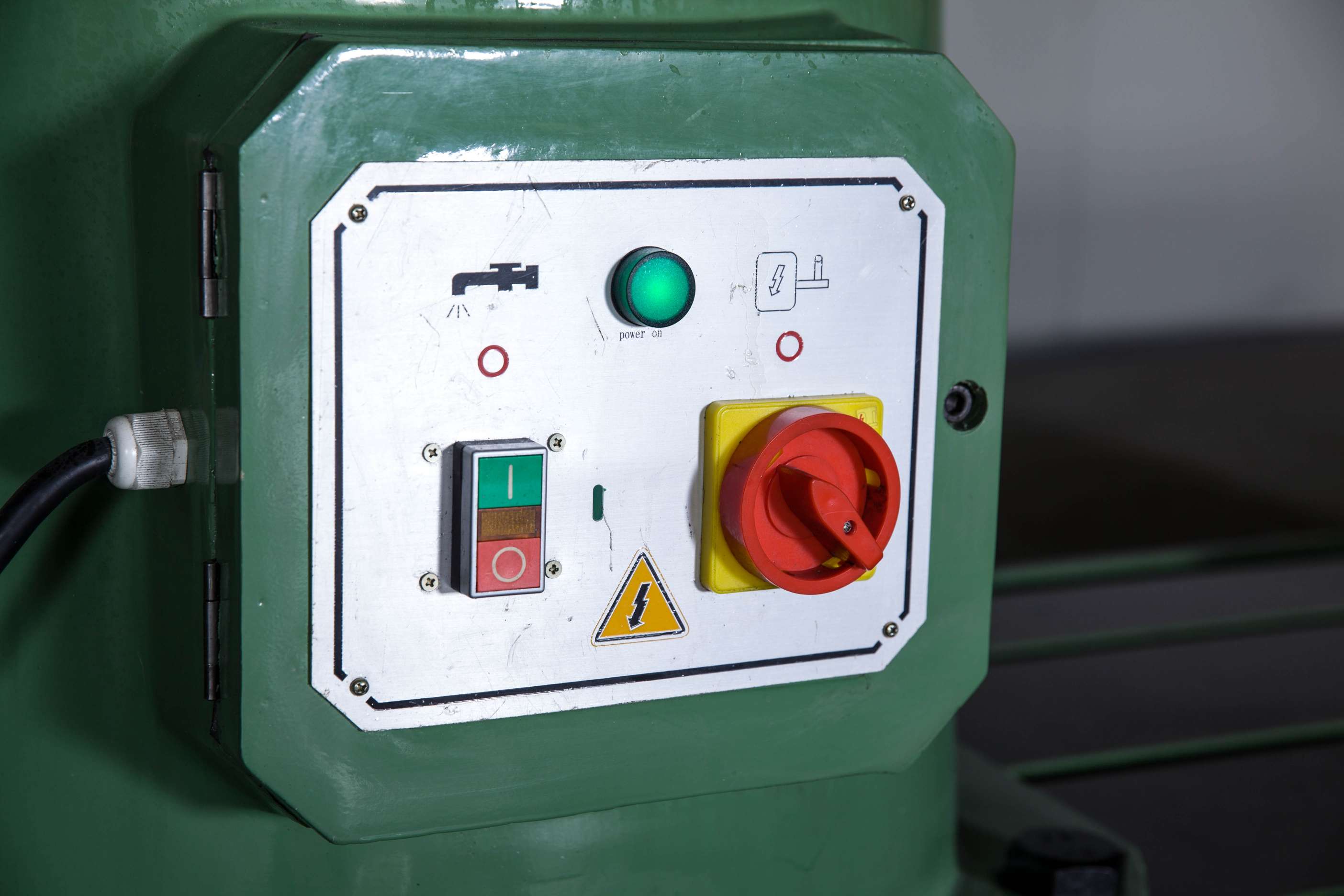

• Safety & Durability: Built with mechanical and electrical double insurance and full outer column protection, meeting stringent international safety standards.
