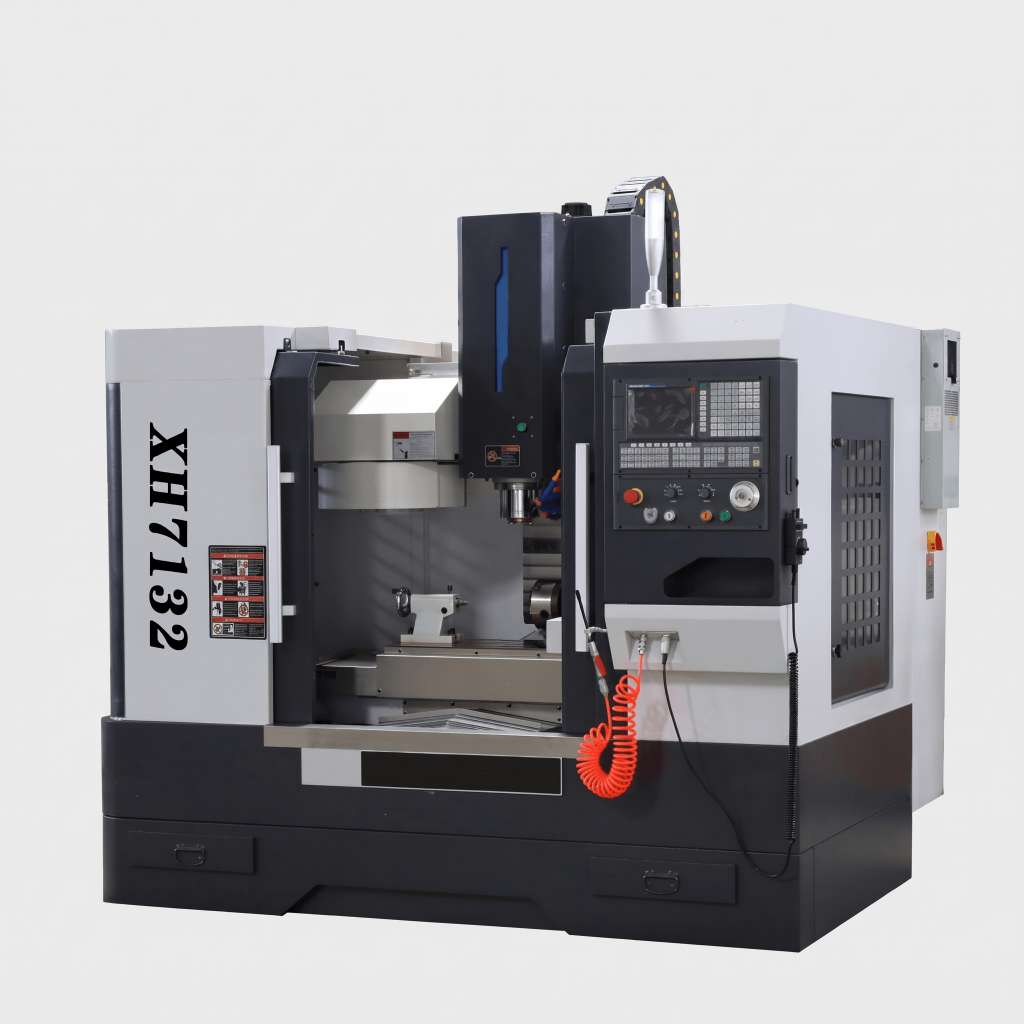

XH7132 Vertical Machining Center
The XH7132 vertical machining center is a robust, high-precision CNC milling solution with BT40 spindle, 8000 rpm max speed, and 300kg table load. Built for rigidity and accuracy, it supports multi-axis machining for workshops and production lines.
XH7132 Vertical Machining Center | High-Precision CNC Milling Machine for Metalworking
Description
The XH7132 vertical machining center is a robust, high-precision CNC milling solution with BT40 spindle, 8000 rpm max speed, and 300kg table load. Built for rigidity and accuracy, it supports multi-axis machining for workshops and production lines.

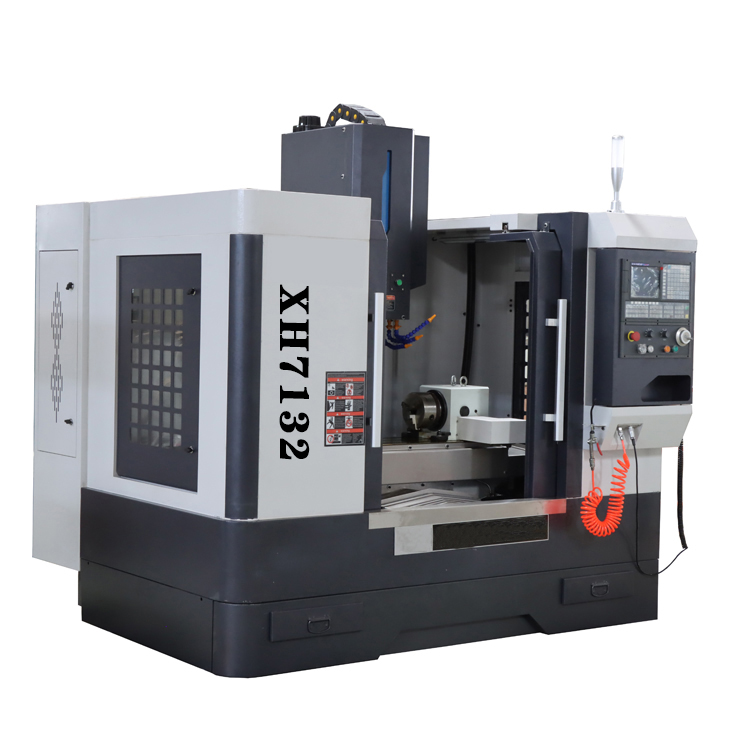

The XH7132 Vertical Machining Center is a high-performance CNC milling machine engineered for precision metalworking, general manufacturing, and mold-making applications. Designed for rigidity, speed, and accuracy, it combines a heavy-duty cast iron frame, high-frequency quenched guide rails, and a variable-speed BT40 spindle to deliver reliable performance across drilling, milling, tapping, and complex contour machining tasks.
Key Features
✅ Rigid & Stable Construction

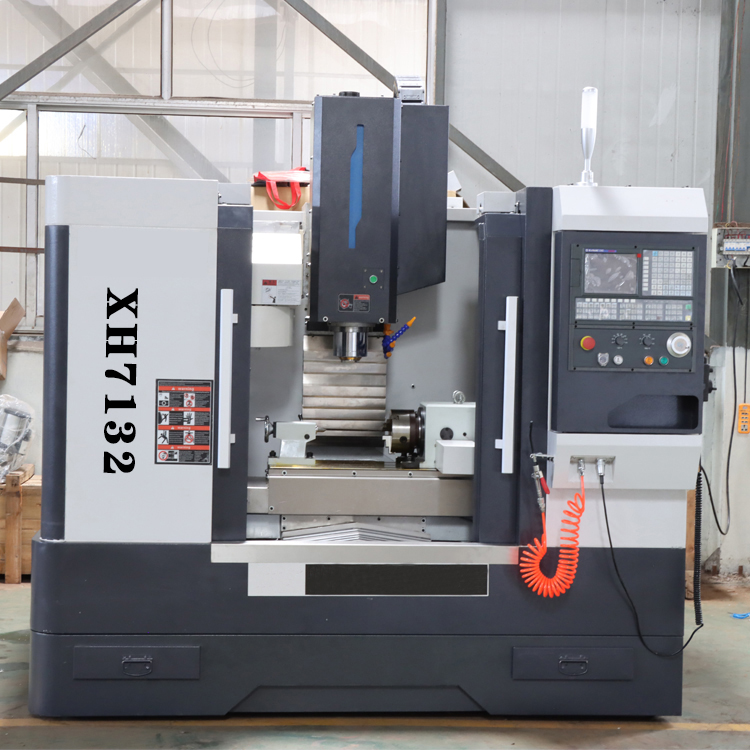

Built with an overall bed design and three-guide-rail arrangement, the XH7132 features high-frequency quenched guide rail surfaces for exceptional rigidity and long-term precision. The robust frame minimizes vibration during heavy cuts, ensuring consistent part quality.
✅ High-Speed BT40 Spindle System

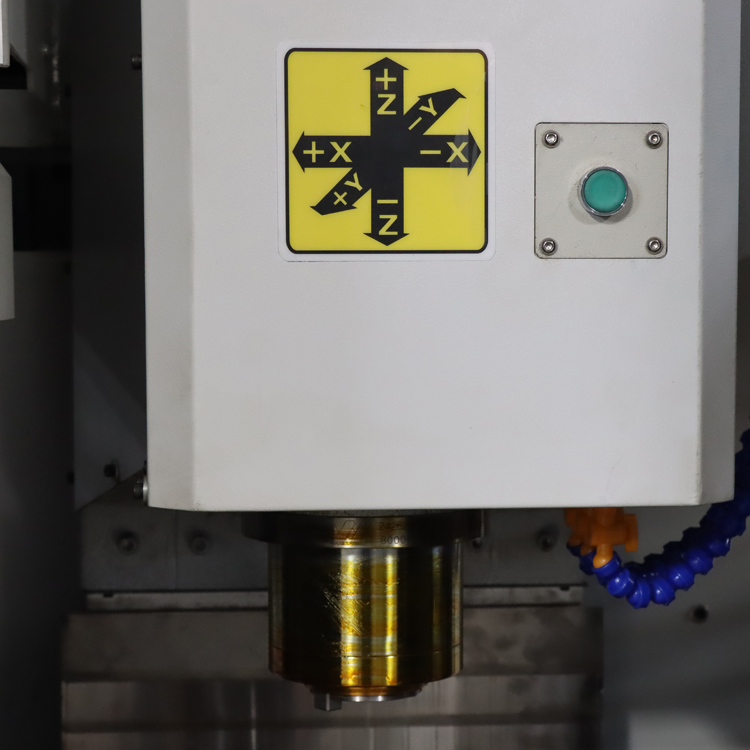

Equipped with a BT40 spindle (Ø120 mm diameter) driven by a 5.5 kW main motor, this machine offers stepless speed control from 50–8000 rpm. The variable frequency motor delivers wide speed range, while oil-lubricated spindle bearings reduce temperature rise, boost durability, and eliminate daily maintenance needs.
✅ Precision Motion & Positioning
X/Y/Z axes use high-efficiency ball screw drives (X/Y rapid traverse: 24 m/min; Z-axis: 18 m/min) paired with a dovetail guide rail saddle for fast, accurate movement. Positioning accuracy reaches ±0.006 mm/300 mm, with repeat positioning accuracy of ±0.004 mm, meeting tight tolerance requirements for high-precision parts.
✅ Flexible & Reliable Design
- The manually adjustable milling head supports angle and height adjustments to accommodate complex workpiece geometries.
- Worm gear-driven C-axis transmission ensures stable power transfer and precise indexing.
- Mechanical tailstock offers flexible, reliable support for long workpieces.
- Optional chip conveyor keeps the working area clean by collecting metal chips directly from the cutting zone.
- Schneider-brand electrical components ensure long-term reliability and safety.
- ✅ Shop-Ready & Low-Maintenance

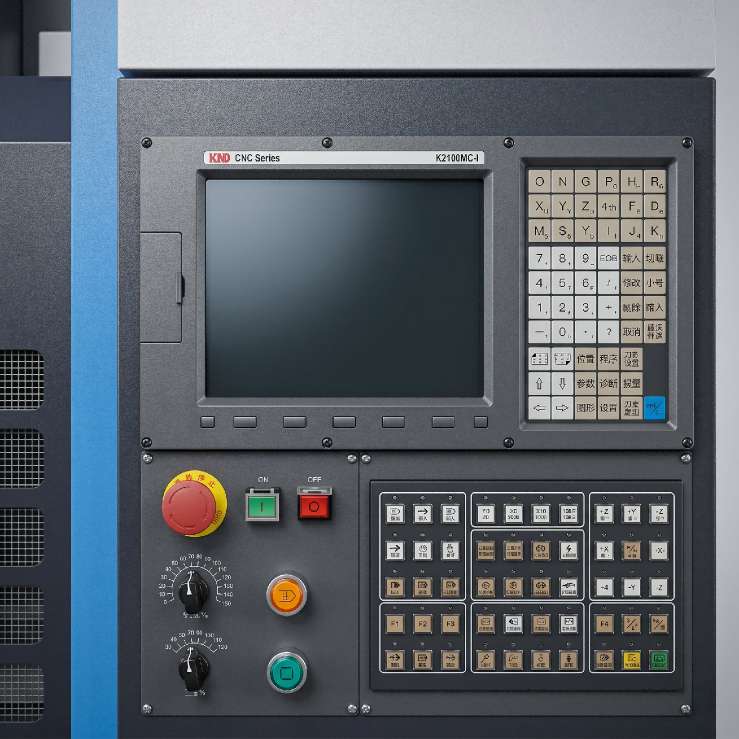

- With a wide-range CNC control system, oil-lubricated spindle bearings, and durable components, the XH7132 is built for continuous workshop use. The design prioritizes minimal daily maintenance, reducing downtime and operational costs.
Applications
The XH7132 CNC machining center is ideal for:
- General metalworking and batch production
- Mold and die manufacturing
- Automotive and aerospace component machining
- Job shop precision milling
- Prototyping and custom part production
| Specifications | Units | XH7132 |
|---|---|---|
| X-axis travel | mm | 600 |
| Y-axis travel | mm | 400 |
| Z-axis travel | mm | 500 |
| Spindle nose to table surface | mm | 100 – 600 |
| Spindle center to column surface | mm | 420 |
| X/Y axis rapid traverse speed | m/min | 24 |
| Z axis rapid traverse speed | m/min | 18 |
| Cutting feed rate | mm/min | 1000 |
| Feed motor power/torque | kW/N·m | 1.4 kW / 10.8 N·m |
| Table size | mm | 800 × 320 |
| Max. worktable load | kg | 300 |
| T slot | - | 3 / 14 / 100 |
| Spindle speed range | rpm | 50 – 8000 |
| Spindle diameter | mm | Ø120 |
| Spindle taper | - | BT40 |
| Main motor power | kW | 5.5 |
| Positioning accuracy | mm | ±0.006 / 300 |
| Repeat positioning accuracy | mm | ±0.004 |
| Machine weight | kg | 2600 |
| Overall dimensions | mm | 2300 × 1800 × 2100 |
