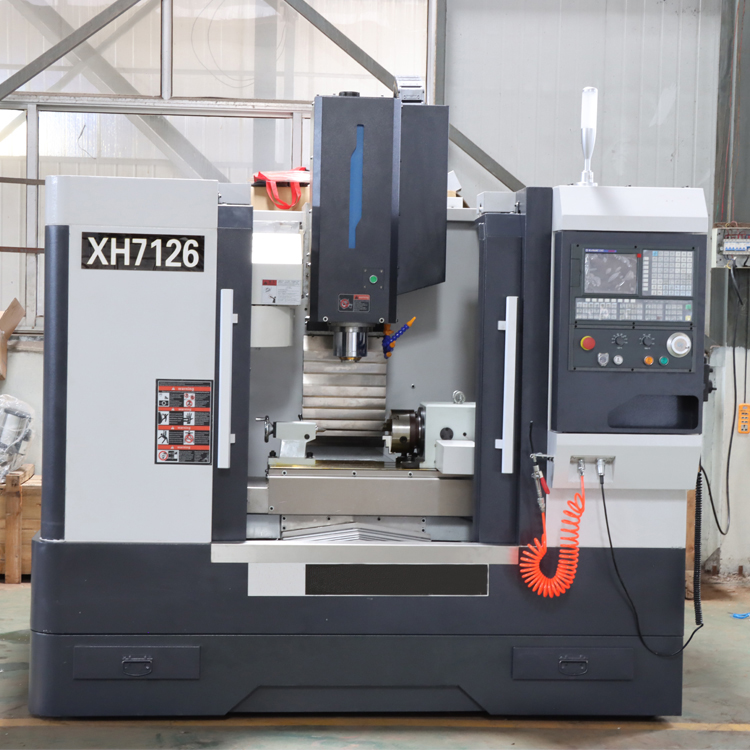

Meet the XH7126 Vertical Machining Center – a compact, high-efficiency CNC milling machine engineered for precision metalworking in small-to-medium manufacturing environments. Built for versatility and durability, this machine supports a wide range of operations including drilling, hole-expansion, reaming, tapping, surface milling, and complex curve/cam machining. Designed with SEO-friendly performance and shop-ready features, it’s the perfect upgrade for workshops seeking reliable, low-cost precision machining.
✅ High-Strength Cast Iron Construction
The fuselage and main components are crafted from high-strength cast iron with a stable microstructure, ensuring long-term rigidity and consistent performance even under heavy cutting conditions. The A-type bridge-style column combined with a box base significantly reduces vibration during machining, delivering superior surface finishes.
✅ Precision Motion & Linear Guideways
Equipped with linear guide rails and pre-tensioned precision ball screws, the XH7126 offers fast, smooth, and accurate axis movement. Rapid traverse speeds of 15 m/min on all axes (X/Y/Z) minimize cycle times, while ±0.015 mm positioning accuracy and ±0.0075 mm repeatability guarantee tight tolerances for every part.
✅ Powerful BT40 Spindle Unit
Featuring a BT40 spindle with a maximum speed of 6000 rpm and a 3.7 kW main motor, this vertical machining center delivers high torque at low speeds, making it ideal for heavy cutting and large-diameter hole processing. The spindle unit is designed for high speed, high precision, and high rigidity, balancing speed and power for diverse applications.
✅ Reliable Automatic Tool Change System
The standard 12-station armless tool magazine (optional 16-station arm type) supports efficient tool changes, reducing downtime between operations. It accommodates tools up to Ø130 mm in diameter and 8 kg in weight, offering flexibility for multi-task machining setups.
✅ Practical & Low-Maintenance Design
Built with user-centric features including oil-water separation, intermittent automatic lubrication, and an automatic scraping knife system, the XH7126 ensures smooth operation, reduced maintenance needs, and extended machine lifespan.
The XH7126 CNC milling machine excels in industries requiring compact, high-precision machining solutions, including:
- General metalworking and small part manufacturing
- Mold making and die machining
- Automotive and aerospace component prototyping
- Job shop production and batch processing
- Education and training workshops
| Specifications | Units | XH7126 |
|---|---|---|
| Table size | mm | 800 × 260 |
| X axis travel | mm | 450 |
| Y axis travel | mm | 320 |
| Z axis travel | mm | 400 |
| Max. worktable load | kg | 200 |
| T slot (number-width-pitch) | - | 3-14 × 80 |
| Max. spindle speed | rpm | 6000 |
| Spindle taper | mm | BT40 |
| Main motor power | kW | 3.7 |
| X/Y/Z rapid traverse speed | m/min | 15 / 15 / 15 |
| Cutting feed speed | mm/min | 1 – 6000 |
| Guide rail type | - | Linear rail |
| Spindle axis to column surface distance | mm | 360 |
| Spindle nose to worktable surface distance | mm | 90 – 520 |
| Positioning accuracy | mm | ±0.015 |
| Repeat positioning accuracy | mm | ±0.0075 |
| Tool magazine | - | 12 Armless (Optional: Arm 16) |
| Max. tool diameter | mm | Ø130 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 2400 |
| Overall dimension | mm | 2200 × 1900 × 2200 |
