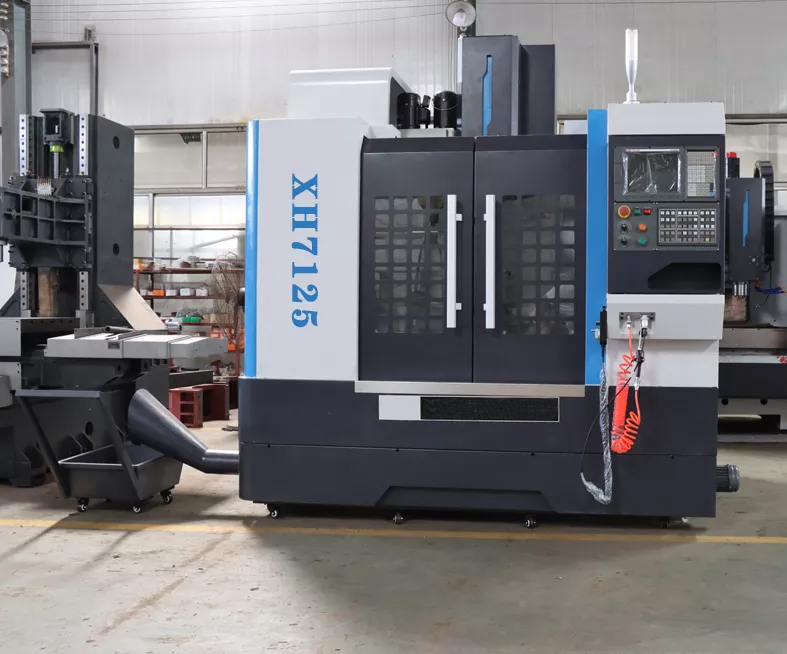

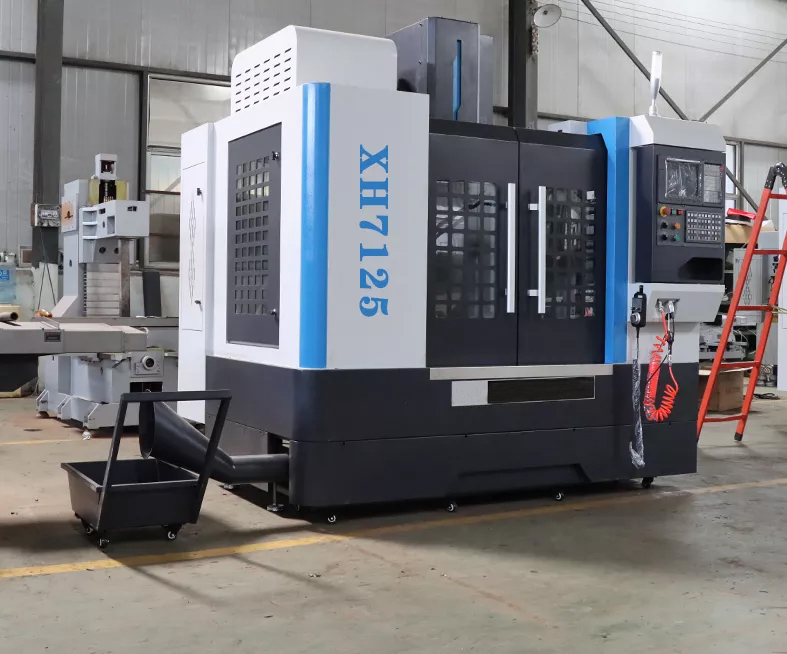

XH7125 CNC Milling Machine – Compact, High-Precision CNC Machining for Small Parts

The XH7125 CNC milling machine is a compact, high-performance vertical machining center designed for precision metalworking. Built on the proven XK/XH series platform, this CNC mill is ideal for workshops, prototyping labs, and small-scale production environments, delivering reliable performance for drilling, tapping, surface milling, and complex profile machining.

Versatile Machining Capabilities

From basic to complex operations, the XH7125 handles a wide range of tasks with consistent accuracy:

• Surface milling, step plane, slope, and groove cutting
• Drilling, hole expansion, reaming, chamfering, and tapping
• Curved surface, cam, and profile milling
• Heavy cutting and large-diameter hole processing (thanks to stepless speed control and low-speed high-torque performance)

Built for Precision & Durability

Every component of the XH7125 is engineered for long-term stability and precision:

• High-Strength Cast Iron Frame: The machine body and main components are made of high-strength cast iron with a stable microstructure, ensuring rigidity and vibration resistance even under continuous use.
• Precision Motion System: Ball screw-driven X/Z axes and dovetail guide rail saddle deliver smooth, accurate movement with a repeat positioning accuracy of 0.01mm and overall positioning accuracy of 0.02mm.

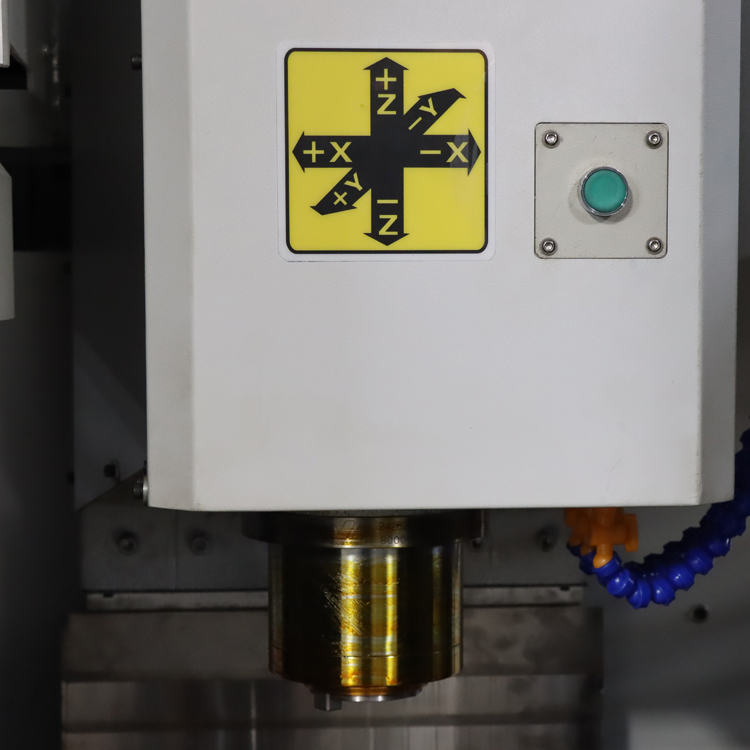

• High-Speed Spindle: A BT30 spindle with a maximum speed of 6000rpm, paired with a 2.2kW variable frequency motor, offers wide speed regulation and stepless control for optimal cutting performance.
• Automatic Tool Change: A 10-tool armless type magazine enables efficient tool changes, reducing downtime for multi-operation jobs.
• Low-Maintenance Design: Spindle bearings use oil lubrication for low temperature rise and long service life, eliminating the need for daily lubrication checks.

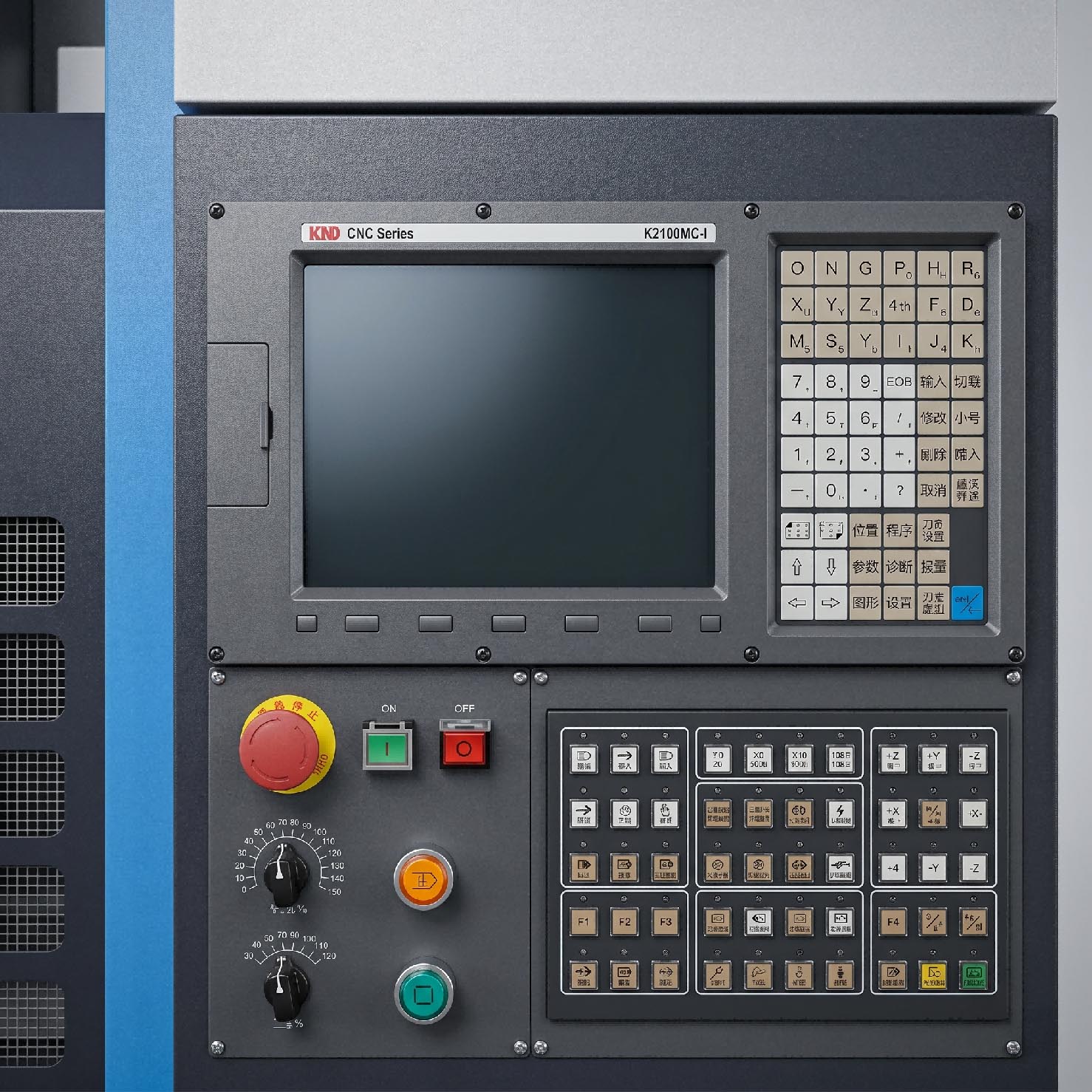

• Flexible Control: The machine supports a wide range of CNC control systems, making it easy to integrate into your existing workflow.
• Whether you’re producing custom parts, running small-batch production, or prototyping complex components, the XH7125 CNC milling machine combines compact size, high precision, and versatile performance to meet your machining needs.
