Description

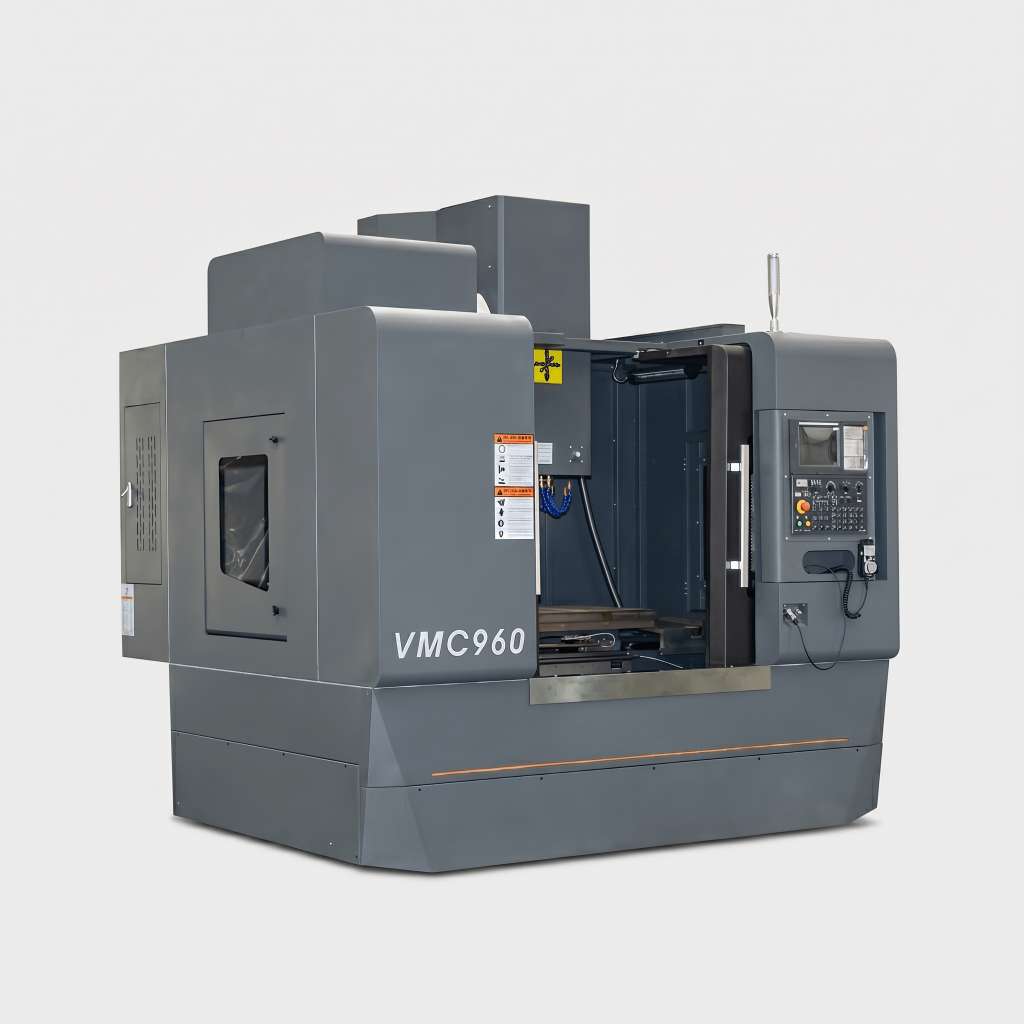

The VMC960 vertical machining center is a high-performance 3-axis linear rail CNC milling machine with 10000 rpm BT40 spindle, 24T tool magazine, and 700kg table load. Ideal for mold making, automotive parts, and high-precision batch production with ±0.004mm repeatability.

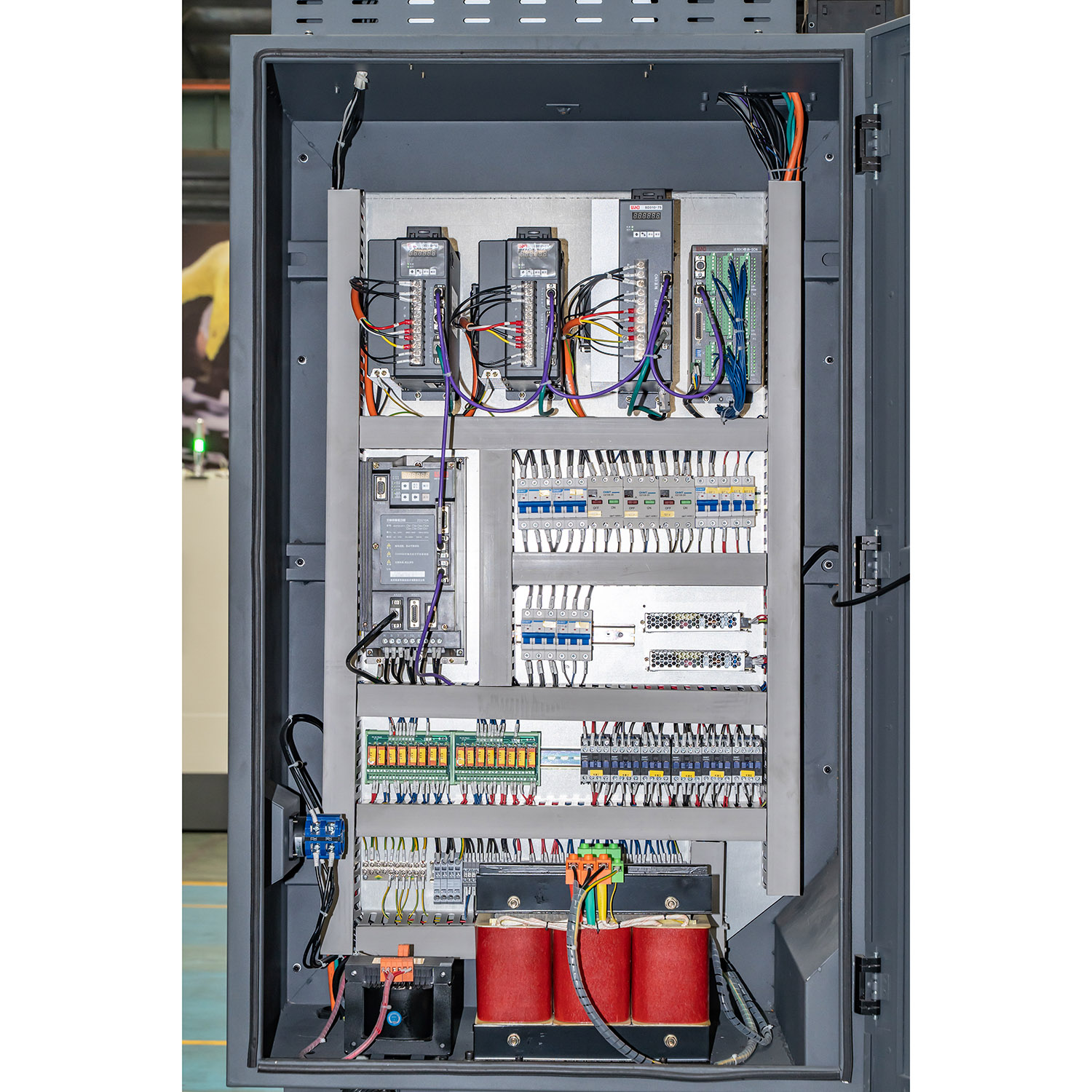

The VMC960 Vertical Machining Center is a heavy-duty, high-precision 3-axis CNC milling machine engineered for demanding industrial applications. Built with a rigid cast iron frame, Taiwan HIWIN ball screws, and optional KND/SIEMENS/FANUC control systems, it delivers reliable performance for drilling, milling, boring, tapping, and complex part machining. The linear rail structure ensures fast traverse speeds and exceptional accuracy, making it ideal for workshops and large-scale production lines.

Core Advantages

✅ Ultra-Rigid Cast Iron Construction

All major components (bed, worktable, slide, column, spindle box) are made of resin sand castings with two aging treatments to eliminate stress. Optimized via SolidWorks and Ansys, the frame minimizes vibration and deformation under heavy cutting, ensuring consistent long-term precision.

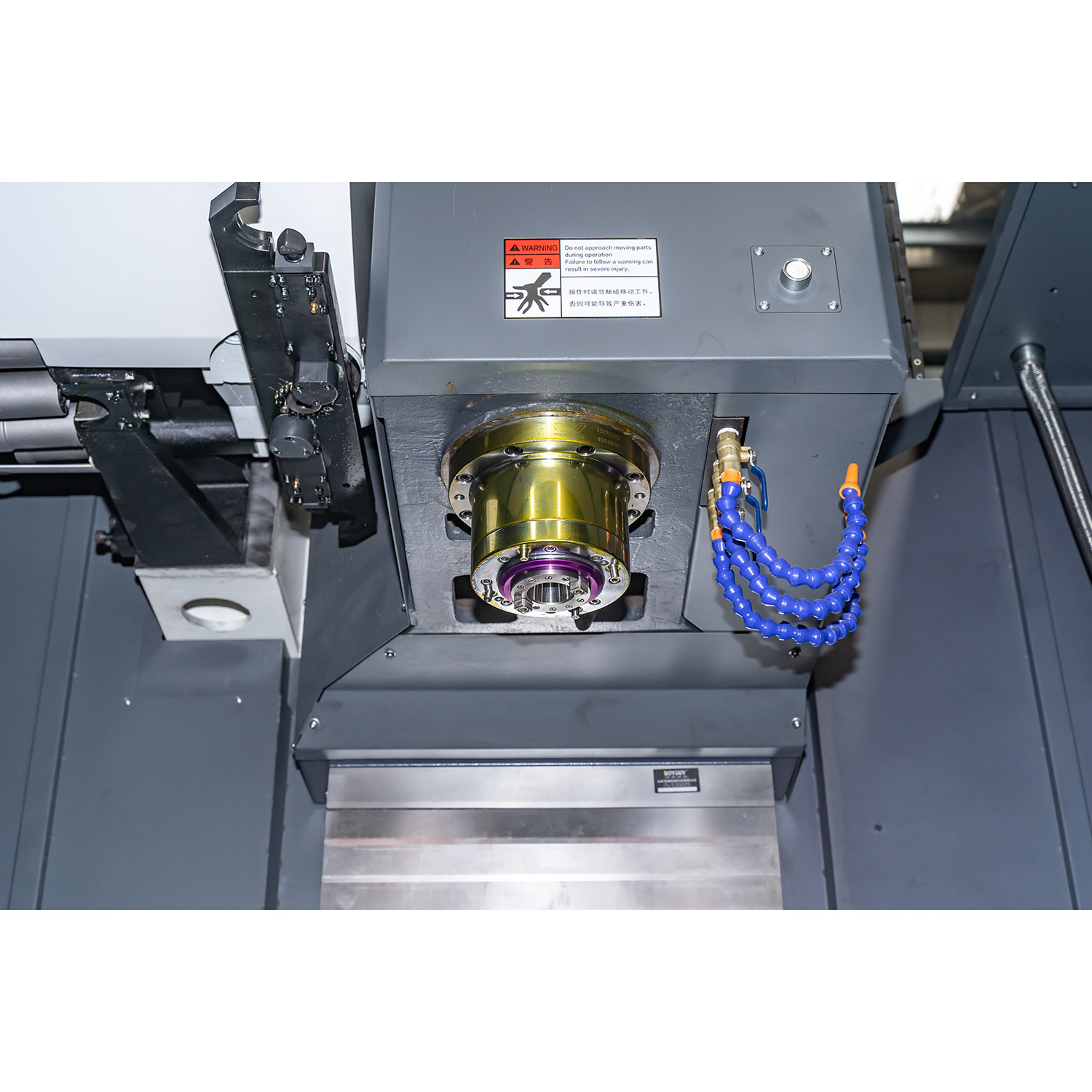

✅ High-Speed BT40 Spindle Unit

Equipped with a Taiwanese high-rigidity BT40 spindle, driven by a 7.5 kW motor with speeds up to 10000 rpm. P4-grade spindle bearings and KLUBR grease lubrication ensure low heat and long service life, while spindle orientation and rigid tapping support full threading operations.

✅ Precision Motion & Control

X/Y/Z axes use HIWIN C3-grade double-nut preloaded ball screws with P4-grade 60° contact angle bearings. Rapid traverse speeds reach 36/36/24 m/min, with ±0.004 mm repeat positioning accuracy. The Z-axis servo motor includes an automatic brake for safety during power outages.

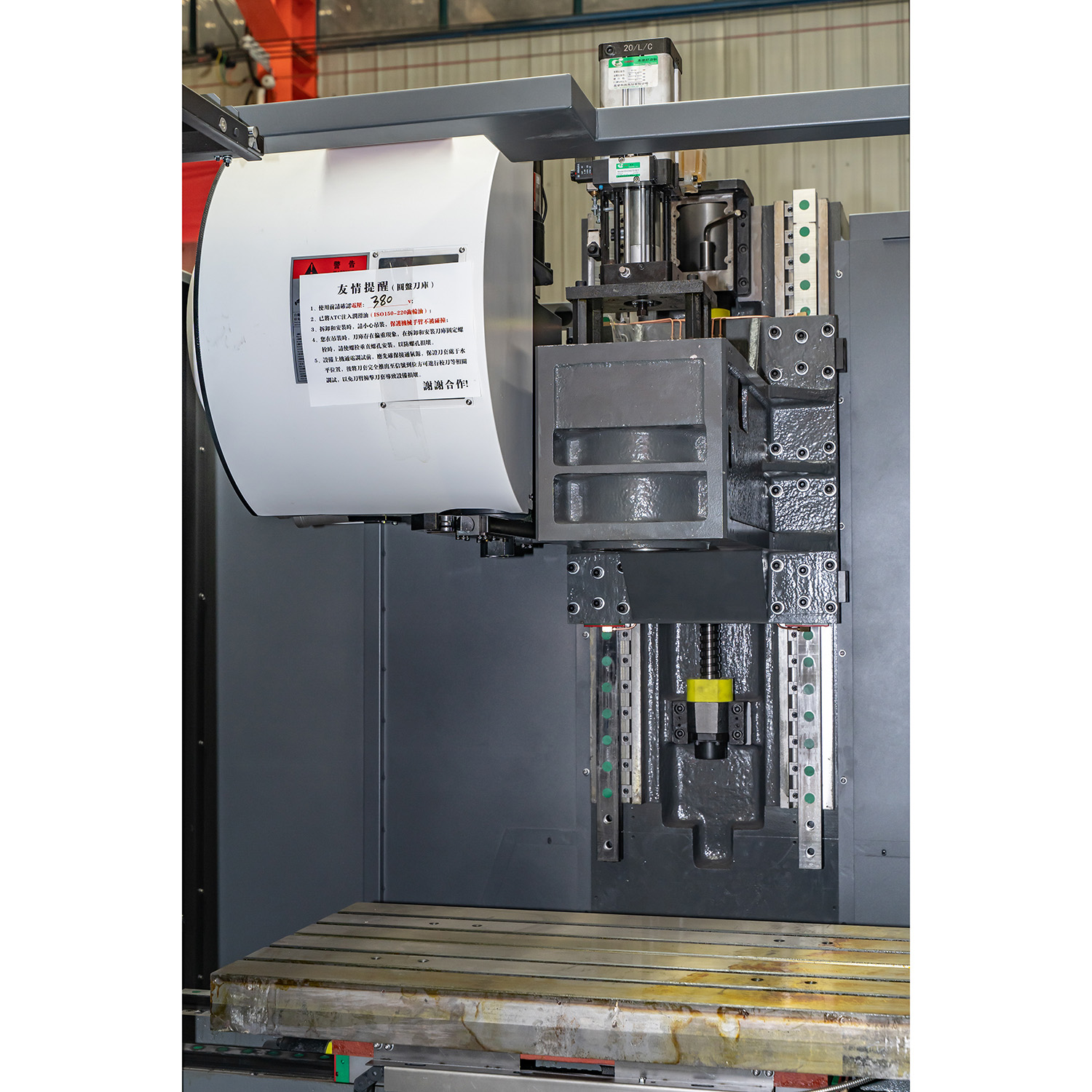

✅ 24-Tool Disc-Type Automatic Tool Changer (ATC)

Standard 24-tool disc-type magazine (16T optional) offers fast, reliable tool changes with minimal downtime. The damping structure reduces impact during operation, supporting tools up to 8 kg in weight and 300 mm in length.

✅ Complete Support Systems

Cooling System: High-flow pump with large-capacity tank, switchable water/air cooling, and M-code controlled nozzles.

Chip Removal: Split Y-axis protection with sloped bed surface directs chips to a pull-out drawer for easy cleaning.

Lubrication: Centralized automatic thin-oil lubrication with quantitative separators ensures even lubrication of rails and screws.

Safety & Protection: Full machine enclosure, rail covers, and pneumatic triplex filtration for reliable operation.

Applications

The VMC960 is widely used in:

Mold and die manufacturing

Automotive and aerospace component machining

General metalworking and batch production

Plate, shell, and cam part processing

Job shop precision machining
