VMC855 vertical machining center 3-axis linear rail CNC milling machine by MFG

VMC855 Vertical Machining Center | 3-Axis Linear Rail CNC Milling Machine with 24T ATC

Description

The VMC855 vertical machining center is a high-performance 3-axis CNC milling machine with 8000 rpm BT40 spindle, 24-tool magazine, and linear guideways. Ideal for mold making, automotive parts, and complex metalworking with ±0.005mm repeatability.

The VMC855 Vertical Machining Center is a robust, high-precision 3-axis CNC milling machine designed for single-piece and batch production of complex parts. Built with a rigid cast iron frame, Taiwan HIWIN ball screws, and optional FANUC/SIEMENS/MITSUBISHI control systems, it delivers reliable performance for drilling, milling, boring, tapping, and cam/mold machining operations. The linear rail structure ensures fast traverse speeds and long-term accuracy, making it ideal for workshops and industrial production lines.

Core Advantages

✅ Ultra-Rigid Cast Iron Construction

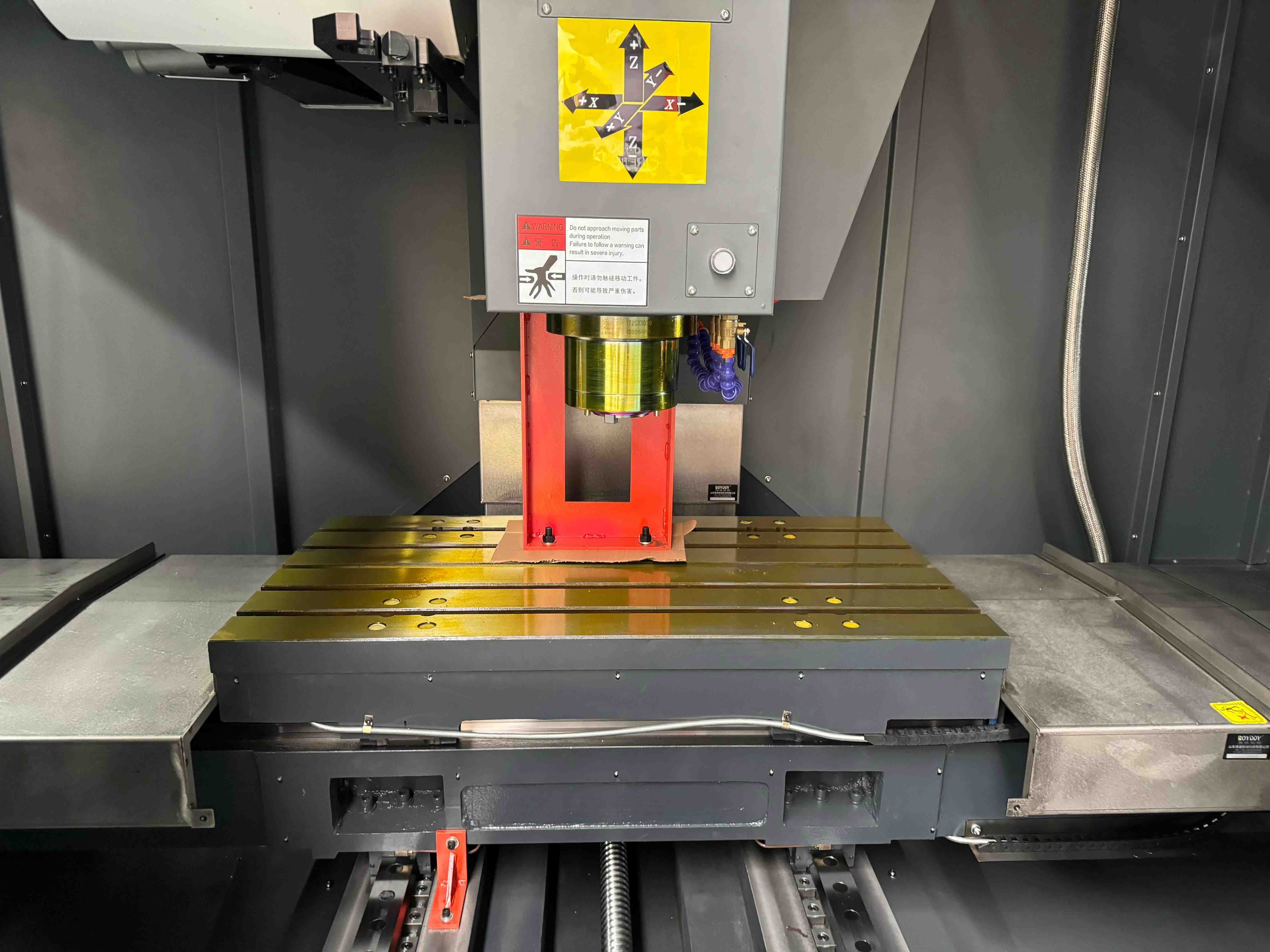

All major components (bed, worktable, slide, column, spindle box) are made of resin sand castings with two aging treatments to eliminate stress. Optimized via SolidWorks and Ansys, the frame minimizes vibration and deformation under heavy cutting, ensuring consistent long-term precision.

✅ High-Speed BT40 Spindle Unit

Equipped with a Taiwanese high-rigidity BT40 spindle, driven by a 7.5 kW motor with speeds up to 8000 rpm. P4-grade spindle bearings and KLUBR grease lubrication ensure low heat and long service life, while spindle orientation and rigid tapping support full threading operations.

✅ Precision Motion & Control

X/Y/Z axes use HIWIN C3-grade double-nut preloaded ball screws with P4-grade 60° contact angle bearings. Rapid traverse speeds reach 40/40/24 m/min, with ±0.016 mm positioning accuracy and ±0.005 mm repeatability. The Z-axis servo motor includes an automatic brake for safety during power outages.

✅ 24-Tool Automatic Tool Changer (ATC)

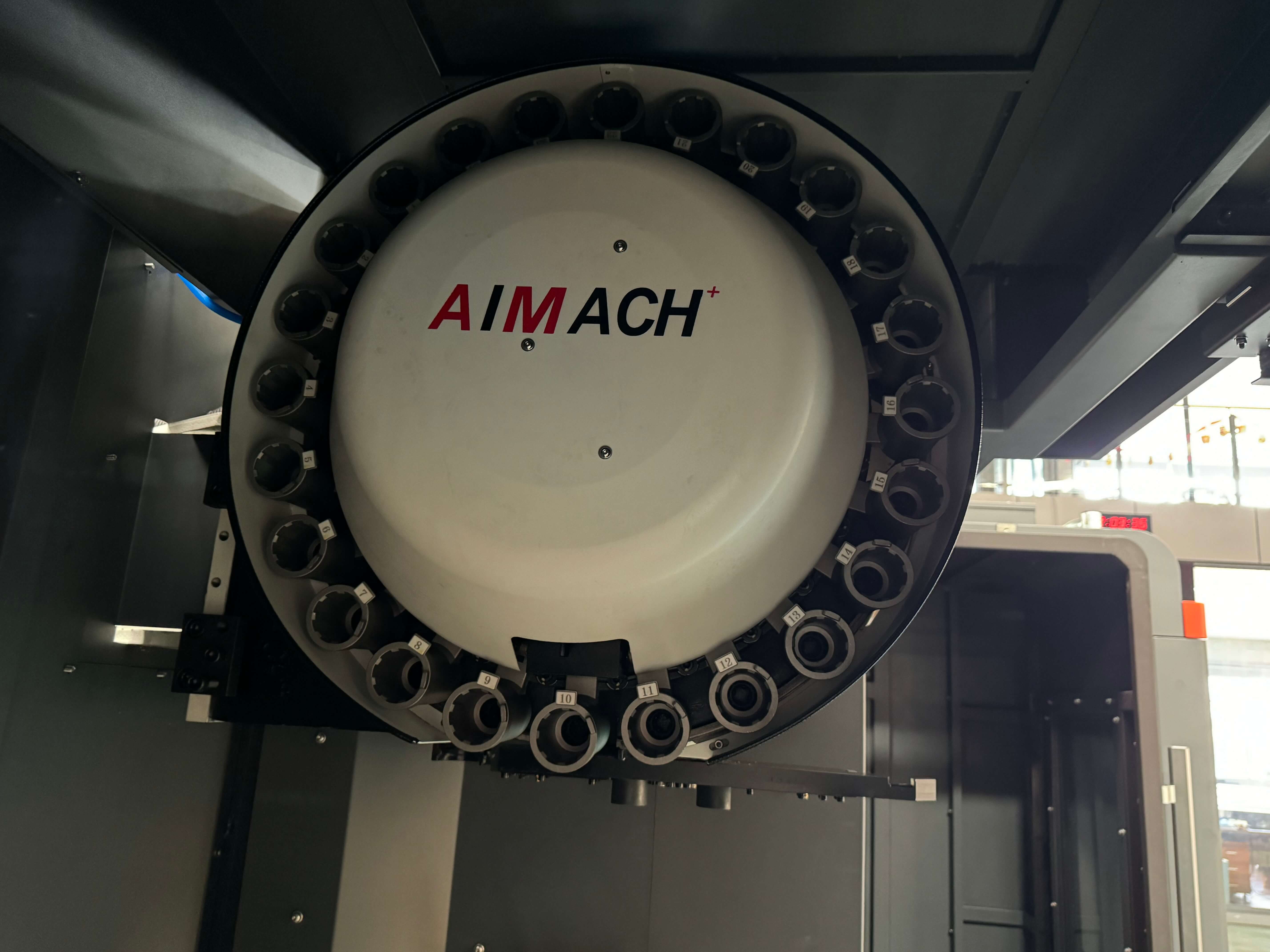

Standard 24-tool magazine (16T optional) offers fast, reliable tool changes with minimal downtime. Hat-type or disc-type magazines with damping structures reduce impact, supporting tools up to Ø160 mm (adjacent) and 8 kg in weight.

✅ Complete Support Systems

Cooling System: High-flow pump with large-capacity tank, switchable water/air cooling, and M-code controlled nozzles.

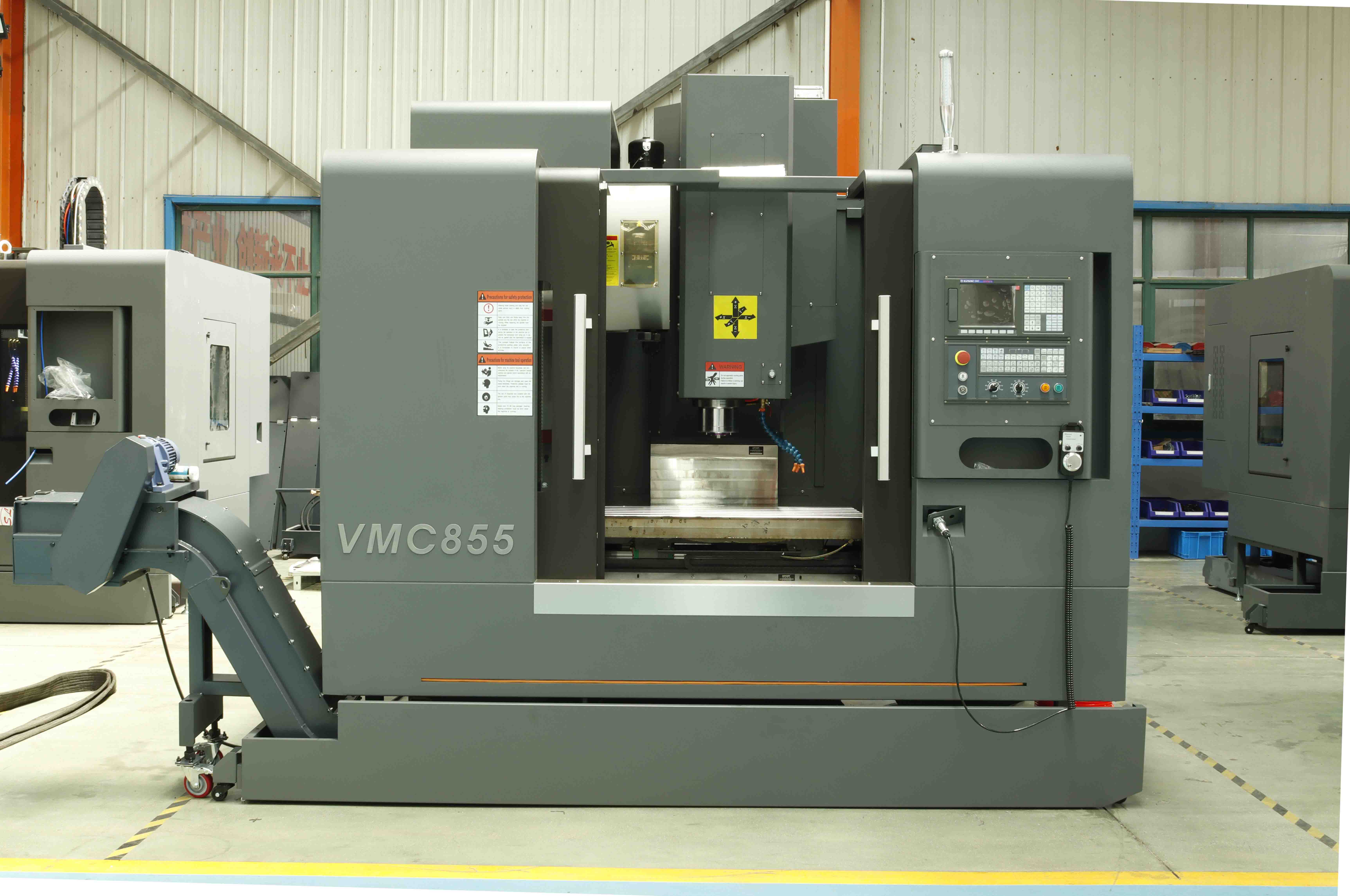

Chip Removal: Split Y-axis protection with sloped bed surface directs chips to a pull-out drawer for easy cleaning.
Lubrication: Centralized automatic thin-oil lubrication with quantitative separators ensures even lubrication of rails and screws.
Safety & Protection: Full machine enclosure, rail covers, and pneumatic triplex filtration for reliable operation.

Applications

The VMC855 is widely used in:

Mold and die manufacturing
Automotive and aerospace component machining
General metalworking and batch production
Plate, shell, and cam part processing
Job shop precision machining

Specifications	Units	VMC855
Table Size (Length × Width)	mm	1000 × 550
Max. Worktable Load	kg	500
T-slot (Number-Width × Pitch)	mm	5-18 × 90
X/Y/Z Axis Travel	mm	800 / 550 / 550
Spindle Nose to Table Surface Distance	mm	120 – 670
Spindle Center to Z-axis Guide Surface	mm	590
Spindle Motor Power	kW	7.5
Max. Spindle Speed	rpm	8000
Spindle Taper	-	BT40
X/Y/Z Rapid Traverse Speed	m/min	40 / 40 / 24
Max. Cutting Feed Speed	mm/min	1 – 10000
Max. Tool Length	mm	300
Max. Tool Weight	kg	8
Max. Tool Diameter (Full / Adjacent)	mm	Ø80 / Ø160
Positioning Accuracy (X/Y/Z)	mm	±0.016 / ±0.016 / ±0.016
Repeatability Accuracy (X/Y/Z)	mm	±0.005 / ±0.005 / ±0.005
ATC Capacity	-	BT40-24T (Optional: 16T)
Total Machine Power	kVA	15

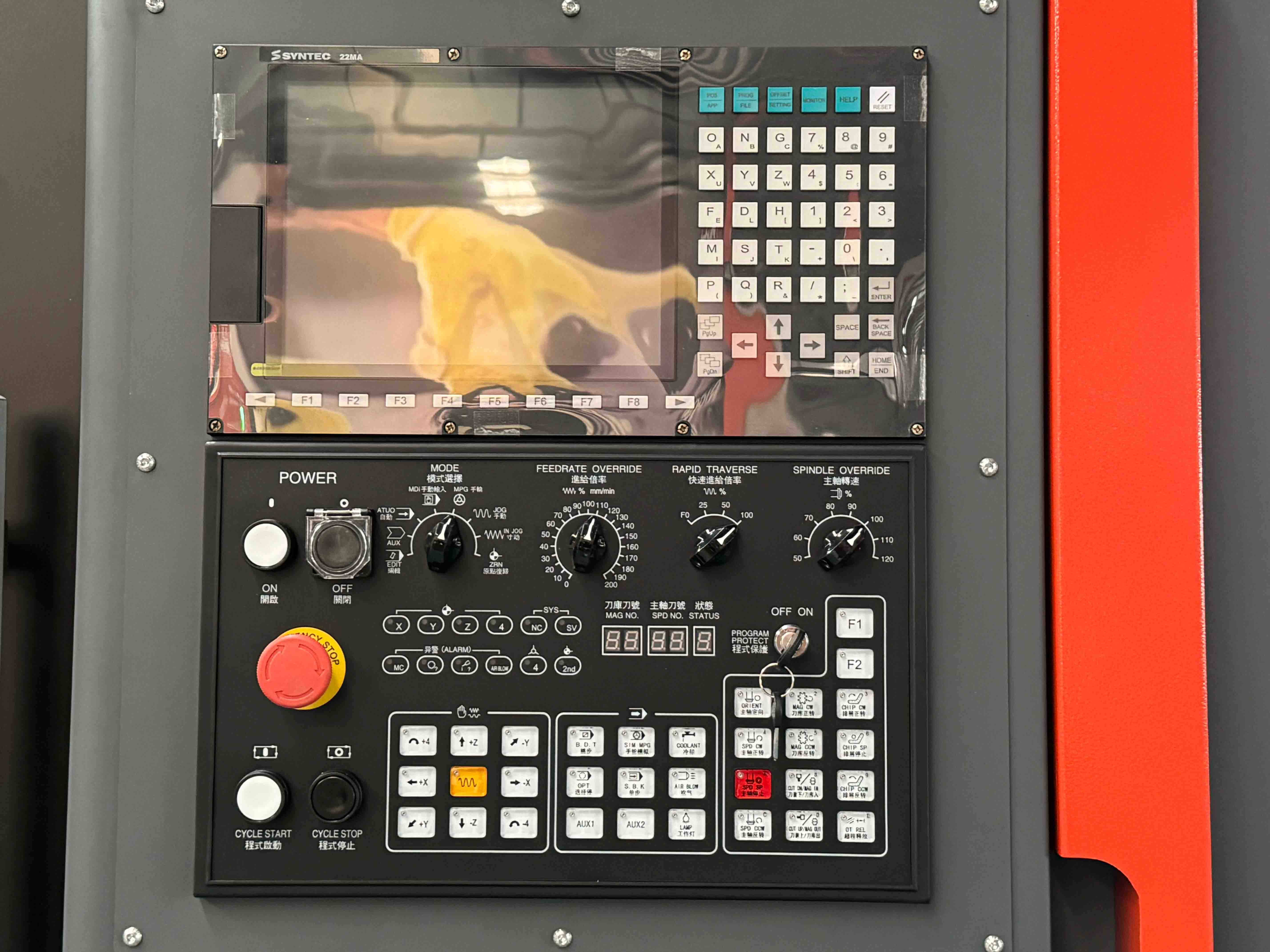

CNC System	-	FANUC / SIEMENS / MITSUBISHI
Machine Size (L × W × H)	mm	2600 × 2380 × 2720
Machine Weight	kg	5500
