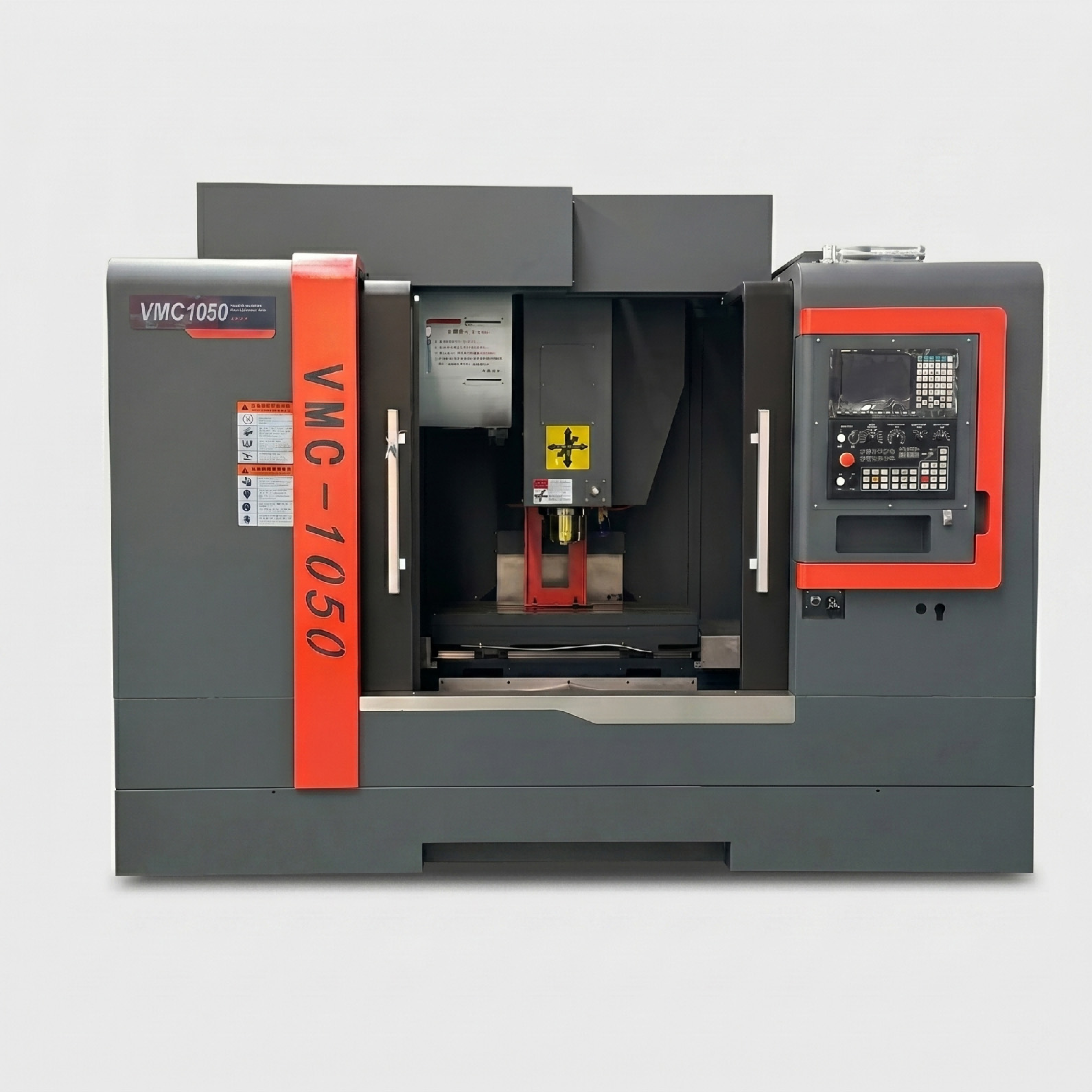

VMC1050 Vertical Machining Center

VMC1050 Vertical Machining Center – High Precision CNC Milling Solution

Meet the VMC1050 Vertical Machining Center, a robust, high-performance CNC machining center designed for precision manufacturing of complex parts across automotive, mold, aerospace, and general engineering industries. Built for reliability, speed, and long-term accuracy, this 3-axis linear rail machining center delivers consistent results for both single-piece and batch production runs.

Key Advantages for Your Workflow

✅ Rigid & Stable Construction

The machine’s main components (bed, column, worktable, spindle head) are crafted from resin sand castings with dual aging treatments, eliminating internal stress and ensuring exceptional structural stability. Optimized via SolidWorks and Ansys, the frame resists cutting-induced vibration and deformation, maintaining precision even under heavy loads.

✅ High-Speed, High-Precision Motion System

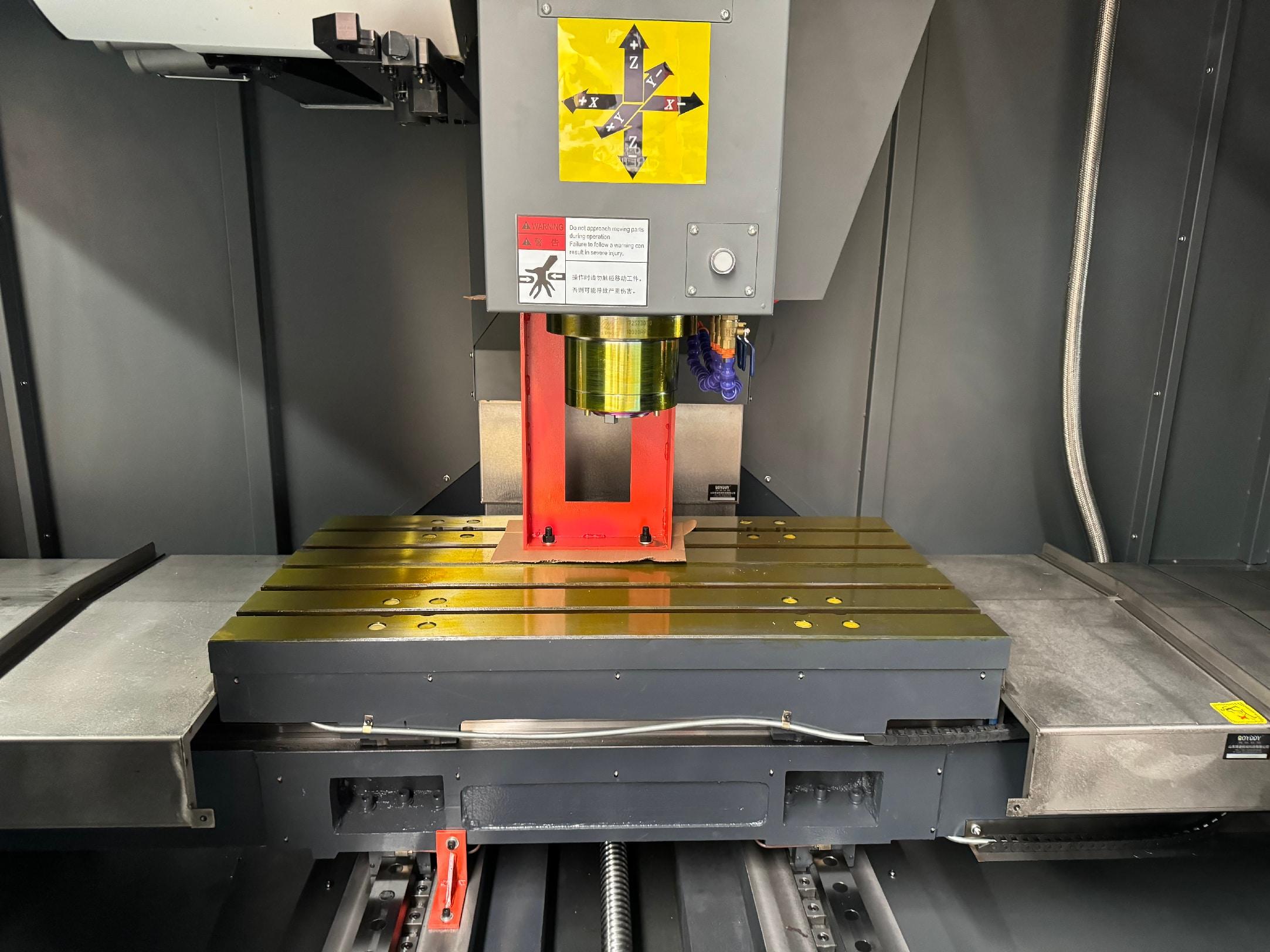

• Travel Range: 1000mm (X) × 500mm (Y) × 600mm (Z), with a maximum worktable load of 600kg.
• HIWIN C3-grade double-nut preloaded ball screws (X/Y/Z), paired with P4-grade 60° contact angle bearings and pre-stretched support structure, minimize thermal deformation for ±0.004mm repeat positioning accuracy.
• 20/20/15 m/min rapid traverse speed and 10 m/min cutting feed reduce cycle times significantly.
• ✅ Powerful & Reliable Spindle Unit

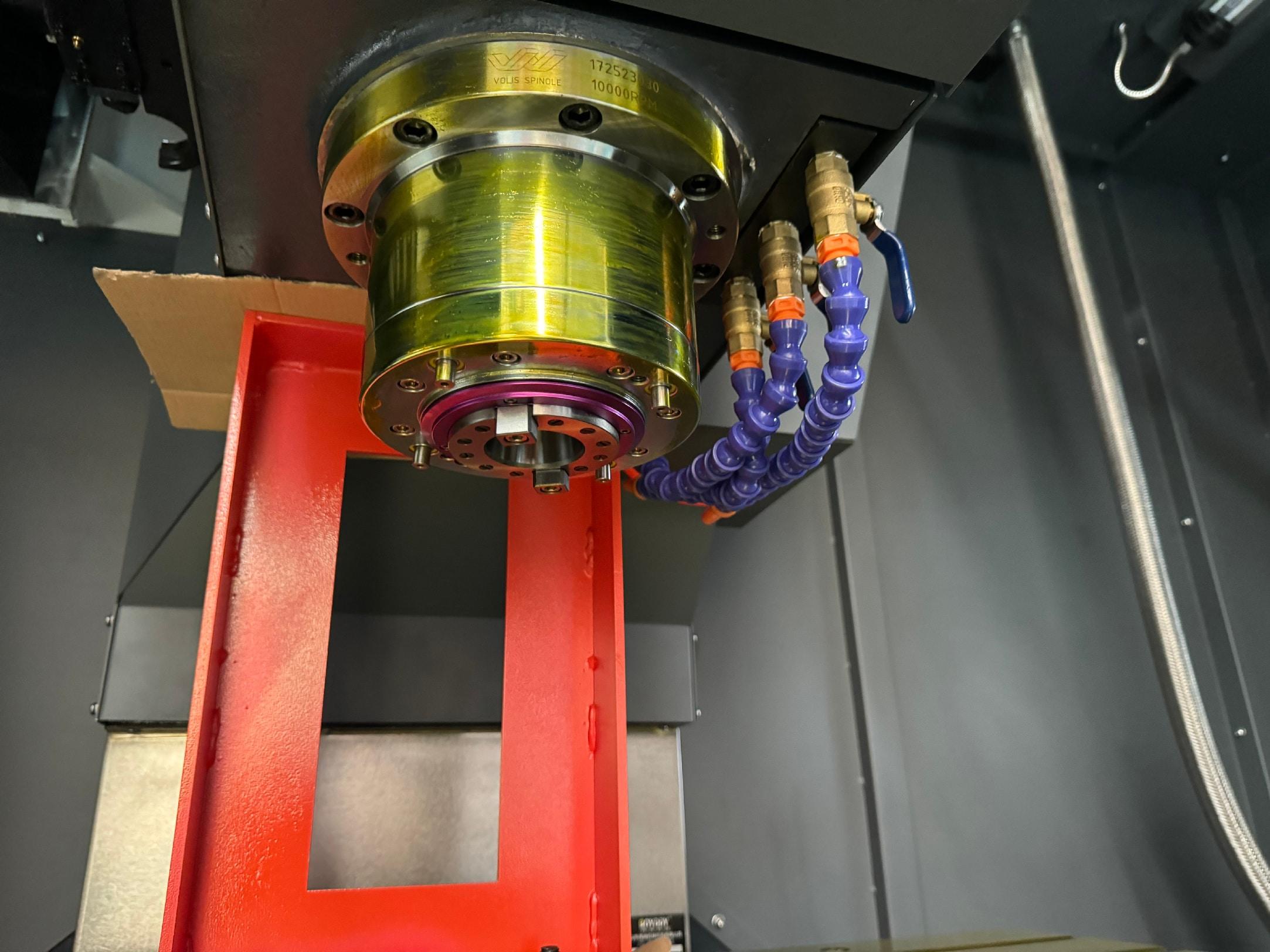

• Equipped with a Taiwanese brand BT40 spindle (8000 rpm max speed, 7.5kW motor), this unit features P4-grade spindle bearings and KLUBR NBU15 grease lubrication. After precision balancing and run-in testing, the spindle supports rigid tapping, orientation, and stepless speed control for versatile machining tasks (drilling, milling, boring, tapping, reaming).
• ✅ Efficient 24-Tool Automatic Tool Changer

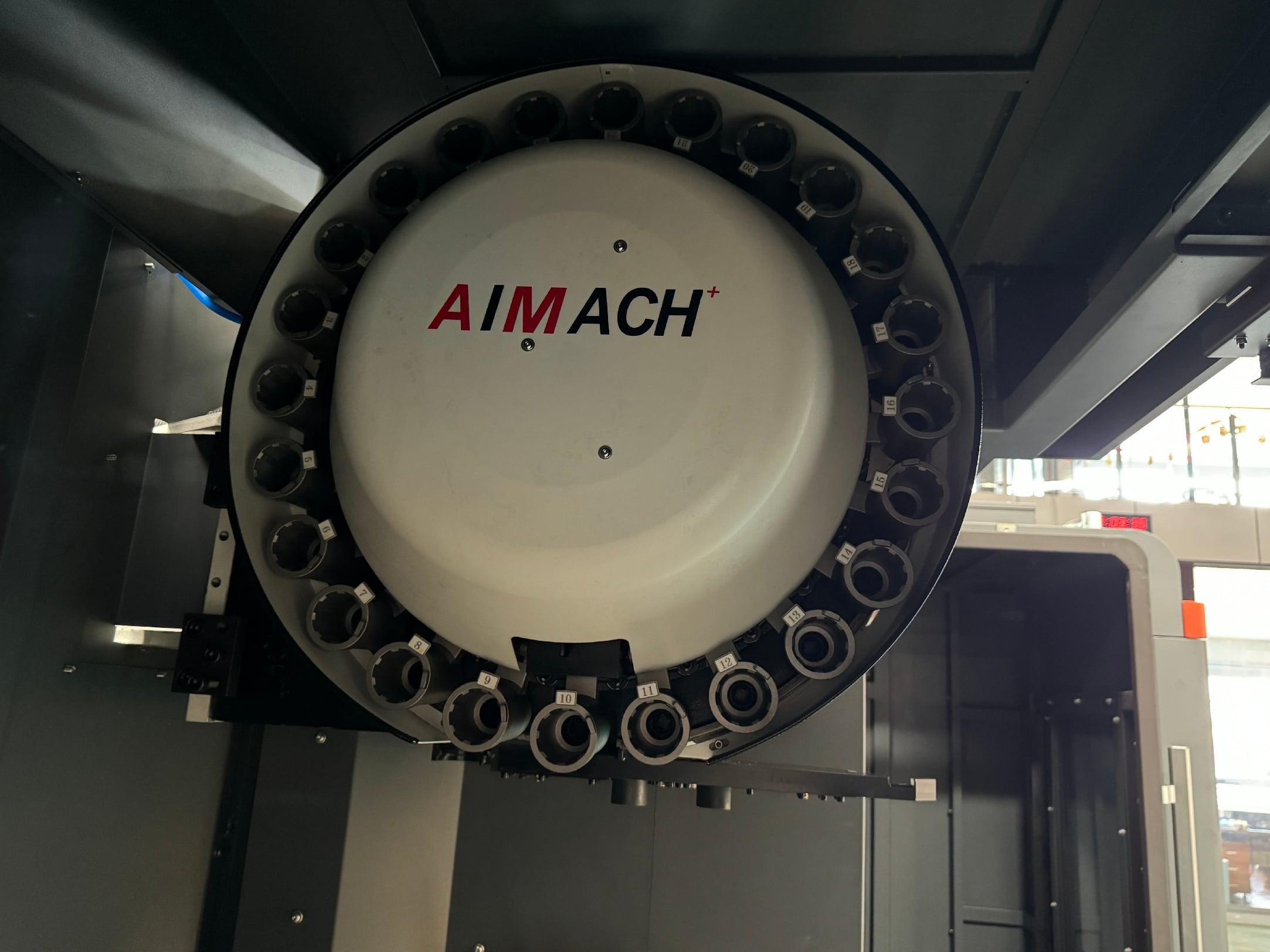

• The disc-type tool magazine holds up to 24 BT40 tools (max tool length: 300mm, max weight: 8kg), ensuring fast, accurate tool changes with minimal downtime. With millions of cycles tested, the system guarantees high reliability for continuous production.
• ✅ User-Friendly & Low-Maintenance Design
• Choose your preferred CNC system: KND, Siemens, or FANUC, for seamless integration with your workflow.
• Large-flow cooling system with water/air cooling options, plus a built-in cleaning air gun for easy maintenance.

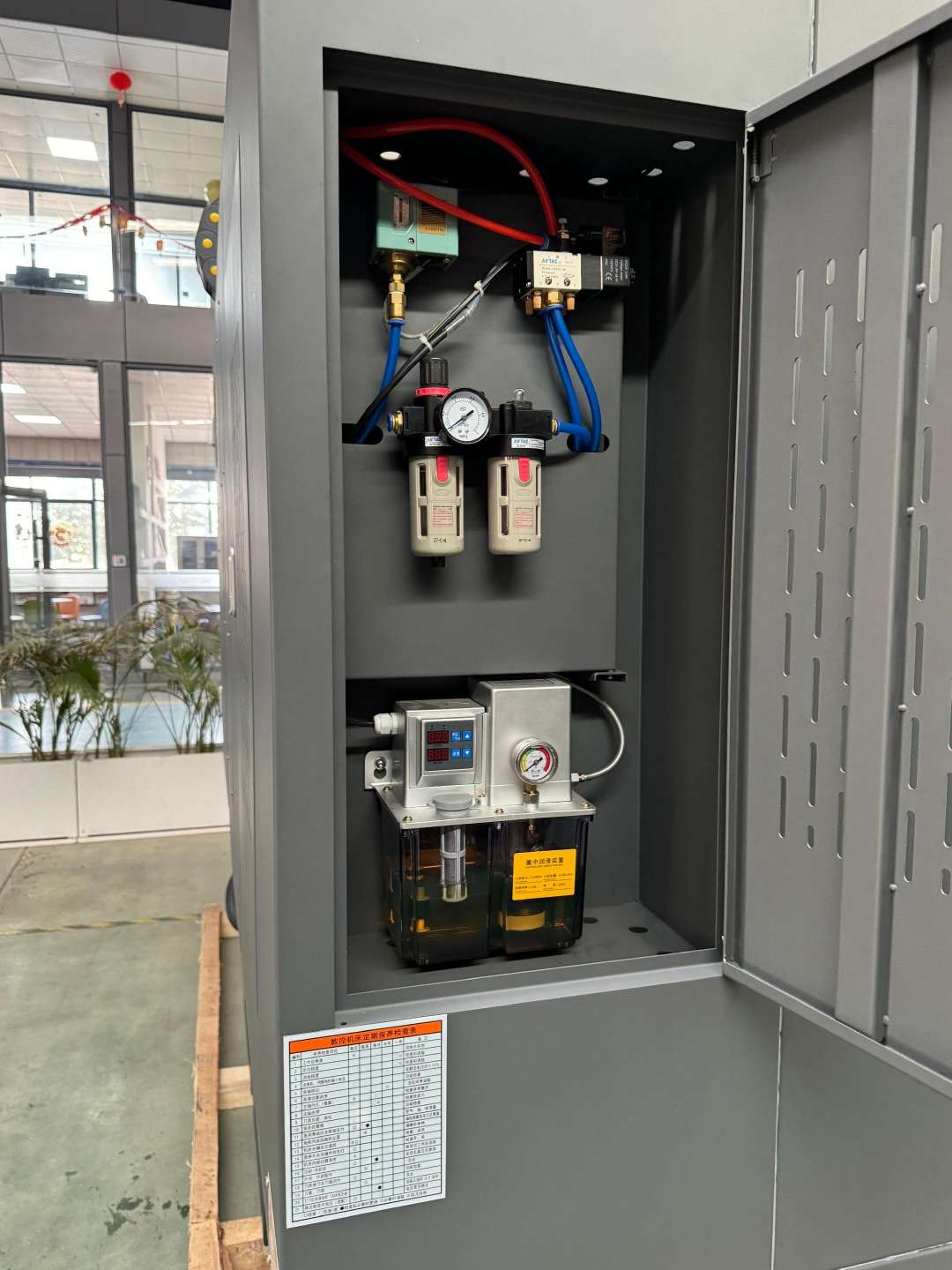

• Centralized automatic thin-oil lubrication system keeps guide rails and ball screws properly lubricated, extending component life.
• Drawer-type chip removal system simplifies iron scrap disposal, while full machine guards prevent coolant splashes and ensure operator safety.
• Built for durability, efficiency, and precision, the VMC1050 is your trusted partner for machining disks, plates, shells, cams, molds, and other complex parts with tight tolerances. Reduce production cycles, boost output, and maximize your return on investment with this high-performance vertical machining center.
