TPX6111B Digital Display Horizontal Boring & Milling Machine

TPX6111B Digital Display Horizontal Boring & Milling Machine | High Precision Industrial Boring Machine

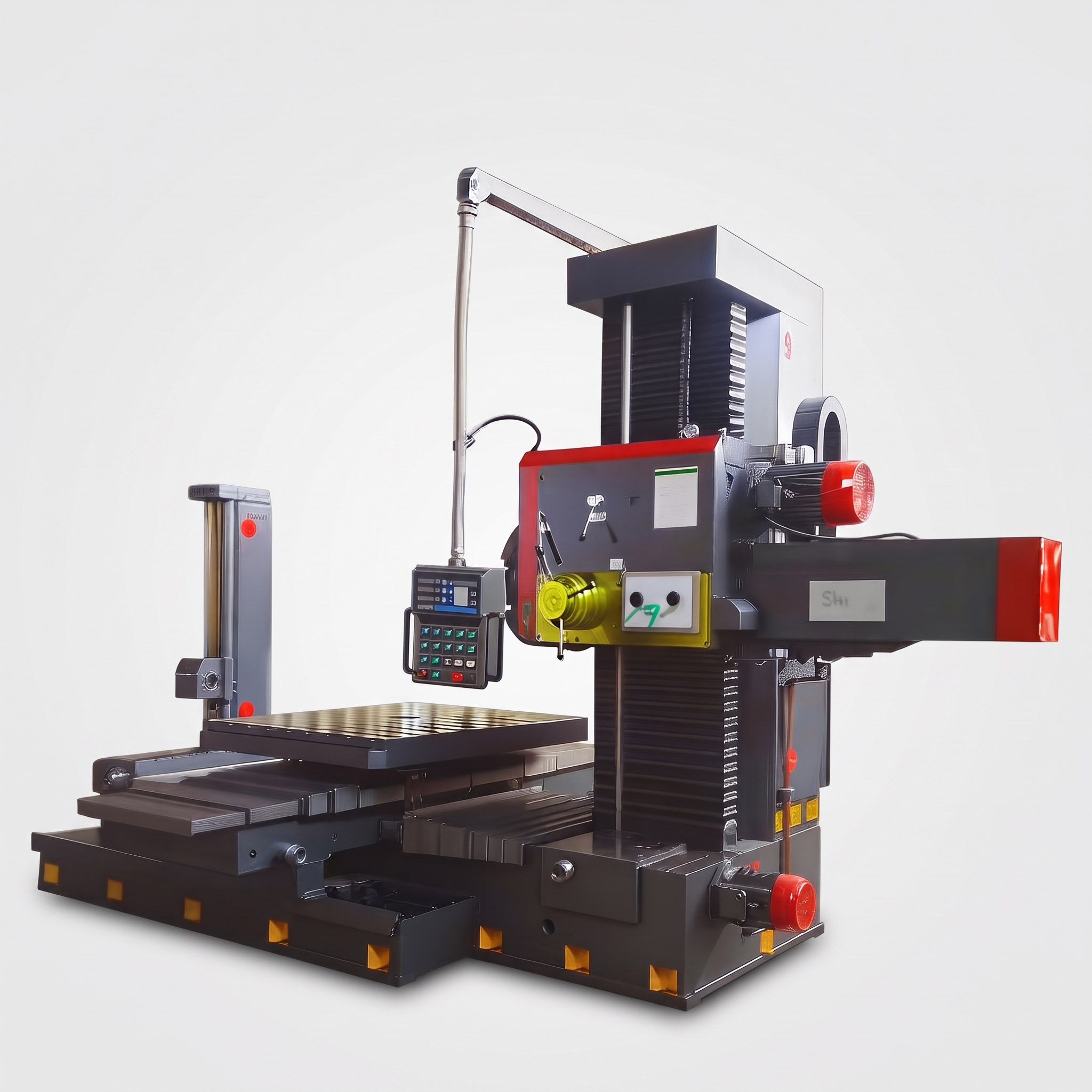

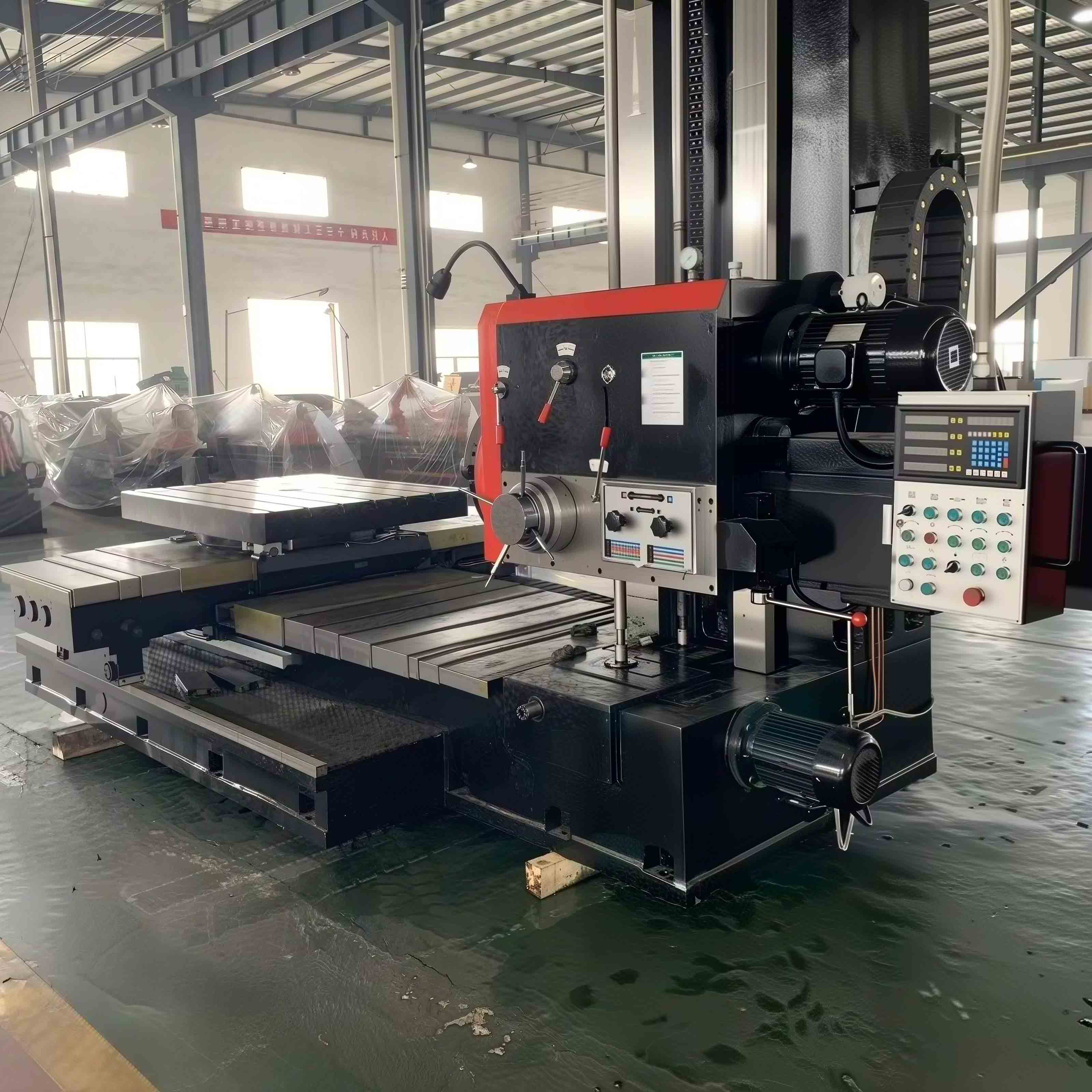

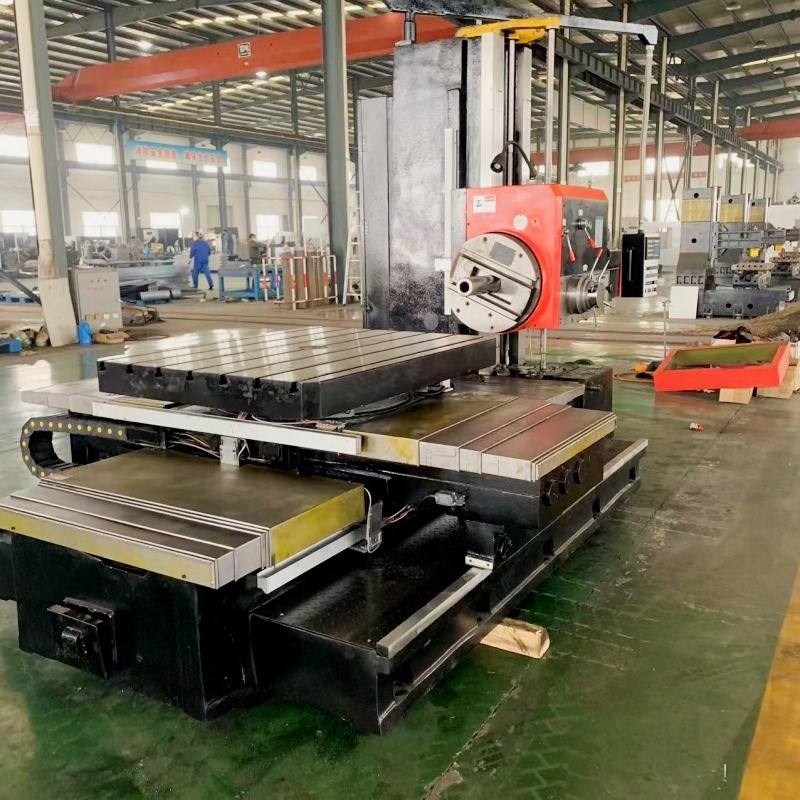

The TPX6111B Digital Display Horizontal Boring & Milling Machine is a heavy-duty, high-rigidity machine tool designed for precision boring, milling, drilling, and tapping operations on large and complex workpieces. Built with a T-shaped separated bed structure and precision-hardened guide rails, this machine delivers exceptional stability, low deformation, and consistent machining accuracy, making it ideal for mold manufacturing, automotive, aerospace, and heavy machinery industries.

Available in multiple configurations (TPX6111B / TPX6111B/2 / TPX6111B/3 / TPX6111B/3 Stepless), the TPX6111B series caters to diverse production needs, from standard workshop tasks to heavy-duty, high-volume manufacturing. Equipped with a digital display (HMI) system, genuine P5-grade ZWZ bearings, and full-axis grating rulers, this machine ensures reliable performance and easy operation for both single-piece and batch production.

Key Features & Benefits

✅ High Rigidity & Precision Machining

• T-shaped separated bed design minimizes deformation, paired with rectangular guide rails quenched to 45-50 HRC for exceptional vibration damping and long-term precision retention.
• Double nut mechanism eliminates transmission backlash, guaranteeing accurate displacement control.
• Spindle bore options: Morse No.6 (standard) or ISO 7:24 No.50 (optional), delivering up to 1250 N.m torque for heavy cuts.

✅ Versatile & Flexible Configurations

• Multiple models to match your needs: standard, extended travel, and stepless speed variants.
• Worktable sizes range from 1100×960 mm to 1250×1100 mm, supporting workpieces up to 3000 kg.
• Spindle travel up to 600 mm, worktable horizontal travel up to 1600 mm, and vertical travel up to 1400 mm (TPX6111B/3).

✅ Advanced Digital Display System

• Equipped with Shenzhen Bowang linear grating rulers for X/Y/Z axes, plus a circular digital display for the B-axis.
• Clear, easy-to-read HMI improves operation efficiency and reduces human error.

✅ Durable & Low-Maintenance Design

• Genuine Wafangdian (ZWZ) P5-grade bearings for spindle, screw, and table components, ensuring long service life.
• Automatic thin oil lubrication system with oil level alarm, plus grease lubrication for key components, extending guide rail and screw lifespan.
• Full-axis protection: drawer-style steel covers for X/Z axes and organ-style covers for Y-axis, providing dustproof, waterproof protection for critical components.

✅ Safe & Reliable Operation

• Hydraulic locking for spindle box and worktable ensures stable positioning during heavy cuts.
• Comprehensive safety features: leakage protection, emergency stop, overheat/overload protection, and limit stops.
• Built to meet international power standards, with optional 3-phase 440VAC or 220VAC configurations.

Common Applications

The TPX6111B boring machine excels in:

• Precision boring and milling of engine blocks, gearboxes, and hydraulic components
• Mold base machining for plastic and die-cast molds
• Heavy machinery part manufacturing (e.g., gear housings, turbine components)
• Aerospace and automotive component processing
• Batch production of large, high-precision mechanical parts

Why Choose Our TPX6111B Boring Machine?

1. Built for Precision & Durability: Hardened guide rails, premium bearings, and backlash-free transmission ensure consistent accuracy for years.
2. Flexible Configurations: Multiple models and optional features to match your specific machining requirements.
3. User-Friendly Operation: Digital display system and intuitive controls reduce training time and improve productivity.
4. Comprehensive Support: We provide installation guidance, maintenance manuals, and technical support to keep your machine running smoothly.
