TK6111 CNC Horizontal Boring and Milling Machine

TK6111 CNC Horizontal Boring and Milling Machine – High-Precision Heavy-Duty Machining Center

Unlock superior accuracy and heavy-load capacity with the TK6111 CNC Horizontal Boring and Milling Machine. Designed for complex industrial applications, this versatile machine tool excels in high-torque boring, milling, drilling, and reaming. Whether you are processing large-scale box-shaped parts, mold frames, or intricate porous systems, the TK6111 offers a rigid, stable, and highly automated solution for your factory floor.

Core Performance & Rigidity

Built on a high-quality cast iron bed with specialized aging treatment, the TK6111 ensures maximum vibration absorption and long-term structural stability. Its unique cross-sliding table structure and single-column design provide the structural integrity required for heavy-duty industrial tasks.

Advanced Spindle & Motion Control

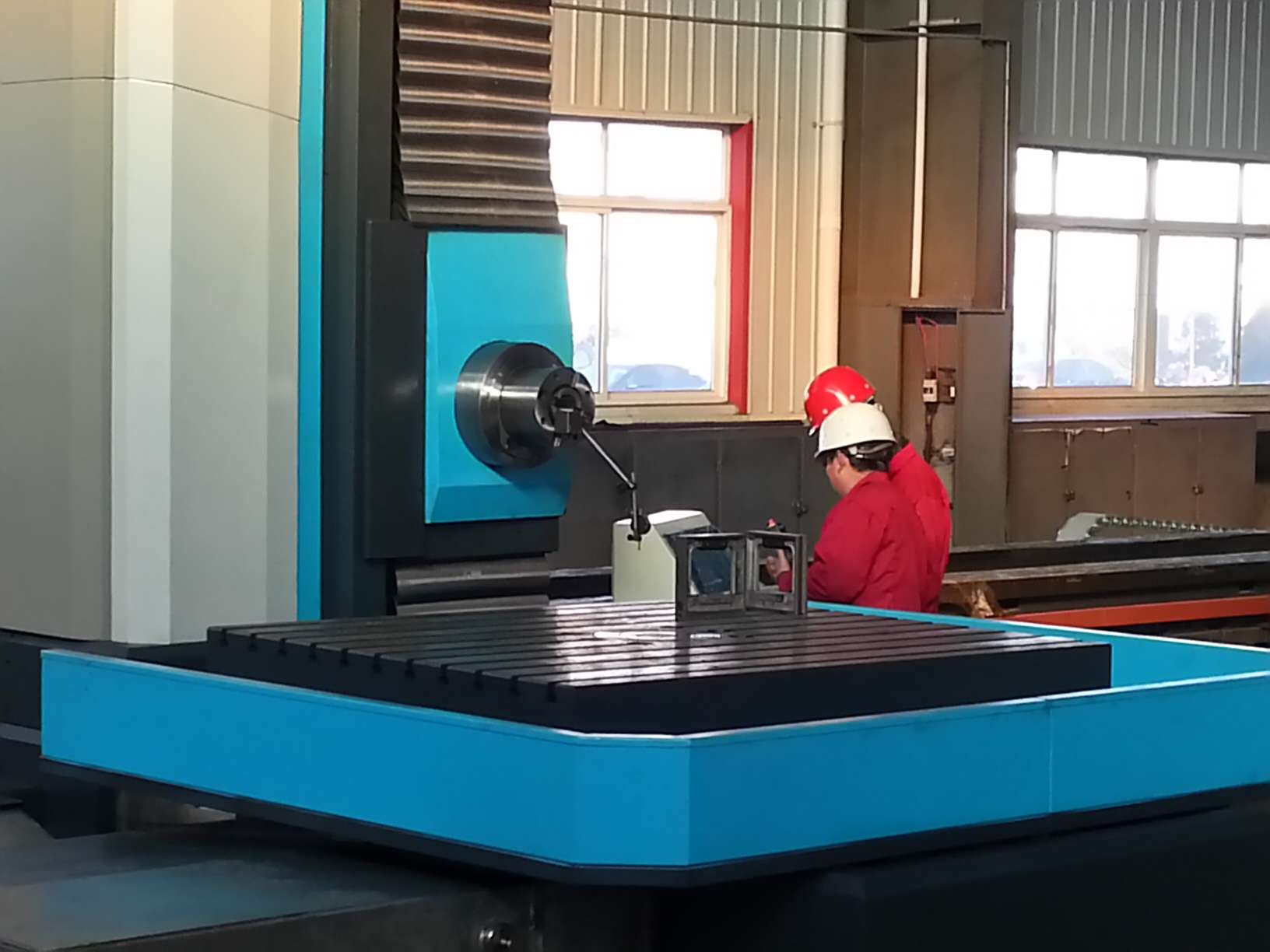

• Dual-Function Spindle: Features a $\phi 110$ mm boring shaft made of nitrided 38CrMoAlA alloy steel and high-precision SKF bearings.
• Siemens CNC System: Equipped with a Siemens AC digital servo drive, enabling 4-axis linkage and 6-axis control for complex 3D surface processing.
• Precision Positioning: Utilizing pre-tensioned double-nut ball screws and composite sliding guide rails, achieving a positioning accuracy of $0.02$ mm.

Efficiency Redefined

The TK6111 eliminates cumbersome manual gear shifting. Each axis is driven by independent servo motors for stepless speed regulation, reducing failure rates and operation difficulty. With a 360° rotary table (B-axis) and a 5000kg load capacity, it allows for multi-sequence processing in a single clamping.
