TK6511 Planer Type Boring and Milling Machine

TK6511 CNC Planer-Type Horizontal Boring and Milling Machine – Heavy-Duty T-Shaped Precision Center

Elevate your large-scale manufacturing with the TK6511 CNC Planer-Type Horizontal Boring and Milling Machine. Engineered with a classic T-shaped bed layout, this machine offers exceptional rigidity by separating the longitudinal movement of the column (Z-axis) from the transverse movement of the worktable (X-axis). It is the ultimate solution for high-torque boring and heavy milling of box-shaped components, massive frames, and precision mold parts.

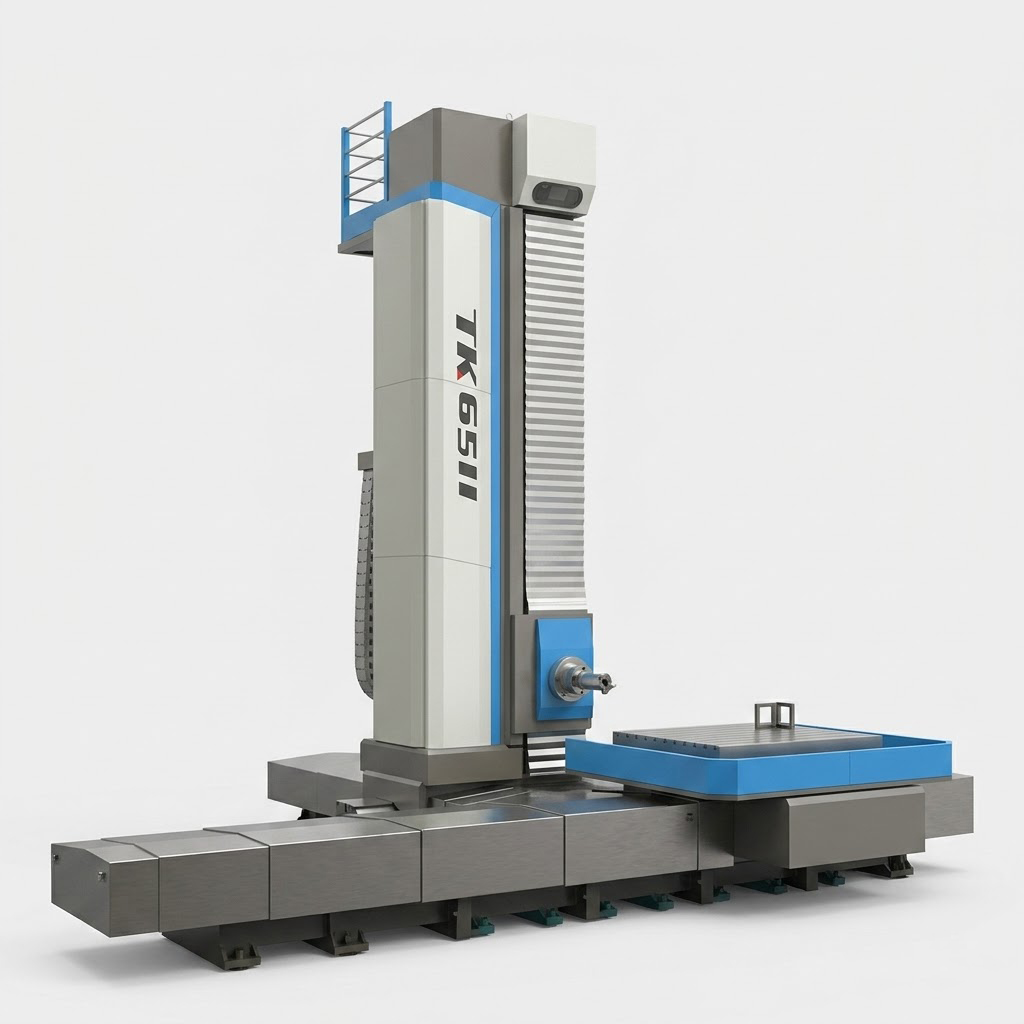

Innovative T-Shaped Structural Stability

The TK6511 features a heavy-duty design where the column moves longitudinally on its own bed, and the worktable moves transversely. This layout, combined with high-quality aged cast iron components, ensures zero interference between axes and superior vibration dampening for heavy-duty cutting.

Precision & Multi-Axis Control

• 5-Axis Control / 4-Axis Linkage: Equipped with the Siemens CNC system and AC digital servo drives, supporting complex arc interpolation and 3D surface machining.
• High-Accuracy B-Axis: The 1250x1000mm rotary table utilizes a circular grating for angular positioning, achieving an incredible 8 arc-second accuracy.
• Static Pressure Guide Rails: The B-axis features hydrostatic technology for smooth rotation and high load capacity, while X, Y, and Z axes utilize hardened steel rails for long-term wear resistance.

High-Performance Spindle System

The φ110mm nitrided boring spindle is paired with imported SKF bearings and a constant temperature oil cooling system. With a two-speed mechanical transmission, it delivers high torque at low speeds and precision at high speeds (up to 1500 r/min), making it a truly universal machine tool for drilling, reaming, and tapping.
