CH-650 Gantry Column Structure Horizontal Straight Cutting Bandsaws
Product Overview The MFG CH-650 is a high-performance industrial bandsaw engineered with a robust gantry structure to deliver exceptional reliability, stability, and cutting precision. Purpose-built for processing medium to large ferrous and non-ferrous metal bars and solid plates, it is designed with generous structural margins across all components to ensure vibration-free, continuous production. Delivering high cutting efficiency, a narrow kerf for maximum material savings, and energy-efficient operation, the CH-650 is the ideal solution for heavy-load, high-yield manufacturing environments.

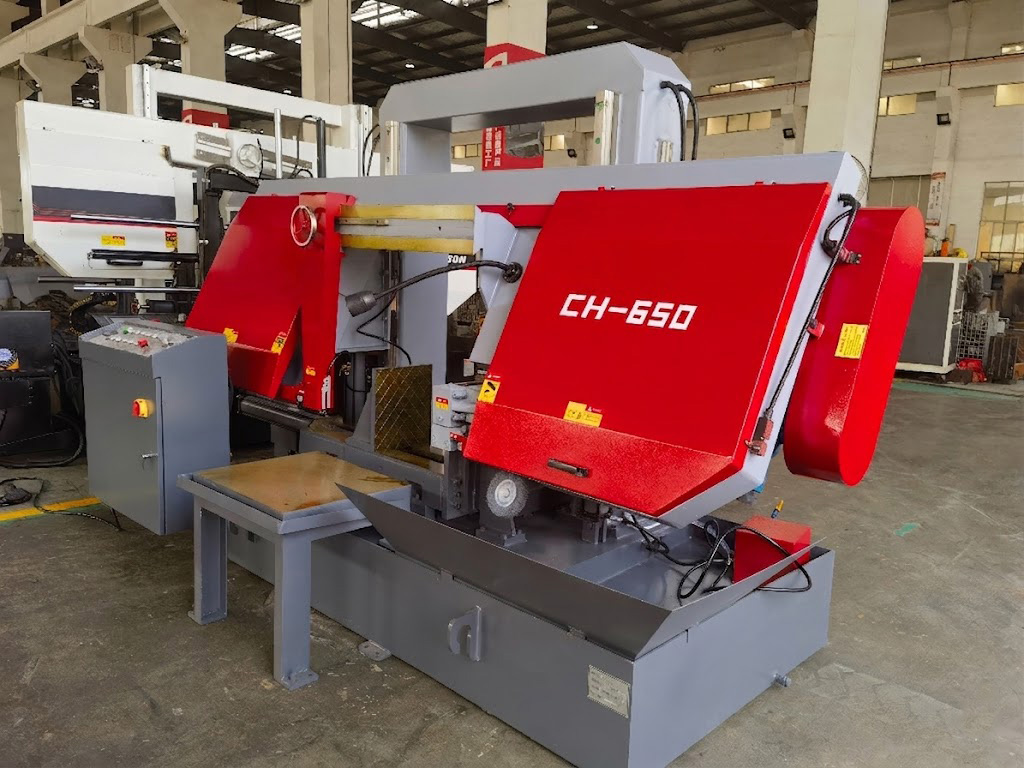

MFG CH-650 Rigid Gantry Metal Cutting Bandsaw
Engineered for High-Precision Sawing of Medium to Large Bars and Plates
Product Overview
The MFG CH-650 is a high-performance industrial bandsaw engineered with a robust gantry structure to deliver exceptional reliability, stability, and cutting precision. Purpose-built for processing medium to large ferrous and non-ferrous metal bars and solid plates, it is designed with generous structural margins across all components to ensure vibration-free, continuous production. Delivering high cutting efficiency, a narrow kerf for maximum material savings, and energy-efficient operation, the CH-650 is the ideal solution for heavy-load, high-yield manufacturing environments.
Core Technological Advantages
- High-Rigidity Gantry Framework: The classic gantry architecture provides superior structural integrity and rigidity compared to traditional pivot or bow designs, ensuring absolute stability even under the most demanding sawing conditions.
- Dual-Cylinder Synchronized Feeding: Guided by high-precision linear rails and controlled by double hydraulic cylinders, the saw frame descent is exceptionally smooth and stable, guaranteeing immaculate straightness and sawing accuracy on large-diameter workpieces.
- Motorized Material Handling: Fully equipped with motorized feeding and receiving roller tables, drastically reducing manual labor and streamlining the handling of large, heavy metal bars and plates.
- Advanced Drive & Speed Control: The main drive utilizes a premium bevel helical gear reducer for smooth, impact-free power transmission and extended service life. Combined with a frequency inverter, it allows for stepless adjustment of the cutting speed to perfectly match different materials.
- Smart Hydraulic Tensioning & Protection: Features automatic hydraulic tensioning of the saw band to maintain optimal blade rigidity during operation, complemented by an integrated broken-blade protection system for enhanced operational safety.
Equipment Structure & Main Components
The CH-650 is built with premium, modular components designed for maximum durability and ease of maintenance:
| Component System | Technical Description |
| 1. Robust Base & Saw Frame | Heavy-duty welded steel base supporting a rigid gantry saw frame for vibration elimination. |
| 2. Main Drive System | High-efficiency bevel helical gear reducer coupled with variable frequency speed control. |
| 3. Hydraulic Clamping Device | Powerful hydraulic vise ensures secure clamping of medium to large solid materials. |
| 4. Precision Guiding Device | Utilizes high-precision linear guide rails to maintain exact blade alignment. |
| 5. Blade Tensioning System | Hydraulic saw blade tensioning integrated with an automatic broken-belt safety mechanism. |
| 6. Independent Hydraulic Station | Standalone hydraulic unit ensures optimal heat dissipation, stable feeding, and easy maintenance. |
| 7. Centralized Cooling System | Ensures continuous coolant flow to prolong blade life and improve the finish of the cut surface. |
| 8. Electrical Control System | Integrated, user-friendly control panel governing all motorized and hydraulic actions. |
| 9. Material Handling System | Includes motorized feeding and receiving roller tables for efficient workflow. (Optional: Chip cleaning device available). |
| Specification | CH-650 |
|---|---|
| Maximum cutting capacity (round) | 650 mm |
| Maximum cutting capacity (square) | 650*650 mm |
| Cutting speed infinitely variable | 10~65 m/min(inverter) |
| Stop length(single stroke) | N/A |
| Accuracy of the feeding(single feeding) | ±0.2 mm |
| Saw blade size | 54×1.6×6860 mm |
| Saw blade tension type | Hydraulic |
| Workbench height | 560 mm |
| Motor rating main drive | 7.5 kw |
| Motor rating of hydraulic feed | 1.5 kw |
| Overall dimensions (length x width x height) | 3390×1760×2260 mm |
| Weight(NET WEIGHT) | 3292kg |
You may also need

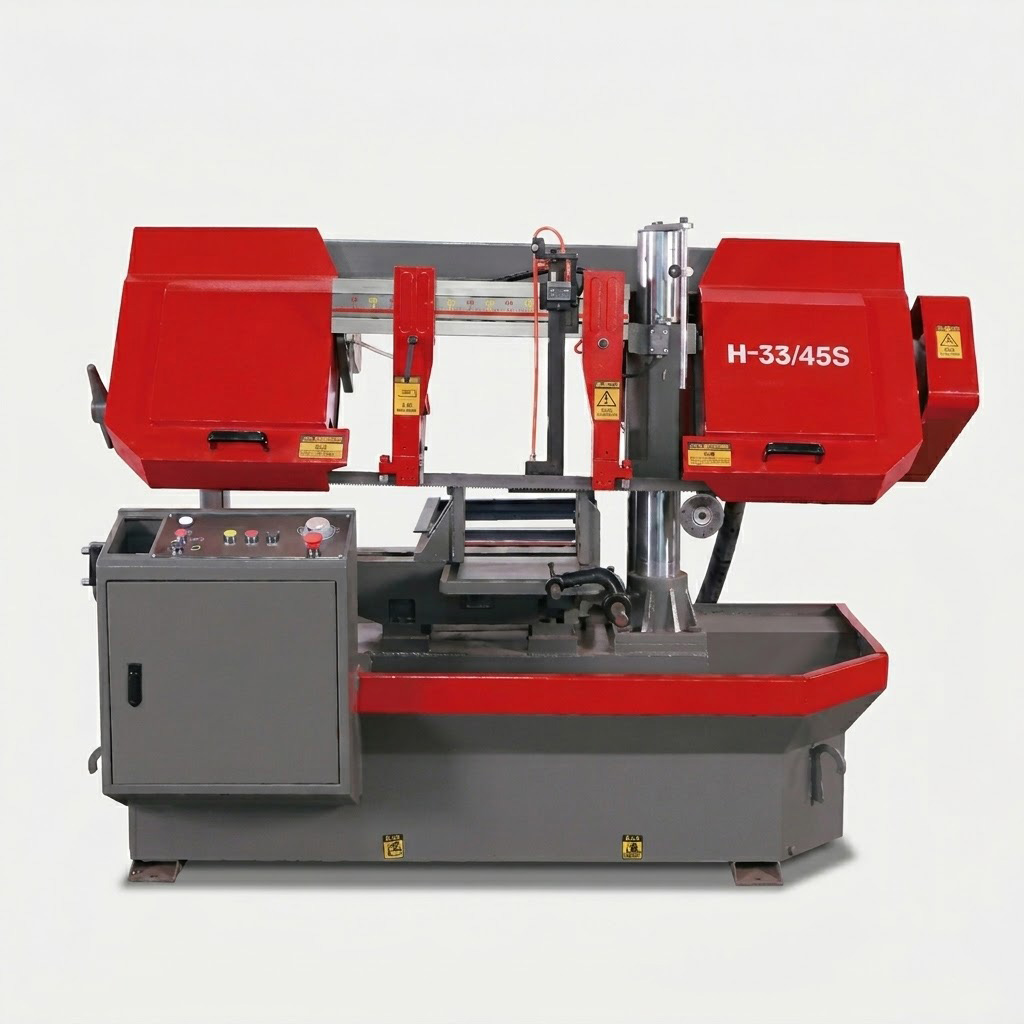

H-33/45S Semi-Automatic Horizontal Band Saw
