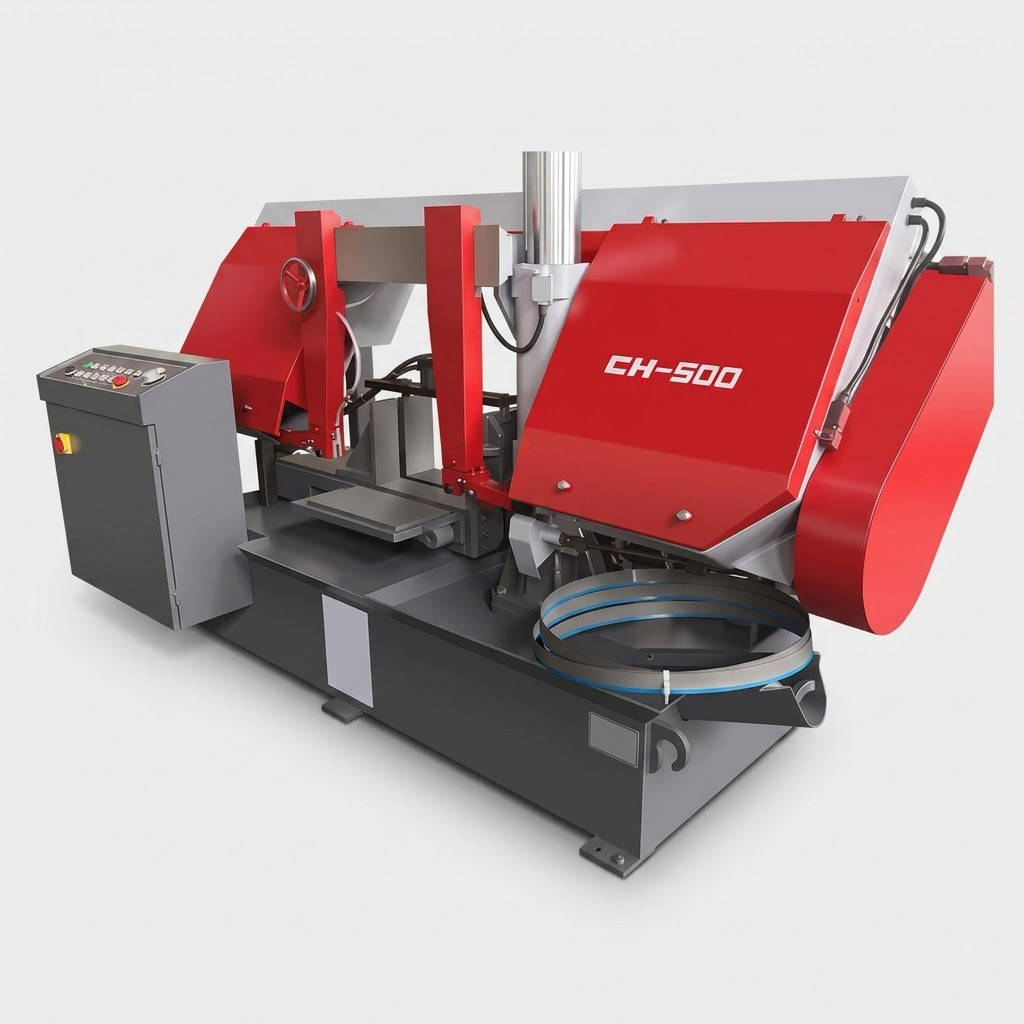

CH-500 Semi-automatic Control Horizontal Straight Cutting Bandsaws

Product Overview: MFG CH-500 Semi-Automatic Band Saw

Take on oversized industrial materials with confidence using the MFG CH-500, our large-capacity semi-automatic horizontal metal band saw. Specifically engineered to deliver strictly high-precision straight cuts, this machine is the ultimate solution for processing massive blocks of solid steel, heavy cast iron, and large non-ferrous metal components.

Built around a massively rigid, highly stable dual-column framework, the CH-500 directly integrates the stroke cylinder into its core structure to eliminate flex and vibration under heavy loads. It offers manufacturing facilities an unparalleled blend of heavy-duty structural integrity, stable daily performance, and economic efficiency, making it the perfect upgrade for demanding medium to small-batch production environments.

Heavy-Duty Features & Precision Performance

• Reinforced Dual-Column Architecture: The oversized double-column structure provides maximum rigidity, ensuring that even the heaviest cutting applications maintain perfect straight-cut accuracy without structural deflection.
• Smart Semi-Automatic Efficiency: Streamline your large-scale cutting cycles. Upon completing a cut, the machine automatically powers down and smoothly returns the saw frame to its customizable home position, significantly reducing operator fatigue.
• Infinite Hydraulic Downfeed: Achieve optimal cutting dynamics. The sawing feed speed is controlled by a highly responsive hydraulic system, allowing operators to make infinite, seamless adjustments tailored to the density of large workpieces.
• Heavy-Duty Hydraulic Clamping: Large materials require uncompromising security. The integrated hydraulic vise exerts immense clamping force, locking massive workpieces firmly in place to guarantee zero movement during operation.
• Advanced Carbide Blade Guidance: To handle the stress of large-capacity cutting, the saw band is supported by a premium combination of rolling bearings and hard alloy (carbide) guides. This high-precision guide seat setup ensures exact blade tracking and exceptionally long blade life.

Customizable Factory Options

Equip your MFG CH-500 to perfectly match your facility’s workflow:

• Advanced Blade Tensioning: Standard manual setup, with an available upgrade to an automated hydraulic saw blade tensioning system for effortless maintenance.
• VFD Speed Control: Optional Variable Frequency Drive (VFD) technology for highly precise, customizable cutting speeds.
• Motorized Material Handling: Optional electric feeder to assist in positioning extremely heavy metal bars and plates.
