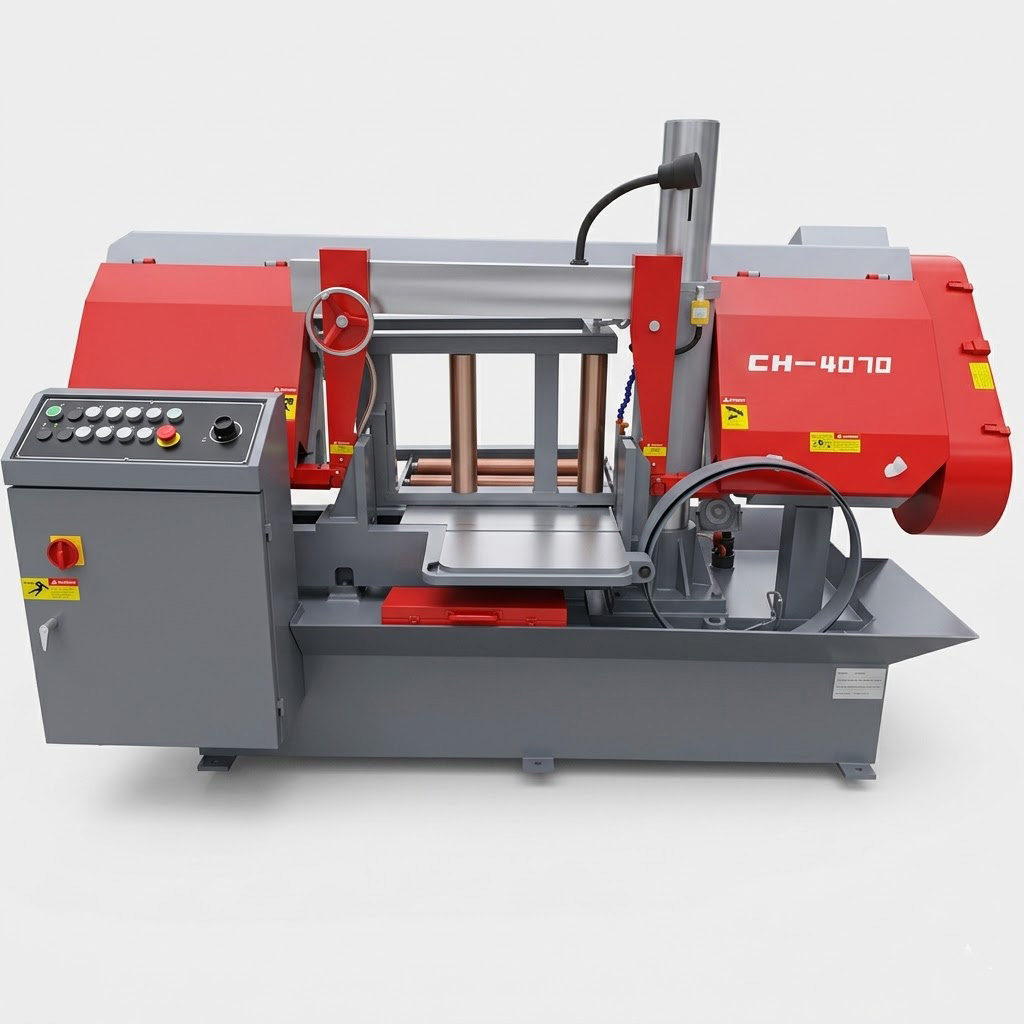

CH-4070 Semi-automatic Control Horizontal Straight Cutting Bandsaws

Product Overview: MFG CH-4070 Wide-Capacity Band Saw

Engineered specifically for processing wider materials and structural profiles, the MFG CH-4070 is a premier semi-automatic horizontal metal band saw. Delivering uncompromising high-precision straight cuts, this machine is the ultimate choice for fabricating large rectangular blocks, wide steel plates, cast iron, and non-ferrous metals.

At its foundation lies an exceptionally rigid and highly stable dual-column frame. By seamlessly integrating the stroke cylinder within this widened architecture, the CH-4070 completely eliminates structural flex during heavy operations. It provides metalworking facilities with a stable, reliable, and economically viable solution for wide-capacity, medium-to-small batch production.

Engineered for Wide-Profile Precision

• Widened Dual-Column Rigidity: The extended double-column structure is purposely built to accommodate wider workpieces, maintaining absolute stability and ensuring flawless straight-line accuracy across broad cutting surfaces.
• Automated Cycle Efficiency: Operating on a smart semi-automatic system, the CH-4070 automatically shuts off upon completing a cut. The saw frame then swiftly returns to its adjustable home position, minimizing downtime between operations.
• Responsive Hydraulic Feed: Achieve the perfect cut every time. The sawing feed speed is fully hydraulically controlled and infinitely adjustable, giving operators absolute command over the feed rate based on the width and hardness of the material.
• Secure Wide-Jaw Clamping: Wide workpieces require superior hold. The heavy-duty hydraulic vise provides immense, even clamping pressure across broad materials, preventing any shifting or vibration during the cut.
• Carbide-Enhanced Blade Guidance: The carefully designed guide seat utilizes a top-tier combination of rolling bearings and hard alloy (carbide) guides. This high-precision system ensures strict, correct guidance of the saw blade over wide spans, dramatically prolonging blade life.

Configurable Factory Options

Tailor the MFG CH-4070 to your specific structural metalworking needs:

• Blade Tensioning System: Comes standard with manual tensioning, with an optional upgrade to an automatic hydraulic tensioning system for effortless, consistent blade pressure.
• VFD Speed Control: Optional Variable Frequency Drive (VFD) technology for precise, customized cutting speed adjustments.
• Material Feeding Integration: An optional electric feeder is available to seamlessly handle the loading of wide and heavy metal profiles.
