CH-400 Semi-automatic Control Horizontal Straight Cutting Bandsaws

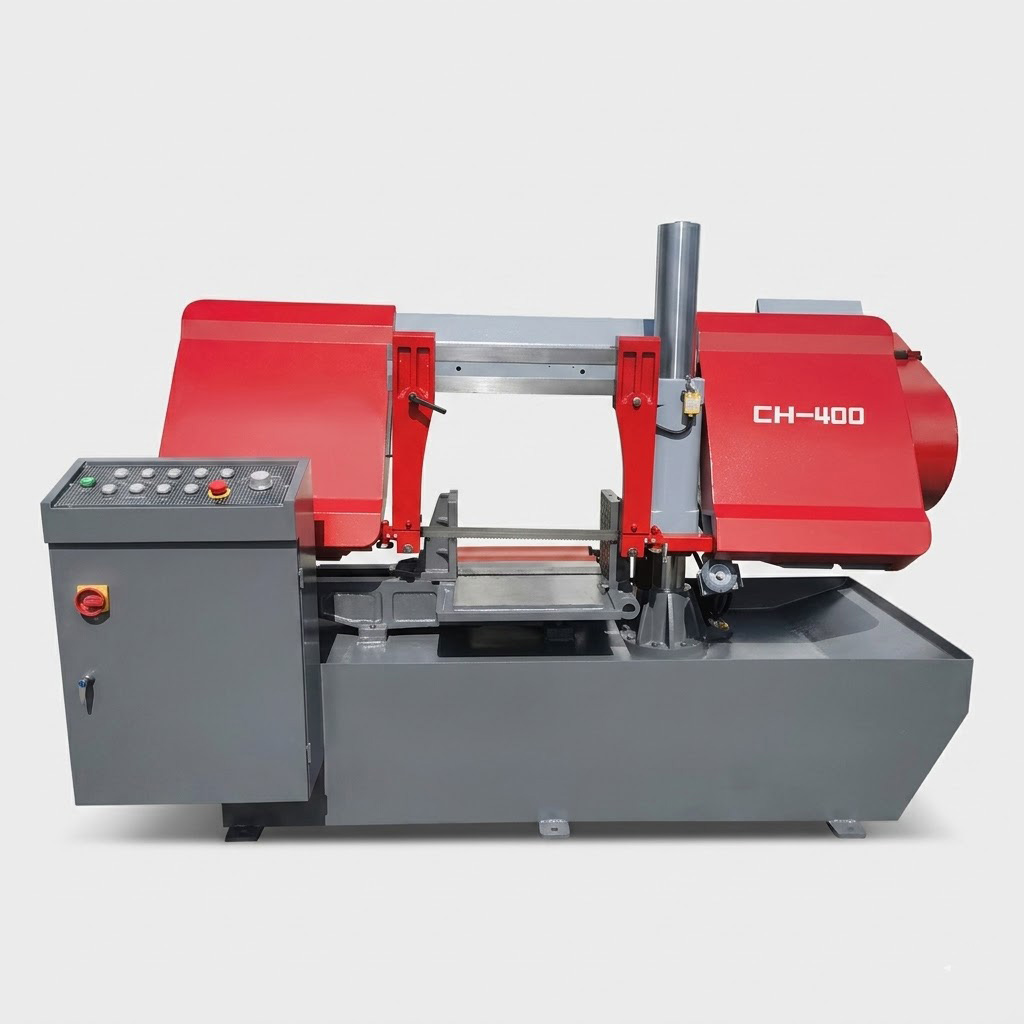

Product Overview: MFG CH-400 Semi-Automatic Band Saw

Step up your metal fabrication capabilities with the MFG CH-400, a highly dependable semi-automatic horizontal metal band saw. Engineered specifically for mid-capacity straight cutting, this machine is the ideal workhorse for processing solid steel, cast iron, and various non-ferrous metals in medium-batch production environments.

At the core of the CH-400 is a heavy-duty twin-pillar (dual-column) framework with the stroke cylinder fully integrated into the design. This minimizes vibrations during heavy cuts and ensures continuous, uncompromised stability. Combining an economic price point with industrial-grade precision, the CH-400 delivers exceptional straight-cut quality for machine shops looking to upgrade their daily throughput.

Core Capabilities & Structural Advantages

• Heavy-Duty Twin-Pillar Design: The robust dual-column architecture provides superior rigidity, eliminating structural flex and guaranteeing perfectly straight, high-precision cuts every time.
• Automated Cycle Completion: Streamline your workflow with the smart semi-automatic system. Once the cut is completed, the machine automatically powers down, and the saw frame retracts to its preset home position for the next cycle.
• Precise Hydraulic Feed Rate: Take full control of your cutting process with an infinitely adjustable, hydraulically driven downfeed, allowing you to match the exact feed rate to the specific material hardness.
• Hydraulic Vise Workpiece Locking: Ensure absolute safety and accuracy with the integrated hydraulic vise, which firmly clamps mid-sized workpieces in place to prevent any movement during operation.
• Carbide-Guided Blade Stability: The saw band is precisely directed by a combination of premium rolling bearings and hard alloy (carbide) guides. This advanced guide seat setup ensures perfect blade tracking and drastically reduces blade wear.

Factory Options for Customization

Optimize the MFG CH-400 for your specific operational requirements:

• Saw Blade Tensioning: Standard manual tensioning, with an option to upgrade to an automatic hydraulic tensioning system for effortless blade management.
• Variable Cutting Speed: Optional Variable Frequency Drive (VFD) technology for precise, frequency-controlled cutting speeds.
• Material Feeding: Optional motorized electric feeder to minimize manual handling of heavier metal bars.
