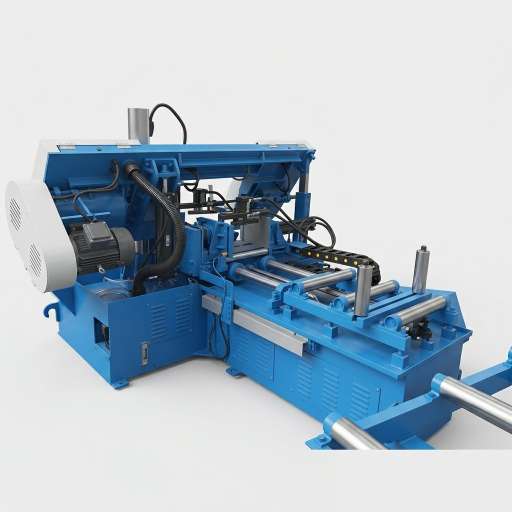

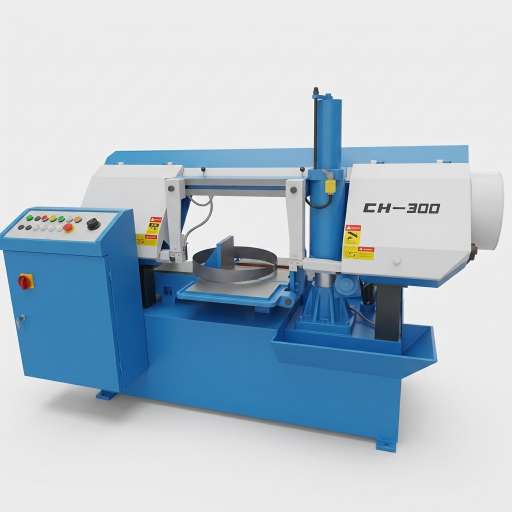

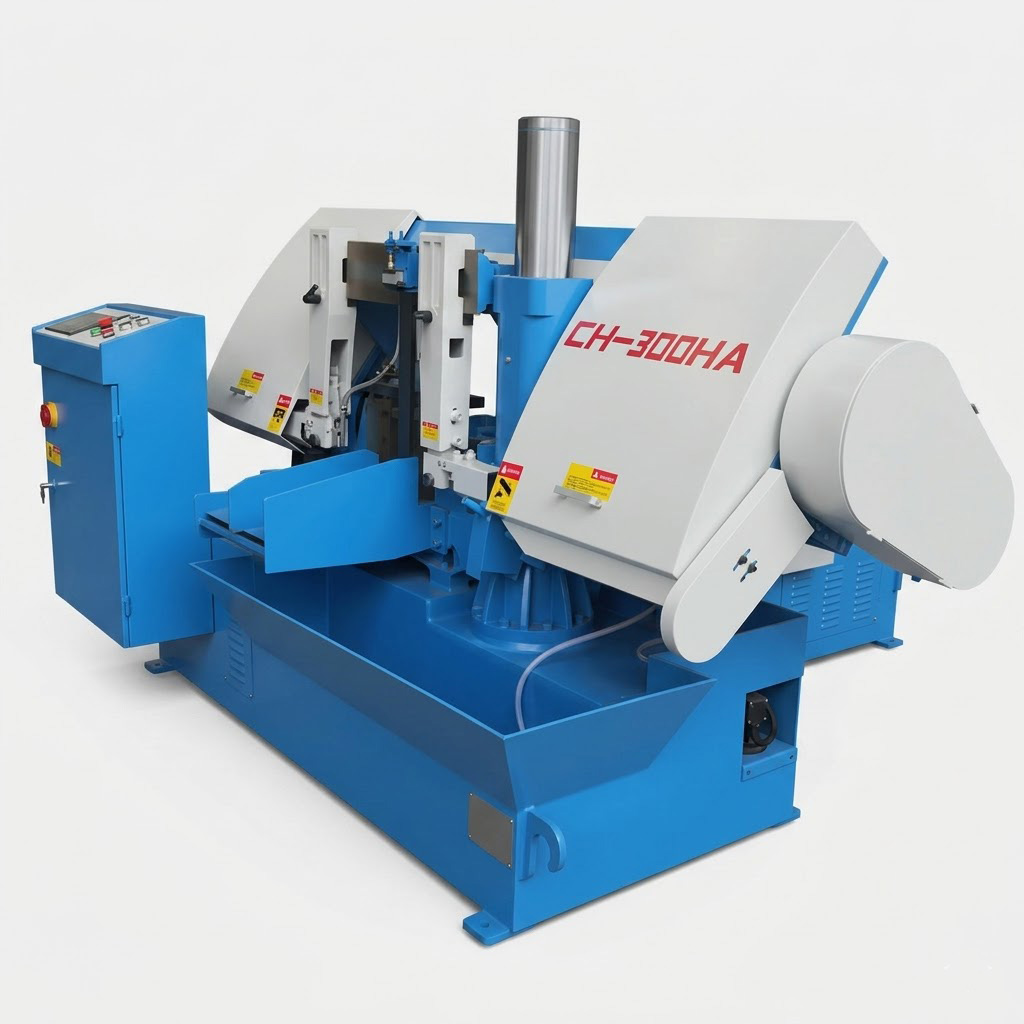

CH-300 Semi-automatic Control Horizontal Straight Cutting Bandsaws

Product Overview: MFG CH-300 Semi-Automatic Band Saw

The MFG CH-300 is an industry-leading semi-automatic, horizontal metal band saw meticulously designed for high-precision straight cuts. Engineered specifically for processing solid steel, cast iron, and various non-ferrous metals, it is the ultimate cost-effective solution for facilities handling medium to small-batch production.

Built upon a highly stable and rigid dual-column framework, the CH-300 integrates the stroke cylinder directly into the frame to minimize vibrations. This optimized structural design guarantees reliable, daily performance and exceptional cutting accuracy, making it an economically smart investment without compromising on manufacturing quality.

Key Features & Performance

• Rigid Dual-Column Architecture: The robust double-column design ensures absolute stability during operation, providing the structural integrity required for precise straight cutting.
• Smart Semi-Automatic Cycle: Designed for operational efficiency, the machine automatically shuts off at the end of each cutting cycle, and the saw bow instantly returns to its adjustable home position, saving valuable time.
• Infinitely Adjustable Downfeed: The sawing feed speed is fully hydraulically controlled, allowing operators to make infinite, seamless adjustments based on material density.
• Secure Hydraulic Clamping: Workpieces are firmly locked in place via a powerful, hydraulically driven vise, preventing any material shifting during the cut.
• Extended Blade Lifespan: The saw blade is expertly guided by a combination of precision rolling bearings and hard alloy (carbide) guides. This high-precision guide seat ensures accurate blade alignment and significantly prolongs the life of your consumables.

Customization & Optional Upgrades

Tailor the MFG CH-300 to meet your exact production workflow with our available factory options:

• Blade Tensioning: Choose between standard manual tensioning or upgrade to a fully automatic, hydraulic saw blade tensioning system.
• Speed Control: Optional Variable Frequency Drive (VFD) for precision cutting speed conversion.
• Material Handling: Optional electric feeder to further automate your material loading process.
