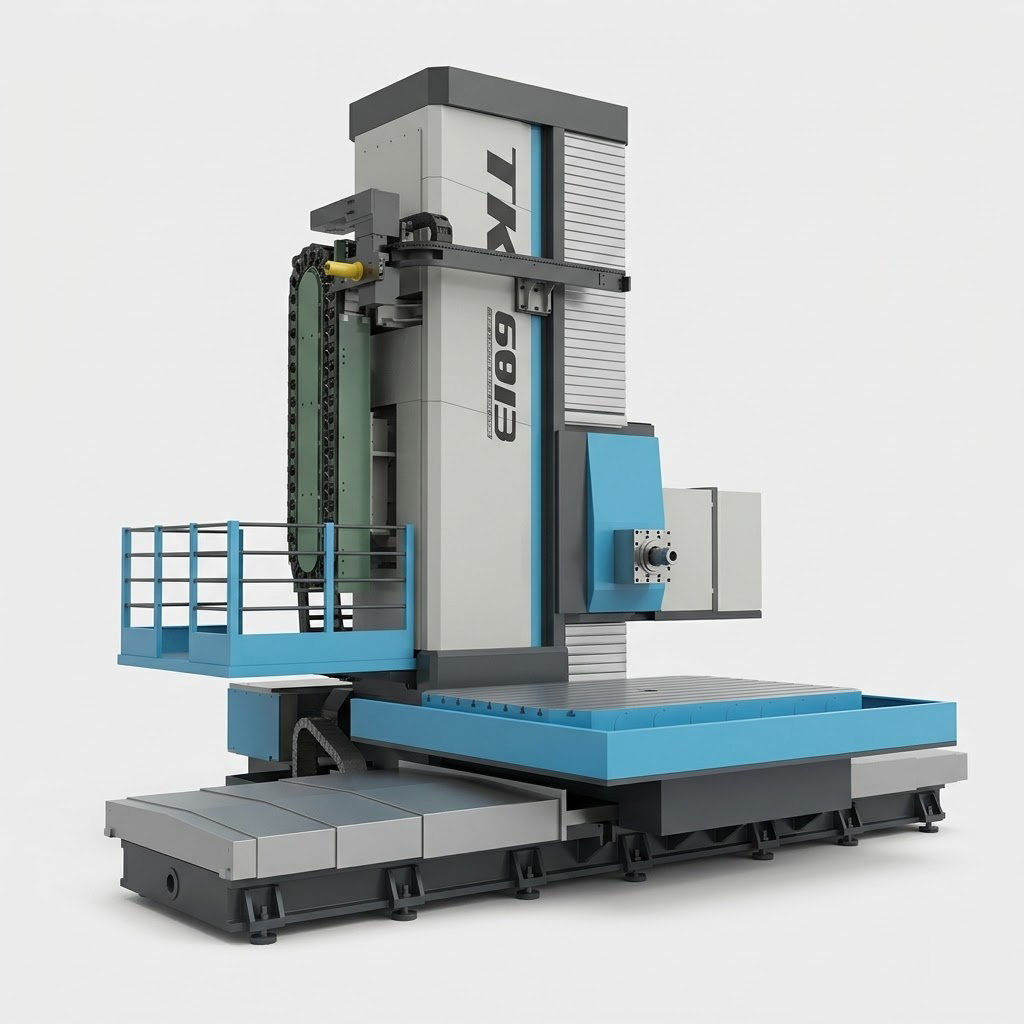

TK6813 CNC Planer Type Boring and Milling Machine

TK6813 CNC Planer Type Boring and Milling Machine – Heavy-Duty $\phi 130$mm Precision Powerhouse

Take your heavy-duty machining to the next level with the TK6813 CNC Planer Type Boring and Milling Machine. This high-torque, high-rigidity center is specifically engineered for large box-type components, massive frames, and high-precision mold manufacturing. Featuring a robust $\phi 130$mm boring spindle and a specialized square ram (V-axis), the TK6813 offers unparalleled cutting depth and stability for the most demanding industrial tasks.

Unmatched Rigidity with Hydrostatic Technology

The TK6813 is built on a T-shaped bed layout where the X, Y, and Z axes utilize full hydrostatic guide rails. This ensures zero-friction movement, exceptional vibration dampening, and long-term accuracy even under a massive 40,000 kg table load.

Advanced 6-Axis Control & Precision

• Fanuc 0i-MF Plus System: Integrated with Japanese Fanuc AC digital servo drives for high-speed, stable performance and 4-axis simultaneous linkage.
• Dual-Travel Expansion: Unique combination of W-axis (spindle stroke) and V-axis (square ram stroke) provides extreme flexibility for deep-hole boring and complex surface milling.
• 360° Hydraulic Rotary Table: The B-axis features a circular grating with 8 arc-second positioning accuracy, allowing for precision machining at any angle through a high-pressure multi-point braking system.

Engineered for Heavy Industry

Driven by a powerful 44 kW motor and a 3-speed mechanical transmission, the TK6813 delivers up to 5500 N.m of torque. The nitrided 38CrMoAlA alloy boring spindle and SKF group bearings ensure that this machine tool remains the most reliable asset in your factory for years to come.
