ZX-40/ZX-32 Series Auto-Feed Drilling & Milling Machine

Product Brief

This brochure contains two categories of drill-mill combination machines:

1. ZX-40 Series Gear Head Auto-Feed Drill Mill: Hardened gear transmission for heavy-duty cutting, split into basic manual feed models and upgraded dual-speed auto-feed models.
2. ZX-32 Series Belt Drive Drill Mill: Low-noise belt pulley transmission, light-medium load machining for small hardware and mold repair work.

1. ZX-40 Gear Head Auto-Feed Series Core Advantages

1. Heavy-duty hardened gear spindle head delivers large torque, ideal for large hole drilling and heavy M24 tapping; B1 upgraded versions support dual-speed motor to expand the spindle speed range.

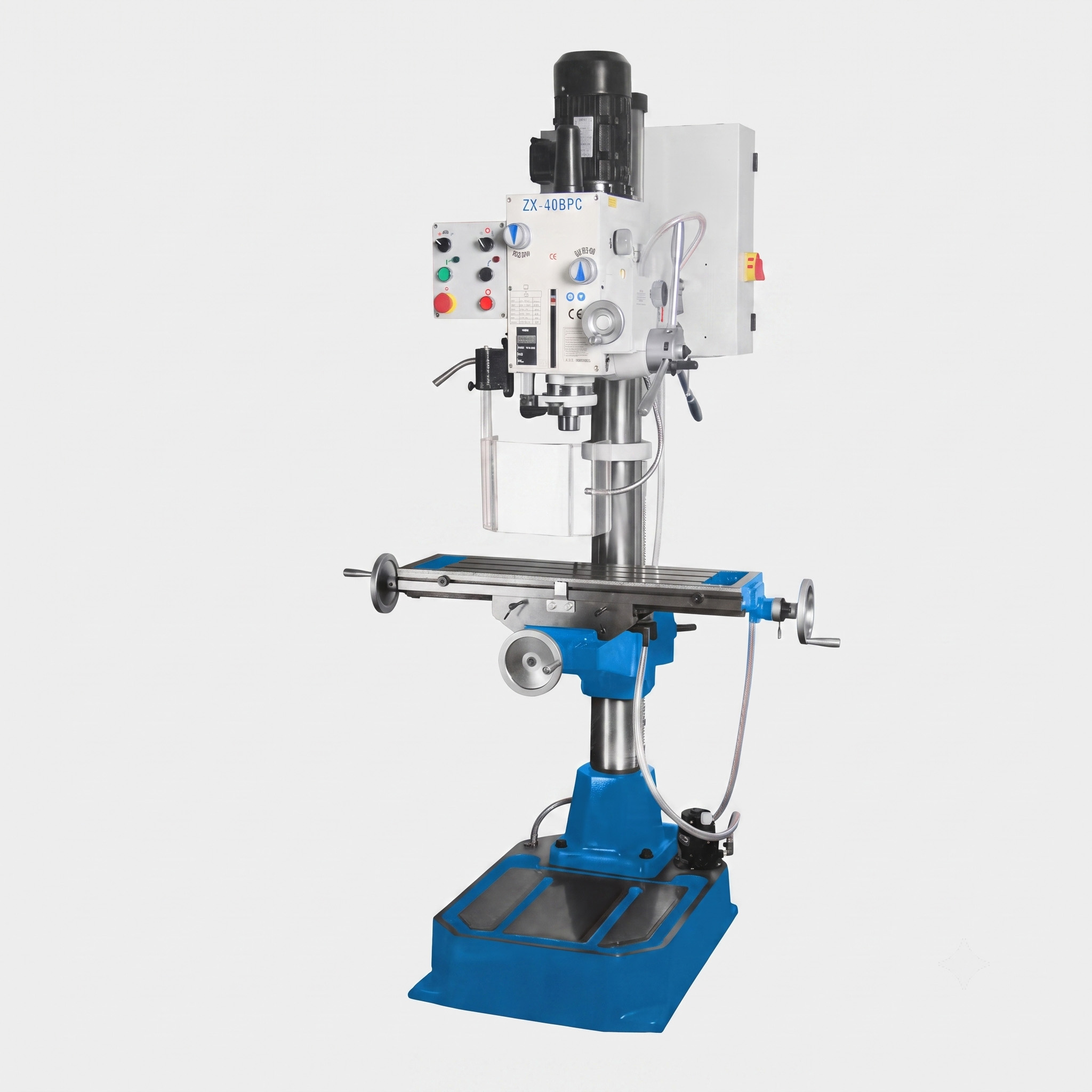

2. ZX-40BHC/BPC series equipped with independent automatic spindle feed system, three adjustable feed rates (0.12 / 0.18 / 0.25 mm/r), supports manual jog and automatic cycle feed.
3. Thickened φ115 solid column improves overall rigidity, cross T-slot worktable with 500×190 travel, extended large-size worktable optional for oversized fixtures.
4. Two cooling configuration options:
5. Processing capacity: Max φ40 drilling on cast iron, φ32 on steel, vertical milling diameter up to φ22; standard MT4/R8 spindle taper compatible with universal tool holders.

2. ZX-32 Belt Drive Drilling Milling Machine Core Advantages

1. Belt pulley drive structure with low operation noise, suitable for light drilling, reaming, tapping and face milling on soft metal and thin steel plates.
2. 12-stage wide spindle speed range (100–2150 r/min), covers high-speed finishing and medium-load hole machining.
3. Adjustable headstock and workbench: The spindle head can lift, lower and horizontally reverse to expand the processing range; integral cast stable frame, effective table working area reaches 585×190 mm.
4. Customizable multi-spindle attachment available for simultaneous multi-hole batch processing; two variants (HC without coolant / PC with coolant pump).
5. Compact and cost-effective bench-floor type machine, max drilling diameter φ31.5, MT3 spindle taper, perfect for small workshops, prototype and small-batch production.
