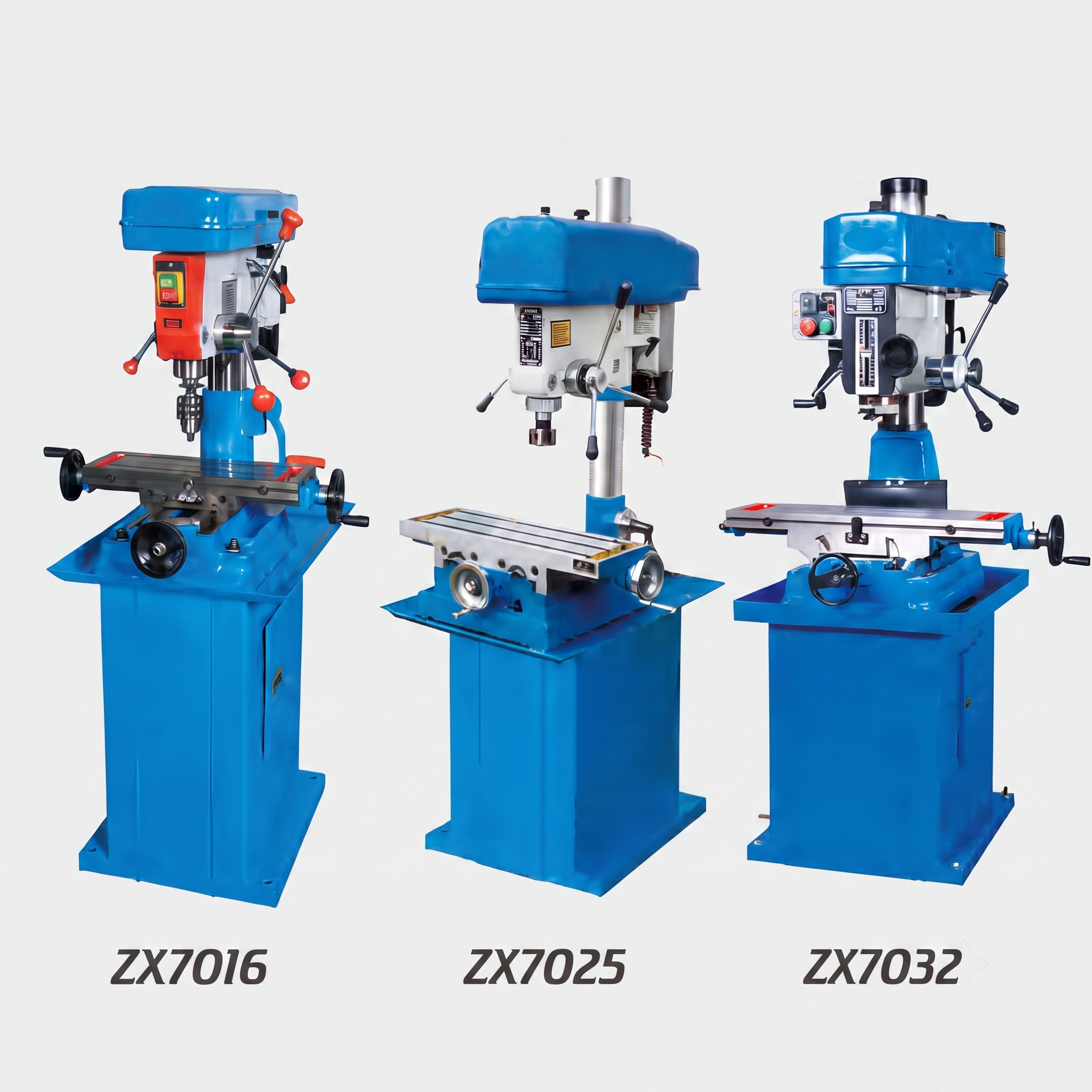

ZX70 series Drilling & Milling Machine

Product Overview: ZX70 Series Drilling & Milling Machine

ZX7016/ZX7025/ZX7032 are multi-function bench type drill mill combination machines, integrating drilling, tapping, vertical milling and face milling functions, widely used in small hardware, mold repair, workshop prototype processing.

Model Code Explanation

• Z: Drilling machine
• X: Milling function
• 70: Bench drill mill series
• 16/25/32: Max drilling diameter
• S: Electric vertical lifting
• B: 3-speed feed
• 1: Double speed motor version

Core Advantages

1. Multi-function Integrated Machining
   Complete drilling, vertical milling and face milling in one machine; three models cover max drill φ16~φ31.5, face mill up to φ80, suitable for small batch multi-process workpieces.
2. Wide Adjustable Spindle Speed
   12 or 5 speed stages with wide rotation range (100–2870r/min), match aluminum, cast iron, steel and plastic processing. MT2/MT3 standard spindle taper fits standard tool holders.
3. Precision Cross Worktable
   Long travel cross slide table with T-slots for vice and fixture mounting, stable manual feed for precise milling and hole positioning. Optional extended table size for larger workpieces.
4. Rich Standard & Optional Accessories
   Standard package includes drill chuck, milling cutter, arbor, wrench set; optional milling chuck, angle vice, safety guard, digital readout scale, three-axis DRO, machine stand and coolant pump for upgraded precision operation.
5. Compact Bench Design
   Small footprint, can be placed on workbench or matched with independent machine stand; single/three-phase motor options available for different factory power supply.

Model Differentiation

• ZX7016: Mini light-duty model, max drill φ16, 550W motor, compact size for small workshop prototype processing.
• ZX7025: Medium universal model, max drill φ25, 750W 6P motor, larger table travel for general hardware batch machining.
• ZX7032: Heavy-duty bench drill mill, max drill φ31.5, 1100W single-phase /1500W three-phase motor, thicker column, multiple optional extended worktable sizes for heavy cutting.
